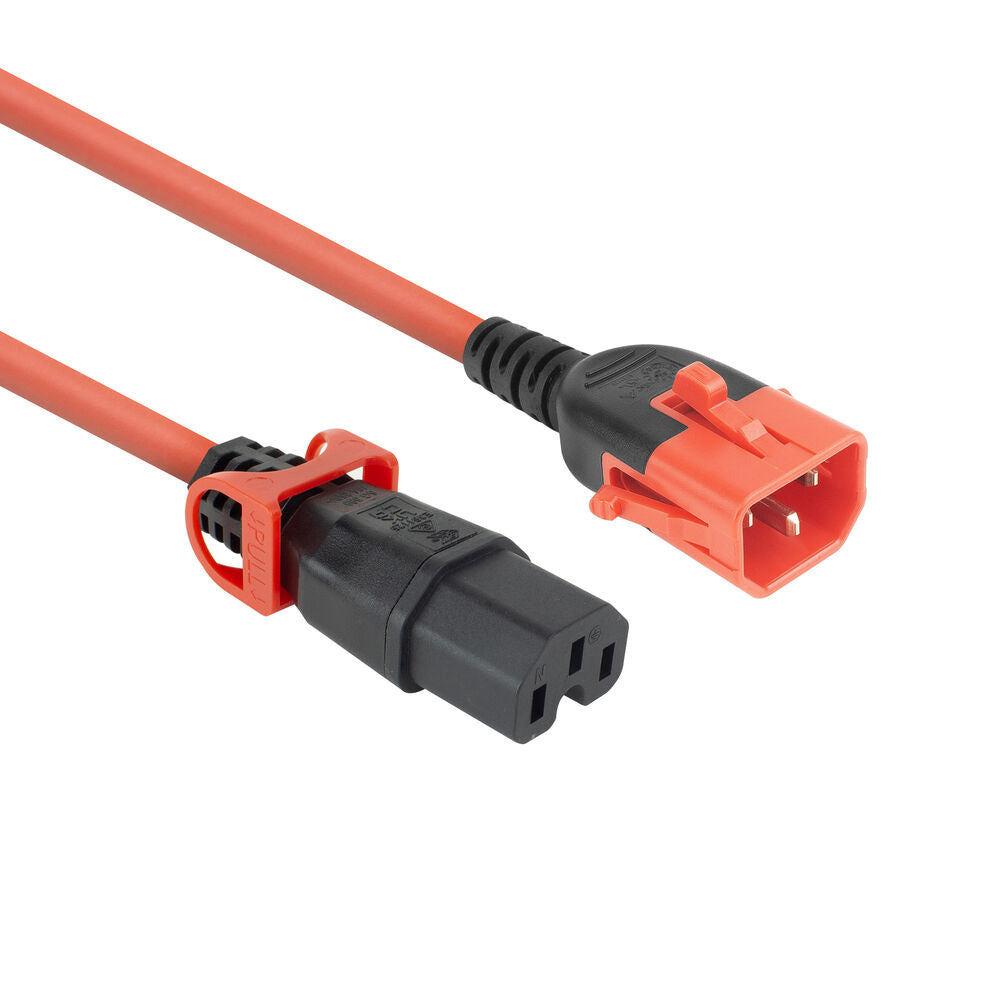

IEC Lock PC3877 3m C14 Dual-Lock to C15 Locking Power Cable - Red
Secure Power Connections for Critical Equipment.
The IEC Lock PC3877 is a 3m locking power cable designed to help prevent accidental disconnection in data centres, server rooms, broadcast systems, medical environments and other critical installations. Its C14 Dual-Lock connector secures into compatible C13 outlets, while the C15 IEC Lock connector helps maintain a secure connection to compatible C16 equipment inlets. Rated at 10A/250V, the cable uses 3-core 1.00mm² H05RN-F construction with high-purity bare copper conductors and a durable red rubber jacket. A lock retention force greater than 100N helps protect connected equipment against cables being pulled loose or disconnected through vibration.
Features
- Dual Locking Power Connection - Locking connectors at both ends help protect against accidental cable disconnection
- C14 Dual-Lock Connector - Secures the plug into compatible C13 outlets
- C15 IEC Lock Connector - Locks securely into compatible C16 equipment inlets
- Greater Connection Security - Helps prevent cables from being pulled or vibrated out of connected equipment
- Greater Than 100N Lock Retention - Provides a secure mechanical connection for critical installations
- 10A Power Rating - Suitable for compatible servers, switches, UPS systems and network equipment
- 3m Cable Length - Provides extended reach within racks and equipment installations
- H05RN-F Rubber Cable - Provides durable and flexible performance for demanding installations
- Red Cable Jacket - Supports quick identification of individual power feeds and circuits
- Quick Release Mechanisms - Dedicated release controls allow intentional cable removal
- Class I Protection - Includes a protective earth conductor for compatible earthed equipment
Specifications
- Connector A: 10A C14 Dual-Lock Male Connector
- Connector B: 10A C15 IEC Lock Female Connector
- Complete Power Cable Rating: 10A/250V

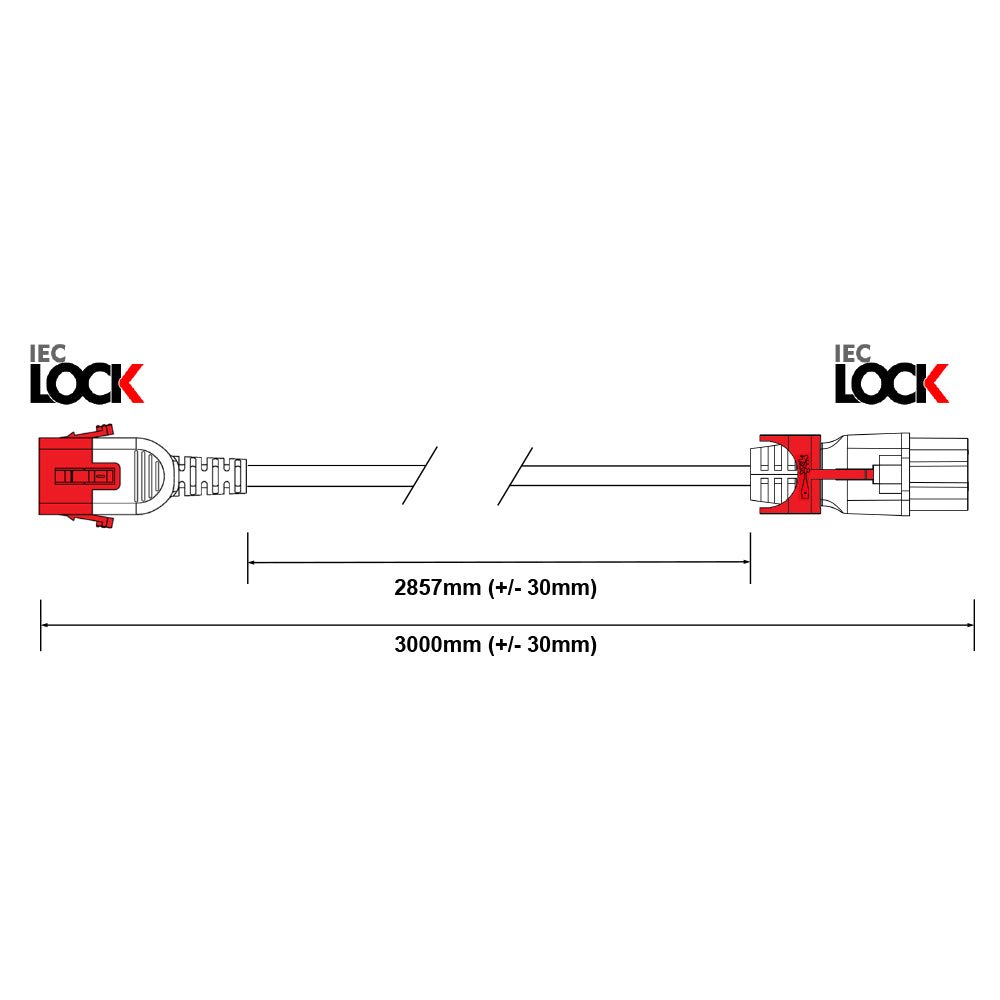

- Cable Length: 3m ±30mm
- Cable Length Between Connector Bodies: 2857mm ±30mm
- Cable Type: 3-Core H05RN-F
- Conductor Cross-Sectional Area: 1.00mm²
- Number of Conductors: 3
- Number of Strands: 32
- Conductor Material: 99.97% Bare Copper
- Core Colours: Brown, Blue and Green/Yellow
- Cable Jacket Material: Rubber
- Insulation Material: Rubber
- Cable Colour: Red, RAL3020
- Overall Cable Diameter: 7.3mm
- Jacket Wall Thickness: 0.8mm
- Insulation Wall Thickness: 0.6mm
- Minimum Bend Radius: 36.5mm
- Rated Temperature: -15~60°C
- Nominal Resistance: 19.5Ω/km
- Lock Retention: Greater Than 100N
- Protection Class: Class I
- Connector Colours: Black and Red
Materials
- C14 Housing: PBT
- C14 Over-Moulding Cover: PVC
- C14 Pins: Brass Strip
- C15 Over-Moulding Cover: PVC and TPE
- C15 Terminal Housing: Nylon PA66
- C15 Contact Material: Copper Alloy
- C15 Handle: Fire-Retardant PA66
- C15 Locking Blade: Hardened Steel
- C15 Spring: Spring Steel
Standards And Compliance
- IEC / BS EN 60320-1:2015
- IEC / BS EN 60320-3:2014
- BS EN 50525-2-21
- UK SI 2016 No. 1101 Electrical Equipment Safety Regulations
- UK SI 2013 No. 3113 Packaging Waste Regulations
- EU 2014/35 Electrical Equipment Safety Regulations
- EU 94/62/EC Packaging and Packaging Waste
- UKCA, CE, ENEC and VDE Markings
- Manufactured Under ISO 9001:2015 Process Controls
