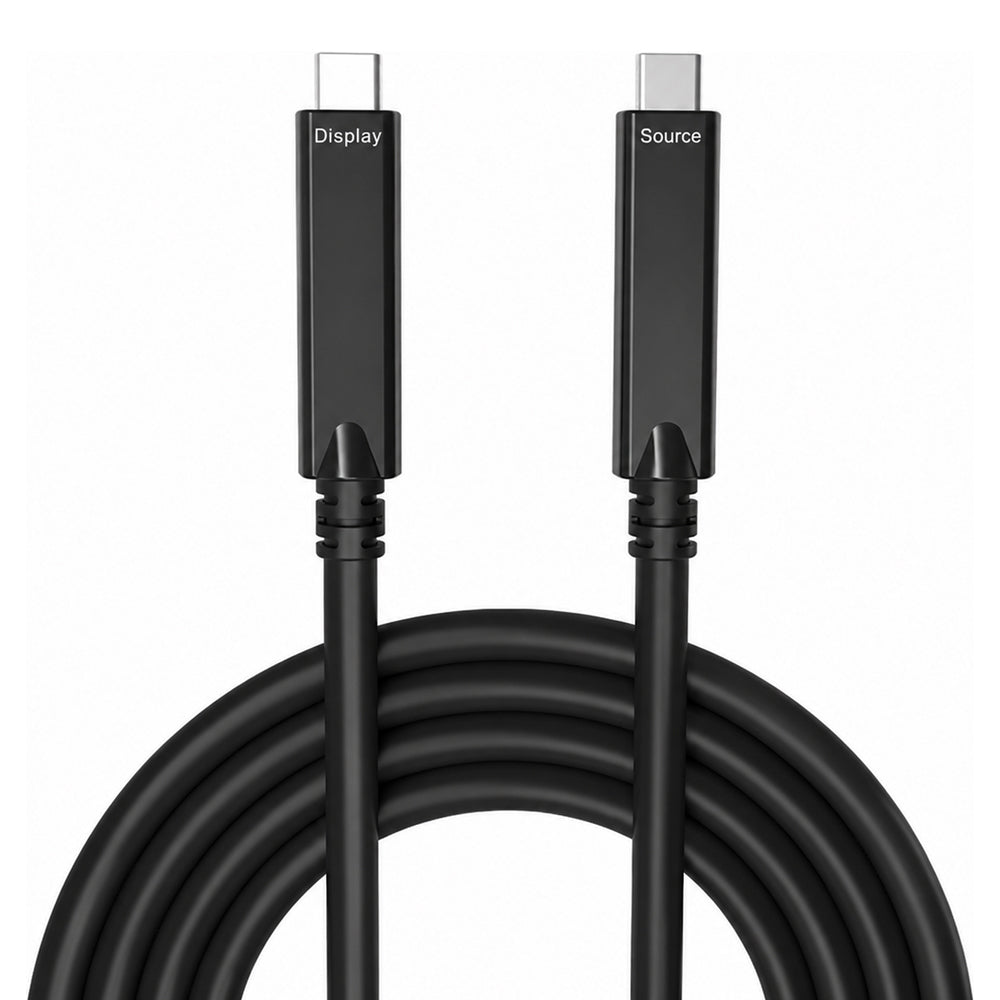

LinkQnet SCFC-3420 10m USB3.2 Gen 2×1 USB Type-C Active Optical Cable with DisplayPort Alt Mode and Power Delivery
Long-distance USB, Video and Power Through One Unidirectional Cable.
The LinkQnet SCFC-3420 is a unidirectional 10m USB Type-C active optical cable designed to carry high-speed data, DisplayPort Alt Mode video and USB Power Delivery over an extended distance. Its adaptive lane allocation supports either four-lane DisplayPort 2.1 with USB2.0 or two-lane DisplayPort 1.4 with USB3.2 at up to 10Gbps, allowing compatible devices to select the appropriate operating mode. In four-lane mode, the cable supports up to 8K @30Hz without DSC or 8K @60Hz HDR with DSC; two-lane mode supports up to 4K @60Hz without DSC or 4K @120Hz HDR with DSC. The optical design helps resist EMI and RFI, while 60W Power Delivery, Plug-and-Play operation and clearly labelled Source and Display connectors simplify installation.
Features
- 10Gbps USB Performance - Supports USB3.2 Gen 2×1 data transfer over a 10m connection
- Adaptive DisplayPort Modes - Supports four-lane DisplayPort 2.1 with USB2.0 or two-lane DisplayPort 1.4 with USB3.2
- High-Resolution Video - Supports up to 8K @60Hz HDR with DSC or 4K @120Hz HDR with DSC, depending on the operating mode
- 60W Power Delivery - Carries up to 20V 3A for charging compatible USB Type-C devices
- Active Optical Construction - Uses optical fibre for high-speed signals to support extended distances and resist EMI and RFI

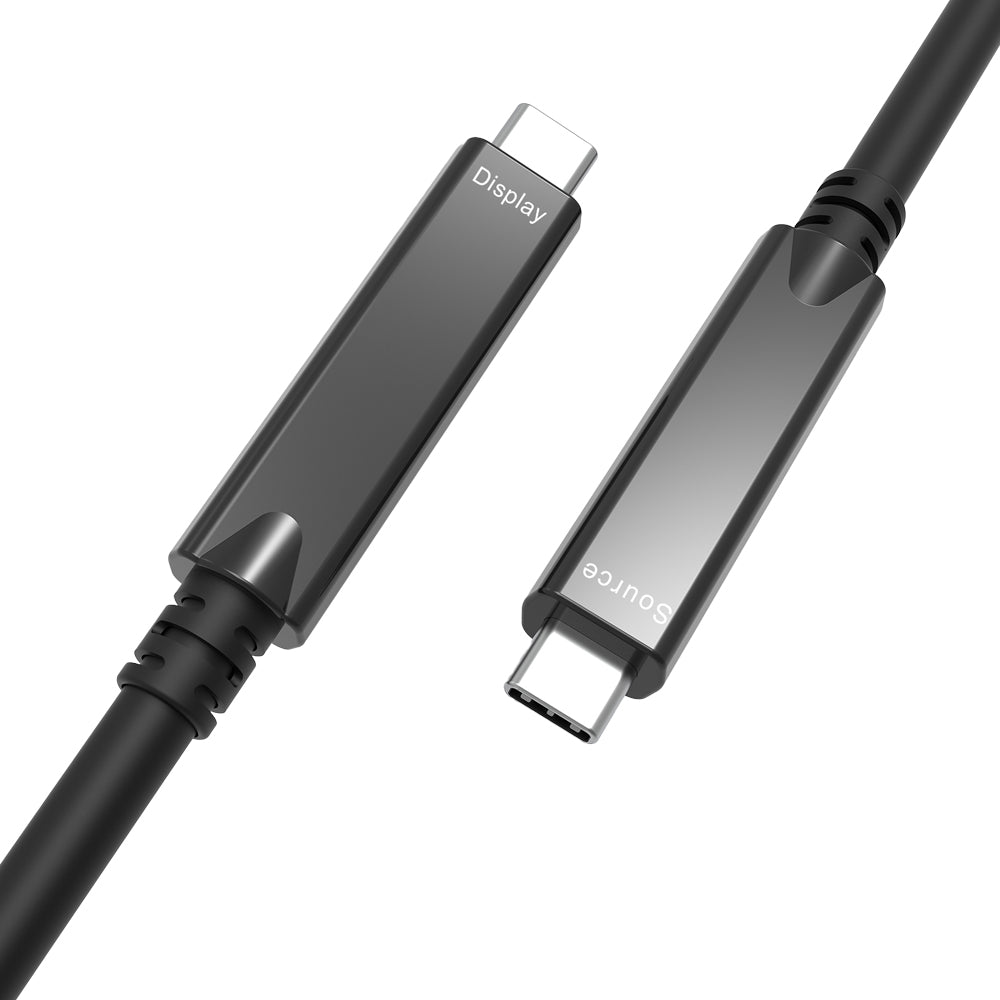

- Unidirectional Connection - Clearly labelled Source and Display connectors help ensure correct installation
- Reinforced Cable - TPE jacket and Kevlar filler provide flexibility and mechanical support
Specifications
Connectivity
- Connector 1: USB Type-C Male, Straight, Source
- Connector 2: USB Type-C Male, Straight, Display
- Unidirectional: Yes
- USB Standard: USB3.2 Gen 2×1
- Maximum USB Data Rate: 10Gbps
- Connector Housing: Zinc-Alloy
Video
- Four-Lane Mode: DisplayPort 2.1 with USB2.0
- Four-Lane Video Bandwidth: Up to 40Gbps
- Four-Lane Video Resolution: Up to 8K @30Hz without DSC or 8K @60Hz HDR with DSC
- Four-Lane USB Data Rate: Up to 480Mbps
- Two-Lane Mode: DisplayPort 1.4 with USB3.2
- Two-Lane Video Bandwidth: Up to 16.2Gbps
- Two-Lane Video Resolution: Up to 4K @60Hz without DSC or 4K @120Hz HDR with DSC
- Two-Lane USB Data Rate: Up to 10Gbps
Power
- USB Power Delivery: Up to 60W
- Maximum Power Profile: 20V 3A
- Typical Cable Power Consumption: 1.2W at 5V Input
Cable Construction
- Optical Fibre Type: Multimode Fibre
- Outer Diameter: 6.5mm
- Jacket Material: TPE
- Cable Reinforcement: Kevlar Filler
- Minimum Bend Radius: 20mm Dynamic; 10mm Static
- Tensile Strength: 200N Long-Term; 400N Short-Term
Environmental
- Operating Temperature: 0~50°C
- Storage Temperature: -40~70°C
- Relative Humidity: 10~80% RH
Notes
- Connect the Source-labelled end to the host device and the Display-labelled end to the receiving device
- DisplayPort Alt Mode, Power Delivery and the stated video resolutions require compatible connected equipment
- DSC is required for 8K @60Hz HDR and 4K @120Hz HDR
- The cable can operate in USB mode through compatible Thunderbolt ports but is not a Thunderbolt cable and does not support the Thunderbolt 40Gbps protocol
