LinkQnet SCDC-3120 10m USB3.2 Gen 2×1 USB Type-C 10Gbps Data-Only Active Optical Cable
Long-distance 10Gbps Data Through One Unidirectional Cable.
The LinkQnet SCDC-3120 is a unidirectional 10m USB Type-C active optical cable designed specifically for high-speed USB data transmission. Supporting USB3.2 Gen 2×1 speeds up to 10Gbps, it provides an extended connection between compatible USB Type-C host and device equipment while retaining backwards compatibility with USB2.0 and USB1.1. Its hybrid copper and OM3 multimode-fibre construction carries high-speed signals over optical fibre while supplying up to 5V 1.5A to the remote device. This design helps resist EMI and reduces electromagnetic radiation, supporting stable operation in electrically demanding environments. Clearly labelled Host and Device connectors simplify correct installation, while Plug-and-Play and hot-plug support allow convenient deployment without an external power supply.
Features
- 10Gbps USB Performance - Supports USB3.2 Gen 2×1 data transfer over the 10m cable length
- Data-Only Connectivity - Designed for USB data transmission without DisplayPort Alt Mode video support
- OM3 Optical Transmission - Uses multimode optical fibre for high-speed signal transmission over an extended distance

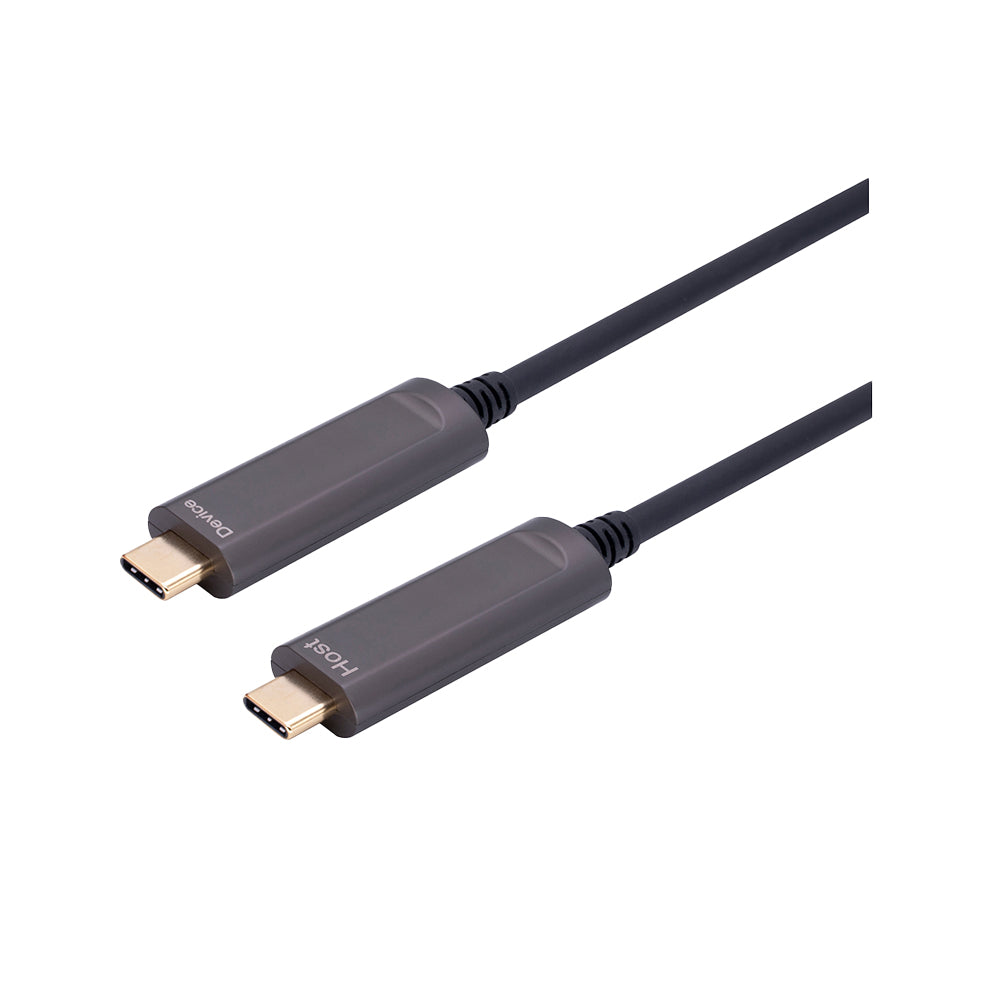

- Unidirectional Connection - Clearly labelled Host and Device connectors help ensure correct installation
- Remote Device Power - Supplies up to 5V 1.5A to compatible connected devices
- EMI Resistance - Hybrid optical construction helps maintain stable operation in electrically demanding environments
Specifications
Connectivity
- Connector 1: USB Type-C Male, Host

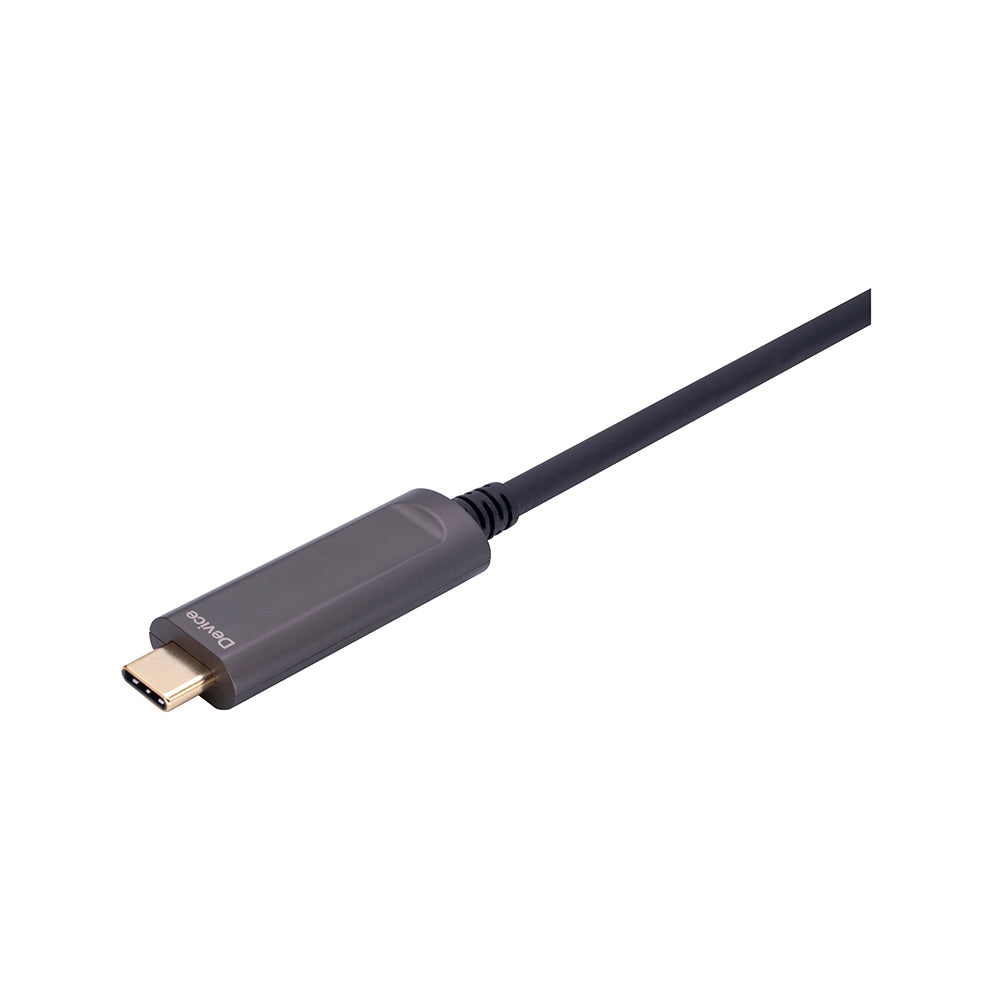

- Connector 2: USB Type-C Male, Device
- Signal Direction: Unidirectional
- USB Standard: USB3.2 Gen 2×1
- Maximum USB Data Rate: 10Gbps
Power
- Remote Device Power: Up to 5V 1.5A
- Supply Voltage: 4.5~5.5V
- Working Current: 90mA
- Typical Power Consumption: 0.4W
- Maximum Power Consumption: 0.5W
Cable Construction
- Cable Type: Hybrid Active Optical Cable
- Cable Length: 10m
- Optical Fibre Type: 2× OM3 Multimode Fibre
- Optical Wavelength: 850nm
- Outer Diameter: 4.5mm
- Minimum Bend Radius: 20mm
- Working Bend Radius: 40mm
- Bend Endurance: 20,000 Cycles at 180°
- Tensile Strength: 300N Short-Term; 150N Long-Term
- Crush Resistance: 500N/100mm Short-Term; 100N/100mm Long-Term
Environmental
- Operating Temperature: -20~50°C
Compliance
- Laser Classification: Class 1
- Laser Safety Standards: EN 60825-1:2007 and EN 60825-2 A2:2010
- Environmental Compliance: RoHS
Notes
- Connect the Host-labelled end to the host computer or controlling device and the Device-labelled end to the remote USB device
- The cable is unidirectional and will not operate correctly when the Host and Device connections are reversed
- Data-only means that DisplayPort Alt Mode video is not supported; the cable still supplies up to 5V 1.5A to the remote device
- The 5V 1.5A output is not USB Power Delivery and may not be sufficient for devices with higher power requirements
