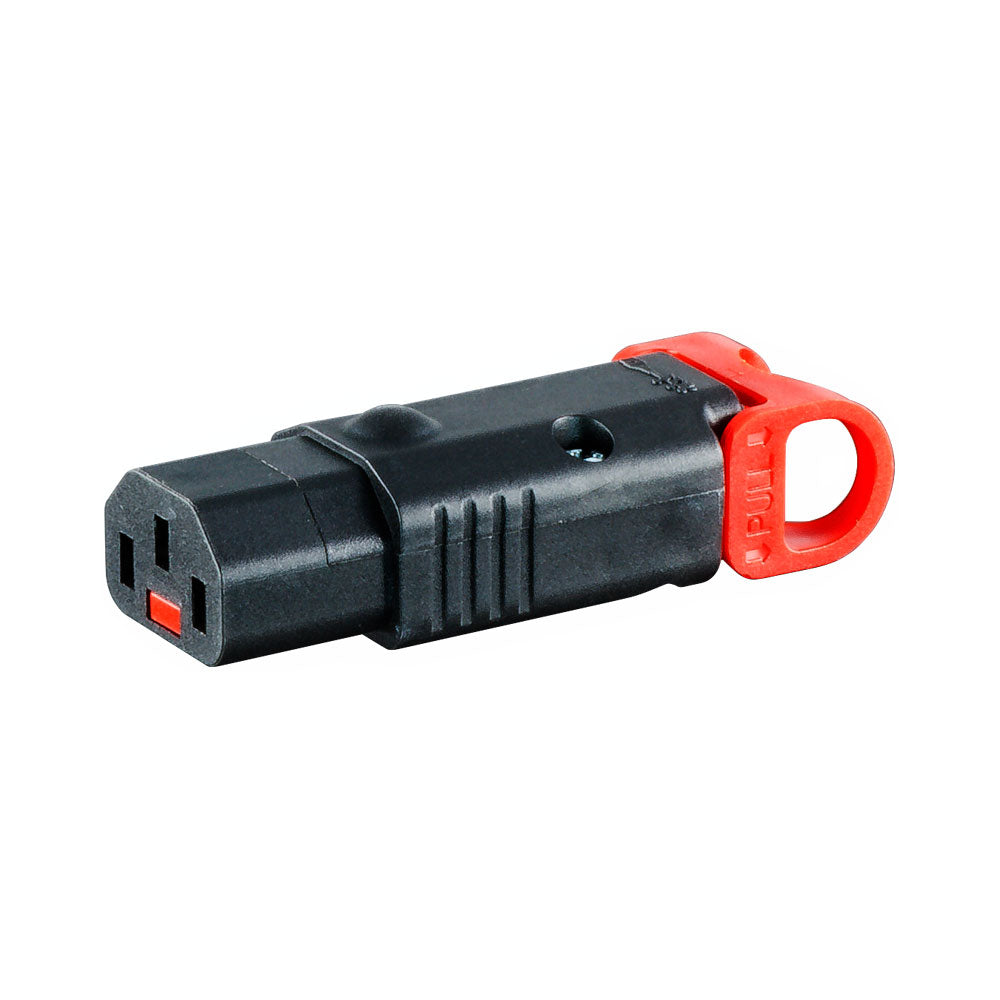

Features
- Locking C13 IEC Connector - Prevents accidental power loss with >100N retention force
- Rewireable Design - Flexible installation and easy field termination
- Fits Standard C14 Inlets - Universal compatibility
- Anti-Vibration Construction - Ideal for racks, cabinets and mobile equipment
- Easy-Pull Lock Release Handle - Quick, controlled disconnection
- LSZH Housing - Low smoke, zero halogen for safer installations
- Cold-Condition Ready - Suitable for low-temperature environments
Specifications
Electrical Ratings: 10A 250V
Mechanical and Electrical
- Terminal Capacity: 3-Core Cable up to 1.5mm²
- Max. Cable Diameter: 8mm
- Dielectric Strength: 1.5kV Max.
- Withdrawal Force: >100N
- Protection Class: Class I (IEC EN 61140)
- Flammability Rating: UL94 V-0 Equivalent
Materials
- Housing and Chassis: Nylon PA66, LSZH (Black)
- Lock Lever and Handle: Polycarbonate (Red Handle)
- Terminals: Brass
- Screws: Steel, Nickel-Plated
- Spring and Locking Blade: Spring Steel
Dimensions
- Overall Length: Approx. 75mm
- Width: 30.1mm
- Height: 46.9mm
Compliance and Standards
- IEC / EN 60320-1
- UL 60320-1
- CSA C22.2
- AS/NZS 60320.1
Shipping Dimensions
- Length: 8 cm
- Width: 2.5 cm
- Height: 2 cm
- Weight: 0.10 kg
