LinkQnet MED13-2 Pneumatic Height-Adjustable Medical Cart with 17~32" Monitor Mount
Mobile, Height-Adjustable Support for Clinical Workstations.
The LinkQnet MED13-2 is a mobile medical cart designed to position a compatible 17~32" monitor and essential equipment within easy reach. Pneumatic height adjustment allows the work surface to move between 800~1,200mm using a foot pedal, supporting comfortable use by different operators without interrupting their workflow. The integrated monitor mount supports VESA 75 × 75mm and 100 × 100mm patterns, with tilt and rotation adjustment for portrait or landscape viewing. A 410 × 340mm work surface provides space for a keyboard, laptop or medical equipment, while the storage basket and scanner holder help organise frequently used items. Four castors provide smooth mobility, with locking mechanisms on the two front castors for secure positioning. A pull handle further assists movement between compatible clinical, administrative and patient-care environments.
Features
- Pneumatic Height Adjustment - Foot-pedal operation adjusts the work surface height between 800~1,200mm
- 17~32" Monitor Support - Accommodates compatible monitors weighing up to 8kg
- Adjustable Viewing Position - Supports -45~+45° tilt and -180~+180° screen rotation
- VESA Compatibility - Supports 75 × 75mm and 100 × 100mm mounting patterns
- Practical Work Surface - Provides a 410 × 340mm platform for compatible equipment
- Integrated Storage - Includes a storage basket and scanner holder for frequently used items
- Mobile Design - Four castors allow the cart to move between work areas
- Secure Positioning - Locking mechanisms on the two front castors help keep the cart stationary during use
- Convenient Pull Handle - Provides a dedicated grip for easier manoeuvring
* Special-Order Product - This item is supplied on request only and is not held as a standard stock item
Specifications

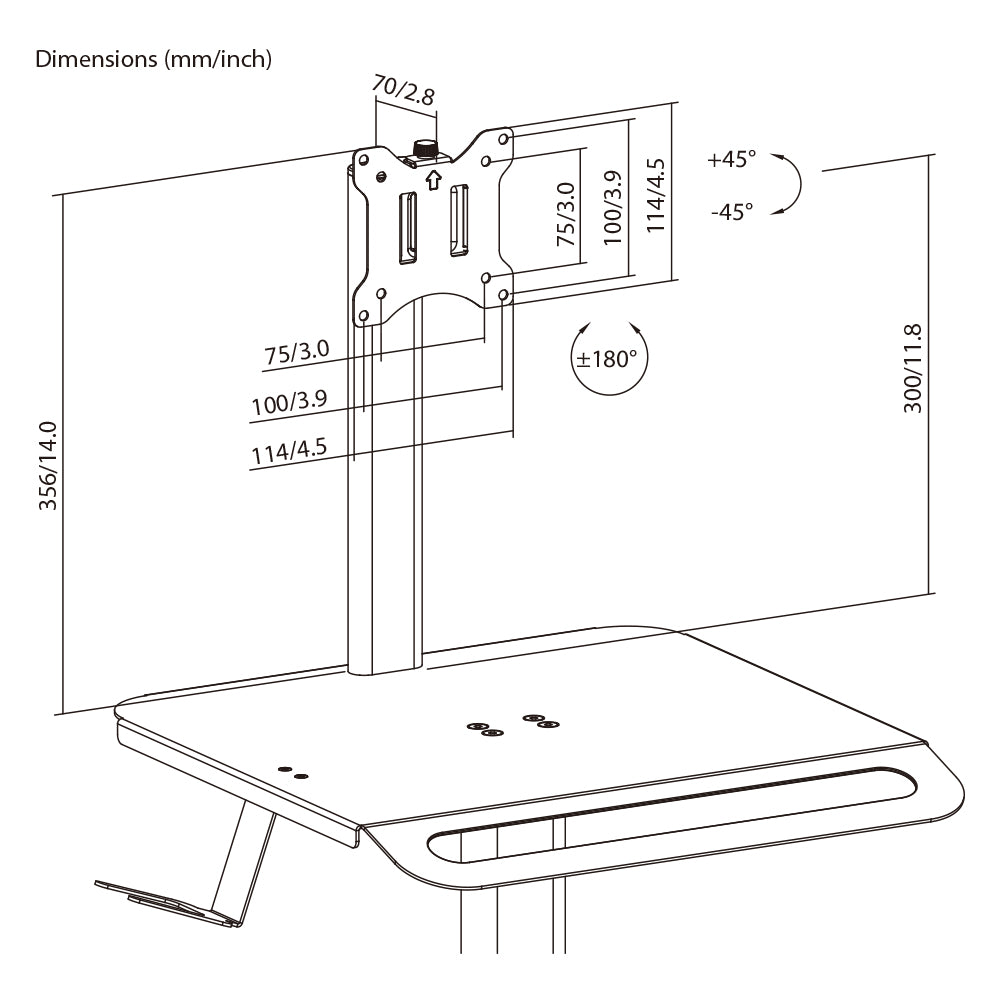

Monitor Mount
- Compatible Screen Size: 17~32"
- Maximum Monitor Weight: 8kg
- VESA Compatibility: 75 × 75mm and 100 × 100mm
- Tilt Range: -45~+45°
- Rotation Range: -180~+180°
- Supported Orientation: Portrait and Landscape
Height Adjustment And Mobility
- Adjustment Type: Pneumatic
- Height Controller: Foot Pedal
- Work Surface Height Range: 800~1,200mm
- Column Design: Two-Stage Column
- Castors: 4×
- Locking Castors: 2× Front
- Castor Diameter: 64mm
- Pull Handle: Integrated
Worksurface And Storage
- Work Surface Size: 410 × 340mm
- Work Surface Thickness: 2mm
- Cart Weight Capacity: 12kg
- Storage Basket Dimensions: 255 × 224 × 156mm
- Storage Basket Weight Capacity: 5kg
- Scanner Holder: Integrated
Physical

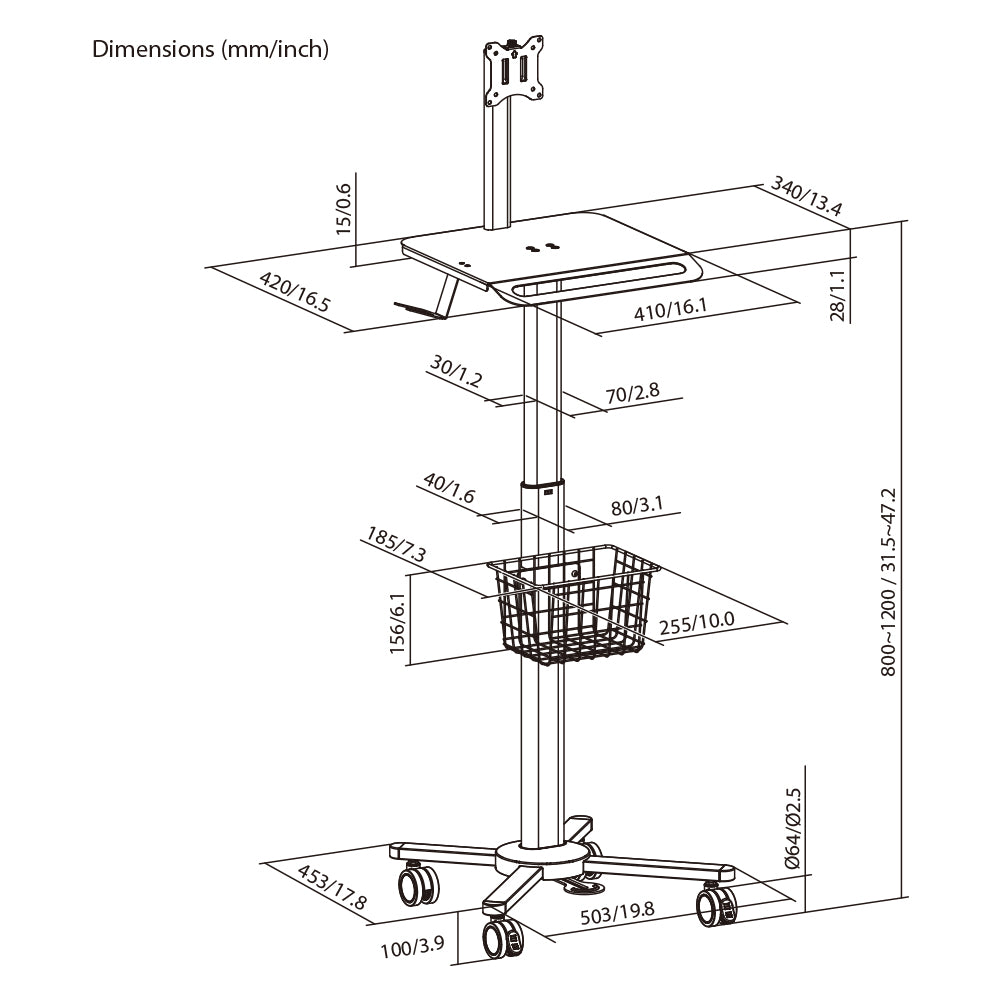

- Overall Dimensions: 556 × 453 × 1,156~1,556mm
- Column Sizes: 40 × 80mm and 30 × 70mm
- Material: Steel and Plastic
- Frame Colour: Matte White
- Work Surface Colour: Matte White
Compliance
- Environmental Compliance: RoHS
