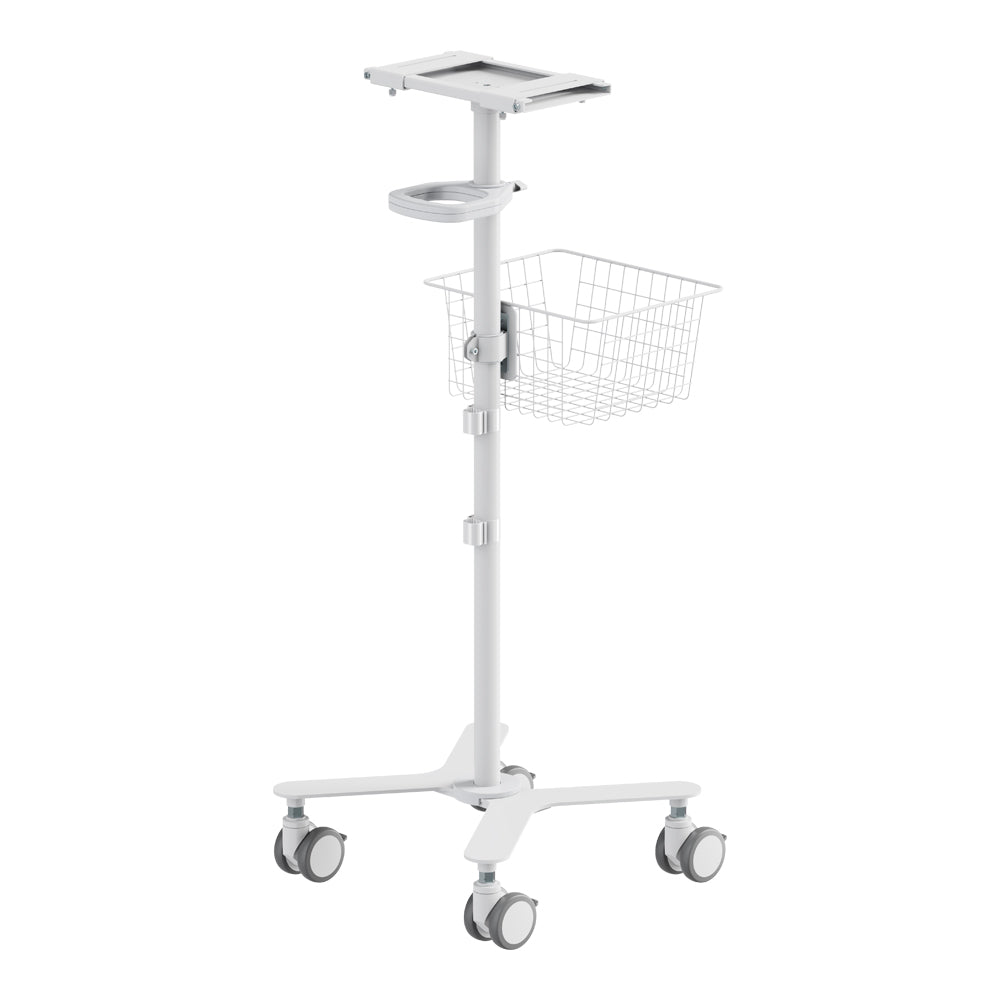

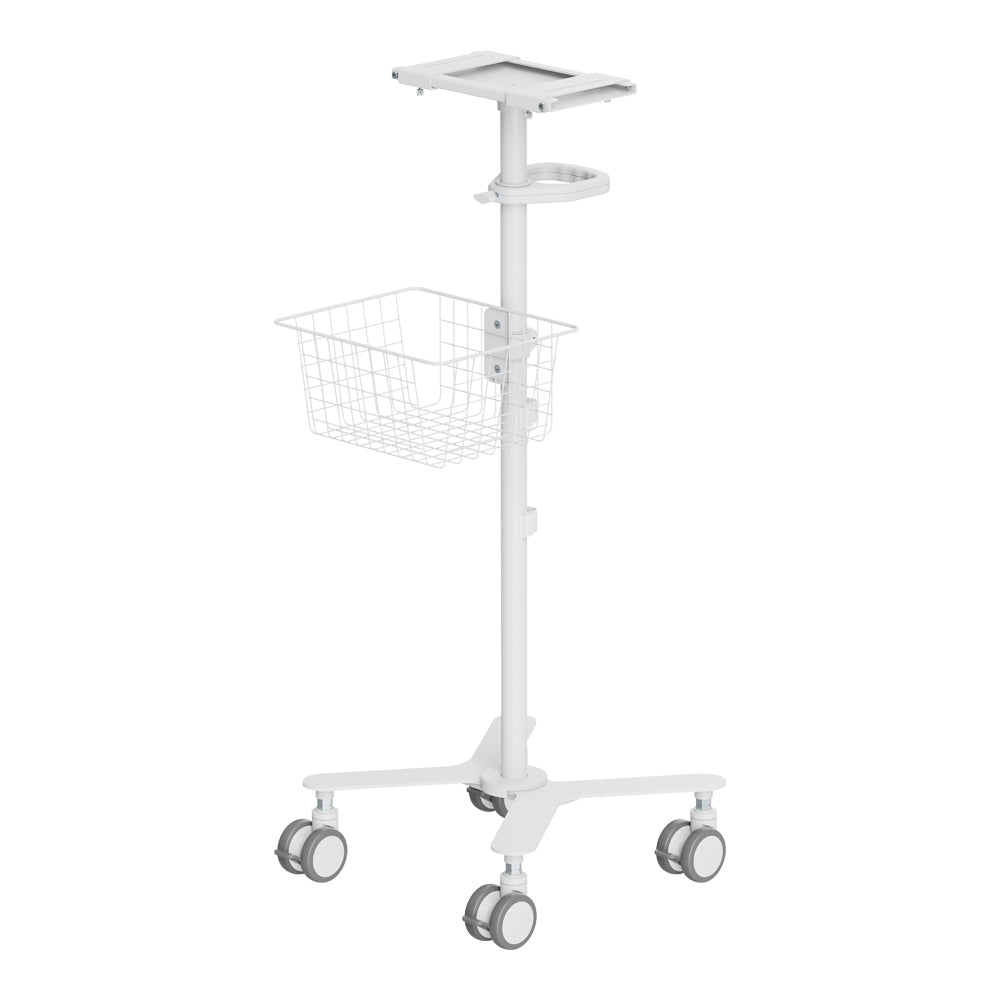

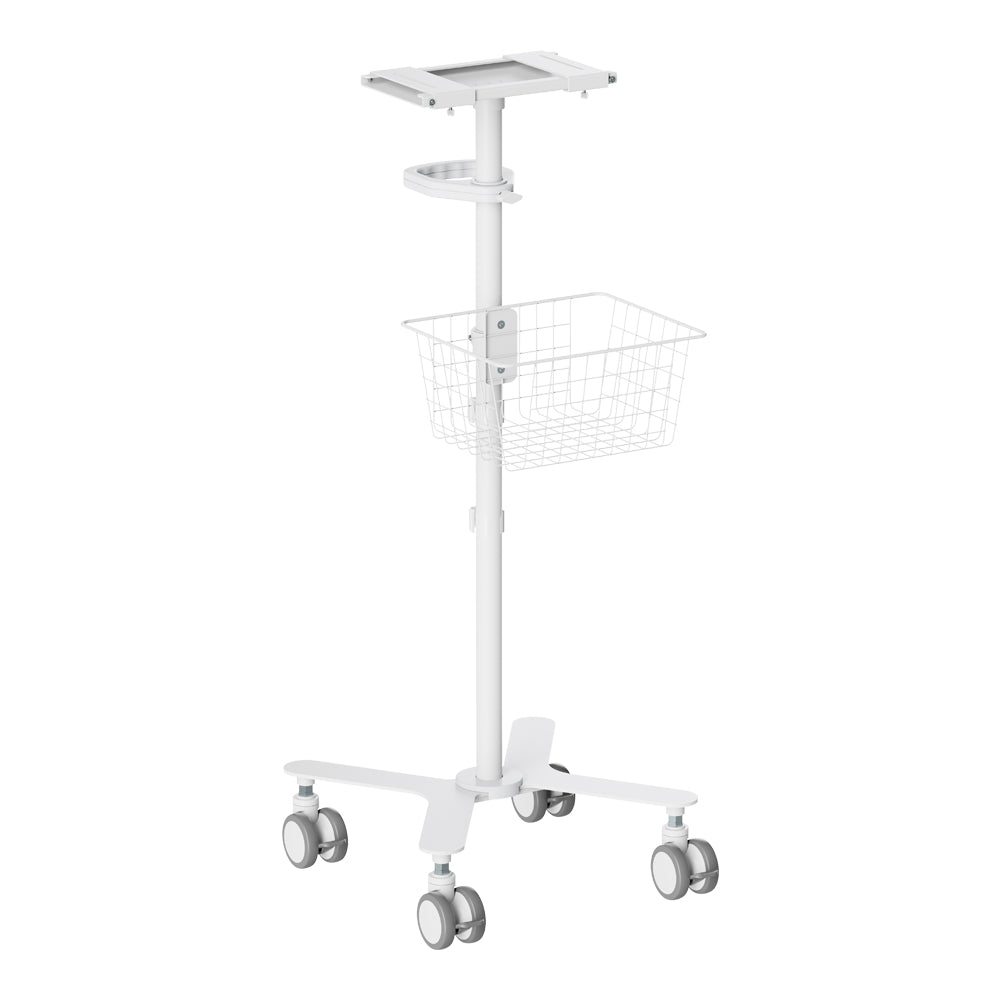

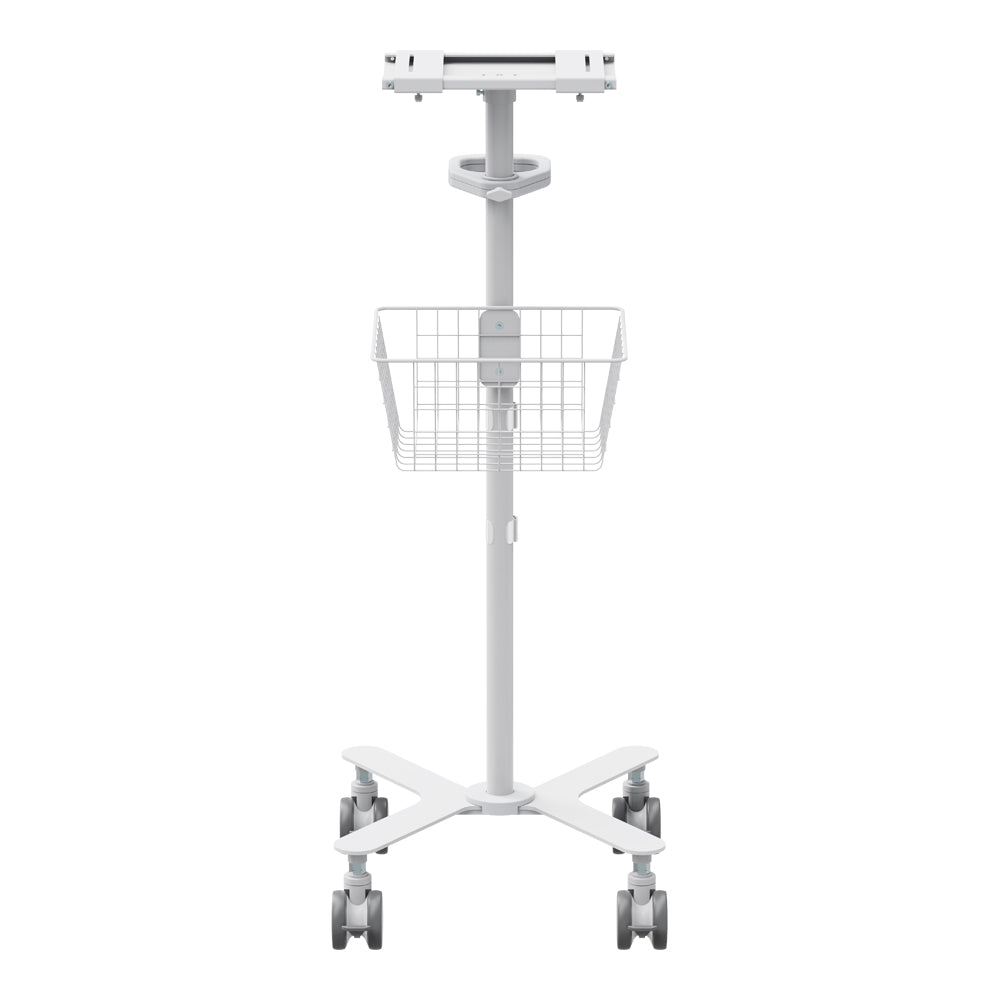

LinkQnet MED07-1 Patient Monitor Cart with Adjustable Platform, 15kg Capacity
Mobile Medical Support for Compatible Patient-Monitor Equipment.
The LinkQnet MED07-1 is a mobile medical cart designed to support compatible patient-monitor equipment weighing up to 15kg. Its platform features sliding panels with an 80~220mm adjustment range, allowing it to accommodate medical equipment with different base widths. A height-adjustable pulling handle supports comfortable manoeuvring, while four quiet castors with locking mechanisms provide mobility and secure positioning when required. The integrated wire basket offers accessible storage for medical equipment and supplies, with a separate load capacity of 5kg. Constructed from steel and plastic in a matte-white finish, the cart combines a compact footprint with a fixed overall height of 1,100mm. Its separable two-piece pole design also helps simplify transport, storage and assembly in medical and healthcare environments.
Features
- Adjustable Medical Equipment Platform - Sliding panels provide an 80~220mm adjustment range for compatible patient monitors
- 15kg Equipment Capacity - Supports compatible patient-monitor and medical equipment weighing up to 15kg
- Medical Supply Storage - Integrated wire basket provides convenient storage with a separate 5kg load capacity
- Adjustable Pulling Handle - Slides vertically to suit the user and support comfortable manoeuvring
- Four Locking Castors - Quiet castors provide smooth mobility and secure positioning when required
- Two-Piece Pole Design - Separable construction helps simplify transport, storage and assembly
- Medical-Environment Styling - Matte-white finish provides a clean, professional appearance for healthcare settings
* Special-Order Product - This item is supplied on request only and is not held as a standard stock item
Specifications
Platform And Capacity
- Platform Type: Adjustable Sliding Panels
- Platform Dimensions: 290 × 166mm
- Platform Adjustment Range: 80~220mm
- Maximum Equipment Weight: 15kg
Storage
- Storage Type: Wire Basket
- Basket Dimensions: 314 × 264 × 154mm
- Basket Weight Capacity: 5kg
Mobility
- Pulling Handle: Height-Adjustable
- Castors: 4× Quiet Castors
- Locking Mechanism: Yes
- Castor Diameter: 76mm
Physical

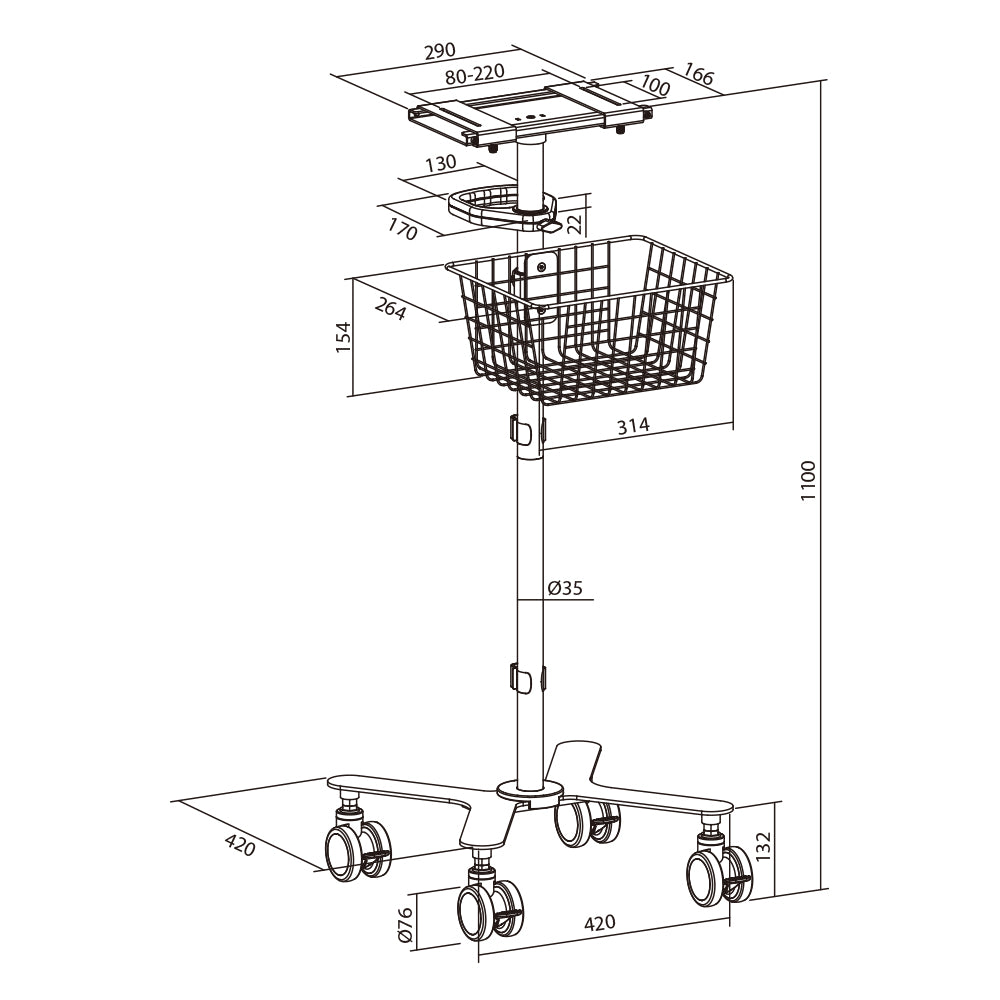

- Overall Dimensions: 420 × 500 × 1,100mm
- Column Design: Separable Two-Piece Pole
- Column Diameter: 35mm
- Material: Steel and Plastic
- Colour: Matte White
Compliance
- Environmental Compliance: RoHS
