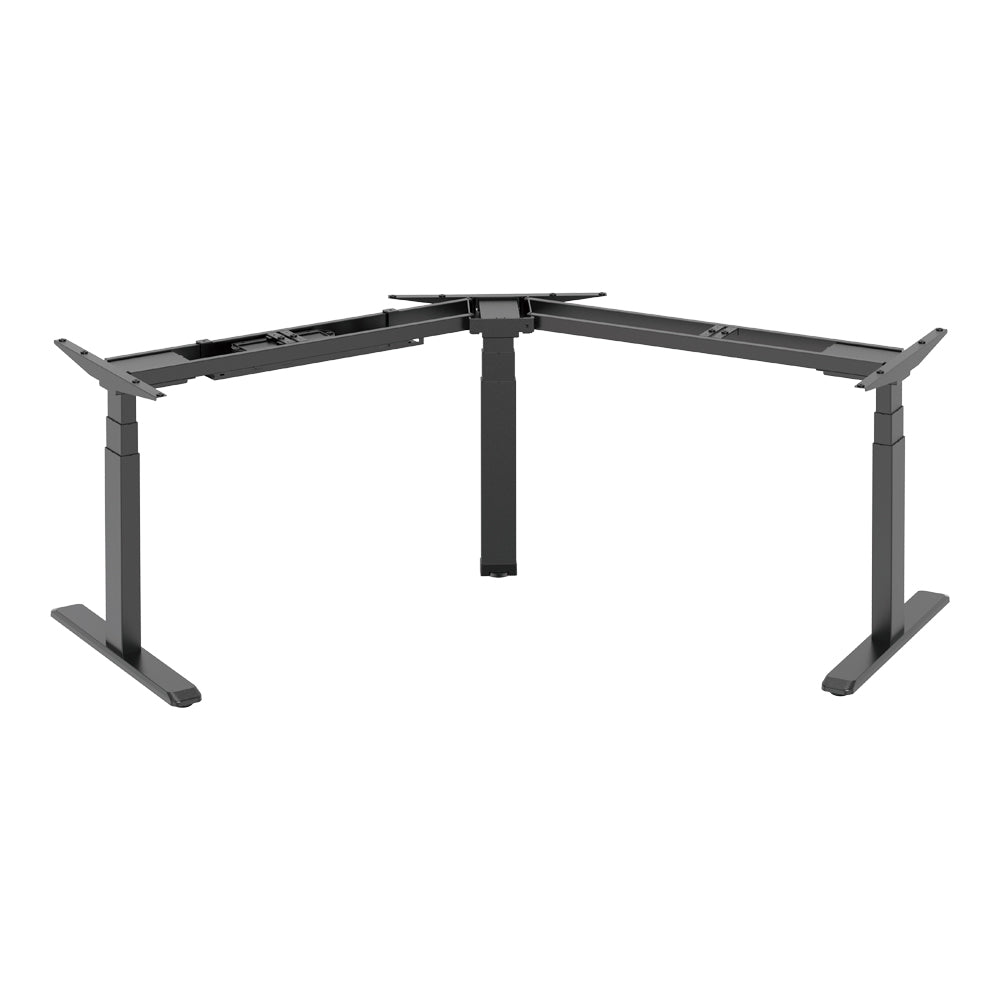

LinkQnet M06-33DC 3-Stage Triple Motor Electric Sit-Stand Desk Frame - Black
Build a Spacious Corner Workstation That Moves with You.
The LinkQnet M06-33DC is a premium 120° corner sit-stand desk frame designed for spacious professional workstations, control environments and multi-monitor setups. Three independent motors provide smooth, stable height adjustment at speeds of up to 38mm/s, while the three-stage columns offer a wide 620~1280mm height range. The touch controller includes three programmable memory presets, a sit-stand reminder and custom minimum and maximum height settings. The programmable Gyro-Current collision avoidance system helps detect objects in the desk’s movement path, while thermal and overload protection supports safe, dependable daily operation. With adjustable frame widths, a 150kg weight capacity and durable black powder-coated steel construction, the M06-33DC provides a flexible foundation for a customised ergonomic corner desk.
Features
- Triple Motor Lifting - Three motors provide smooth and stable height adjustment across the corner frame
- 150kg Weight Capacity - Supports demanding workstation equipment and multi-monitor configurations
- 3-Stage Columns - Provides a wide adjustment range for comfortable seated and standing positions
- Touch Control Panel - Offers convenient electronic height adjustment and custom settings
- 3 Programmable Memory Presets - Saves frequently used sitting and standing heights
- Sit-Stand Reminder - Encourages regular movement throughout the working day
- Programmable Height Limits - Sets minimum and maximum travel limits around cabinets and other obstacles
- Gyro-Current Collision Avoidance - Helps detect soft and hard objects in the movement path
- Thermal and Overload Protection - Helps protect the motors for improved safety and longevity
- Adjustable Corner Frame - Accommodates a range of compatible 120° desktop sizes
- Easy-Assembly Design - Reduces installation time while maintaining long-term stability
- Adjustable Foot Pads - Helps stabilise the desk on slightly uneven flooring

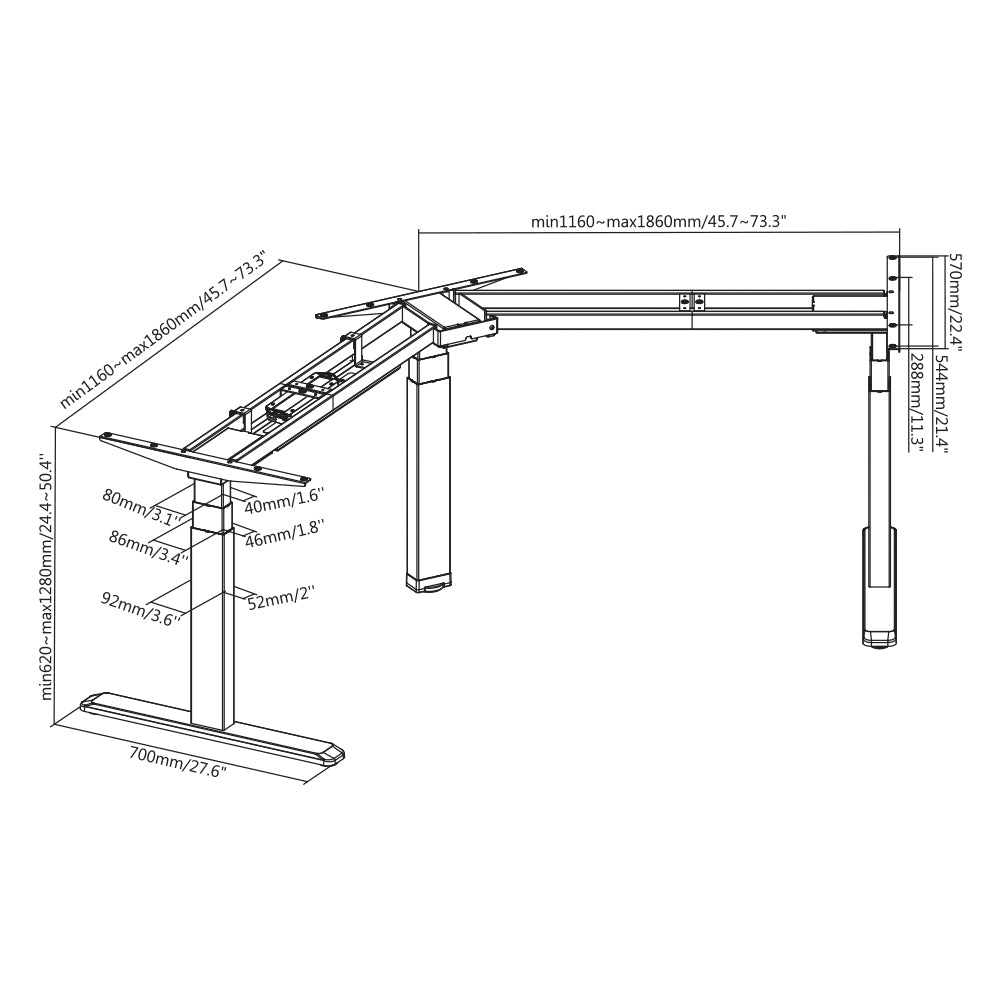

Specifications
- Frame Orientation: 120° Corner Shape
- Frame Material: Steel and Plastic
- Frame Colour: Black AkzoNobel Powder Coat
- Column Design: Standard Column
- Column Stages: 3-Stage
- Leg Quantity: 3
- Motor Quantity: 3
- Weight Capacity: 150kg
- Height Range: 620~1280mm
- Width Range: 1160~1860mm per Side
- Overall Frame Dimensions: 1160~1860mm × 1160~1860mm × 620~1280mm
- Compatible Tabletop Size: 1400~2200mm × 120° × 1400~2200mm
- Minimum Tabletop Thickness: 18mm
- Maximum Lifting Speed: 38mm/s
- Controller Type: Touch Control Panel
- Memory Presets: 3
- Time Reminder: Supported
- Power Input: 100~240V AC
- Power Cable Length: 3m
- Column Sizes: 40 × 80mm, 46 × 86mm and 52 × 92mm
- Foot Length: 700mm
- Adjustable Foot Pads: Included
- Suggested Operating Temperature: -5~40°C
- Protection Rating: IP20
- Certifications and Compliance: CB, CE, ErP, FCC, UL and AS/NZS National Differences Report
Notes
- Desktop surface is not included
- Use a compatible 120° desktop measuring between 1400mm and 2200mm per side
- The installed desktop should be at least 18mm thick
- Maximum load includes the desktop and all equipment placed on the frame
