LinkQnet LPA91-6126XLD 60-140" Ultra-Reach Heavy-Duty Full-Motion TV Wall Mount Bracket
Exceptional Reach for Oversized Displays.
The LinkQnet LPA91-6126XLD is engineered to support large flat or curved displays from 60~140" weighing up to 125kg. Its heavy-duty steel construction and ultra-reach arm provide a wall profile of 78~1,012mm, allowing the screen to be extended for improved viewing or retracted when not required. Full-motion adjustment includes tilt, swivel and screen levelling for precise positioning across different viewing areas. Broad VESA compatibility up to 1,200 × 600mm accommodates a wide range of oversized displays. The bracket supports installation on solid walls or dual wood studs spaced at 406mm, 457mm or 610mm. A detachable VESA panel assists installation, while integrated cable management helps maintain an organised display setup.
Features
- Heavy-Duty Support - Holds compatible displays weighing up to 125kg
- Ultra-Reach Extension - Positions the display from 78~1,012mm from the wall
- Full-Motion Adjustment - Provides tilt, swivel and screen-levelling control
- Wide VESA Compatibility - Supports mounting patterns up to 1,200 × 600mm
- Curved Display Compatible - Accommodates compatible flat and curved screens
- Flexible Installation - Supports solid-wall and dual-stud mounting
- Detachable VESA Panel - Assists screen attachment during installation

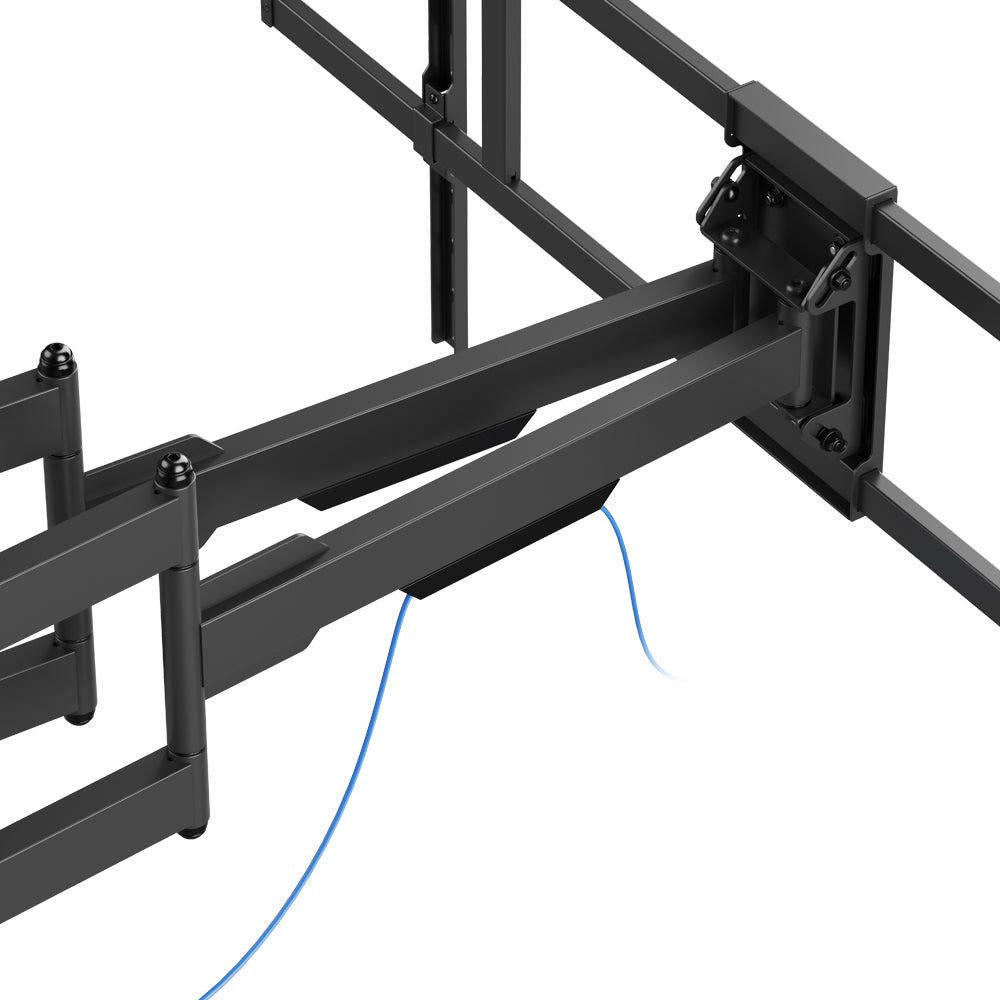

- Cable Management - Helps keep connected cables organised
Specifications
Compatibility
- Screen Size: 60~140"
- Display Type: Flat and Curved
- Weight Capacity: 125kg
- Mounting Hole Pattern: VESA and Universal
- VESA Compatibility: 400 × 400mm, 600 × 400mm, 800 × 400mm, 800 × 600mm, 900 × 600mm, 1,000 × 600mm, 1,100 × 600mm and 1,200 × 600mm
- Maximum Mounting Pattern: 1,200 × 600mm
Adjustment
- Wall Profile: 78~1,012mm
- Tilt Range: +5°~-15°
- Swivel Range: +60°~-60°
- Screen Level Adjustment: +5°~-5°
- Free-Tilting Screen: Yes
Installation
- Wall Compatibility: Solid Walls and Dual Wood Studs
- Supported Stud Spacing: 406mm, 457mm and 610mm
- Wall Plate Dimensions: 646 × 287mm
- Wall Plate Type: Fixed
- Direction Indicator: Yes
- Bubble Level: Hook-On Bubble Level Included in the Components Package
Construction
- Material: Steel
- Bracket Arm Thickness: 2mm Cold-Rolled Steel Sheet
- VESA Panel Thickness: 2mm Cold-Rolled Steel Sheet
- Wall Plate Thickness: 3mm Pickled Steel Sheet
- Square Steel Tube: 50 × 25 × 1.5mm
- Surface Finish: Powder Coating
- Colour: Fine Texture Black
- VESA Panel: Detachable
Physical

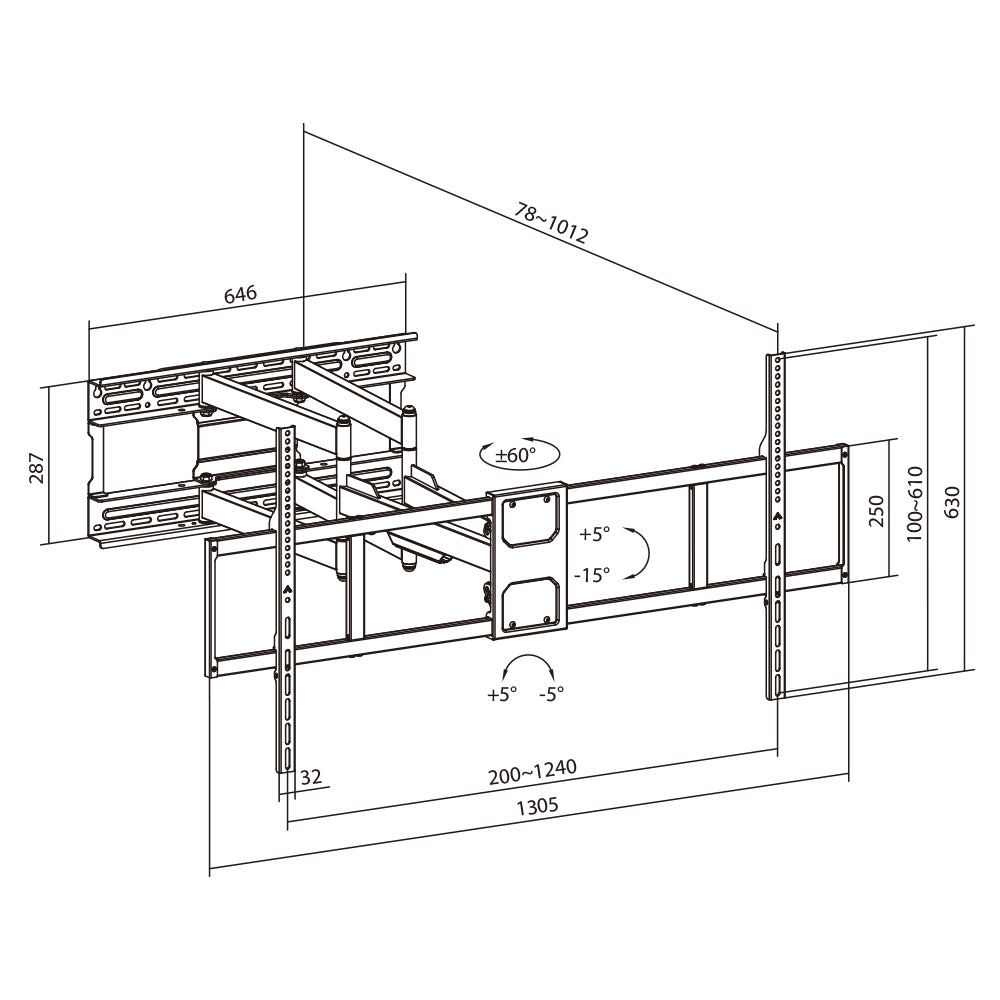

- Overall Dimensions: 1,305 × 78~1,012 × 630mm
- Cable Management: Yes
