LinkQnet LPA72-464A 37-90" Ultra Slim Articulating TV Wall Mount Bracket
Flexible Viewing with an Ultra-Slim Wall Profile.

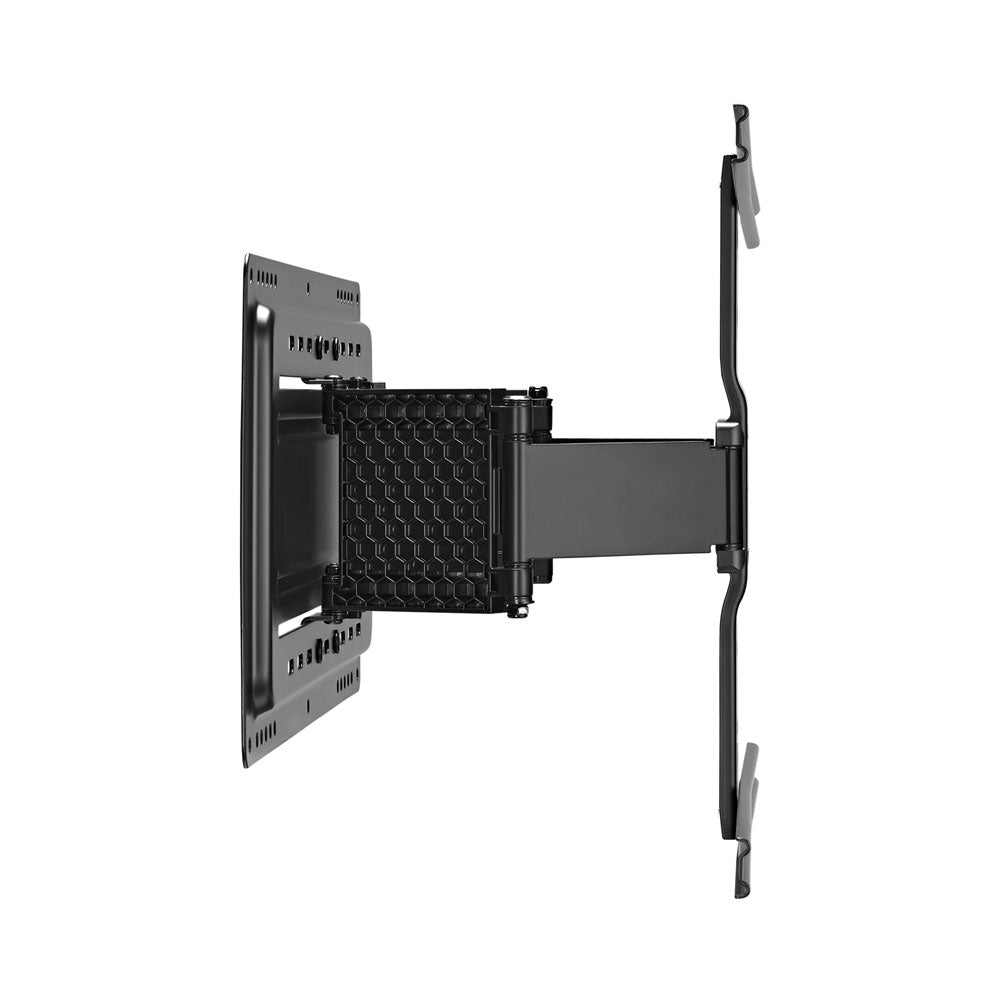

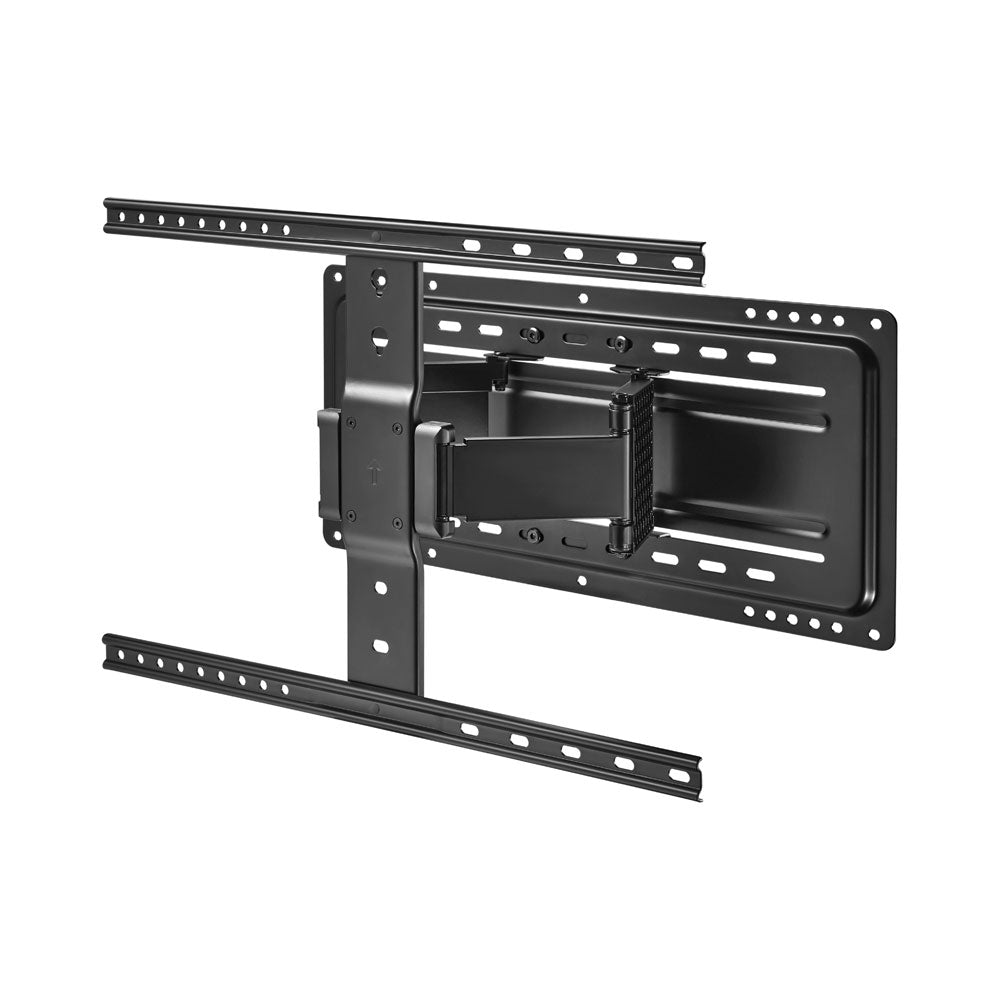

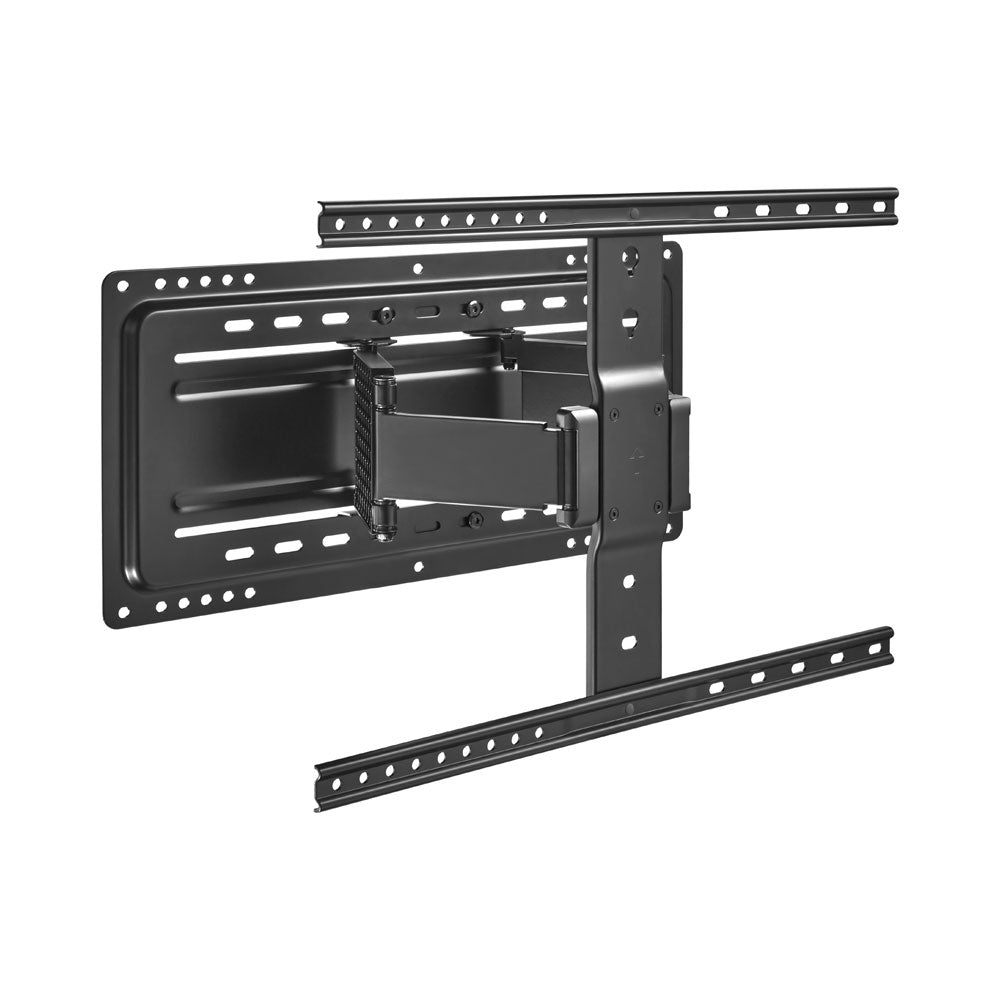

The LinkQnet LPA72-464A is an ultra-slim articulating wall mount designed for compatible 37" to 90" televisions weighing up to 50kg. Its folding arm retracts to just 38mm from the wall for a streamlined installation and extends up to 281mm when positioning the screen. The full-motion design provides ±30° swivel and up to 10° downward tilt, while ±1° post-installation levelling helps achieve accurate screen alignment. Post-installation lateral adjustment allows the television to be centred even when the structural fixing centres are positioned off-centre. Supporting VESA patterns up to 600×400mm, the durable steel bracket provides a practical combination of low-profile styling, flexible viewing and secure support for compatible large-screen televisions.
Features

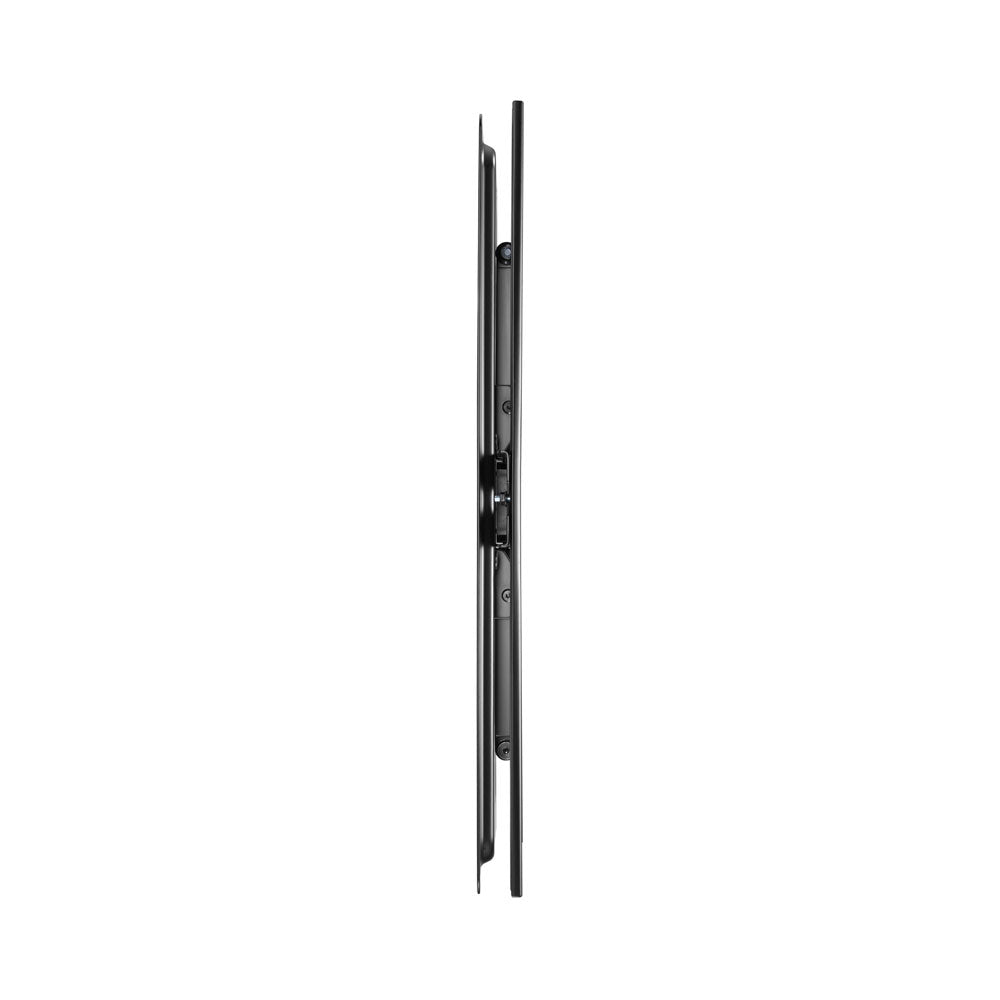

- Ultra-Slim Profile - Retracts to just 38mm from the wall for a streamlined installation

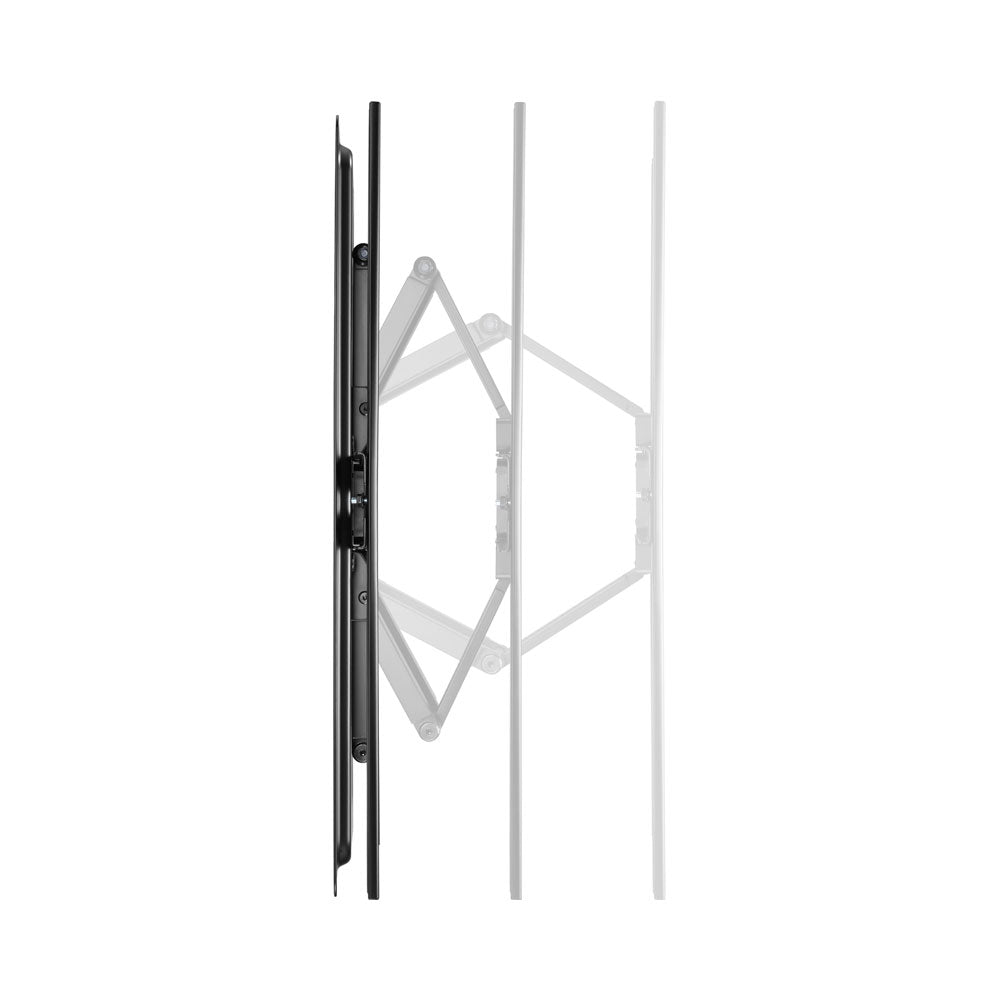

- Articulating Extension - Extends up to 281mm for convenient screen positioning
- Flexible Swivel - Provides ±30° horizontal adjustment for different viewing positions
- Adjustable Tilt - Allows up to 10° downward tilt to improve the viewing angle and reduce glare
- Post-Installation Levelling - Provides ±1° adjustment for accurate screen alignment
- Lateral Screen Adjustment - Helps centre the television when the structural fixing centres are positioned off-centre
- Folding Arm Design - Retracts towards the wall when extended positioning is not required
- Large-Screen Compatibility - Supports compatible 37" to 90" televisions
- Heavy-Duty Support - Accommodates televisions weighing up to 50kg
- Wide VESA Compatibility - Supports mounting patterns up to 600×400mm
Specifications
Screen Compatibility
- Compatible Screen Size: 37"-90"
- Maximum Weight Capacity: 50kg
- VESA Compatibility: 200×200, 300×200, 300×300, 400×200, 400×300, 400×400 and 600×400
- Maximum VESA Pattern: 600×400mm
Movement
- Swivel Range: +30~-30°
- Tilt Range: 0~-10°
- Screen Levelling: +1~-1°
- Wall Distance: 38~281mm
- Post-Installation Lateral Adjustment: Yes
Construction
- Material: Steel
- Colour: Matte Black

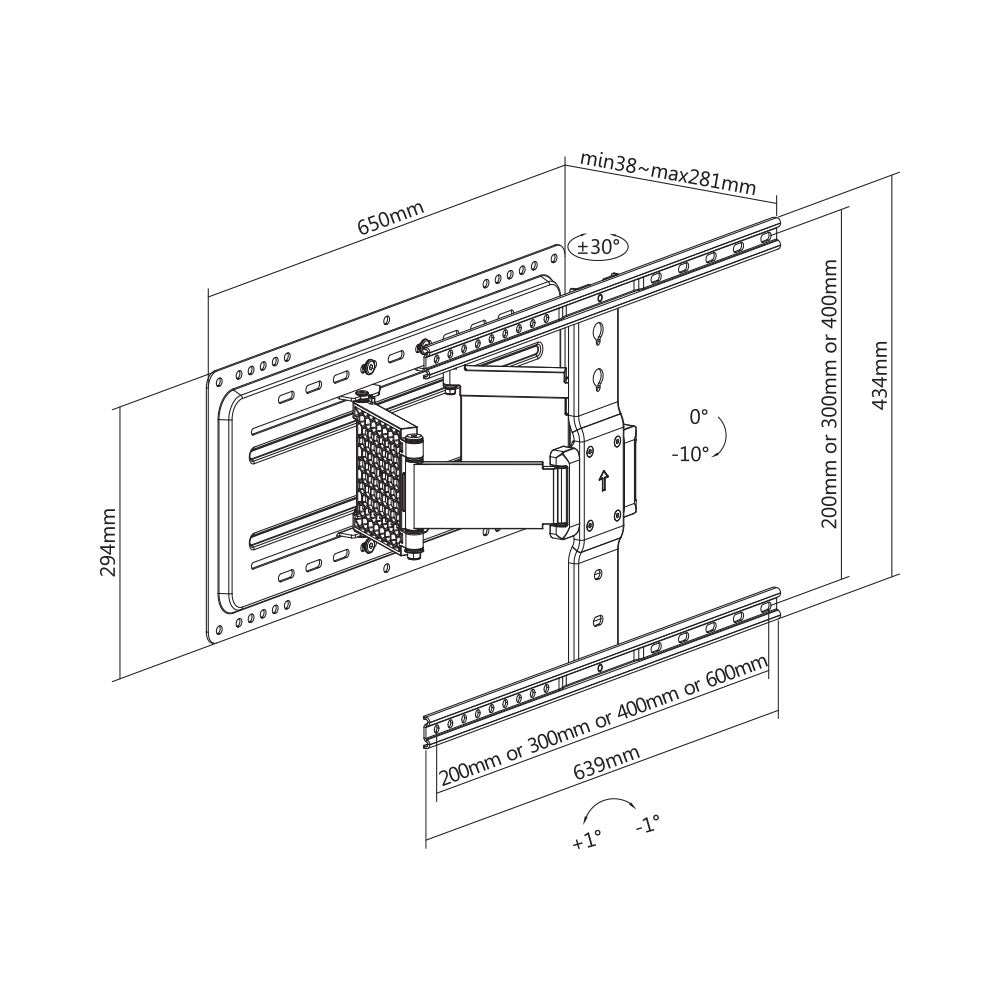

- Wall Plate Dimensions: 650×294mm
- Overall Mounting-Rail Height: 434mm
- Horizontal Mounting-Rail Length: 639mm
Installation
- Structural Mounting Arrangement: Reinforced framed wall with two structural fixing centres
- Off-Centre Installation Adjustment: Yes
