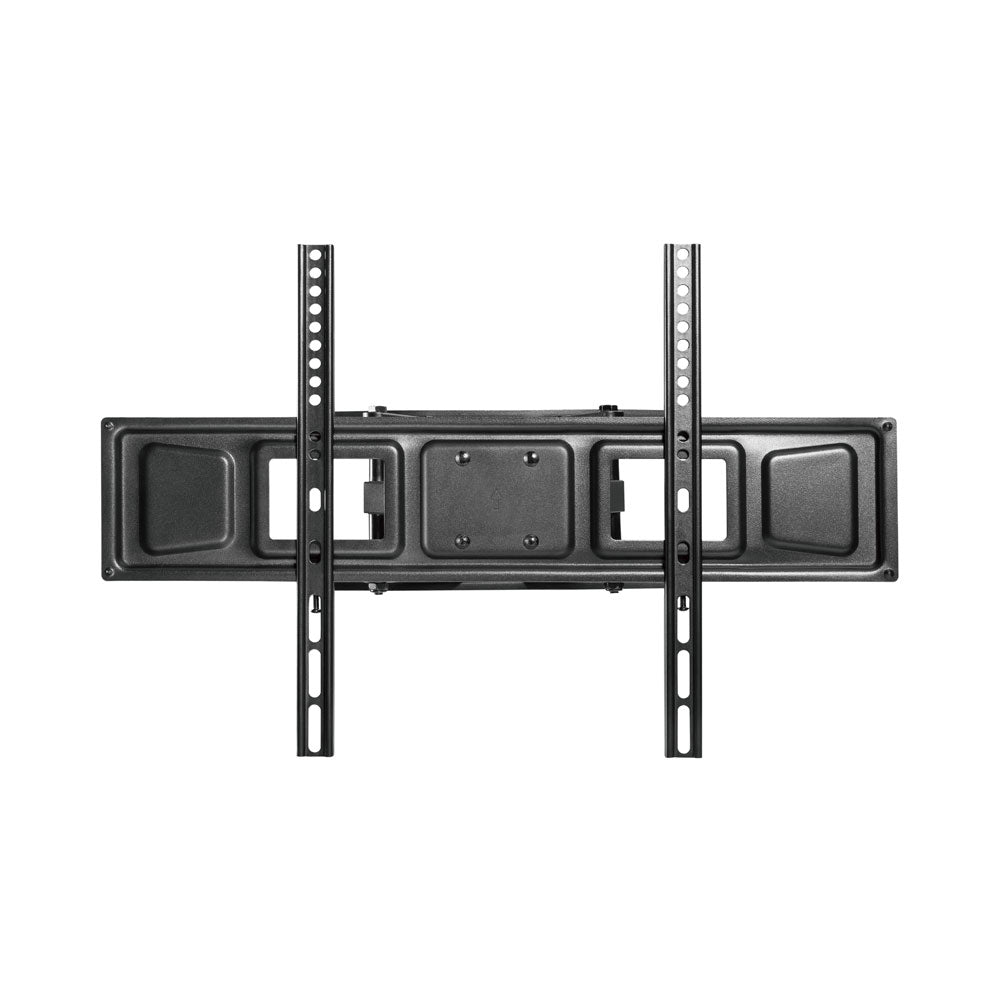

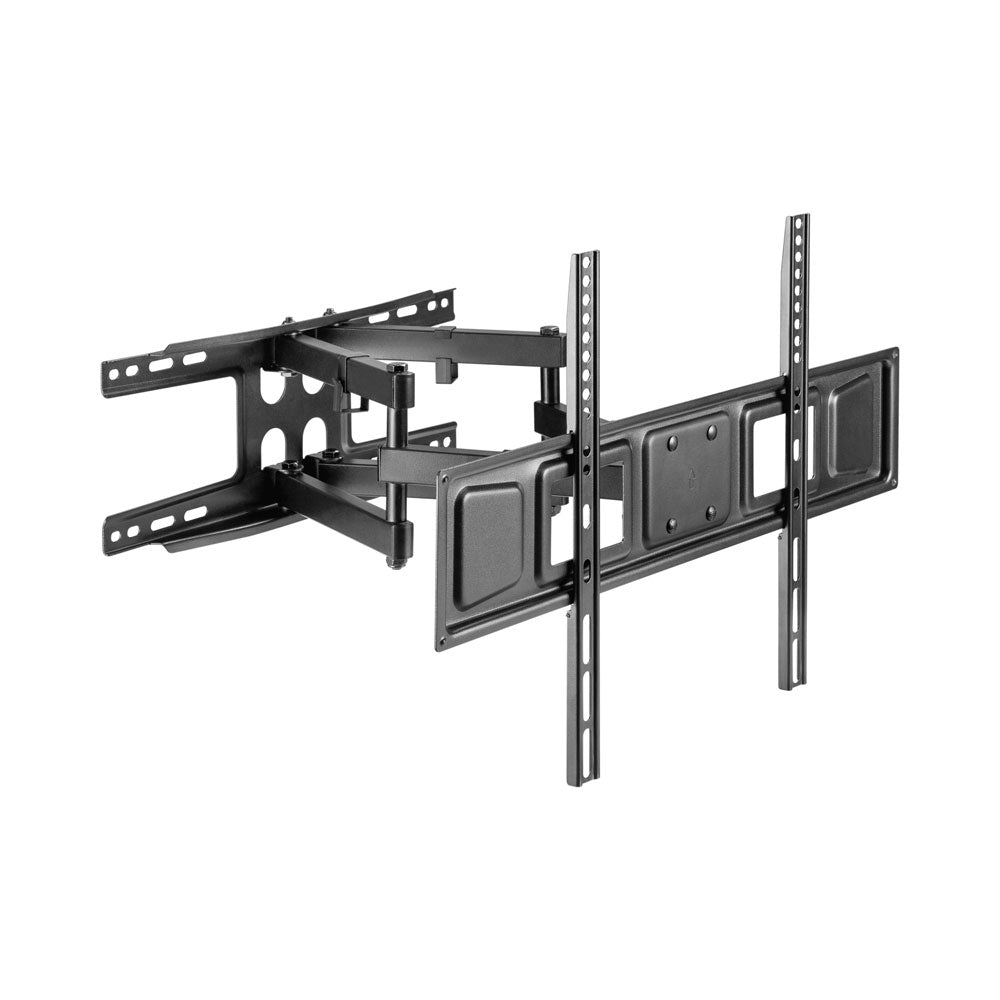

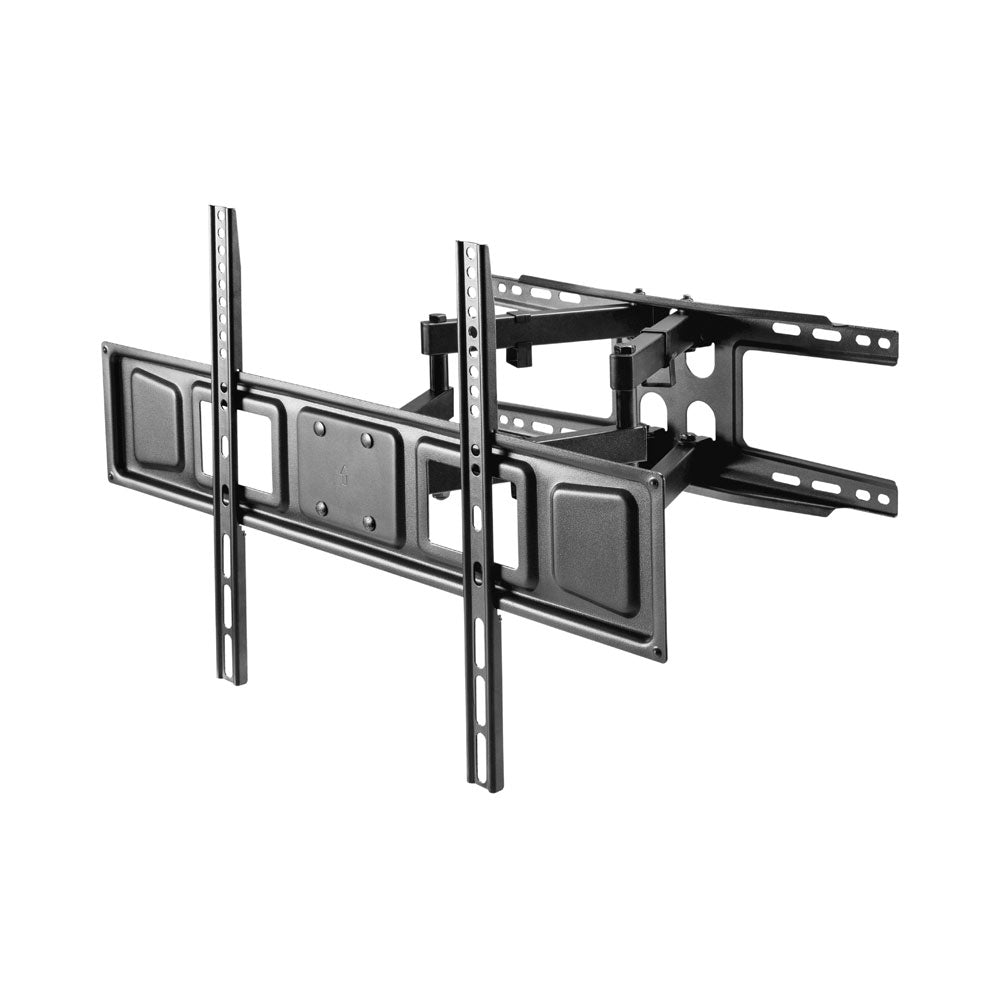

LinkQnet LPA63-466 37-80" Full-Motion TV Mount Bracket
Flexible Positioning for Large Flat and Curved TVs.
The LinkQnet LPA63-466 is a full-motion wall-mount bracket designed for compatible 37~80" flat and curved TVs weighing up to 40kg. Its articulating steel arms extend the screen from 62~468mm from the wall and provide +60~-60° swivel adjustment for viewing from different positions. A +5~-15° tilt range helps improve the viewing angle and reduce glare, while +3~-3° levelling allows the screen alignment to be corrected after installation. The bracket supports VESA and universal mounting patterns up to 600 × 400mm. A detachable mounting panel, direction indicator and integrated cable management help simplify installation and maintain a tidy appearance. The wide wall plate supports installation on suitable solid walls or reinforced framed walls with structural fixing centres spaced 406 or 450mm apart.
Features
- 37~80" TV Compatibility - Supports a wide range of compatible flat and curved televisions
- 40kg Weight Capacity - Provides stable support for compatible large-screen TVs
- Full-Motion Adjustment - Combines extension, tilt and swivel movement for flexible positioning
- Extended Viewing Range - Positions the screen from 62~468mm away from the wall
- Adjustable Tilt - Provides +5~-15° adjustment to improve the viewing angle and reduce glare
- Wide Swivel Range - Provides +60~-60° horizontal adjustment for viewing from different positions
- Post-Installation Levelling - Allows +3~-3° correction to align the screen after mounting
- Wide VESA Compatibility - Supports mounting patterns up to 600 × 400mm
- Flat and Curved TV Support - Accommodates compatible flat-panel and curved televisions
- Detachable Mounting Panel - Helps simplify TV attachment during installation

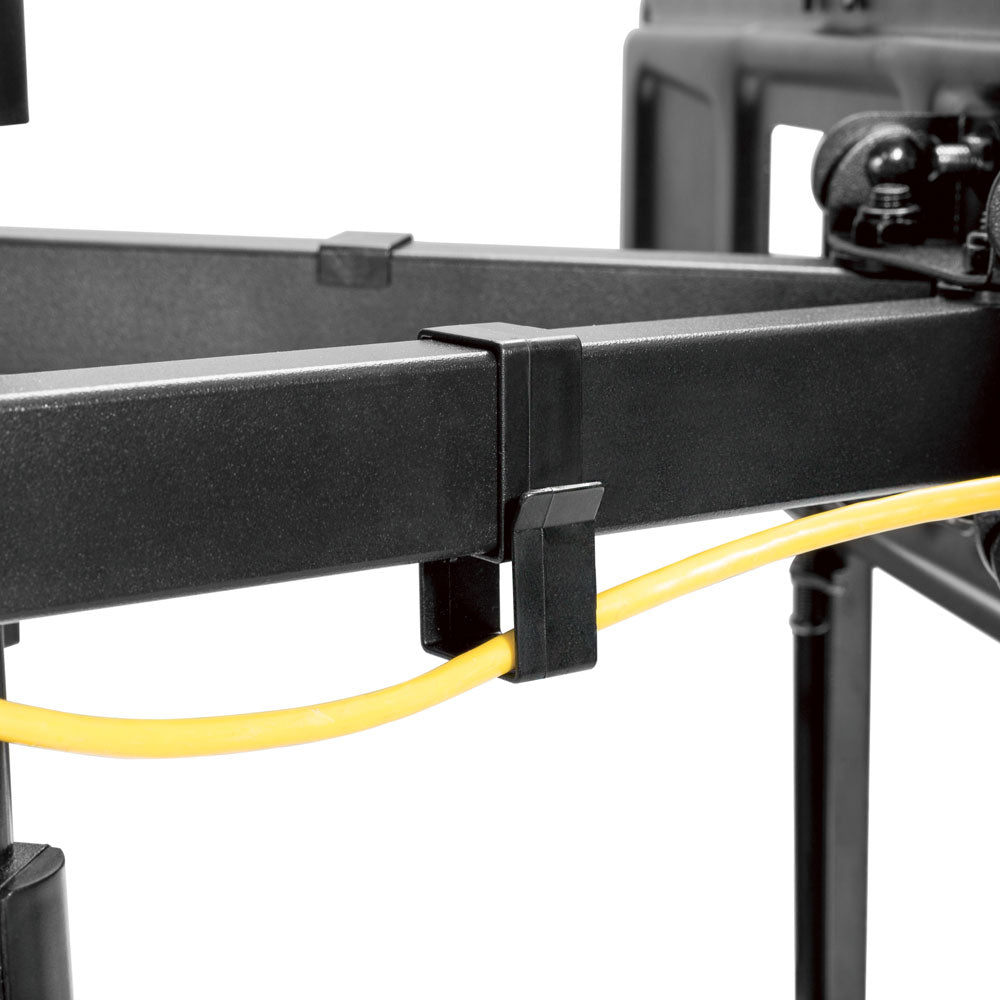

- Integrated Cable Management - Routes cables along the mounting arms for a cleaner appearance
- Wide Wall-Plate Installation - Supports suitable solid walls or reinforced framed walls with 406 or 450mm fixing centres
Specifications
Screen Compatibility
- Compatible Screen Size: 37~80"
- Compatible Screen Types: Flat and Curved TVs
- Weight Capacity: 40kg
- Mounting Pattern: VESA and Universal
- VESA Compatibility: 75 × 75, 100 × 100, 100 × 150, 150 × 100, 100 × 200, 200 × 100, 150 × 150, 200 × 200, 300 × 200, 400 × 200, 300 × 300, 400 × 300, 400 × 400 and 600 × 400mm
- Maximum Mounting Pattern: 600 × 400mm
Movement

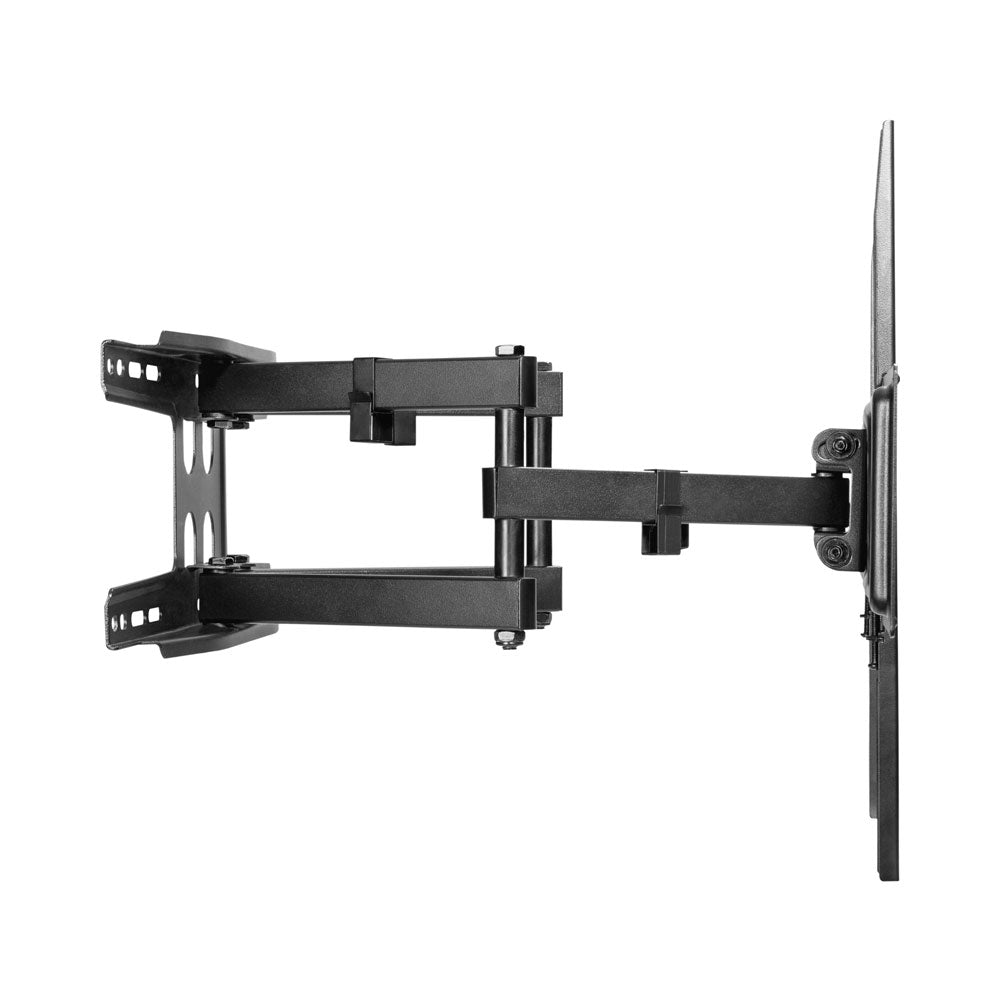

- Distance from Wall: 62~468mm
- Tilt Range: +5~-15°
- Swivel Range: +60~-60°
- Screen Levelling: +3~-3°
Construction
- Material: Steel
- Surface Finish: Powder Coating
- Colour: Fine-Texture Black

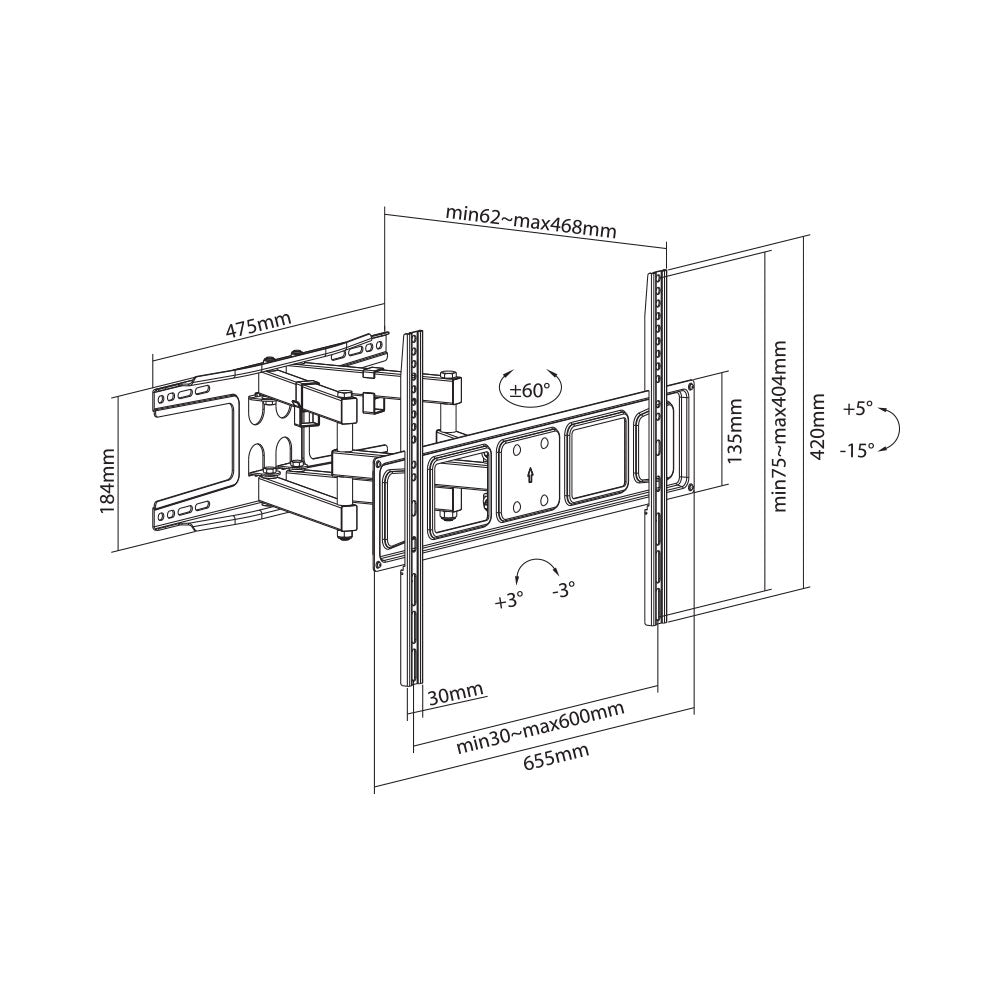

- Dimensions: 468 × 655 × 420mm
- Bracket Arm Steel Thickness: 1.5mm
- VESA Panel Steel Thickness: 1.8mm
- Wall Plate Steel Thickness: 2mm
- Arm Tube Size: 30 × 20 × 1.5mm
Installation
- Compatible Wall Types: Suitable Solid Wall or Reinforced Framed Wall
- Framed-Wall Fixing Centres: 406 or 450mm
- Mounting Panel: Detachable
- Wall Plate Type: Fixed
- Direction Indicator: Yes
- Cable Management: Yes
