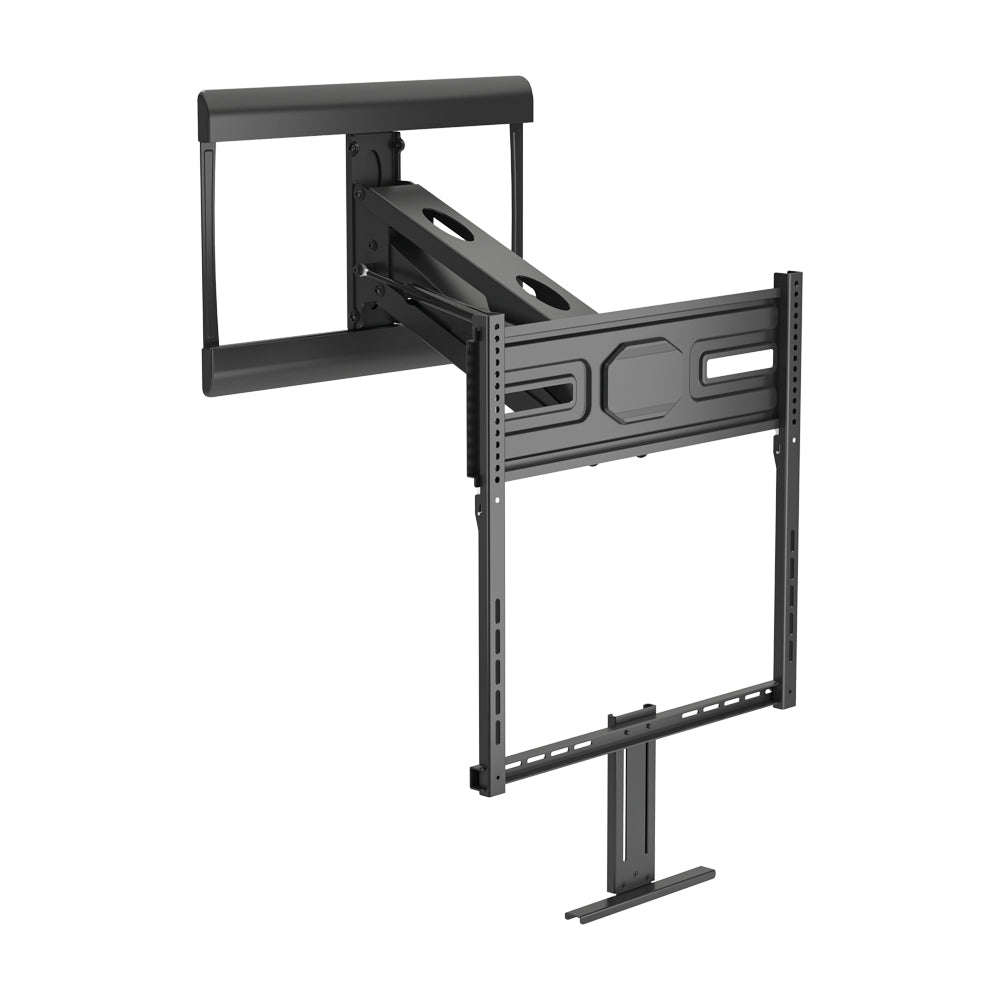

LinkQnet LPA53N-461L 65"-85" Premium Pull Down Mantel TV Mount Bracket
Lower Your TV to a More Comfortable Viewing Position.

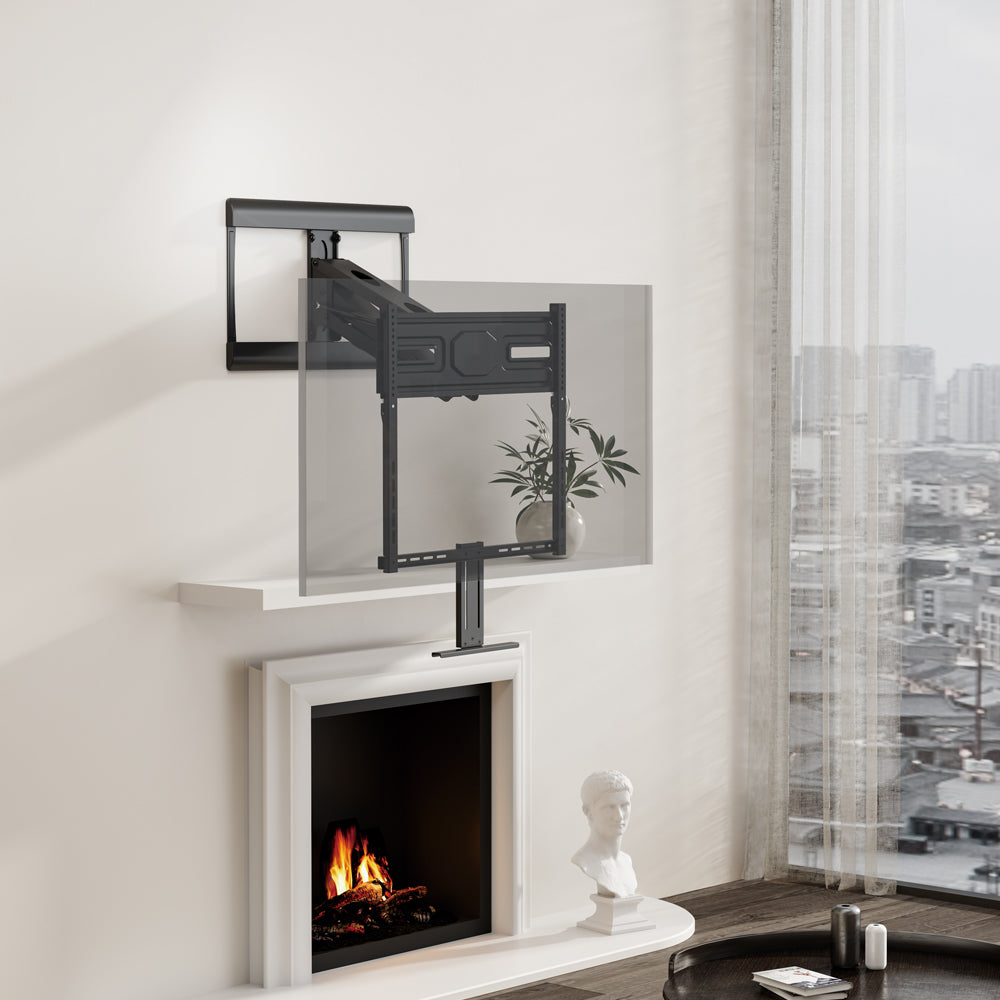

The LinkQnet LPA53N-461L Premium Pull Down Mantel TV Mount Bracket provides a practical way to position large televisions above fireplaces, mantels and other elevated mounting locations. Designed for 65"-85" screens weighing between 20kg and 45kg, it combines gas spring and mechanical spring assistance for smooth, controlled height adjustment. The screen can be lowered by up to 630mm, swivelled left or right and levelled after installation to create a more comfortable viewing angle. An adjustable easy-grip handle simplifies positioning and retracts neatly when not in use, while integrated cable clips help keep wiring organised. Its strong steel construction and built-in position-locking safety feature provide stable support for compatible large-screen televisions.
Features
- Pull Down Mantel Design - Lowers an elevated television to a more comfortable viewing position

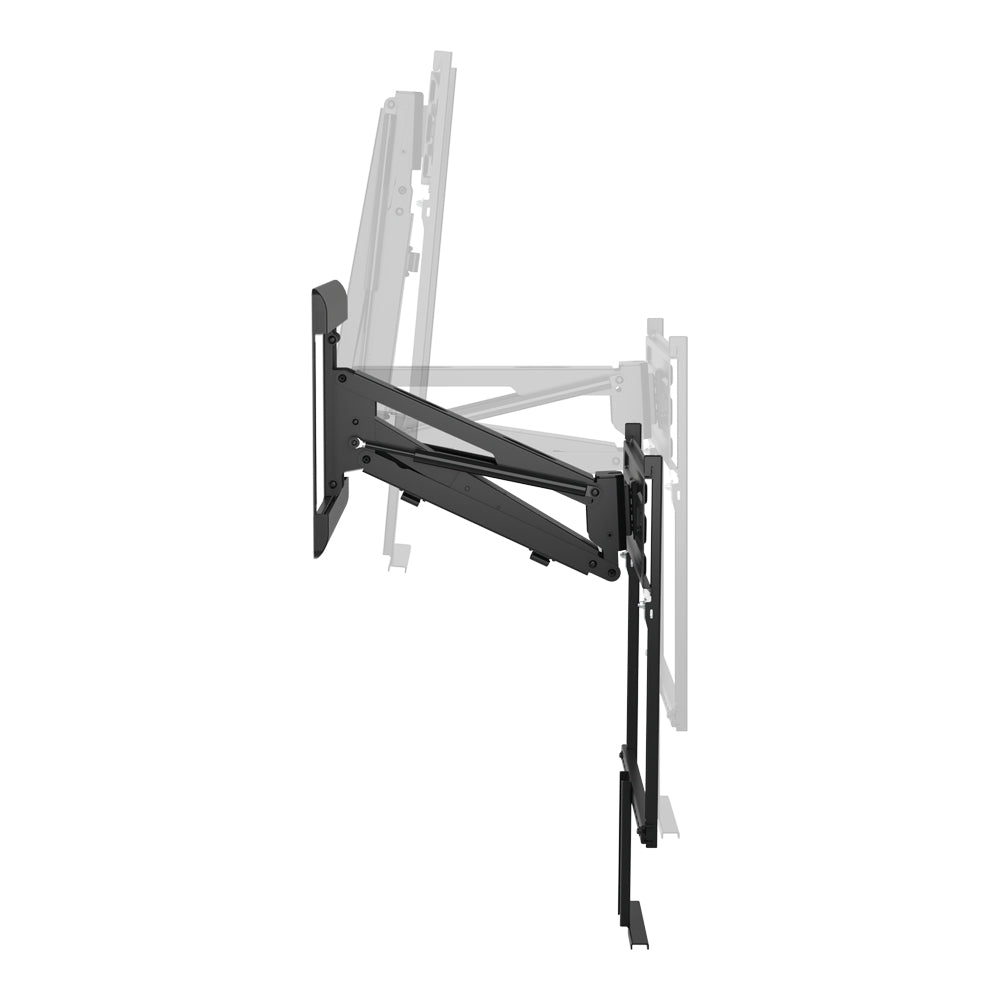

- 630mm Height Adjustment - Raises and lowers the screen through a wide vertical range
- Gas Spring Assistance - Counterbalances the screen weight for smoother movement
- Mechanical Spring Support - Provides stable and controlled positioning during adjustment
- 65"-85" Screen Compatibility - Designed for compatible large-screen televisions
- 45kg Weight Capacity - Supports televisions weighing between 20kg and 45kg
- ±30° Swivel - Adjusts the screen left or right for improved viewing around the room
- Screen Level Adjustment - Provides +3° to -3° levelling after installation
- Adjustable Viewing Angle - Supports downward screen adjustment from -3° to -9°

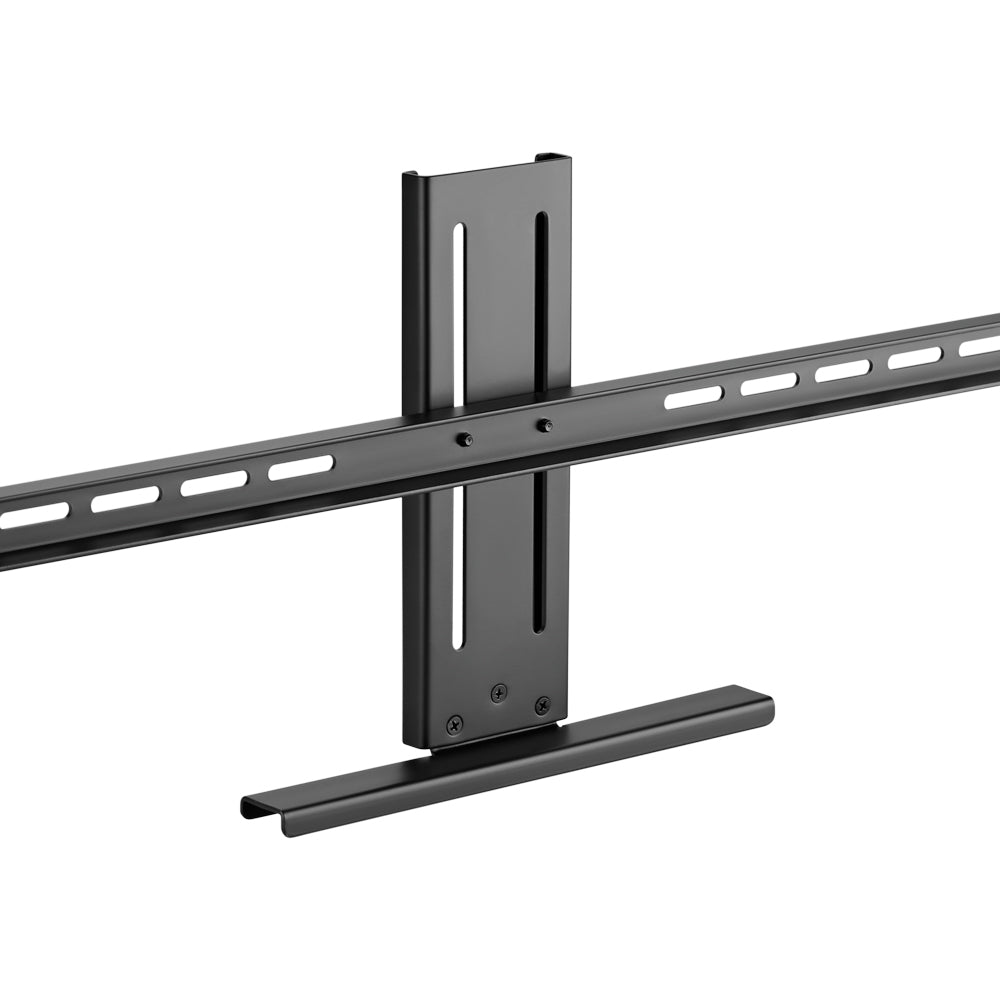

- Height Adjustable Handle - Adapts to different television sizes and retracts when not in use

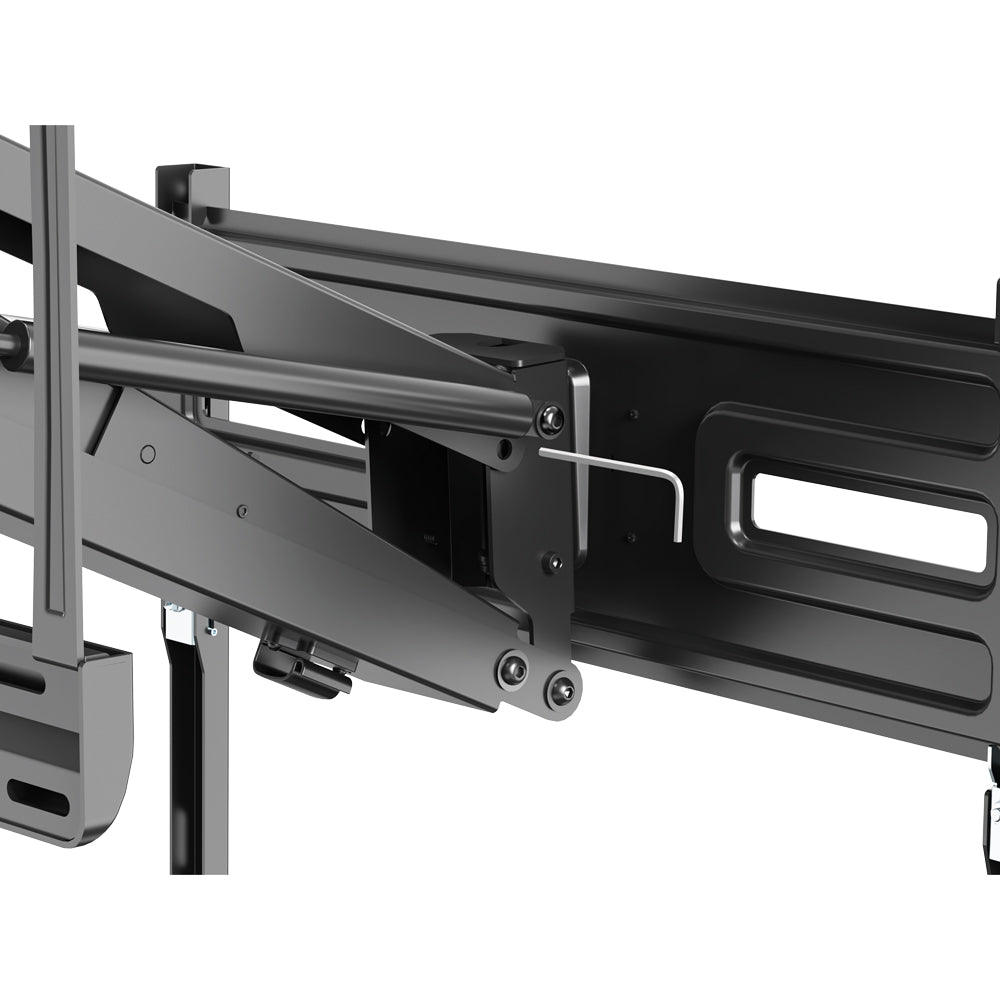

- Safety Locking Feature - Helps keep the mount stable when position locking is required
- Integrated Cable Clips - Keeps connected cables organised during movement
- Low-Profile Position - Retracts to 160mm from the wall when raised
- Extended Viewing Position - Extends up to 587mm from the wall when lowered

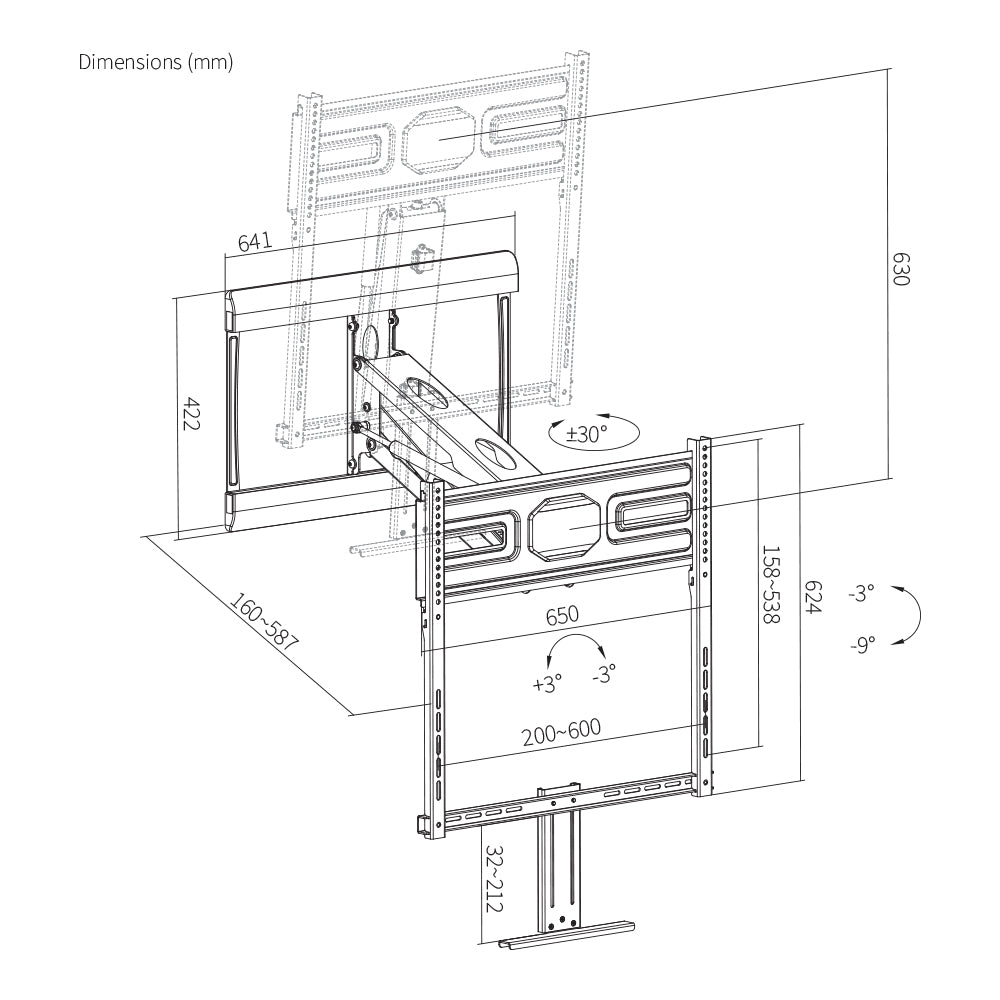

Specifications
- Compatible Screen Size: 65~85"
- Weight Capacity: 20~45kg
- Maximum Mounting Hole Pattern: 600 × 538mm
- Horizontal Mounting Range: 200~600mm
- Vertical Mounting Range: 158~538mm
- Height Adjustment: up to 630mm
- Swivel Range: +30° to -30°
- Screen Level Adjustment: +3° to -3°
- Viewing Angle Adjustment: -3° to -9°
- Wall Profile: 160~587mm
- Wall Plate Width: 641mm
- Wall Plate Height: 422mm
- Screen Plate Width: 650mm
- Screen Plate Height: 624mm
- Handle Height Adjustment: 32~212mm
- Spring Mechanism: Gas Spring and Mechanical Spring
- Cable Management: Integrated Cable Clips
- Mounting Type: Wall-Mounted
- Colour: Matte Black
Notes
- Installation above a fireplace requires adequate heat clearance according to the television and fireplace manufacturers’ instructions
