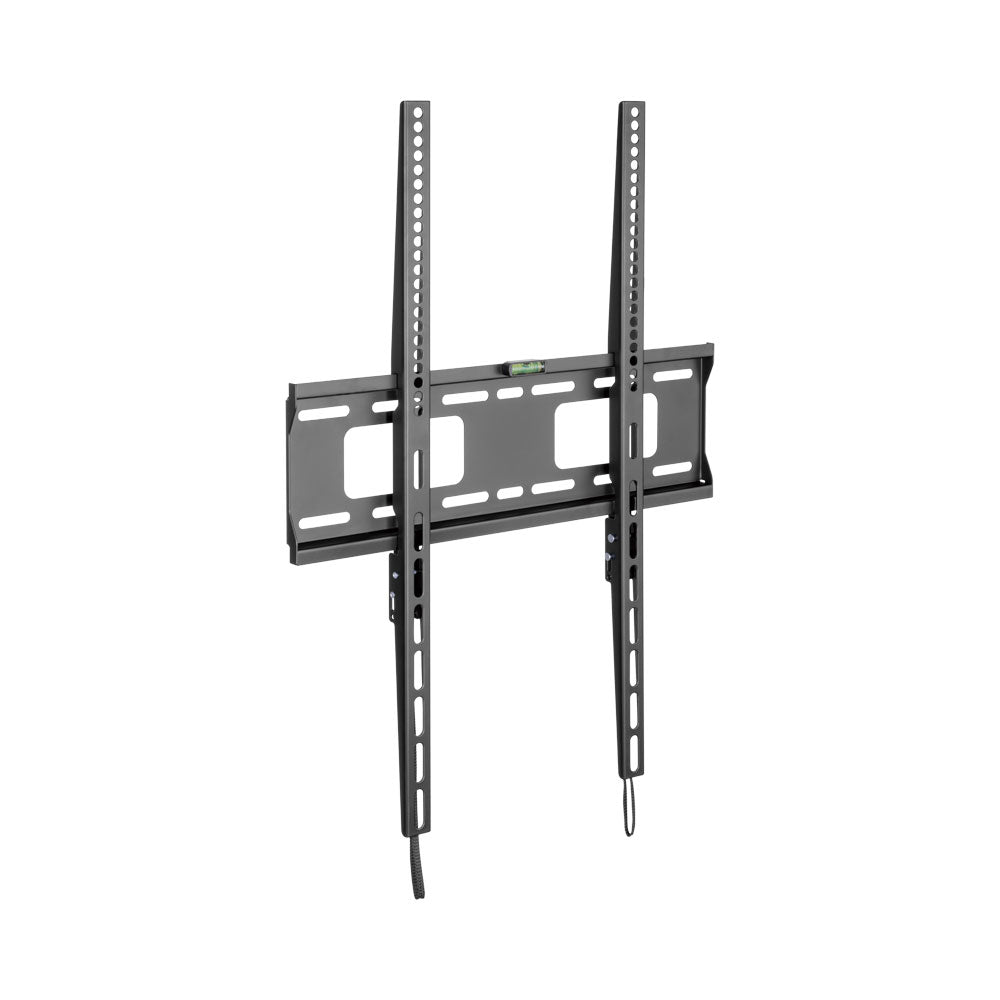

LinkQnet LP42-64AF 37-75" Fixed Portrait Anti-Theft TV Wall Mount Bracket
Secure Portrait Display Mounting.

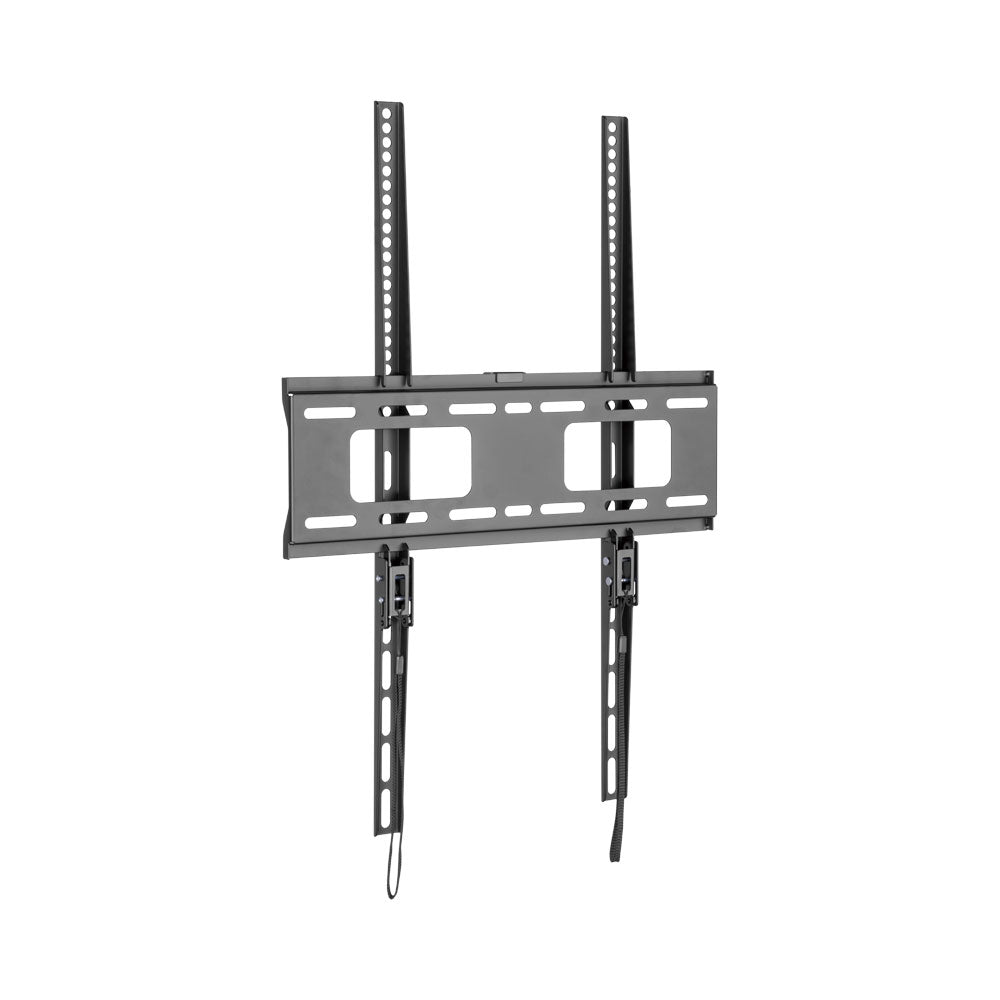

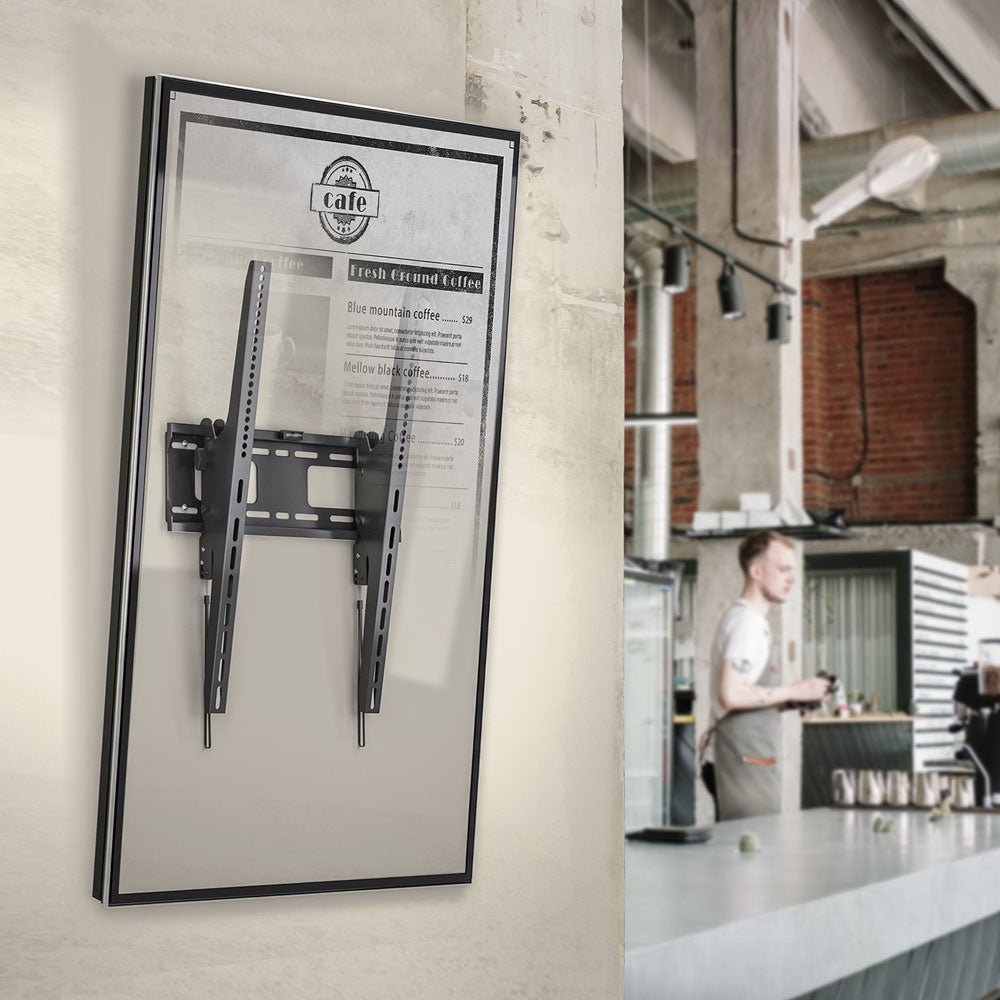

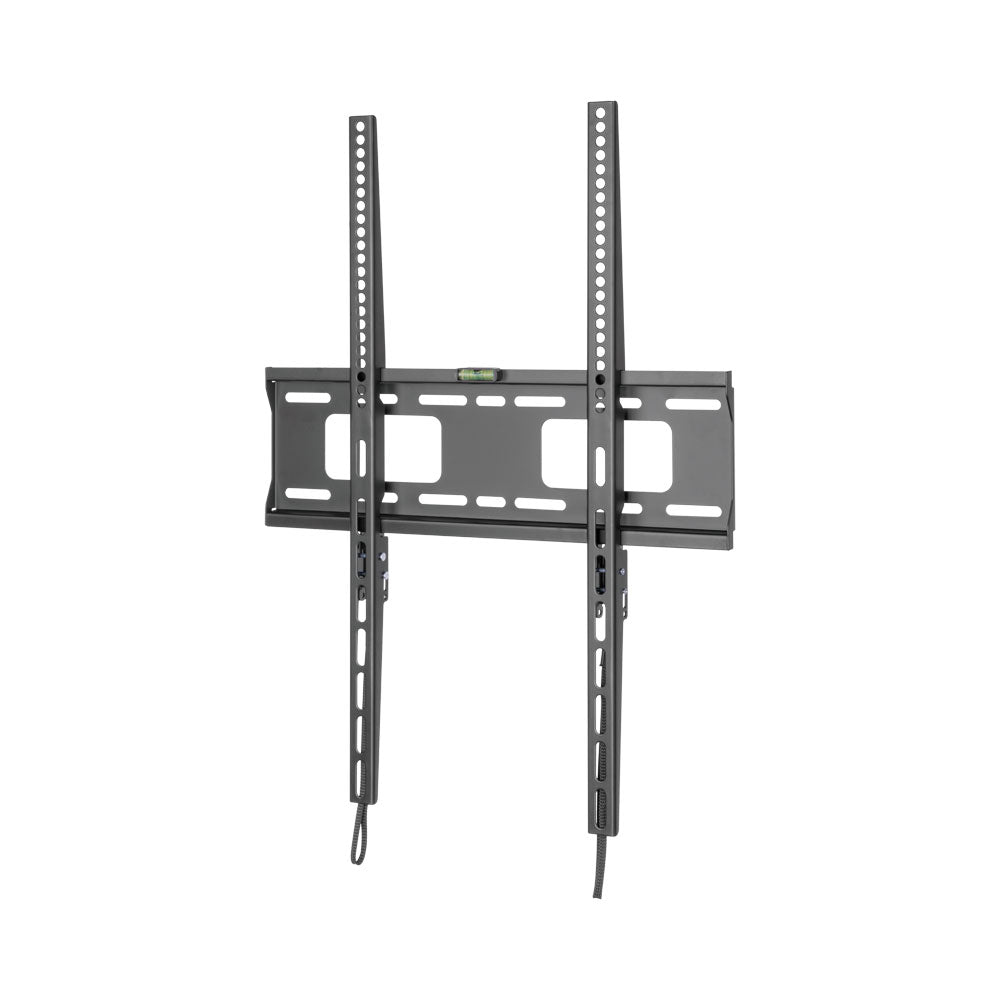

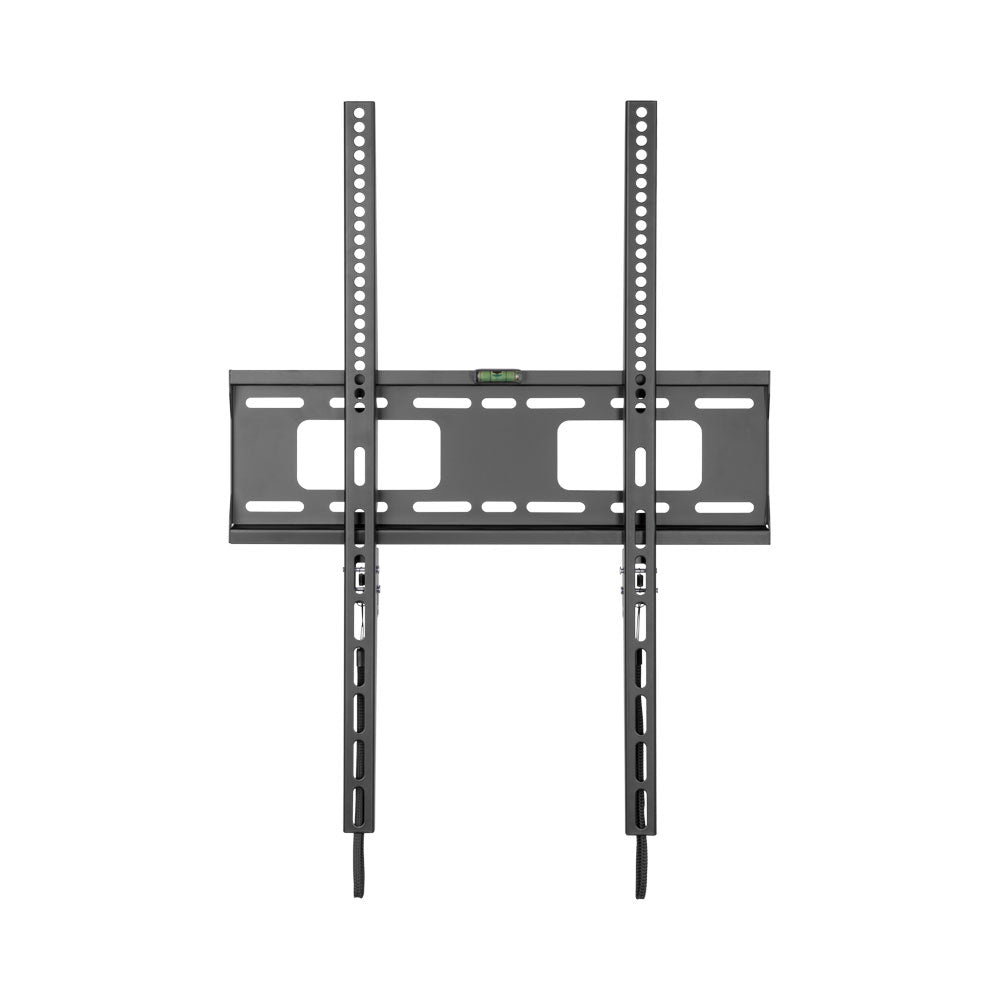

The LinkQnet LP42-64AF is a heavy-duty fixed wall mount designed for installing compatible 37-75" displays in portrait orientation. Its steel construction supports screens weighing up to 75kg, making it suitable for digital signage in retail stores, restaurants, transport facilities, houses of worship and other public or commercial environments. VESA compatibility extends from 200 × 200 to 400 × 600, while the slim 27mm profile positions the display close to the wall. An anti-theft locking hole accepts a compatible padlock to help deter unauthorised screen removal. Quick-release spring locks with pull straps simplify attachment and removal, while the open wall-plate design provides ventilation and access to connections. A hook-on bubble level assists with accurate installation.
Features
- Portrait Display Mounting - Designed specifically for installing compatible screens in a vertical orientation
- Broad Screen Compatibility - Supports most 37-75" flat or curved displays
- 75kg Weight Capacity - Heavy-duty steel construction supports compatible screens weighing up to 75kg
- Anti-Theft Locking Hole - Accepts a compatible padlock to help prevent unauthorised screen removal
- Slim Fixed Profile - Positions the screen approximately 27mm from the wall

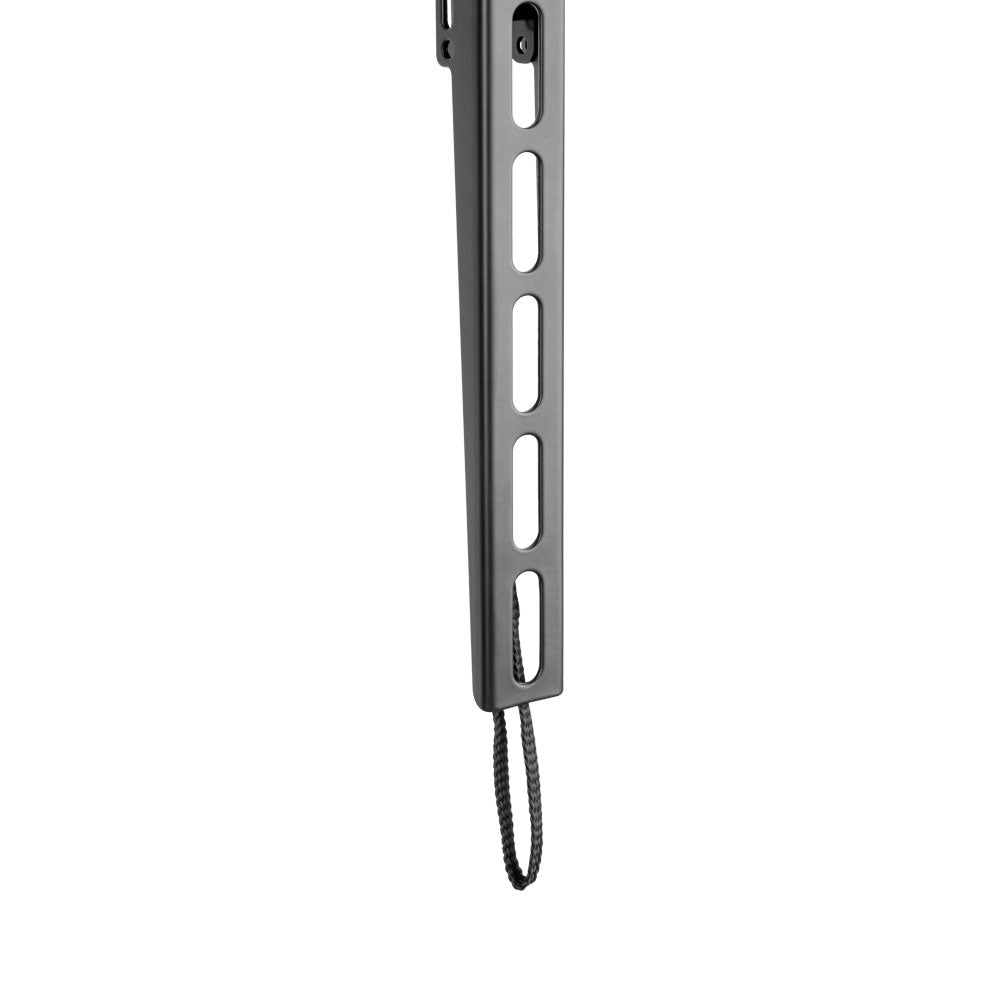

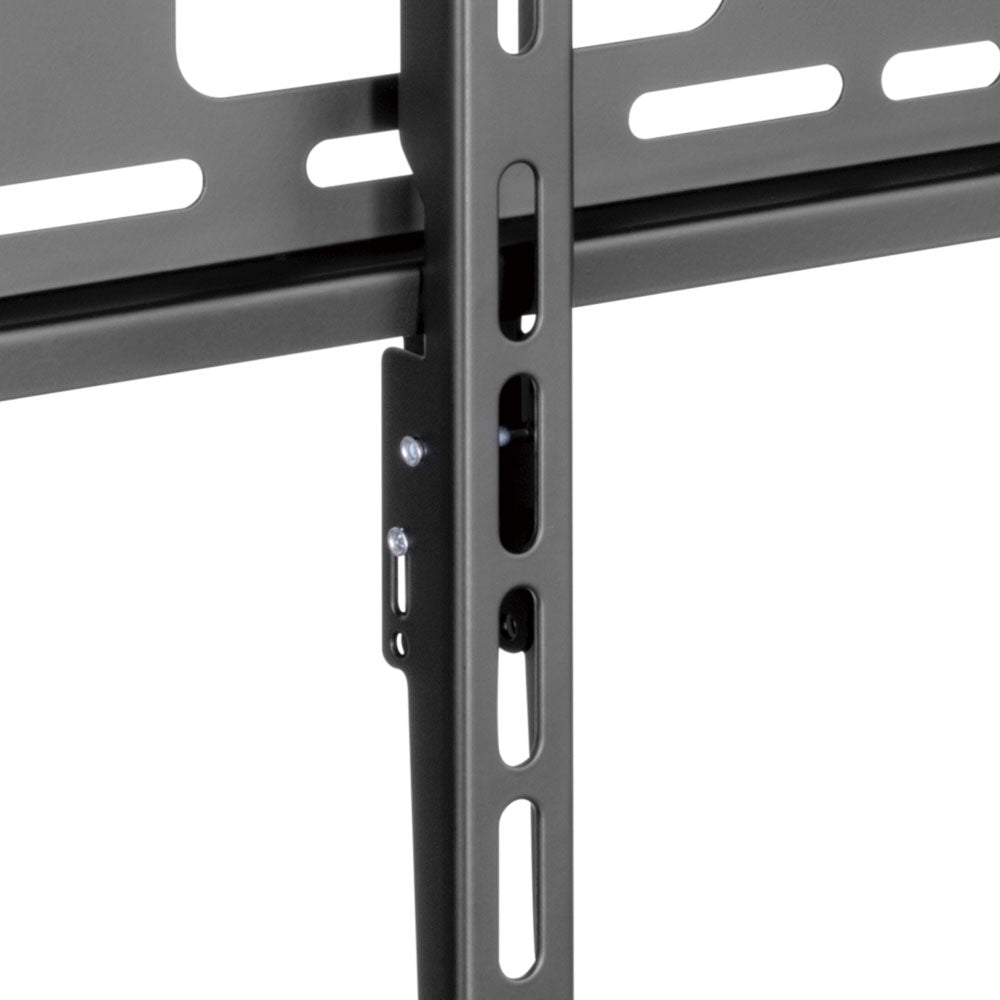

- Quick-Release Spring Locks - Pull straps simplify screen attachment and removal
- Open Wall-Plate Design - Provides ventilation and easier access to cables and connections

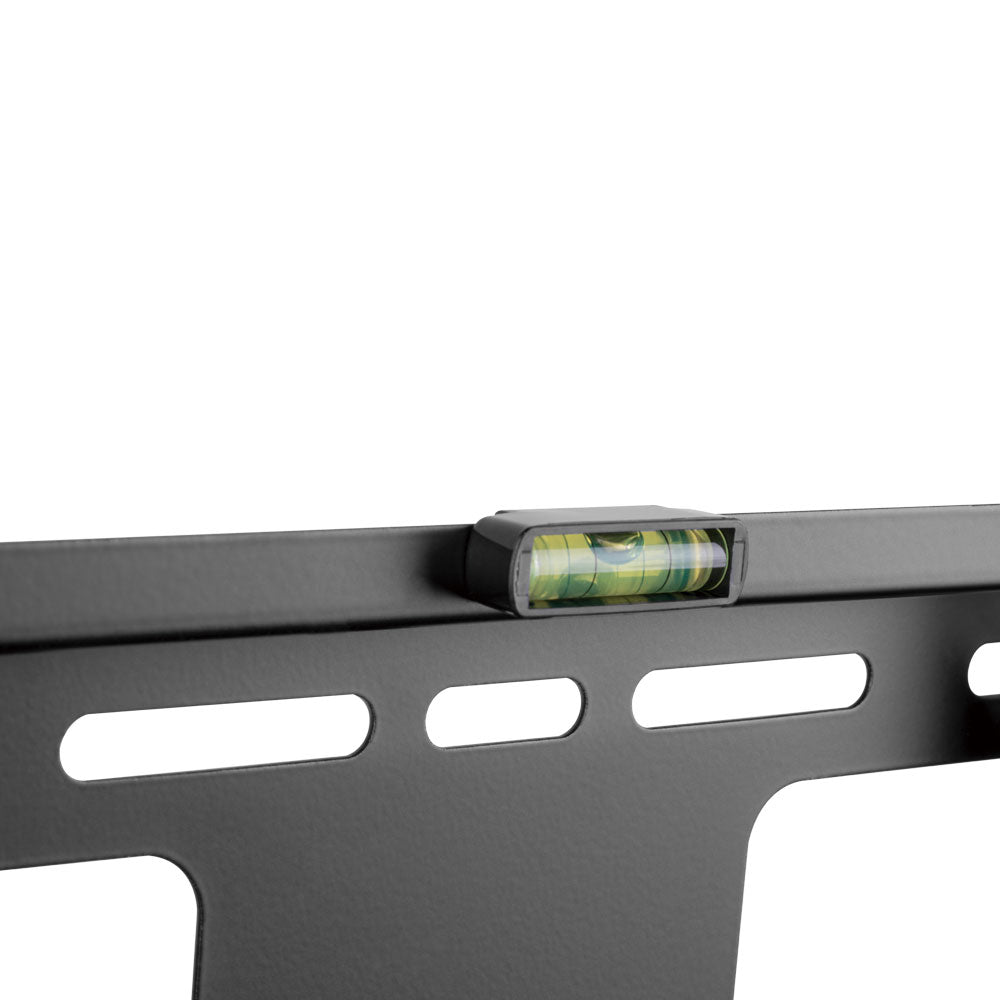

- Hook-On Bubble Level - Assists with accurate horizontal alignment during installation
- Matte Black Finish - Provides a discreet appearance behind the installed display
Specifications
General
- Recommended Screen Size: 37-75"
- Screen Orientation: Portrait
- Maximum Weight Capacity: 75kg
- Flat-Screen Compatibility: Yes
- Curved-Screen Compatibility: Yes
Mounting
- VESA Compatibility: 200 × 200, 300 × 200, 300 × 300, 400 × 200, 400 × 300, 400 × 400 and 400 × 600
- Maximum Mounting Pattern: 400 × 600
- Wall Profile: 27mm
- Wall-Plate Type: Fixed
- Display Plate Type: Detachable
- Installation Surface: Solid Wall
- Tilt Adjustment: No
- Swivel Adjustment: No
Construction
- Material: Steel
- Display Bracket Thickness: 2mm
- Wall-Plate Thickness: 1.5mm
- Surface Finish: Powder Coating
- Colour: Matte Black

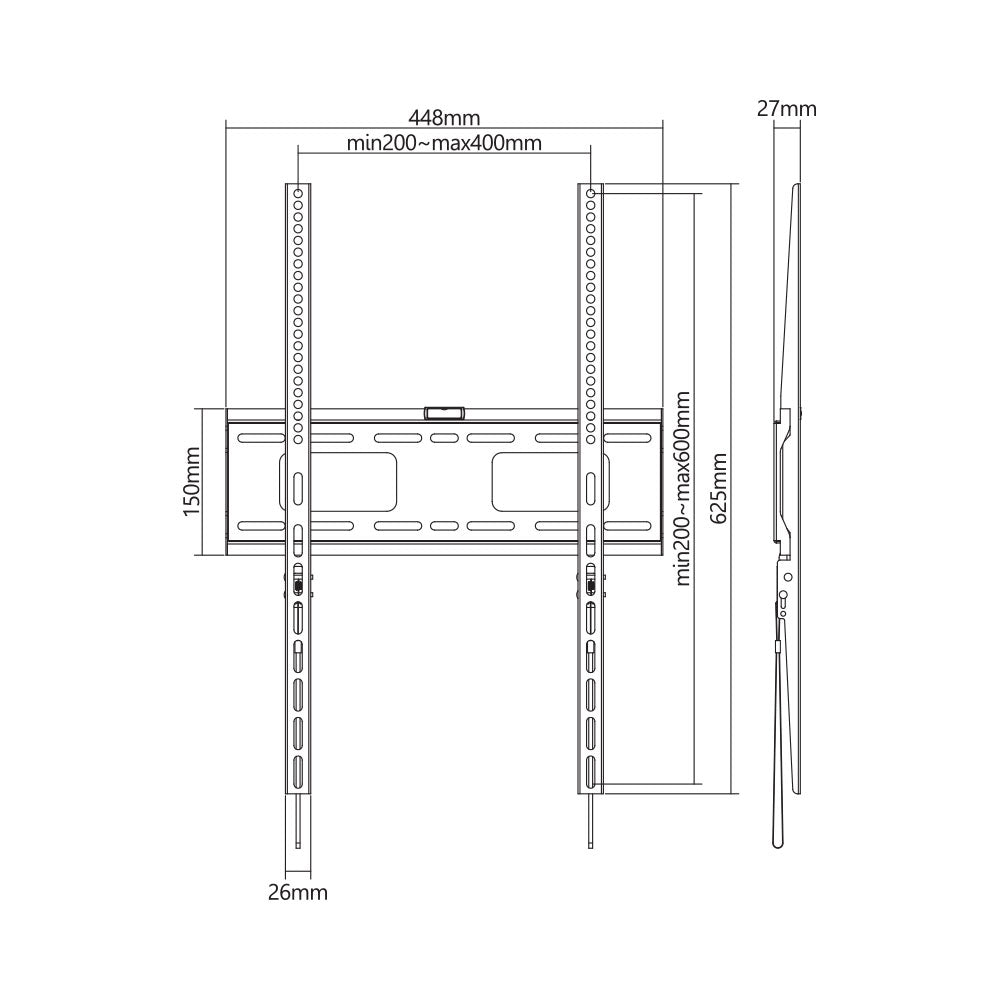

- Product Dimensions: 448 × 625 × 27mm
Security And Installation
- Anti-Theft Feature: Padlock-Compatible Locking Hole
- Compatible Padlock Shackle Diameter: 2~4.5mm
- Display Retention: Quick-Release Spring Locks with Pull Straps
- Alignment Aid: Hook-On Bubble Level
- Wall-Plate Architecture: Open Design
Notes
- A padlock is required to use the anti-theft locking feature and is sold separately
- This is a fixed portrait mount and does not provide tilt, swivel or extension adjustment
