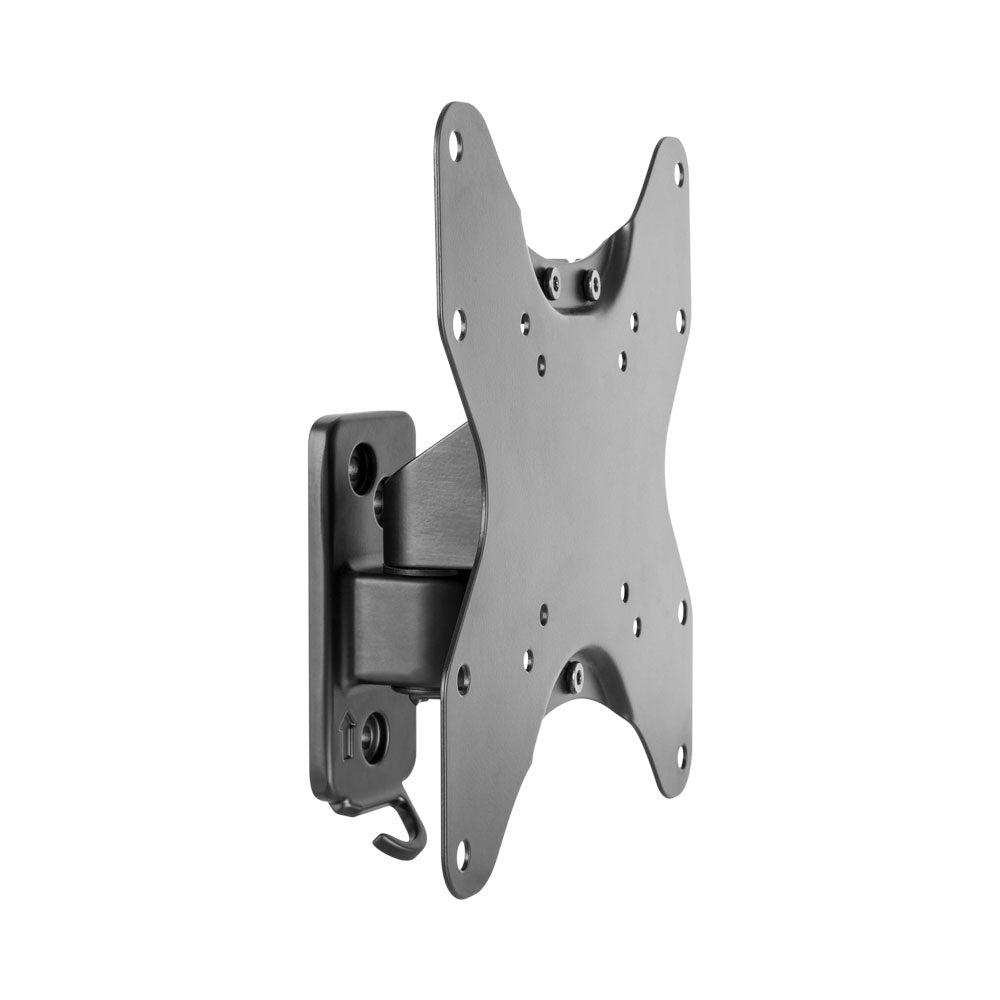

LinkQnet LDA29-220 23–42 Inch Full Motion Wall Bracket

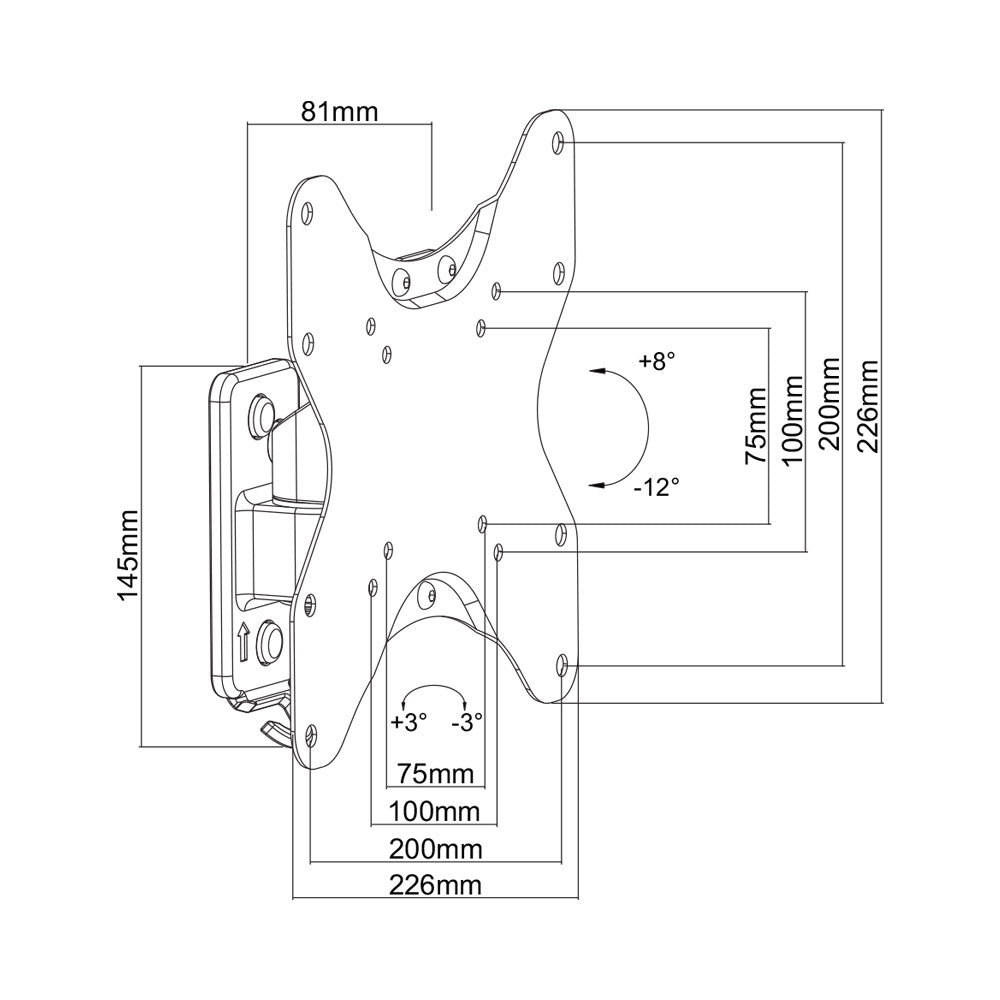

Modular Full-Motion TV Wall MountThe mount fits the majority of displays in the 23"-42" size range and supports screens up to 20kg/44lbs. Its outstanding feature is the detachable arms that are free combination. The detachable VESA panel is made to simply screw the monitor on the panel and slide back to the mount. The plate also allows +3° ~-3° screen level adjustment. Full motion structure allows smooth, effortless rotating and positioning for any direction, making it easy to find the perfect viewing angle. All mounting hardware and instruction are included for easy installation. Besides, cable clip is included for keeping cables organized and protected. Please refer to product diagram for further details.
Features
- Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
- Fully Detachable Modular Design: ensures easy installation
- Cable Management: keeps everything organized
Specifications
- Material: Steel, Aluminium,Plastic
- Metal Sheet Thickness: Panel = 1.8mm, The Head Fitting = 2.5mm
- Surface Finish: Powder Coating
- Colour: Matte Black
- Dimensions: 81 x 226 x 234mm
- Fit Screen Size: 23"-42"
- Fit Curved TV: No
- Mounting Hole Pattern: VESA Only
- VESA Compatible: 75x75, 100x100, 200x100, 200x200
- Max. VESA: 200x200mm
- Weight Capacity: 20kg
- Profile: 81mm
- Tilt Range: +8°~-12°
- Swivel Range: +30°~-30°
- Screen Level: +3°~-3°
- Screen Freely Tilting: Yes
- Installation: Solid Wall, Single Stud
- Panel Type: Detachable Panel
- Wall Plate Type: Fixed Wall Plate
- Cable Management: Yes
- Anti-theft: No
- Bubble Level: No
- Accessory Kit Package: Compartment Polybag
- Instruction Manual Included: Yes
- Power Plug Included: No
- Magnetic: No
- Lithium Battery: No
