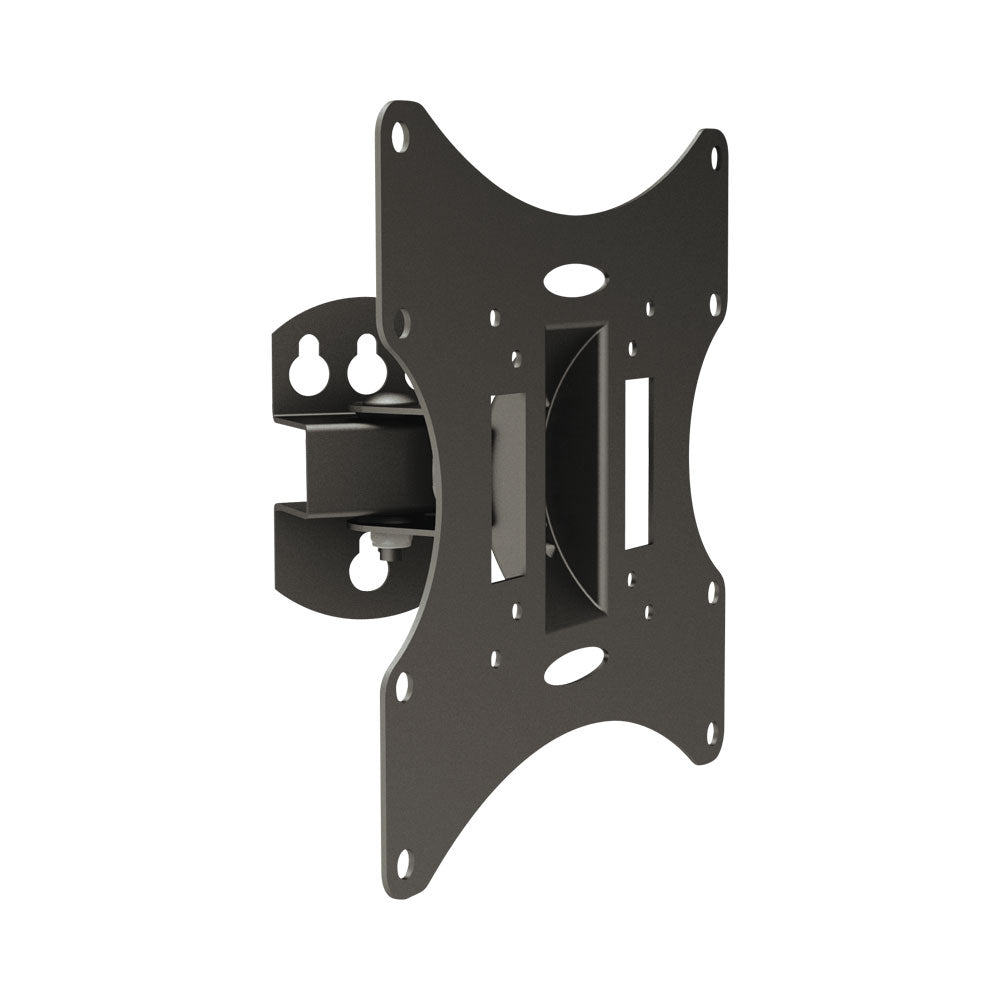

LinkQnet Brackets BRK-LCD-501A Economy Pivoting Wall Mount Bracket
The popular LCD-501A model is one of the Classic products and is designed to fit any 23’’-42’’ Flat Panel TV up to 30kgs. Simple construction equipped with full decorative cover routes cables inside arm for a clean look. Adjustable swivel arm and tilt plate provides maximum viewing flexibility. VESA compatible with 75x75, 100x100, 200x100, 200x200.
Features
- Free-tilting & Swiveling Design: for multiple TV viewing angles
- Easy-Grip Knobs: for quick tilt and lock
- Sturdy Steel Construction: provides a solid and long-lasting performance
Specifications
- Material: Steel
- Metal Sheet Thickness: VESA Panel THK = 2mm cold-rolled sheet, Wall Plate THK = 2mm cold-rolled sheet
- Surface Finish: Powder Coating
- Colour: Matte Black

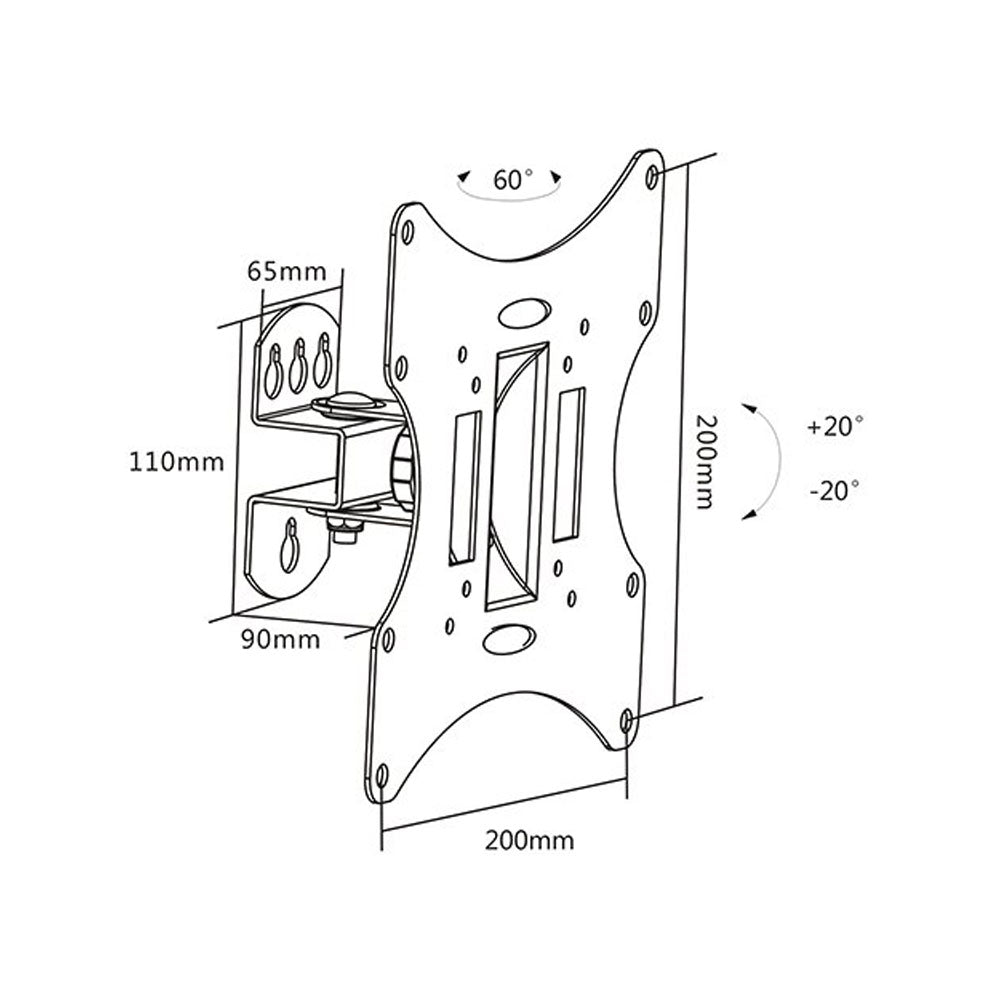

- Dimensions: 90x220x220mm
- Fit Screen Size: 23"-42"
- Mounting Hole Patter: VESA Only
- VESA Compatible: 75x75, 100x100, 200x100, 200x200
- Max. VESA: 200x200
- Weight Capacity: 30kg
- Profile: 90mm
- Tilt Range: +20°~-20°
- Swivel Range: +30°~-30°
- Installation: Single Stud
- Panel Type: Fixed Panel
- Wall Plate Type: Slide-in Wall Plate
- Cable Management: No
- Anti-theft: No
- Accessory Kit Package: Normal/Ziplock Polybag
