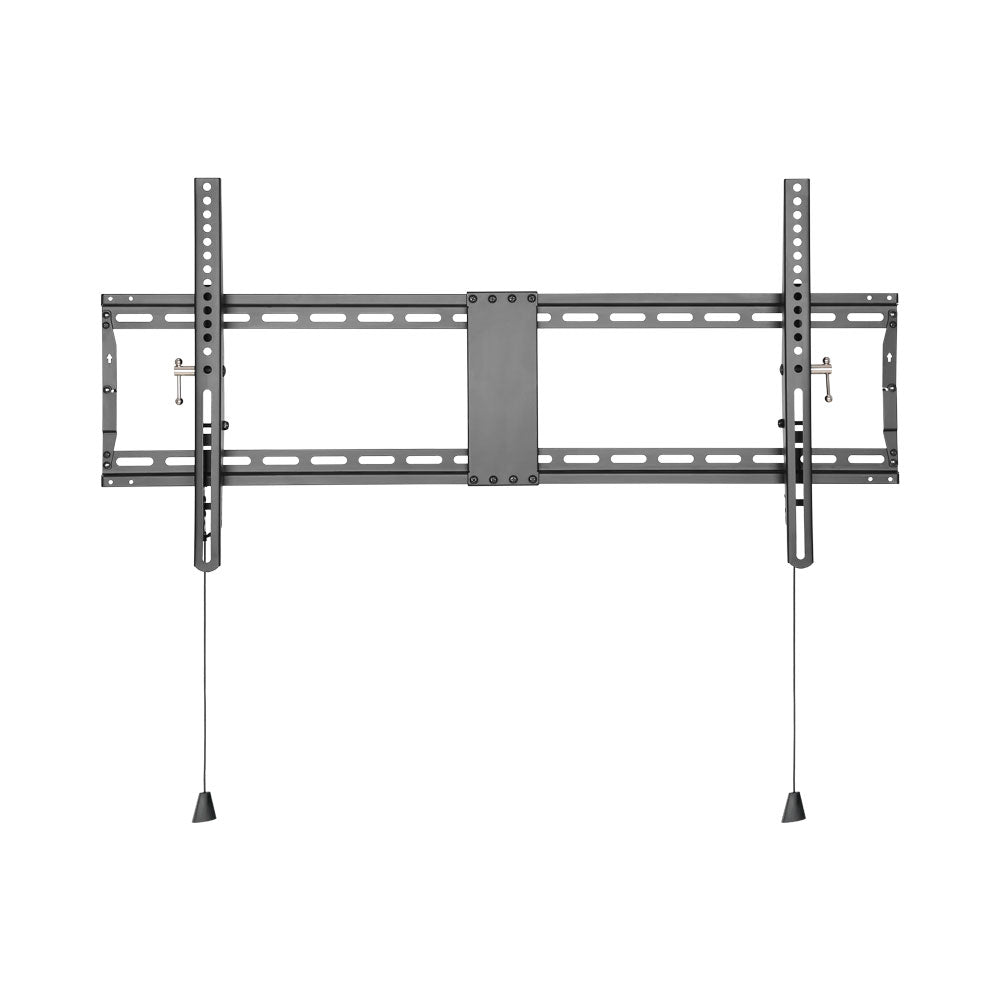

BRACKET 43-90INCH, WALL MOUNT, 70KG, TILT

Features

• Toolless Tilt: allows for effortless positioning
• Open Architecture: provides increased ventilation and easier access to wires
• Folding Design: saves space (keeping the screen and arm out of the way when not in use)
• Anti-Theft Locking Hole: for additional security preventing any unwanted removal (extra padlock required)
• Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy

Specifications

• Material: Steel
• Metal Sheet Thickness: Wall Plate THK = 2mm cold-rolled sheet
• Surface Finish: Powder Coating
• Colour: Matte Black
• Dimensions: 49 x 890 x 431mm
• Fit Screen Size: 43"-90"
• Fit Curved TV: Yes
• Mounting Hole Pattern: VESA & Universal
• VESA Compatible: 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x400, 800x400
• Max. VESA: 800x400
• Weight Capacity: 70kg
• Profile: 49mm
• Tilt Range: +3°~-12°
• Screen Freely Tilting: No
• Installation: Double Stud (406mm/450mm/600mm), Solid Wall
• Panel Type: Detachable Panel
• Wall Plate Type: Fixed Wall Plate
• Direction Indicator: Yes
• Cable Management: No
• Anti-theft: Yes
• Bubble Level: Hook-on Bubble Level (Included in Components Package)

Shipping Dimensions

• Length: 45 cm
• Width: 12.2 cm
• Height: 8 cm
• Weight: 2.82 kg
