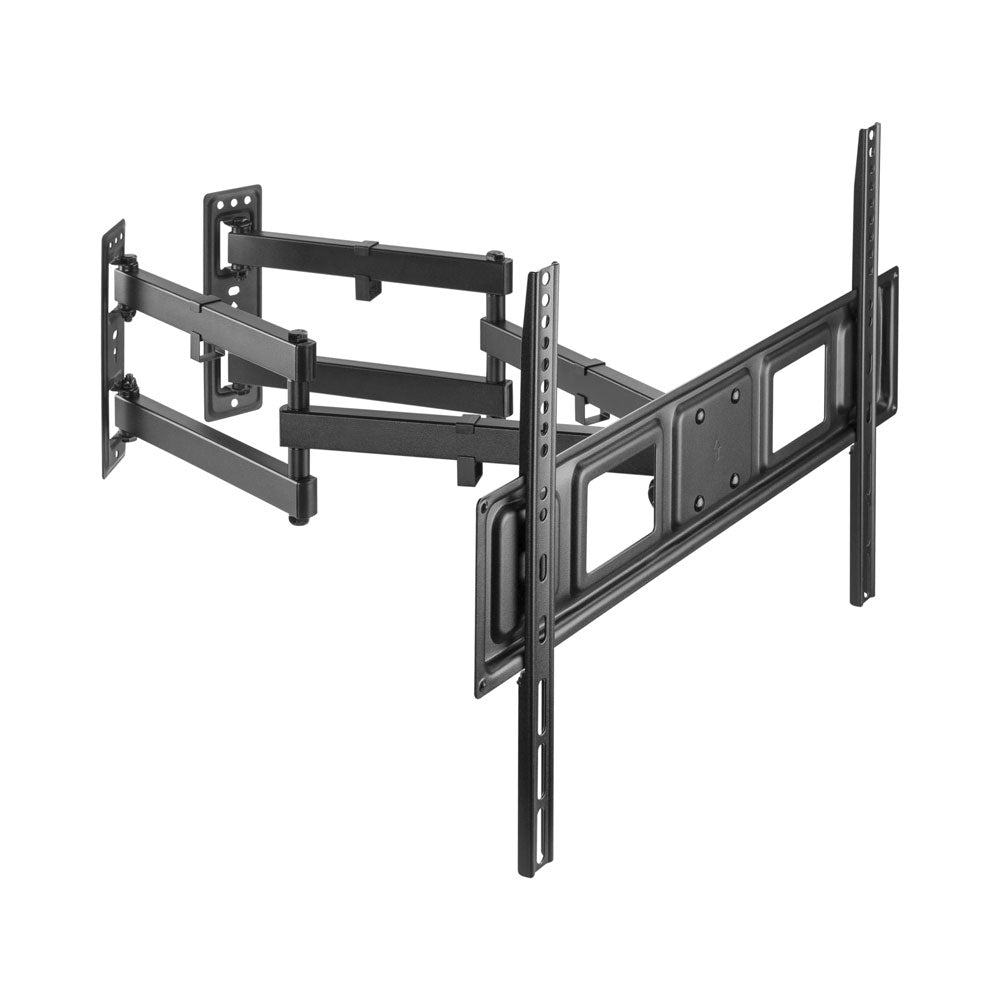

BRACKET 32-70IN TO 45KG FULL-MOTION CORNER,WALL..*

Features

• Free-Tilting Design - Makes Easy Forward or Backward Adjustments for Better Viewing and Reduced Glare
• Swiveling Arms - Offer Maximum Viewing Flexibility (Makes Every Seat the Best Seat)
• Leveling Adjustments - Allows the TV to be Perfectly Positioned After Hanging
• Split Wall Plate - Works on Different Angled Corner Walls and Saves Space (Can Also be Installed on a Flat Wall)
• Cable Management - Keeps Everything Organised

Specifications

• Material: Steel and Plastic
• Metal Sheet Thickness: Bracket Arm THK = 1.5mm Cold-Rolled Sheet, VESA Panel THK = 1.8mm Cold-Rolled Sheet, Wall Plate THK = 2mm Cold-Rolled Sheet
• Pipe Size: 30 × 20 × 1.5mm Square Steel Tube
• Surface Finish: Powder Coating
• Colour: Fine Texture Black
• Dimensions: 655 × 420 × 622mm
• Fit Screen Size: 32-70"
• Fit Curved Screen: Yes
• Mounting Hole Pattern: VESA and Universal
• VESA Compatible: 75×75, 100×100, 100×150, 150×100, 100×200, 200×100, 150×150, 200×200, 300×200, 400×200, 300×300, 400×300, 400×400, 600×400
• Max. Mounting Hole: 600×400
• Weight Capacity: 45kg
• Tilt Range: +5~-15°
• Swivel Range: +45~-45°
• Screen Level: +3~-3°
• Screen Free Tilting: No
• Installation: Solid Wall, Double Stud (406mm / 450mm)
• Panel Type: Detachable Panel
• Wall Plate Type: Fixed Wall Plate
• Direction Indicator: Yes
• Cable Management: Yes
• Anti-Theft: No
• Bubble Level: No

Shipping Dimensions

• Length: 5.8 cm
• Width: 71.5 cm
• Height: 23.1 cm
• Weight: 5.27 kg
