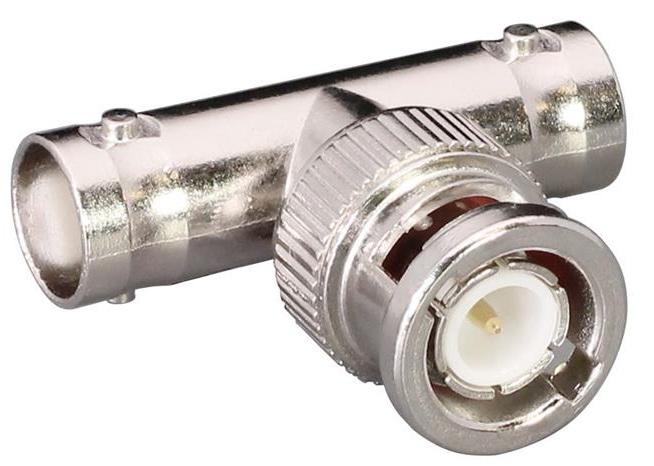

BNC T SHAPED CONNECTOR - BNCT
A BNC T-Shaped Connector (Often Referred To As A T-Piece Or Tee Adapter
Model BNCT) Is A 3-Port, T-Shaped Coaxial Adapter Used To Split Or Combine BNC Signals
The Most Common Configuration Is 1 x BNC Plug (Male) to 2 x BNC Jacks (Female)
Allowing a Single BNC Signal to be Split into two Paths
Specifications
Connector Configuration: 1 x BNC Male (Plug), 2x BNC Female (Jack)
Impedance: Available In Both 50 Ohm (Common For RF / Data) And 75 Ohm (Common For Video / CCTV)
Maximum Frequency: Up To 4 GHz
Voltage Rating: 500 /50 Hz
Coupling Type: Bayonet (Twist-Lock) for quick connection / disconnection
Material
Body: Nickel-Plated
Contacts: Gold-plated Brass
Dielectric: PTFE (Teflon)
Operating Temperature: -40°C to +85°C (Some Rated Up To -65°C - +165°C)
Durability: = 500 Mating Cycles
Key Features and Applications
Versatility: Used To Split A Single Signal Path Into Two, Or To Combine Two Signals
Applications: Ideal For CCTV Security Cameras, DVRs, Ethernet Networks
(Token Ring), RF / Radio Equipment, And Laboratory Test Equipment
Construction: High-Quality, Durable Design
With Some Models Offering Low-Loss Signal Transmission
Orientation: 3-Way, Right-Angled Configuration, Sometimes Labelled As T-Piece
