BNC SPRING - BNC

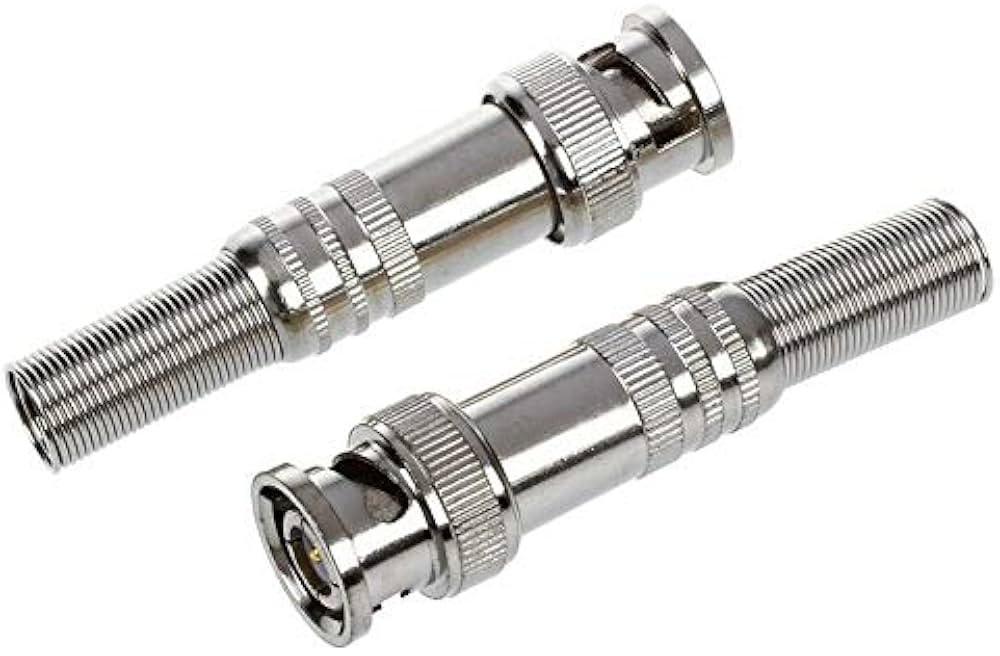

BNC Spring Connectors (Often Twist-On / Screw-On)
Are Solderless, Male Coaxial Connectors
Typically Used For Quick RG59 / RG6 CCTV Installations
They Feature a Nickel-Plated Brass Body, Spring-Loaded strain relief
And usually have a 75O Or 50O Impedance, Operating Up To 2-4 GHz
These Connectors allow for Fast Termination without a Crimping Tool
Specifications
Type: Male BNC Connector With Twist-On / Screw-On Mechanism
Impedance: Commonly 75O (Video / CCTV) Or 50O(RF)
Cable Compatibility: Designed For RG59, RG6, Or Similar Coaxial Cables
Connection Method: Solderless, Screw-On, Or "Twist" Design
Frequency Range: Usually 0 to 2 GHz, with some Up To 4 GHz
Material: Nickel-Plated Brass Housing, Copper / Gold-Plated Pin, Zinc Alloy Ring
Signal Type: Optimized For HD-Analog Video (TVI / CVI / AHD) And SD-SDI
Electrical: Typically, VSWR (Voltage Standing Wave Ratio) and >4000MO Insulation Resistance
Features
Strain Relief: The "Spring" Tail Provides Cable Protection And Reduces Bending Stress
Easy Installation: Requires no specialized Crimp Tools; ideal for Field Repairs
Secure Fit: Provides a secure Connection and good Shielding
