Cable Standard:
Cable’s quality directly affect the video signal transmission quality. in order to achieve good quality signal transmission, recommend use standard cat 5e/6 or better utp cable.
Warm Tip:
The cable quality, could use “multimeter” check one pcs twist pair wire’s DC impedance. normally request dc impedance<18Ω/100m, that means < 54Ω/carton.

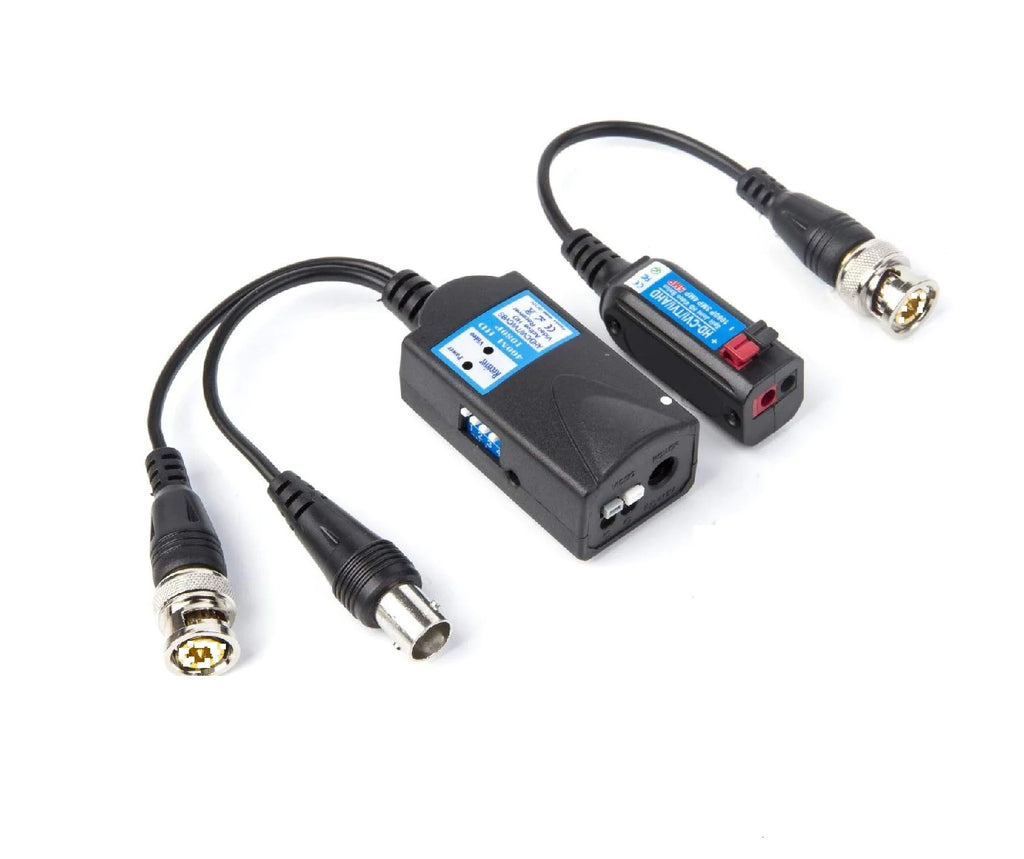

Dial Switch
-
- Dial Switch use for adjust contrast. Different compound mode makes different level of contrast.
- Level 1 (Lowest) : “1” “2” “3” “4” All The Tap Position Turn Up
- Level 2: “1” Turn Down, “2” “3” “4” Turn Up.
- Level 3: “1” “2” Turn Down, “3” “4” Turn Up.
- Level 4: “1” “2” “3” Turn Down, “4” Turn Up.
- Level 5 (Hightest): “1” “2” “3” “4” All The Tap Position Turn Down
Notice: HD CVI/TVI/AHD Cameras only have to use “1” Tap Position. (“2” “3” “4” can not use, Otherwise, the image will be abnormal), the max distance: 400m
