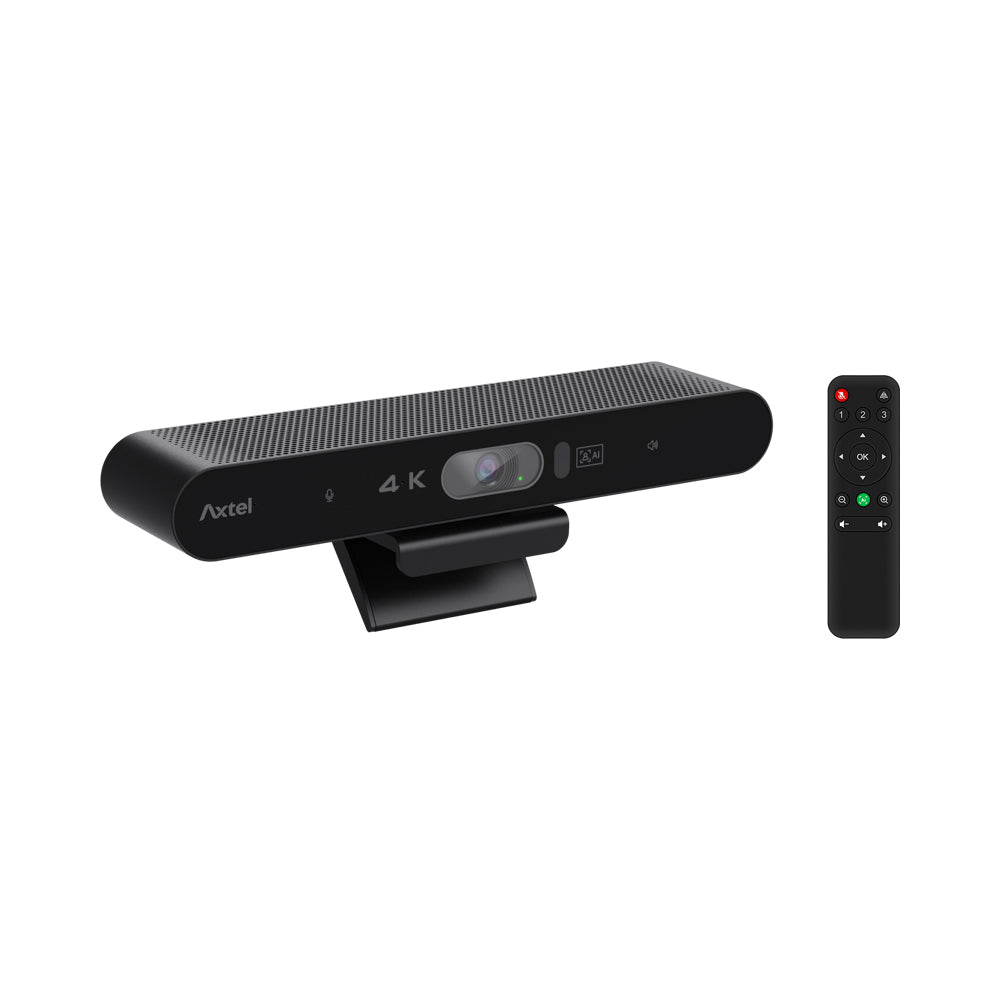

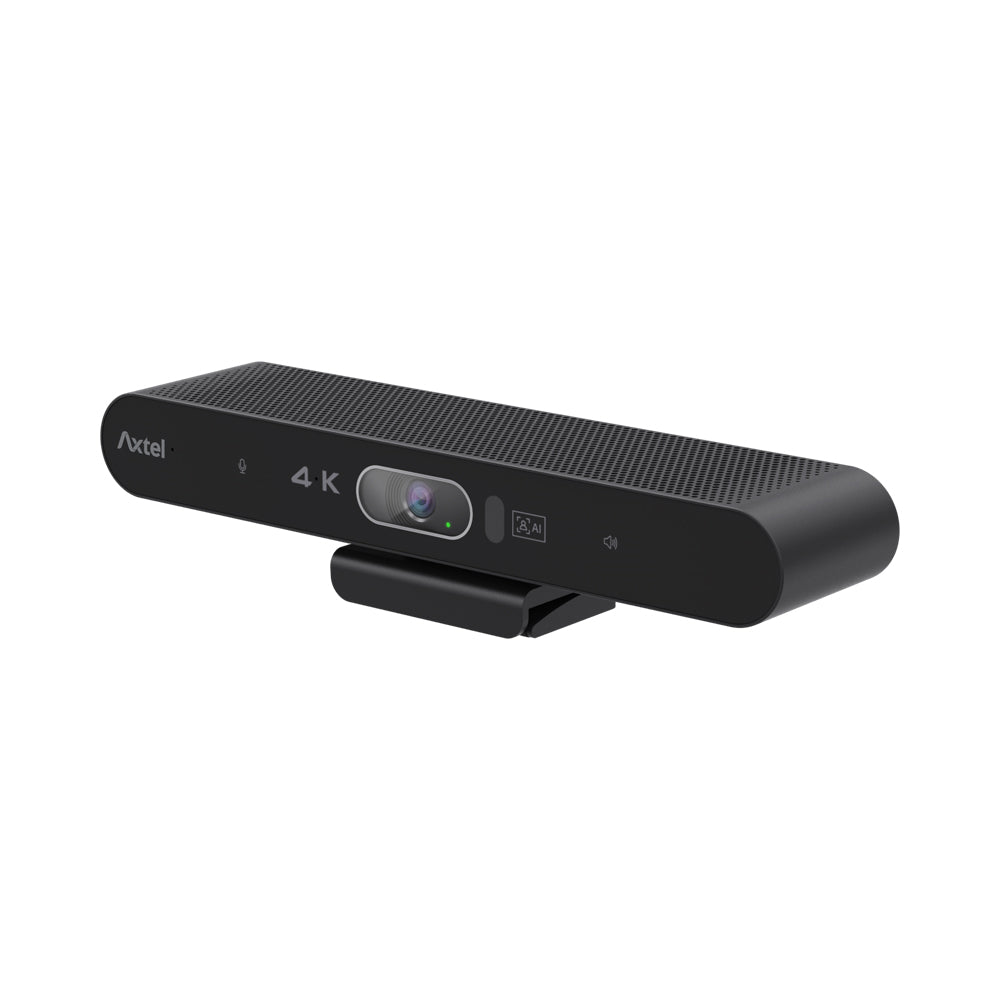

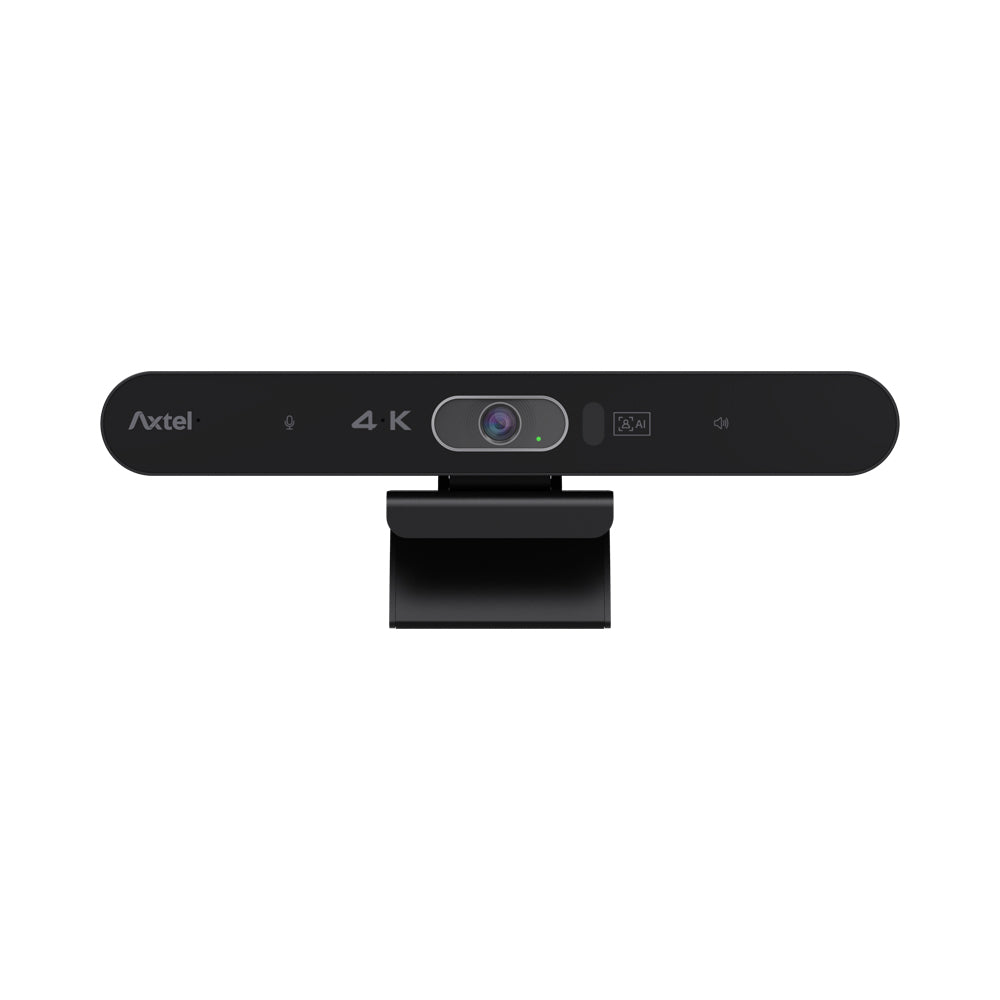

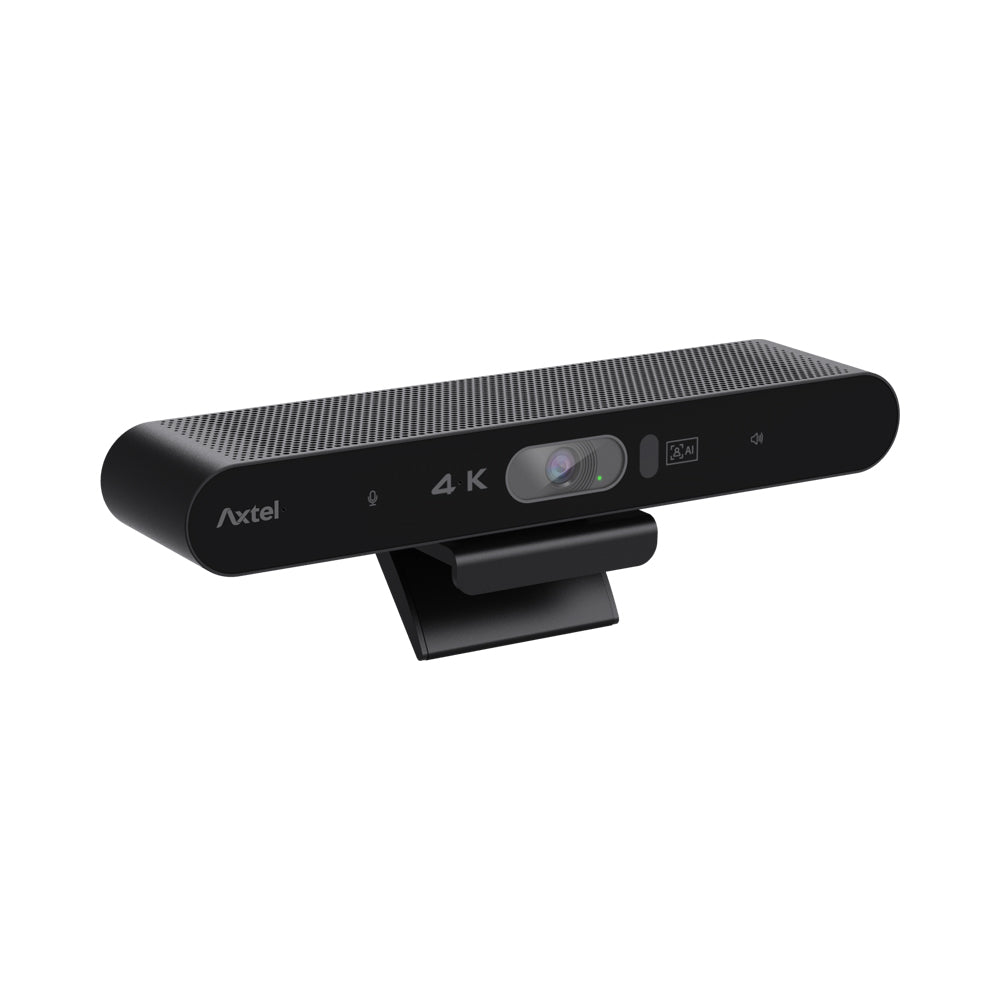

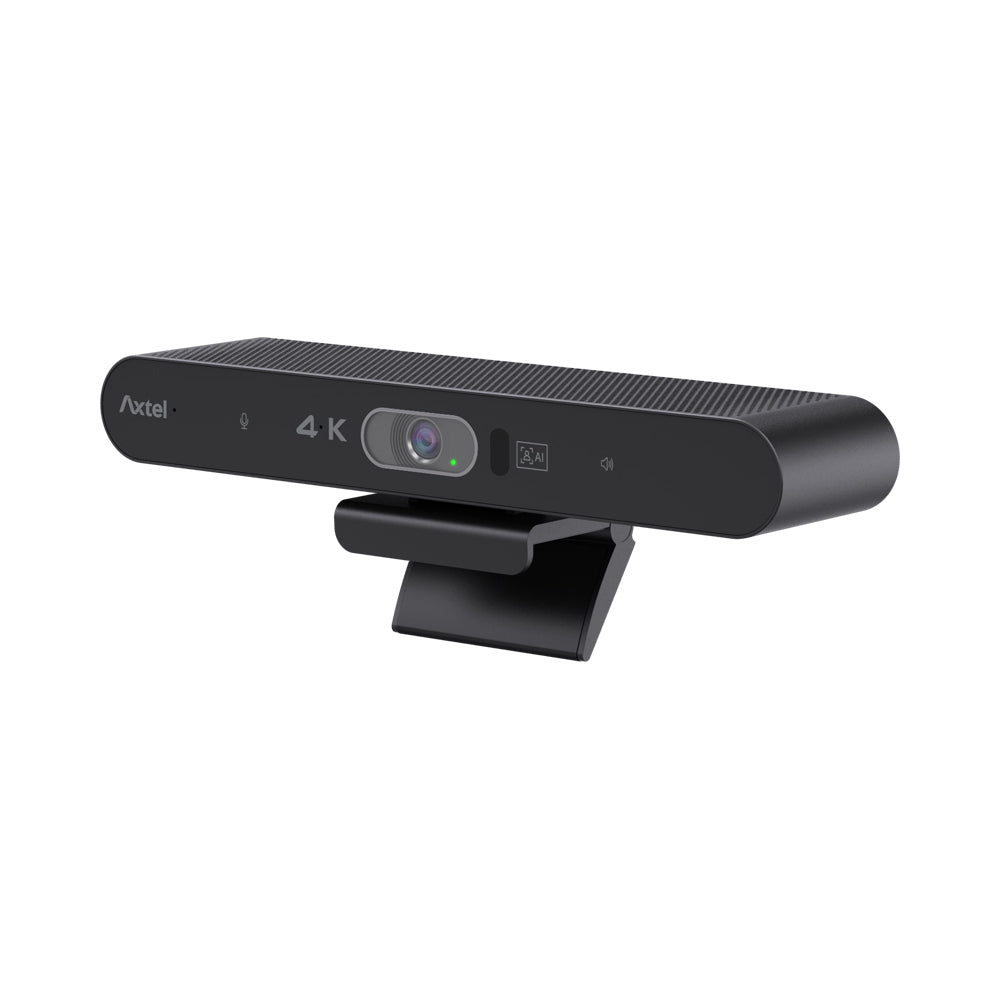

AXTEL AX-4K-VBM 4K Video Bar Mini Webcam
Mini Size, Mega Clarity.
The AXTEL AX-4K-VBM Video Bar Mini is an all-in-one 4K video conferencing solution designed for personal offices, huddle rooms and small meeting spaces. Its 8MP camera delivers crisp 3840 × 2160 @30fps video, while AI speaker tracking, face tracking and auto framing help keep participants naturally centred. A 94° diagonal field of view captures more of the room, supported by 4× digital zoom and ePTZ control. Dual omnidirectional microphones provide 360° voice pickup over distances of up to 7m, while the integrated high-fidelity speaker delivers clear meeting audio. With USB Type-A plug-and-play connectivity, broad operating system support and remote control operation, the AX-4K-VBM provides a simple way to upgrade everyday video collaboration.
Features
- Ultra HD 4K Video - Delivers detailed 3840 × 2160 @30fps image quality
- AI Speaker Tracking - Automatically follows the active speaker
- Auto Framing - Keeps meeting participants correctly positioned in view
- Face Tracking - Maintains focus on recognised participants
- 94° Viewing Angle - Captures a wider area for small meeting spaces
- 4× Digital Zoom - Provides closer framing without moving the camera
- ePTZ Control - Supports electronic pan, tilt and zoom adjustment
- Dual Microphone Array - Provides 360° voice pickup with two highly sensitive microphones
- 7m Pickup Range - Captures voices across personal offices and small meeting rooms
- Automatic Image Adjustment - Supports automatic exposure, aperture, brightness, contrast and white balance
- High-Fidelity Speaker - Delivers clear and natural meeting audio
- USB Plug-and-Play - Connects through a single USB Type-A cable without additional drivers

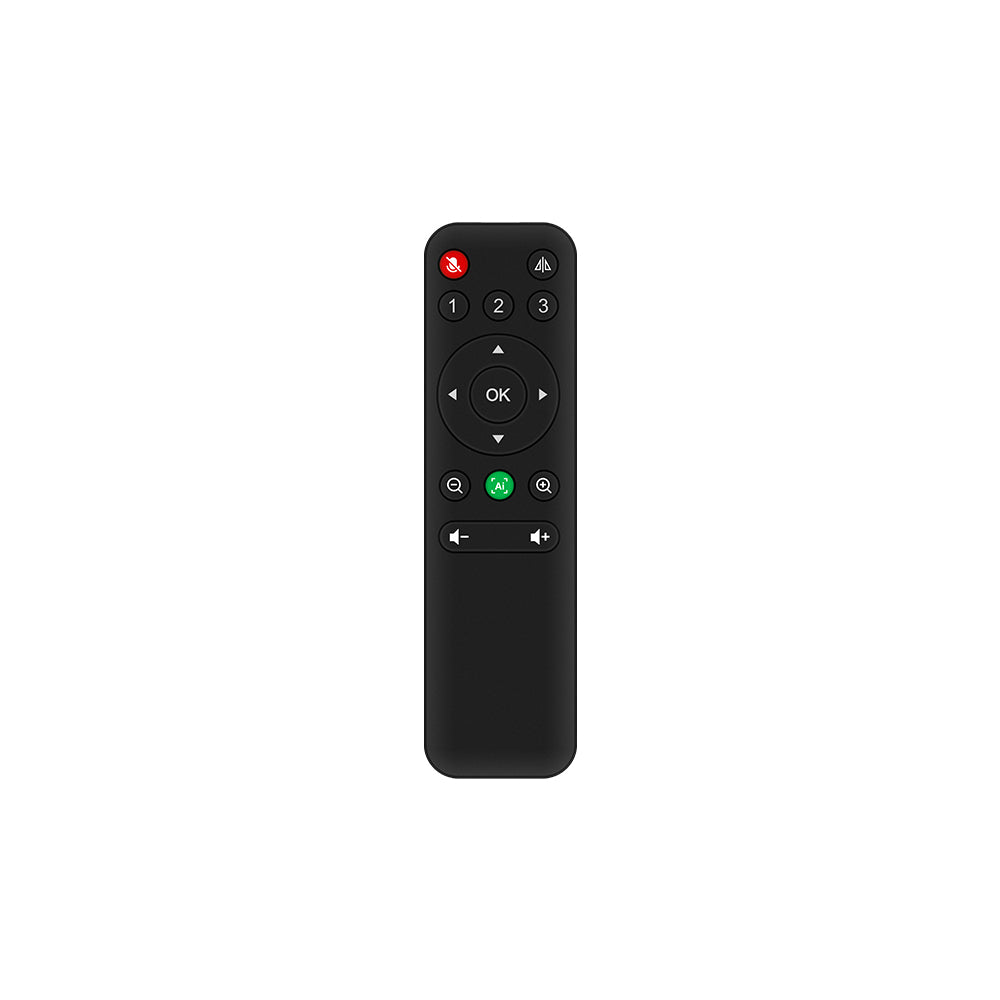

- Remote Control - Provides convenient access to camera and audio functions

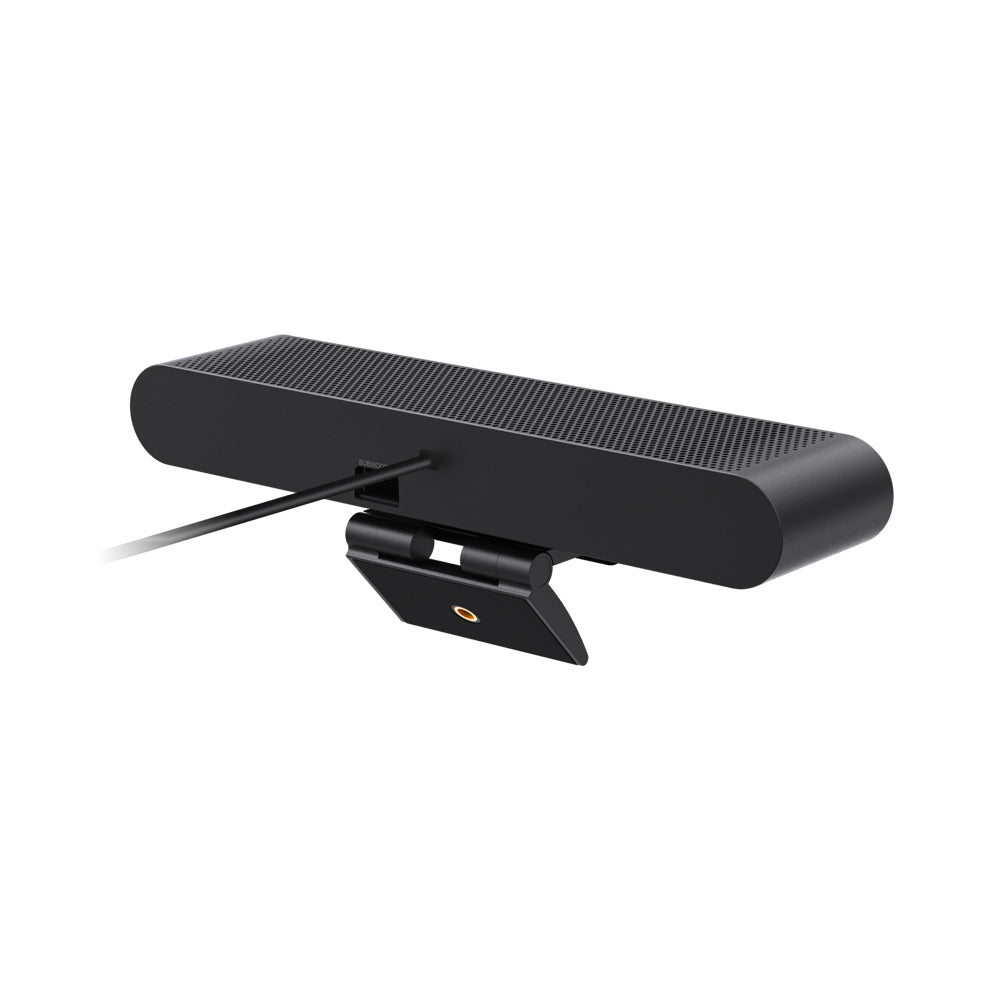

- Integrated Mounting Bracket - Supports secure positioning on a compatible display
Specifications
- Camera Sensor Size: 1/3.0"
- Camera Resolution: 8MP
- Maximum Video Resolution: 3840 × 2160 @30fps
- Frame Control: Auto Framing and Face Tracking
- AI Functions: Speaker Tracking and Group Framing
- Digital Zoom: 4×
- ePTZ: Electronic Pan, Tilt and Zoom
- Interface: USB2.0
- Viewing Angle: 94° Diagonal, 90° Horizontal and 55° Vertical
- Minimum Illumination: 350Lux
- Shortest Shooting Distance: 50cm
- White Balance: Automatic
- Image Adjustment: Automatic Aperture, Brightness and Contrast
- Hardware Encoding: H.264 and MJPEG
- Speaker Maximum Output: 2W
- Speaker Peak Power: 3W
- Speaker Impedance: 4Ω
- Speaker Frequency Range: F0~20kHz
- Microphones: 2× Omnidirectional
- Microphone Signal-to-Noise Ratio: 64.5dB
- Microphone Sensitivity: -26dB
- Microphone Frequency Response: 20Hz~8kHz
- Maximum Sound Pressure Level: 120dB
- Voice Pickup Range: up to 7m

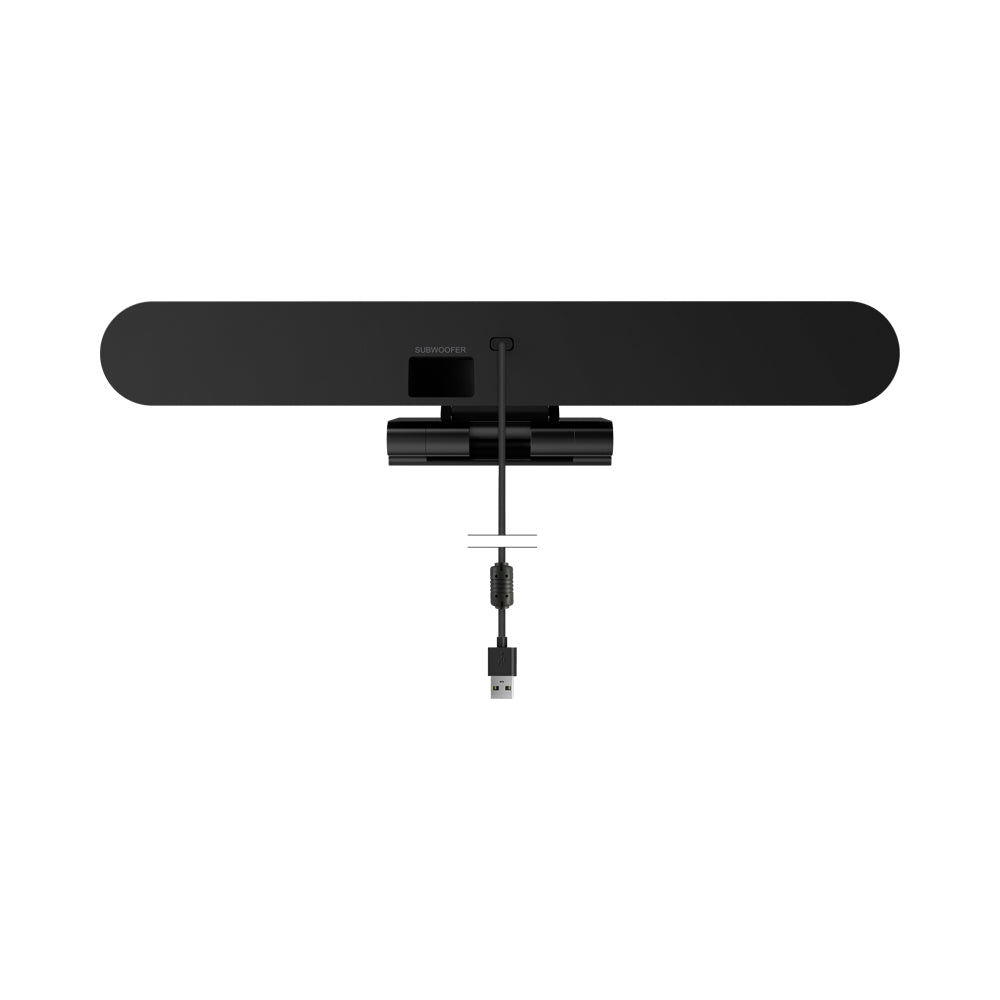

- Connection Type: USB Type-A Plug-and-Play
- Protocol: UVC
- Cable Length: 1.8m
- Camera Dimensions: 260 × 56 × 60mm
- Camera Weight: 0.4kg
- Package Dimensions: 275 × 98.5 × 78mm
- Package Weight: 0.55kg
- Operating Temperature: 0~40°C
- Storage Temperature: -10~70°C
- Relative Humidity: 5~95%, Non-Condensing
- Supported Systems: Windows 11, Windows 10, Windows 8, Windows 7, macOS 10.10 or Later, Chrome OS and Android 5.0 or Later
- Certifications: CE, FCC and RoHS
