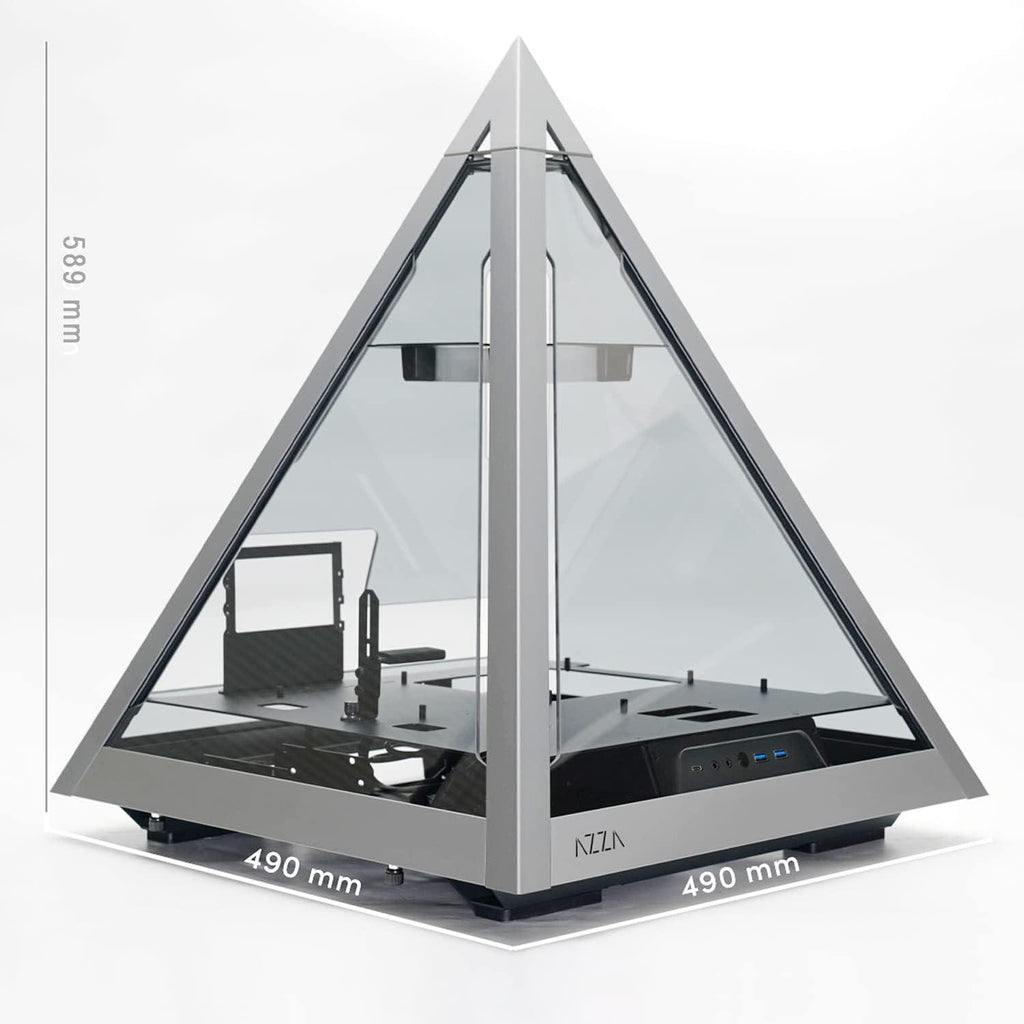

ATX PYRAMID CASE - CSAZ-804L
AZZA PYRAMID L
No Flip Glass
Type
ATX Pyramid Enclosure
Color
Gray anodized Aluminum (exterior) / Black (interior)
Side Panels
4 x Tempered glass
Max CPU Cooler Height
Up to 95 mm
Max Video Card Length
L = 330 mm / W = 150 mm / H = 70 mm (Horizontal)
Motherboard Compatibility
Less than 305 x 280 mm E-ATX, ATX, Micro ATX, ITX
2.5" Drive Bays
Up to 2
3.5 Drive Bays
Up to 1
Expansion Slots
3
I/O Ports
Power button
HD audio
2 x USB 3.0
1 x USB-C
Case Dimension (H x W x D)
585 mm x 490 mm x 490 mm
Weight
14.1 kg / 31.1 lbs.
Available Fan Ports
1 x 120 mm Fan Port on the top
5 x 120 mm Fan Ports on the bottom
Included Fan
1 x 120 mm AZZA Hurricane III ARGB Fan
Water Cooling
Supports radiators up to 360 mm on the bottom right
Power Supply Support
Bottom mounted ATX power supply
Included Accessories
200 mm PCI-e 4.0 Riser Cable
20cm PCI-E 3.0 or 4.0Extenion Cable for VGA Card (Support EATX - ATX MB
Adjustable Video Card Holder
PWM Fan
The Model comes with PWM Fans
And will run at top Speed unless Connected to a Motherboard or Controller
4.0 The Latest 4.0 Version Provides Faster Transmission Speed
This Extension Cable Supports the following Graphics Cards
RTX 3000 Series, RTX 3080, RTX 3090 FE, RX 5700XT and RX 6000 GPUs
Please Note Before Use
Measure the distance between your Motherboard, PCI-E Slot
And GPU Connection to confirm whether the Length of this 4.0 Cable is sufficient
Update your Motherboard BIOS to the Latest Version
Update your GPU Software to the Latest Version
Check whether the Motherboard BIOS setting is 4.0
Some Software will not Switch Automatically
If the Switching fails, the PC will not start normally
