Description
The ASUS TUF Gaming B850M-PLUS WIFI motherboard is engineered for gamers seeking peak performance and unwavering reliability. This Micro ATX ASUS AM5 Motherboard, built around the cutting-edge AMD B850 chipset, supports AMD Ryzen 9000, 8000, and 7000 Series processors, providing exceptional speed and stability for both intense gaming sessions and demanding content creation tasks.
Experience next-generation gaming with PCIe 5.0 support on this TUF Gaming Motherboard, unlocking blazing-fast data transfer speeds for the latest graphics cards and NVMe SSDs. This ensures your system remains ready for the most demanding games and applications, delivering a crucial competitive advantage.
Level up your custom PC build with the ASUS Prime LC 240 ARGB liquid CPU cooler – an all-in-one cooling solution engineered for performance, style, and ease of installation. Whether you’re building from scratch or upgrading your current setup, this cooler is designed to meet the demands of modern processors while enhancing your rig’s aesthetics.
The specially designed copper CPU contact plate provides a larger surface area for heat transfer, enabling faster and more efficient thermal dissipation. This ensures your CPU stays cool and stable under heavy workloads, reducing the risk of thermal throttling and maintaining peak performance.
FEATURES:

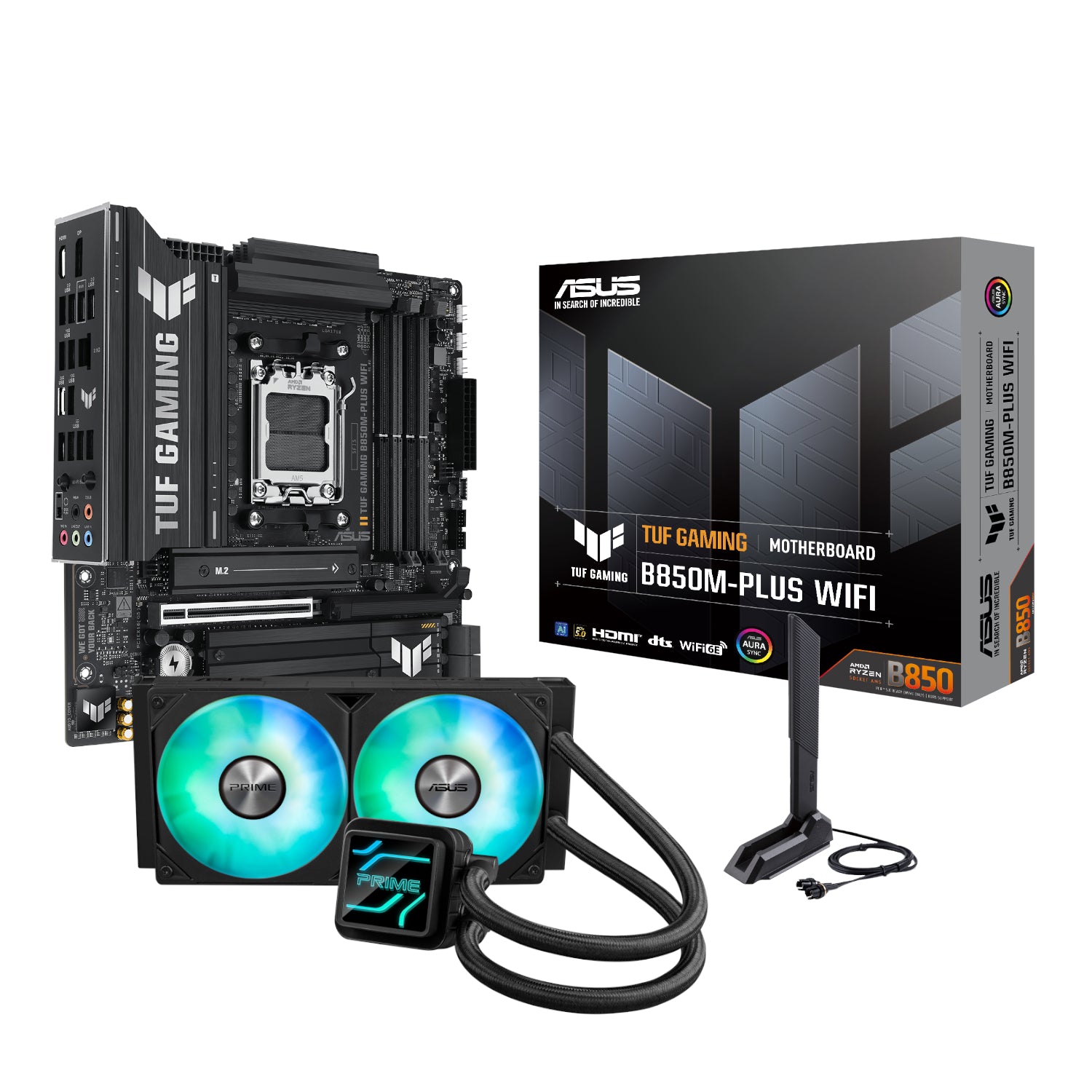

- AMD B850 Chipset Gaming motherboard and 240mm AIO CPU Liquid Cooler bundle
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8000+ MT/s (OC) 256GB max capacity
- Ultra-fast Wi-Fi 6E connectivity with Realtek 2.5G Ethernet LAN
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 support
- Customisable infinity mirror lenses for stunning ARGB lighting effects and futuristic build aesthetics
- Enlarged copper CPU contact plate enhances heat transfer for superior thermal performance
- Pre-installed 12 cm ARGB fans with a 600–2200 RPM range for powerful and efficient cooling
- Compatible with Intel® LGA 1851, 1700, 1200, 115X and AMD AM5, AM4 sockets
SPECIFICATIONS:

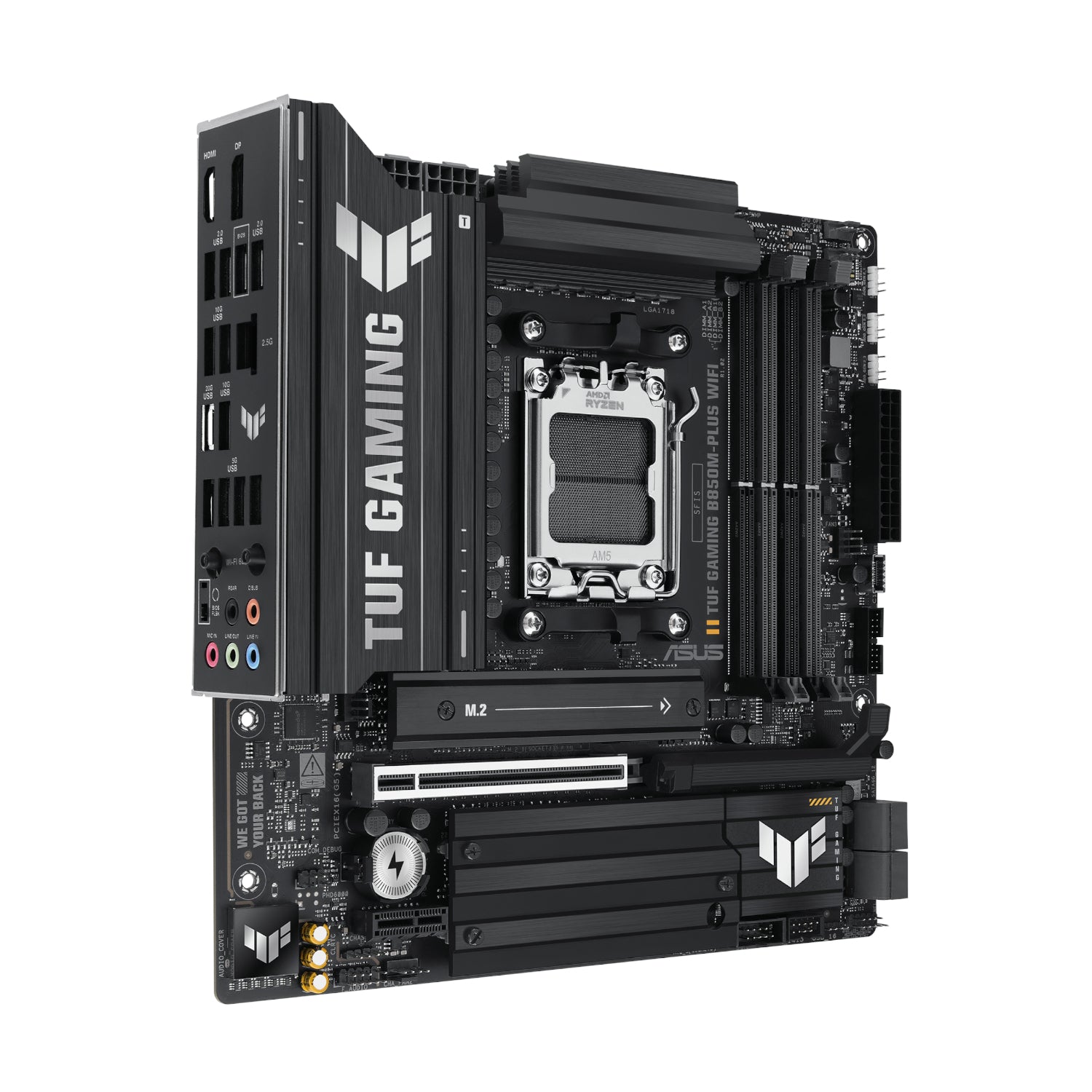

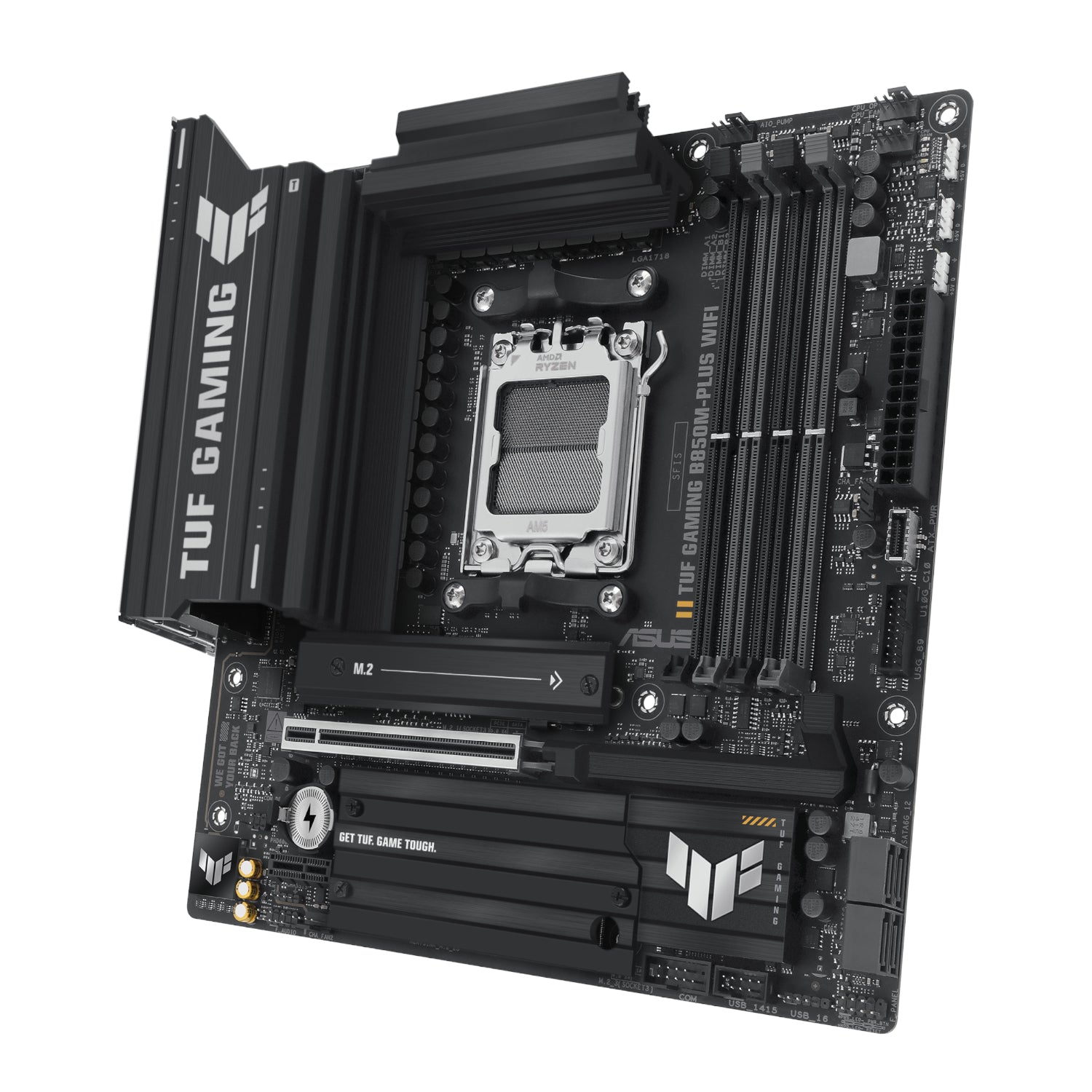

- Asus TUF Gaming B850M-PLUS WIFI AM5 Micro ATX Gaming Motherboard
- CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- Chipset: AMD B850 Chipset
- Memory:
- 4 x DIMM slots, max. 256GB, DDR5
- Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
- ECC and Non-ECC, Un-buffered DIMM
- Dual channel memory architecture
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- ASUS Enhanced Memory Profile (AEMP)
- Graphics:
- 1 x HDMI™ port**
- 1 x DisplayPort***
- * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
- ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
- *** Supports 4K@60Hz as specified in HDMI 2.1.
- Expansion Slots:
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors
- 1 x PCIe 5.0 x16 slot (supports x16 mode)
- AMD Ryzen™ 8000 Series Desktop Processors
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
- AMD B850 Chipset
- 1 x PCIe 4.0 x1 slot
- *Please check Asus support or download center for supported peripherals.
- Storage:
- Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors
- M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- AMD Ryzen™ 8000 Series Desktop Processors
- M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)*
- AMD B850 Chipset
- M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
- * Specifications vary by CPU types.
- RAID:
- AMD RAIDXpert2 Technology
- Ryzen™ 9000 Series Processors: RAID 0/1/5/10
- Ryzen™ 8000 Series Processors: RAID 0/1
- Ryzen™ 7000 Series Processors: RAID 0/1/10
- Ethernet:
- 1 x Realtek 2.5Gb Ethernet
- TUF LANGuard
- Wireless & Bluetooth:
- Wi-Fi 6E
- 2×2 Wi-Fi 6E (802.11ax)
- Supports 2.4/5/6GHz frequency band*
- Bluetooth® v5.3**
- * WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later.
- ** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
- Rear USB (Total 12 ports):
- 1 x USB 20Gbps port (1 x USB Type-C®)
- 3 x USB 10Gbps ports (3 x Type-A)
- 4 x USB 5Gbps ports (4 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- Front USB (Total 6 ports):
- 1 x USB 10Gbps connector (supports USB Type-C®)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 3 additional USB 2.0 ports
- * USB Type-C® power delivery output: max. 5V/3A.
- Audio:
- Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
- Audio Features:
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
- * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

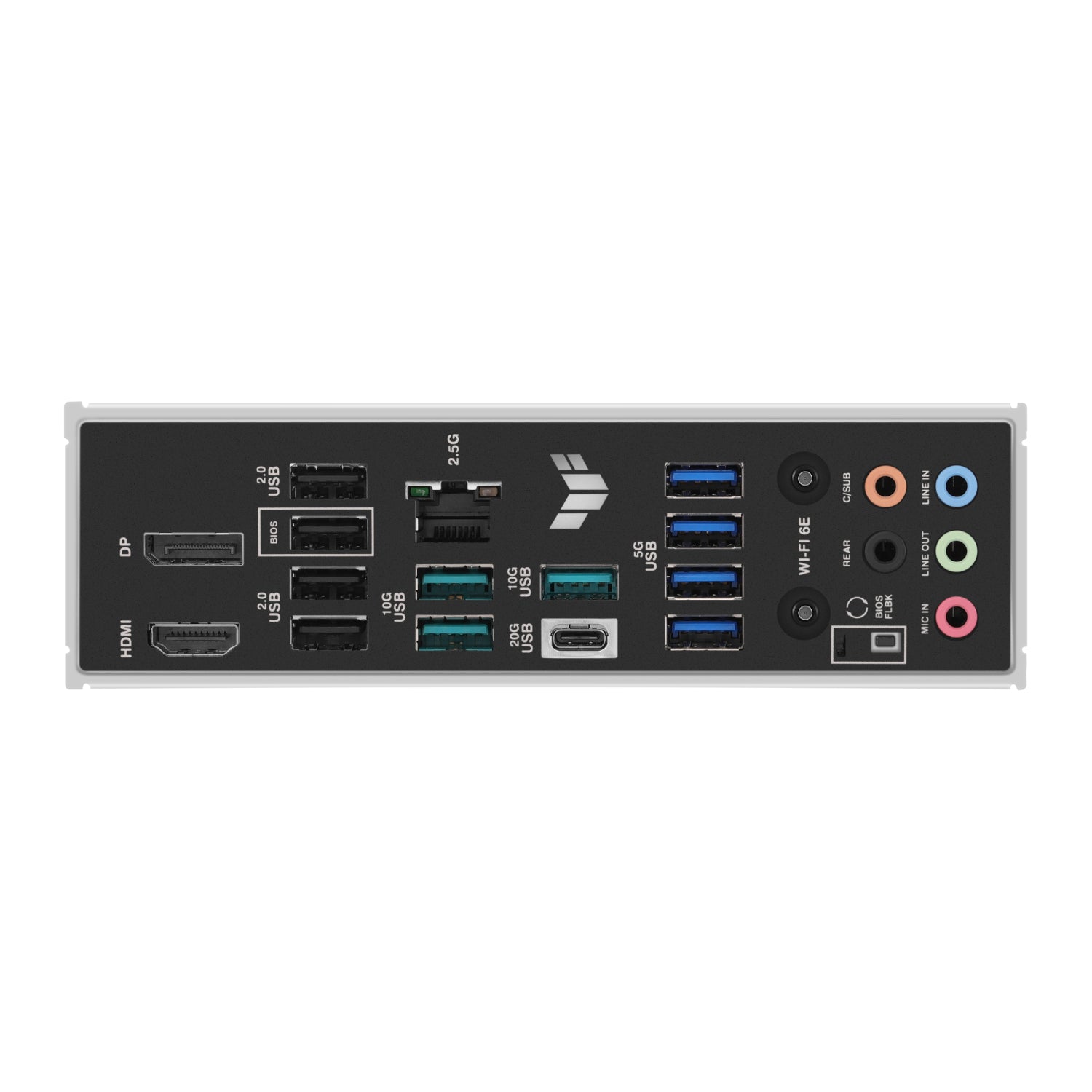

- Back Panel I/O Ports:
- 1 x USB 20Gbps port (1 x USB Type-C®)
- 3 x USB 10Gbps ports (3 x Type-A)
- 4 x USB 5Gbps ports (4 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x Wi-Fi module
- 1 x Realtek 2.5Gb Ethernet port
- 5 x Audio jacks
- 1 x BIOS FlashBack™ button
- Operating System: Windows 11, Windows 10 64-bit
- Form Factor: Micro ATX

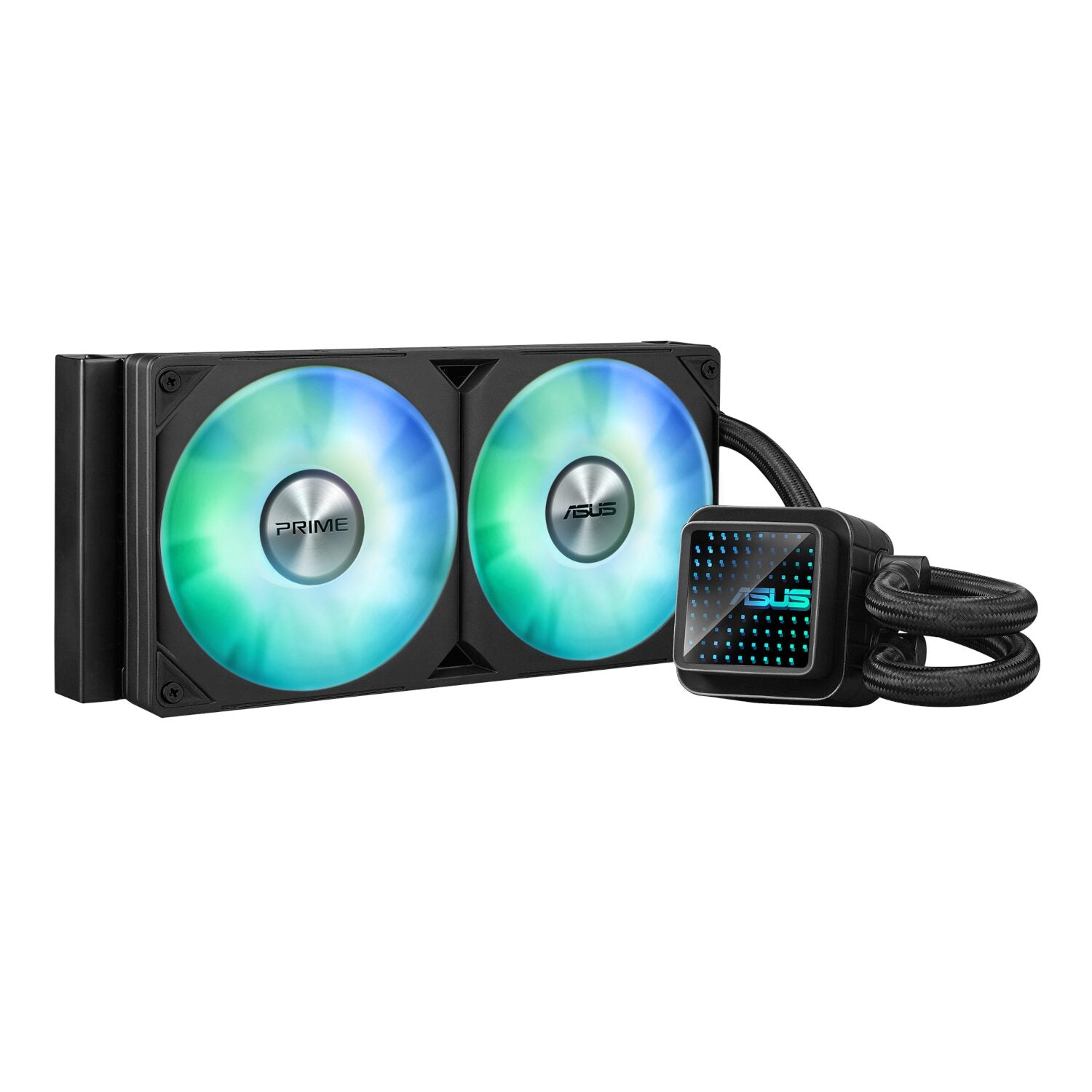

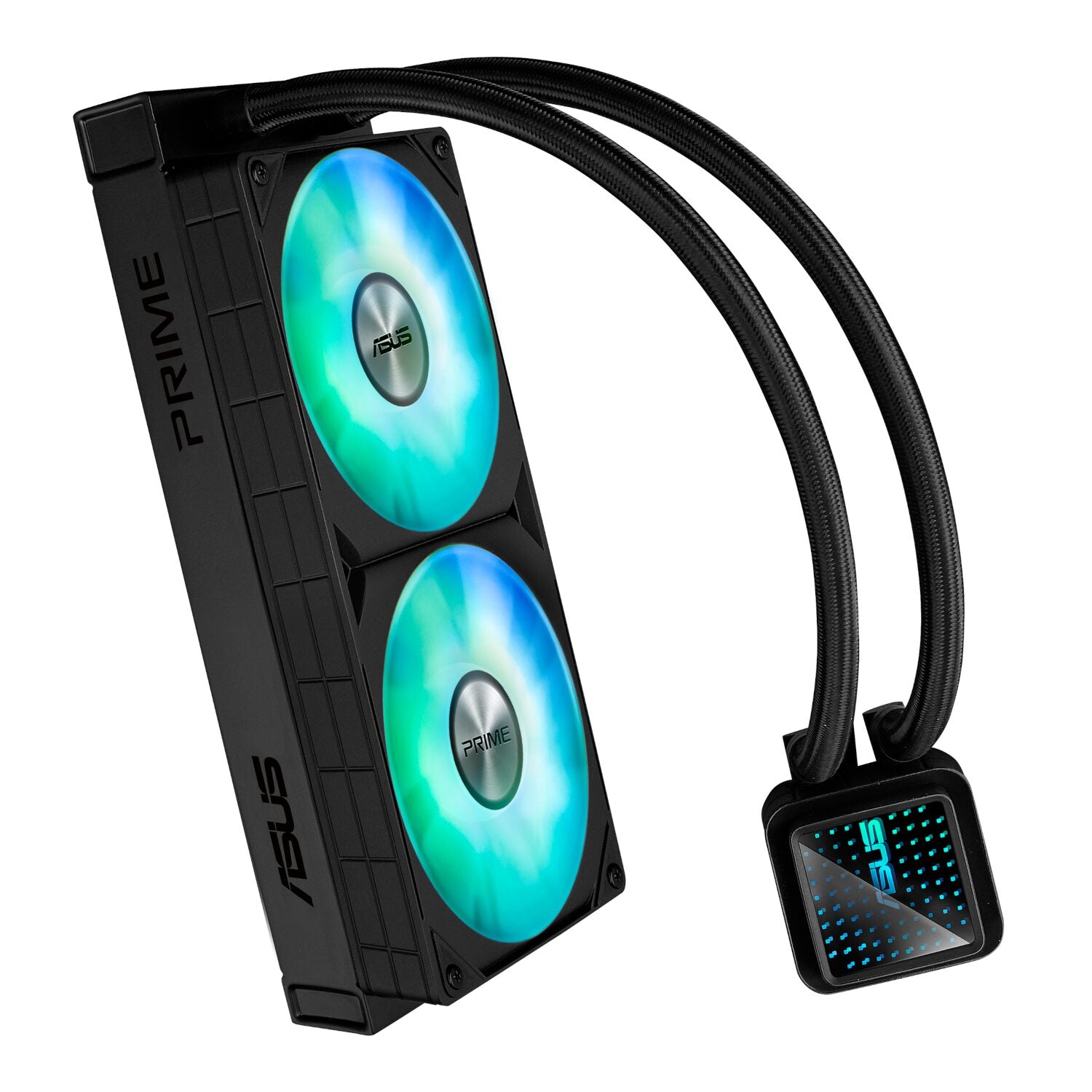

- ASUS Prime LC 240 ARGB Liquid CPU Cooler
- Water Block
- Water block dimension: 6.51 x 6.0.6 x 6.85 cm
- Block Material (CPU Plate): Copper
- Radiator
- Radiator Dimension: 27.7 x 12 x 2.7 cm
- Tube: Sleeved Rubber tube
- Tube Length: 40 cm
- Fans
- Dimension:24 x 12.3 x 2.5 cm
- Size: 2 x Fan Slots (12cm)
- Speed: 600 – 2200 RPM +/- 10%
- Control Mode: PWM/ DC
- Noise: 34 dB(A)
- Air Flow: 75.7 CFM
- Static Pressure: 3.2 mmH2O
- Special Features
- AURA Sync Support: Yes
- Compatibility
- Intel LGA 1851, 1700, 1200, 115x
- AMD: AM5,AM4
WHAT'S IN THE BOX:
- Asus TUF Gaming B850M-PLUS WIFI AM5 Micro ATX Gaming Motherboard – Black x1
- ASUS Prime LC 240 ARGB Liquid CPU Cooler x1
- Quick Start Guide x1
- Accessory Pack of Screws and Brackets x1
