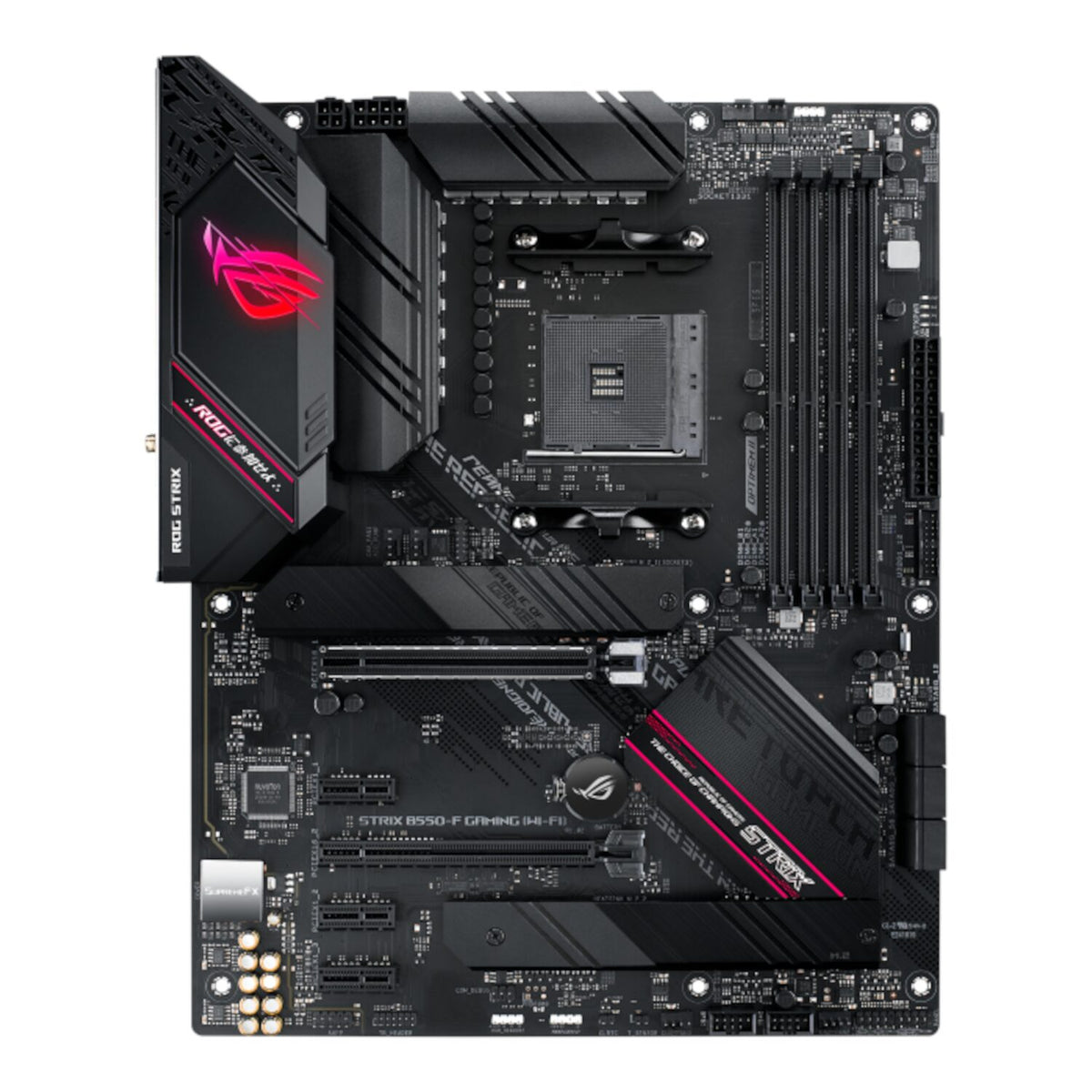

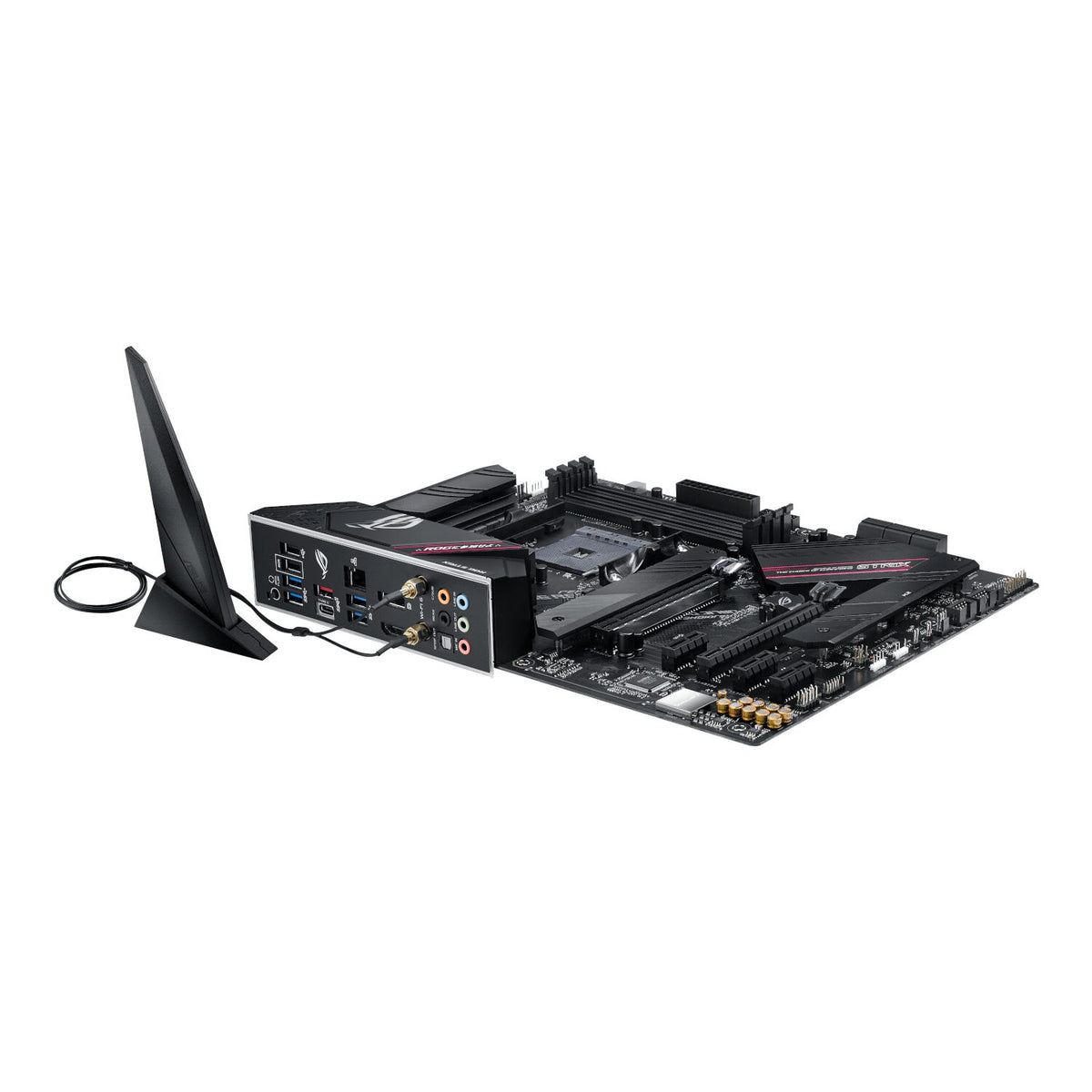

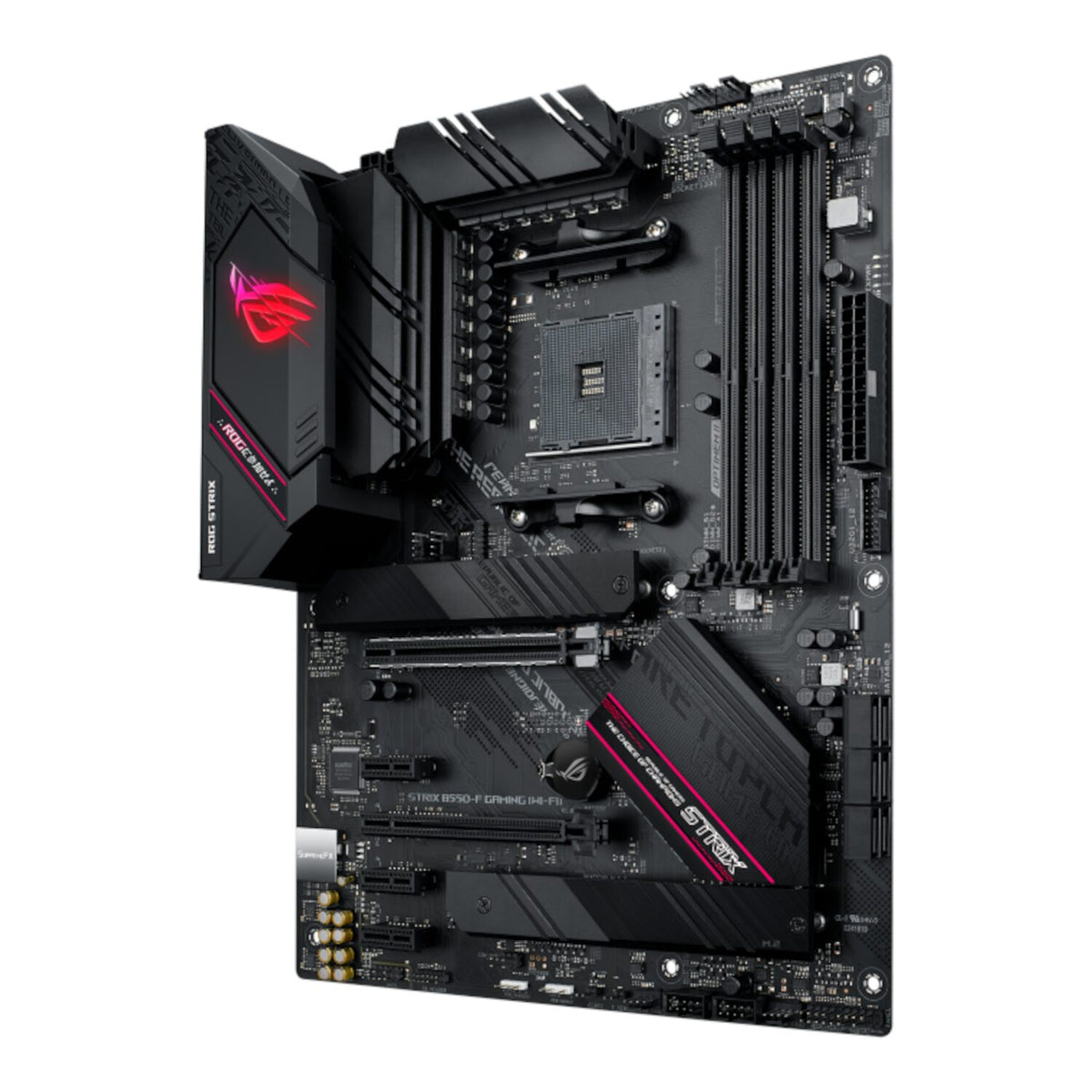

Asus ROG Strix B550-F Gaming WiFi Motherboard - AMD AM4

The ROG Strix B550-F Gaming Wi-Fi motherboard offers a refined balance of power, performance, and premium-grade features for serious gamers and PC builders. Built to support 3rd Gen AMD Ryzen™ processors, this ATX board is powered by a 12+2 DrMOS power stage design, alloy chokes, and durable capacitors, ensuring precise voltage regulation and system stability under load or during overclocking sessions.

Equipped with dual PCIe 4.0 M.2 slots, the ROG Strix B550-F Gaming enables ultra-fast data transfer rates with support for RAID configurations and the latest NVMe SSDs. Four DIMM slots offer support for up to 128GB of DDR4 memory, optimised for high-frequency performance. Intel® I225-V 2.5Gb Ethernet delivers low-latency wired networking, while integrated Intel® Wi-Fi 6 (802.11ax) ensures superior wireless speeds and responsiveness for online gameplay, streaming, and remote workloads.

SupremeFX S1220A audio with DTS® Sound Unbound and Sonic Studio III delivers high-definition audio, creating immersive in-game soundscapes. Intelligent software features such as AI Networking and Fan Xpert 4 simplify system management, while multiple hybrid fan headers, VRM heatsinks, and a PCH heatsink provide robust thermal control.

Connectivity is streamlined with USB 3.2 Gen 2 Type-A and Type-C ports, HDMI 2.1 and DisplayPort 1.2 outputs, and onboard Aura Sync RGB lighting with addressable headers for complete customisation. BIOS FlashBack™ allows safe firmware updates without a CPU, and the pre-mounted I/O shield ensures a clean, straightforward installation.

The ROG Strix B550-F Gaming Wi-Fi motherboard is an ideal foundation for high-performance AMD builds, offering future-ready architecture, aesthetic customisation, and comprehensive connectivity in one advanced solution.

FEATURES:

• Dual M.2 slots support up to PCIe 4.0 speeds
• 12+2 DrMOS power stages and high-quality alloy chokes ensure stable power delivery
• Integrated Wi-Fi 6 delivers next-gen wireless speeds with increased capacity and efficiency
• AI networking and BIOS FlashBack™, streamlined connectivity and one-click BIOS recovery
• Pre-mounted I/O shield and reinforced PCIe slot for simplified installation and enhanced durability
• VRM and chipset heatsinks, hybrid fan headers, and Fan Xpert 4 ensure optimal thermal performance
• Aura Sync offers customisable RGB lighting, and addressable Gen 2 headers allow synchronised lighting
• SupremeFX audio technology provides immersive sound powered by high-fidelity components and DTS® Sound Unbound support

SPECIFICATIONS:

• CPU:
• Chipset: AMD B550
• CPU Compatibility: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
• CPU Socket: AM4
• Memory Support:
• AMD Ryzen^TM 4000 G-Series Processors
• 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Memory
• 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
• OptiMem II
• Dual Channel Memory Architecture
• ECC Memory (ECC mode) support varies by CPU
• Graphics:
• 1 x HDMI 2.1(4K@60HZ)
  1 x DisplayPort 1.2
• Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology
• Expansion Slots:
• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
• AMD B550 Chipset
  • 1 x PCIe 3.0 x16 (x4 mode)
  • 3 x PCIe 3.0 x1
  • 1 x PCIe 3.0 x16 (x16 mode)
  • 1 x PCIe 4.0 x16 (x16 mode)
• Storage:
• AMD Ryzen^TM 4000 G-Series Processors :
• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
  • 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
• Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports
  • 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
• AMD B550 Chipset :
  • 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  • 6 x SATA 6Gb/s port(s)
  • Support Raid 0, 1, 10
• LAN:
• Intel^® I225-V 2.5Gb Ethernet
• ASUS LANGuard
• Wireless & Bluetooth:
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
• Supports dual band frequency 2.4/5 GHz
• Supports channel bandwidth: HT20/HT40/HT80/HT160
• Intel^® Wi-Fi 6 AX200
• Bluetooth v5.1
• USB:
• Front USB (Total 6 ports)
• Rear USB (Total 8 ports)
  • 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  • 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C^®)
  • 2 x USB 3.2 Gen 1 port(s)
  • 2 x USB 2.0 port(s)
  • 4 x USB 2.0 port(s)
• Audio:
• ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
  • Optical S/PDIF in port(s) at the back panel
  • Dual OP Amplifiers
  • Impedance sense for front and rear headphone outputs
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • High quality 120dB SNR stereo playback output and 113 dB SNR recording input
  • Supports up to 32-bit/192 kHz playback
• Audio Features
  • SupremeFX Shielding™ Technology
  • Audio Shielding
  • Premium Japanese audio capacitors
  • Audio Cover

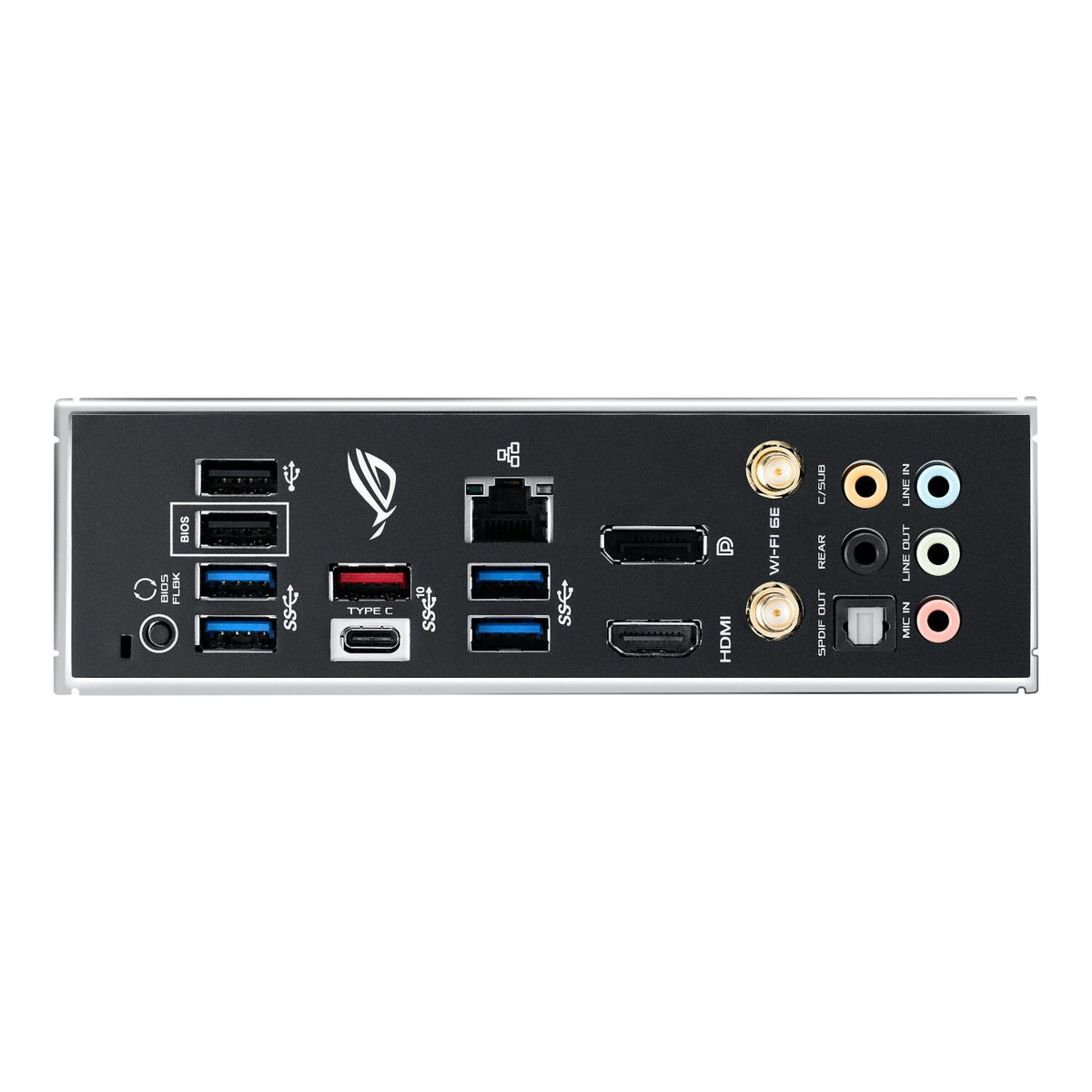

• Back Panel I/O Ports:
• 1 x BIOS FlashBack^™ Button(s)
• 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C^®)
• 1 x Intel^® I225-V 2.5Gb Ethernet
• 4 x USB 3.2 Gen 1
• 1 x DisplayPort
• 1 x HDMI
• 2 x USB 2.0
• 1 x Optical S/PDIF out
• ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
• 5 x Audio jack(s)
• Internal I/O Connectors:
• x AAFP connector
• 1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
• 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 1 x Thunderbolt header(s)
• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 3 x Chassis Fan connector(s)
• 1 x AIO_PUMP connector
• 2 x Aura RGB Strip Header(s)
• 1 x Addressable Gen 2 header(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 6 x SATA 6Gb/s connector(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x System panel(s)
• 1 x Thermal sensor connector(s)
• 1 x Clear CMOS jumper(s)
• Special Features:
• Aura Sync
  • Standard RGB header(s)
  • Addressable Gen 2 RGB header(s)
• ASUS Q-Design
  • ASUS Q-DIMM
  • ASUS Q-LED (DRAM [yellow], CPU [red], VGA [white], Boot Device [yellow green)
  • ASUS Q-Slot
• ASUS Thermal Solution
  • Aluminium M.2 heatsink
• ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
  • Clear CMOS header
  • ProCool
  • Pre-mounted I/O shield
  • SafeSlot
• Software Features:
• ROG Exclusive Software
  • RAMCache III
  • ROG CPU-Z
  • GameFirst VI
  • Sonic Studio III + Sonic Studio Virtual Mixer
  • Sonic Radar III
  • DTS^® Sound Unbound
  • Overwolf
  • Anti-virus software
• ASUS Exclusive Software Features
• Armoury Crate
  • Aura Creator
  • Aura Sync
  • AI Noise-Cancelling Microphone
• AI Suite 3:
  • PPSU
• EPU
• DIGI+ VRM
• Fan Xpert 4
• TurboV EVO
  • EZ update
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL by PME, PXE
• Operating System: Windows® 10 64-bit
• Form Factor:
• Form Factor: ATX
• Dimensions: (24.4 x 24.4 cm)

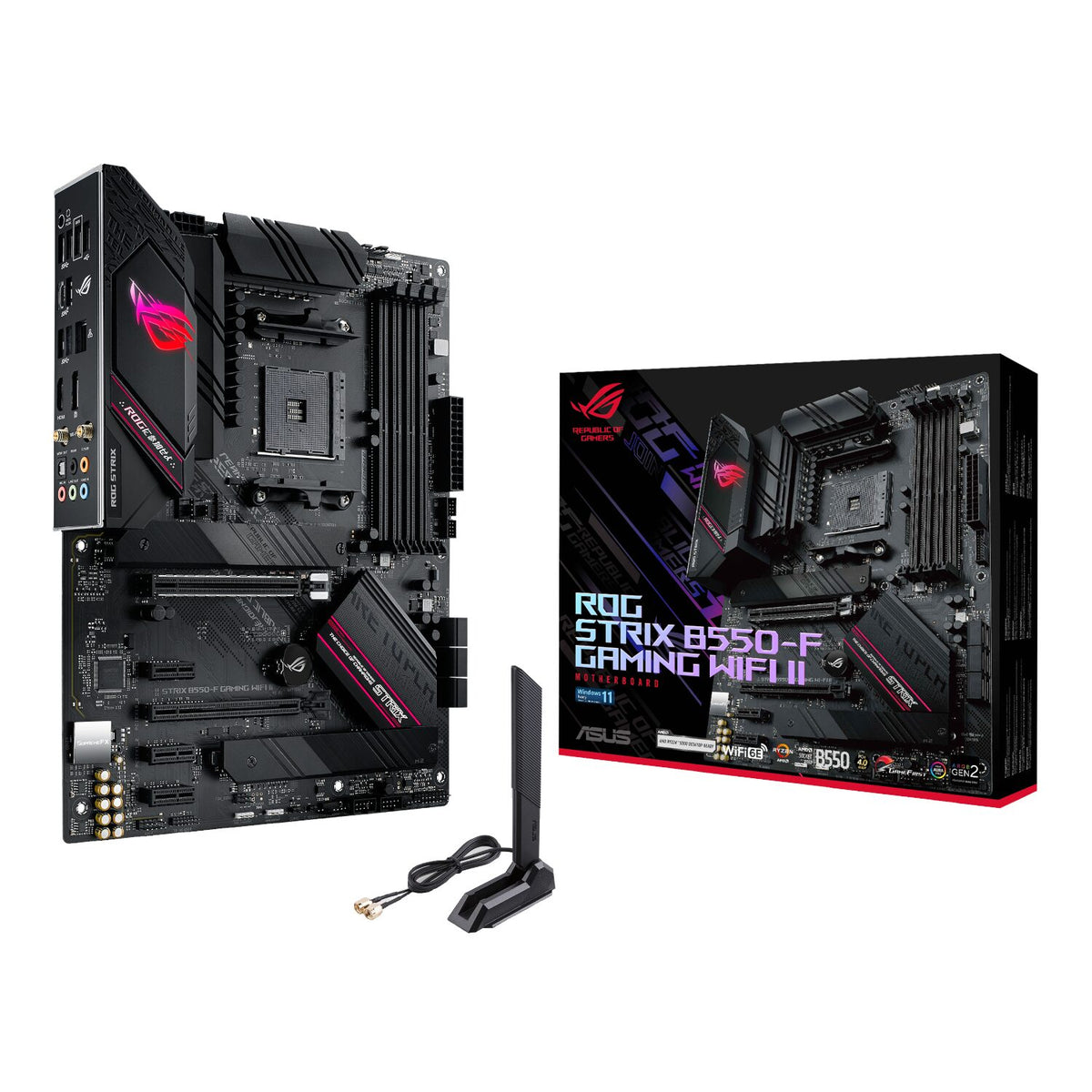

WHAT’S IN THE BOX:

• Asus ROG Strix B550-F Gaming WiFi Motherboard - AMD A4 x1
• M.2 SSD screw package(s) x1
• M.2 Rubber Package(s) x1
• Wi-Fi moving antenna x1
• SATA 6Gb/s cable(s) x4
• Supporting DVD x1
• ROG Strix stickers x1
• Cable ties pack(s) x1
• Extension cable for Addressable LED x1
• ROG Thank you card x1

• Length: 34.0 cm
• Width: 27.0 cm
• Height: 7.0 cm
• Weight: 1.77 kg
