Description
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Level up your custom PC build with the ASUS Prime LC 240 ARGB liquid CPU cooler – an all-in-one cooling solution engineered for performance, style, and ease of installation. Whether you’re building from scratch or upgrading your current setup, this cooler is designed to meet the demands of modern processors while enhancing your rig’s aesthetics.
The specially designed copper CPU contact plate provides a larger surface area for heat transfer, enabling faster and more efficient thermal dissipation. This ensures your CPU stays cool and stable under heavy workloads, reducing the risk of thermal throttling and maintaining peak performance.
FEATURES:
- Intel B760 Chipset Gaming motherboard and 240mm AIO CPU Liquid Cooler bundle
- Supports Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
- Supports DDR5 Memory, Dual Channel DDR5 7200+ MT/s (OC) 192GB max capacity
- Realtek 2.5Gb Ethernet LAN
- Dual M.2 slots with PCIe 4.0 support
- Customisable infinity mirror lenses for stunning ARGB lighting effects and futuristic build aesthetics
- Enlarged copper CPU contact plate enhances heat transfer for superior thermal performance
- Pre-installed 12 cm ARGB fans with a 600–2200 RPM range for powerful and efficient cooling
- Compatible with Intel® LGA 1851, 1700, 1200, 115X and AMD AM5, AM4 sockets
SPECIFICATIONS:

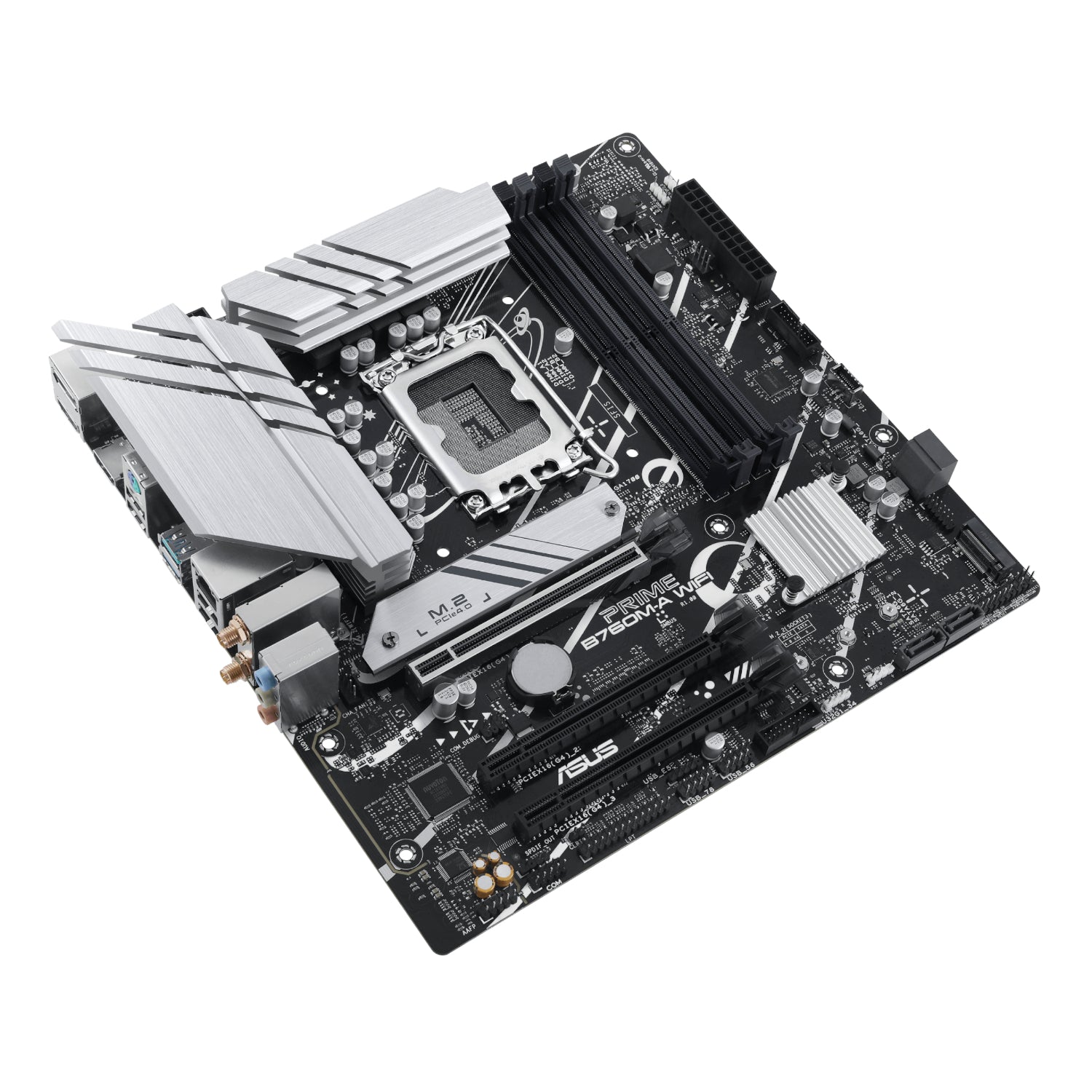

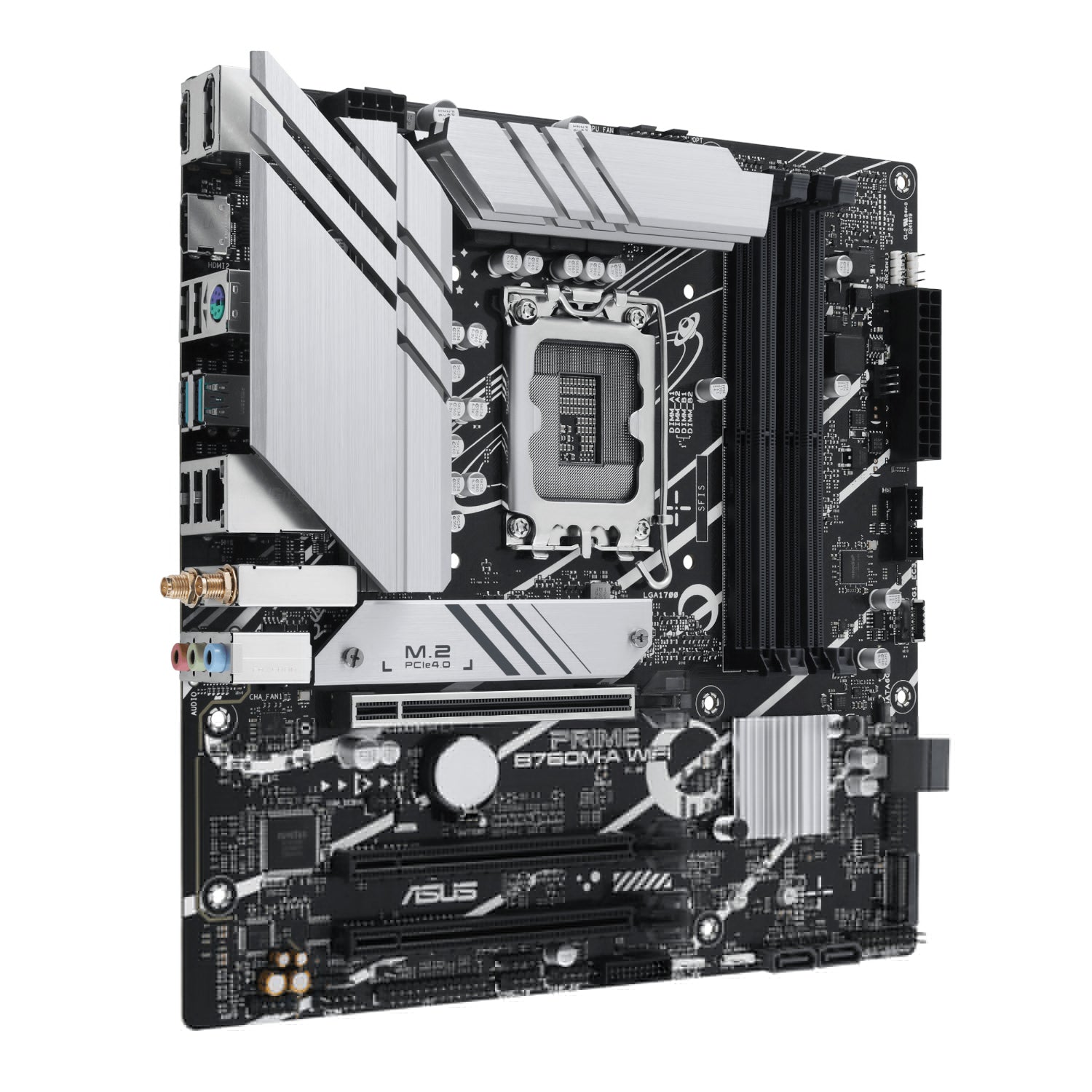

- Asus PRIME B760M-A WIFI LGA1700 M-ATX Motherboard
- CPU:
- Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
- *Refer to www.asus.com for CPU support list.
- ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
- Chipset: Intel® B760 Chipset
- Memory:
- 4 x DIMM slots, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)
- 5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- OptiMem II
- * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
- For more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
- * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
- Graphics:
- 1 x DisplayPort**
- 2 x HDMITM ports***
- * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
- *** Supports 4K@60Hz as specified in HDMITM 2.1.
- Expansion Slots:
- Intel® CoreTM Processors (14th & 13th & 12th Gen)
- 1 x PCIe 4.0 x16 slot
- Intel® B760 Chipset
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 4.0 x16 slot (supports x1 mode)
- Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
- Storage:
- Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*
- Intel® CoreTM Processors (14th & 13th & 12th Gen)
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- Intel® B760 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- 4 x SATA 6Gb/s ports
- * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
- Ethernet:
- 1 x Realtek 2.5Gb Ethernet
- Wireless & Bluetooth:
- Wi-Fi 6
- 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
- Supports 2.4/5GHz frequency band
- Bluetooth v5.2
- * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
- Rear USB (Total 6 ports):
- 2 x USB 3.2 Gen 2 ports (2 x Type-A )
- 4 x USB 2.0 ports (4 x Type-A)
- Front USB (Total 10 ports):
- 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
- 1 x USB 2.0 header supports 1 additional USB 2.0 port
- Audio:
- Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Audio Features:
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

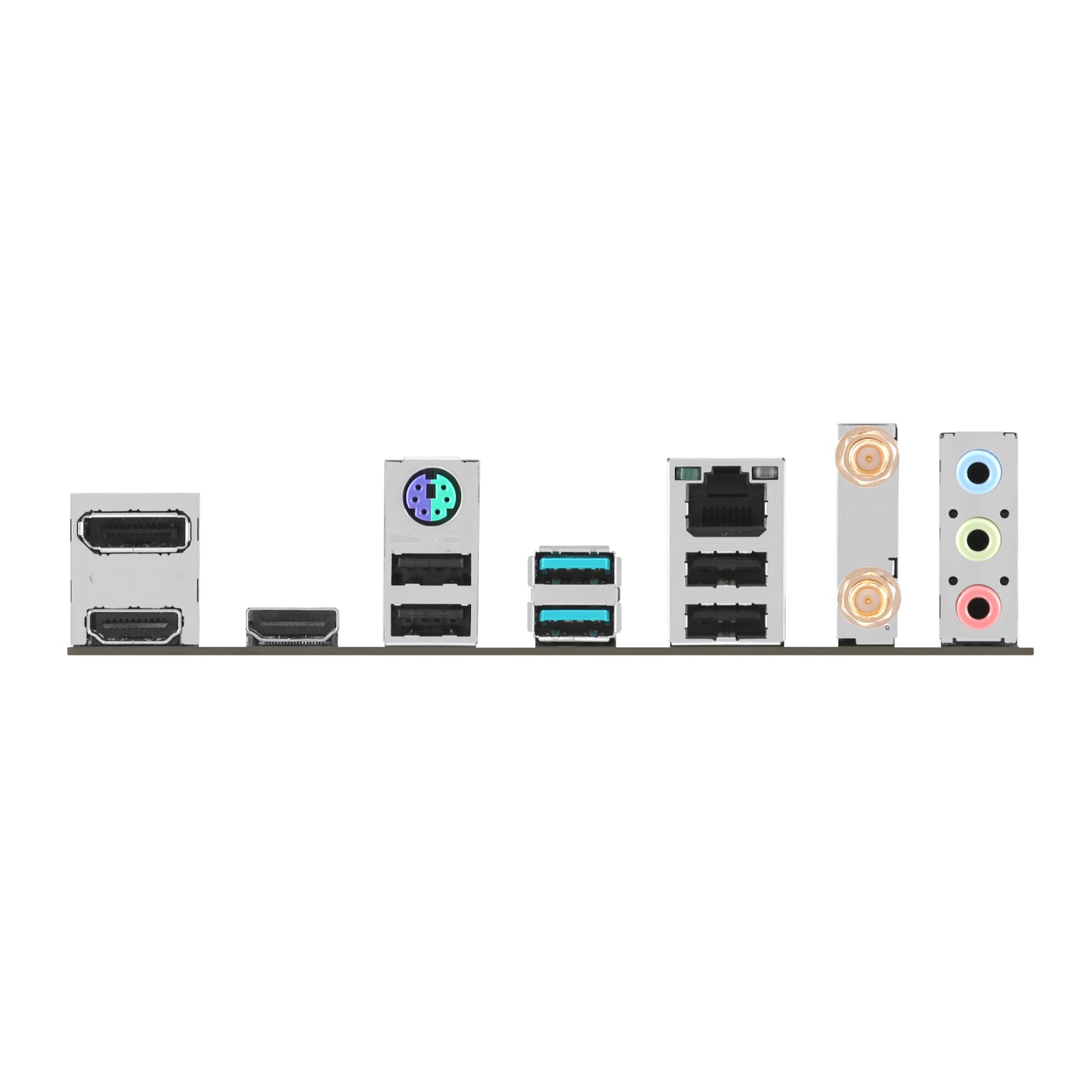

- Back Panel I/O Ports:
- 2 x USB 3.2 Gen 2 ports (2 x Type-A )
- 4 x USB 2.0 ports (4 x Type-A)
- 1 x DisplayPort
- 2 x HDMITM ports
- 1 x Wi-Fi Module
- 1 x Realtek 2.5Gb Ethernet port
- 3 x Audio jacks
- 1 x PS/2 Keyboard/Mouse combo port
- Operating System: Windows 11, Windows 10 64-bit
- Form Factor: Micro-ATX

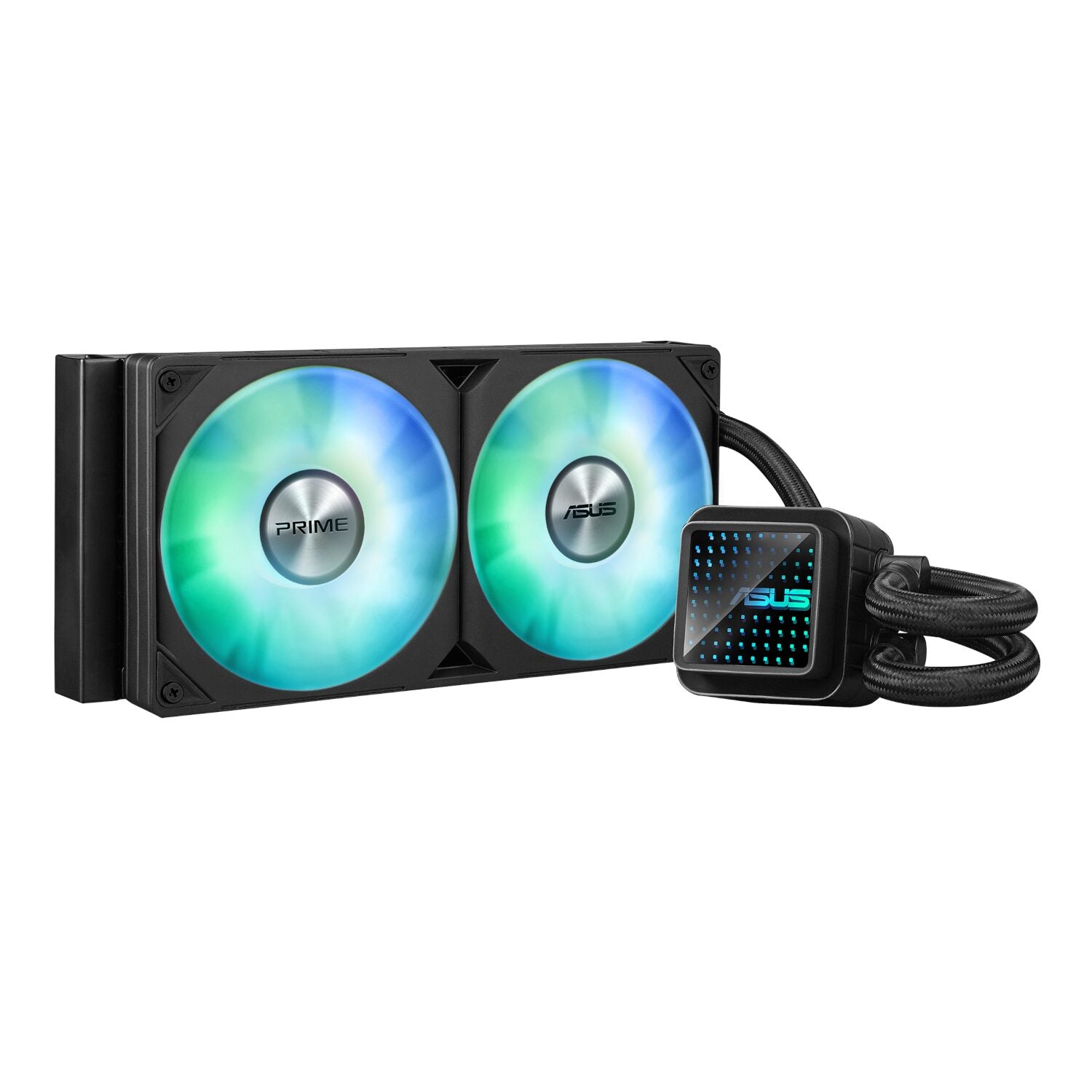

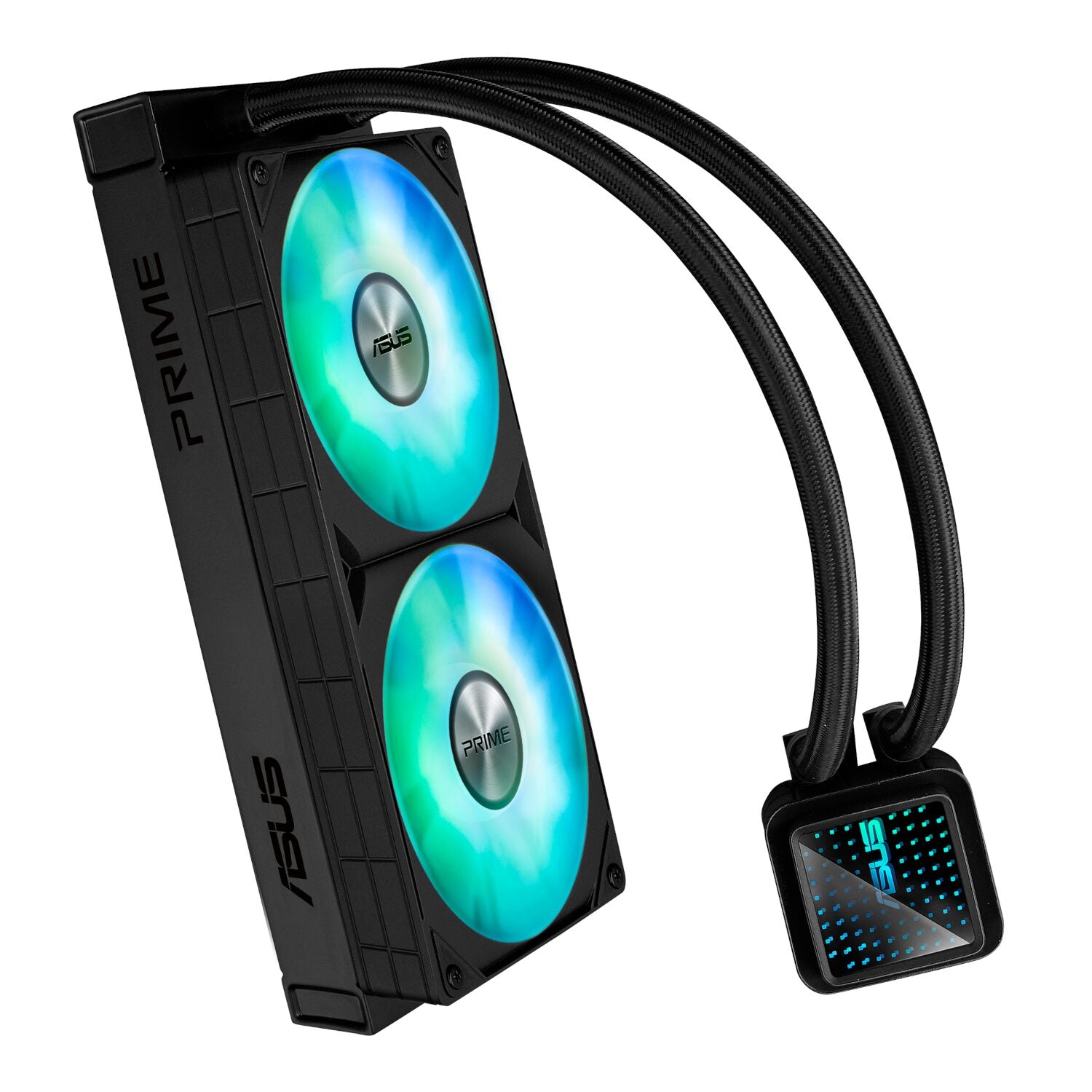

- ASUS Prime LC 240 ARGB Liquid CPU Cooler
- Water Block
- Water block dimension: 6.51 x 6.0.6 x 6.85 cm
- Block Material (CPU Plate): Copper
- Radiator
- Radiator Dimension: 27.7 x 12 x 2.7 cm
- Tube: Sleeved Rubber tube
- Tube Length: 40 cm
- Fans
- Dimension:24 x 12.3 x 2.5 cm
- Size: 2 x Fan Slots (12cm)
- Speed: 600 – 2200 RPM +/- 10%
- Control Mode: PWM/ DC
- Noise: 34 dB(A)
- Air Flow: 75.7 CFM
- Static Pressure: 3.2 mmH2O
- Special Features
- AURA Sync Support: Yes
- Compatibility
- Intel LGA 1851, 1700, 1200, 115x
- AMD: AM5,AM4

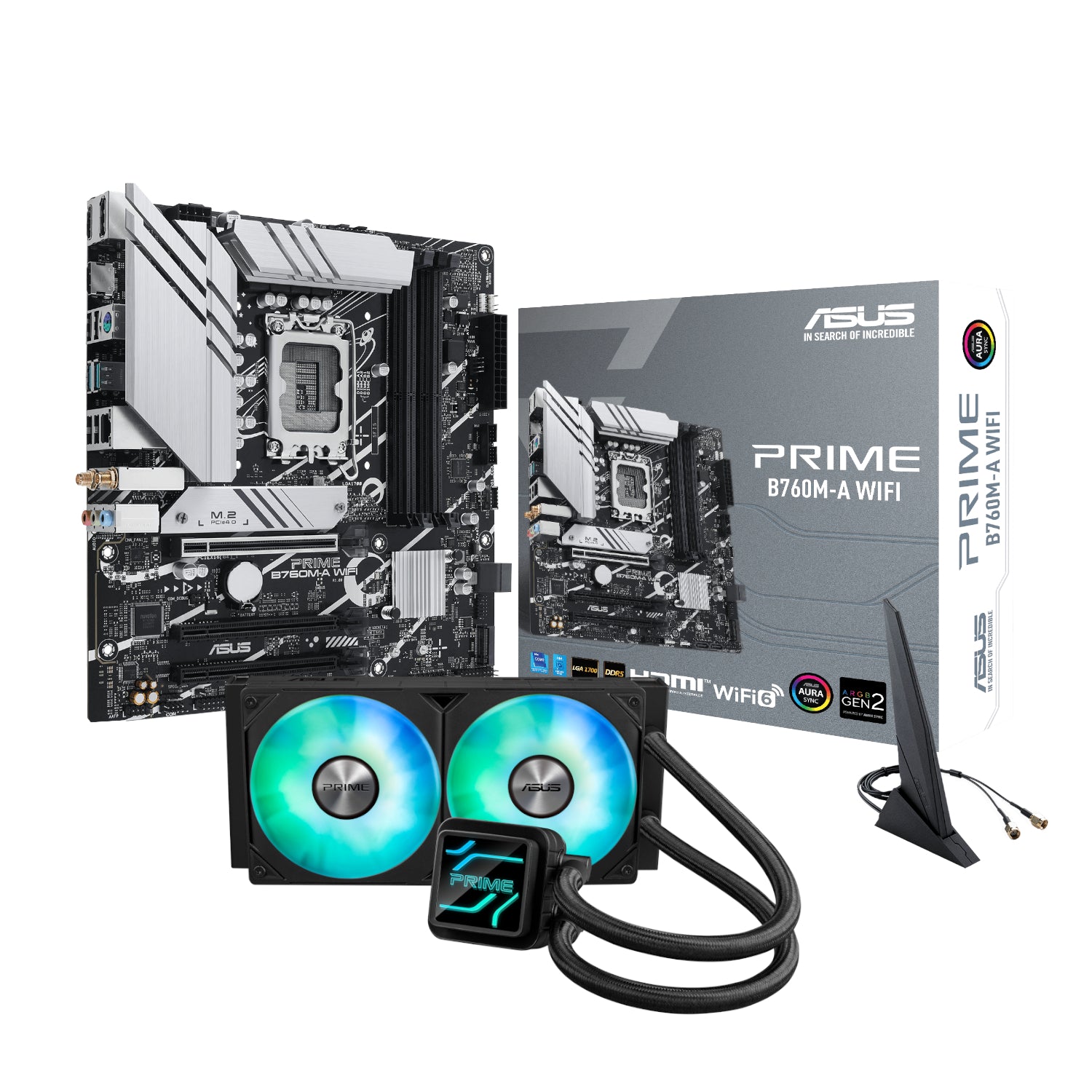

WHAT’S IN THE BOX:
- Asus PRIME B760M-A WIFI LGA1700 M-ATX Motherboard – Black x1
- ASUS Prime LC 240 ARGB Liquid CPU Cooler x1
- Quick Start Guide x1
- Accessory Pack of Screws and Brackets x1
