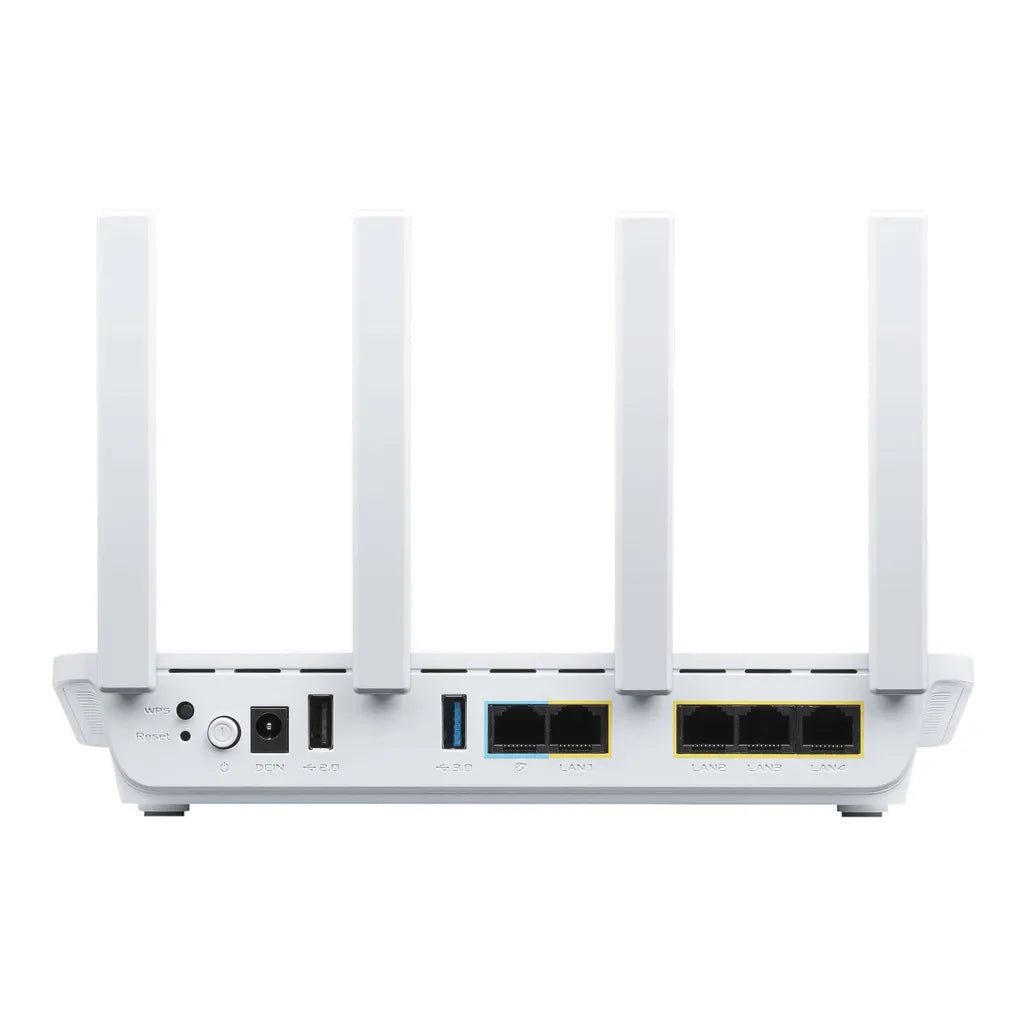

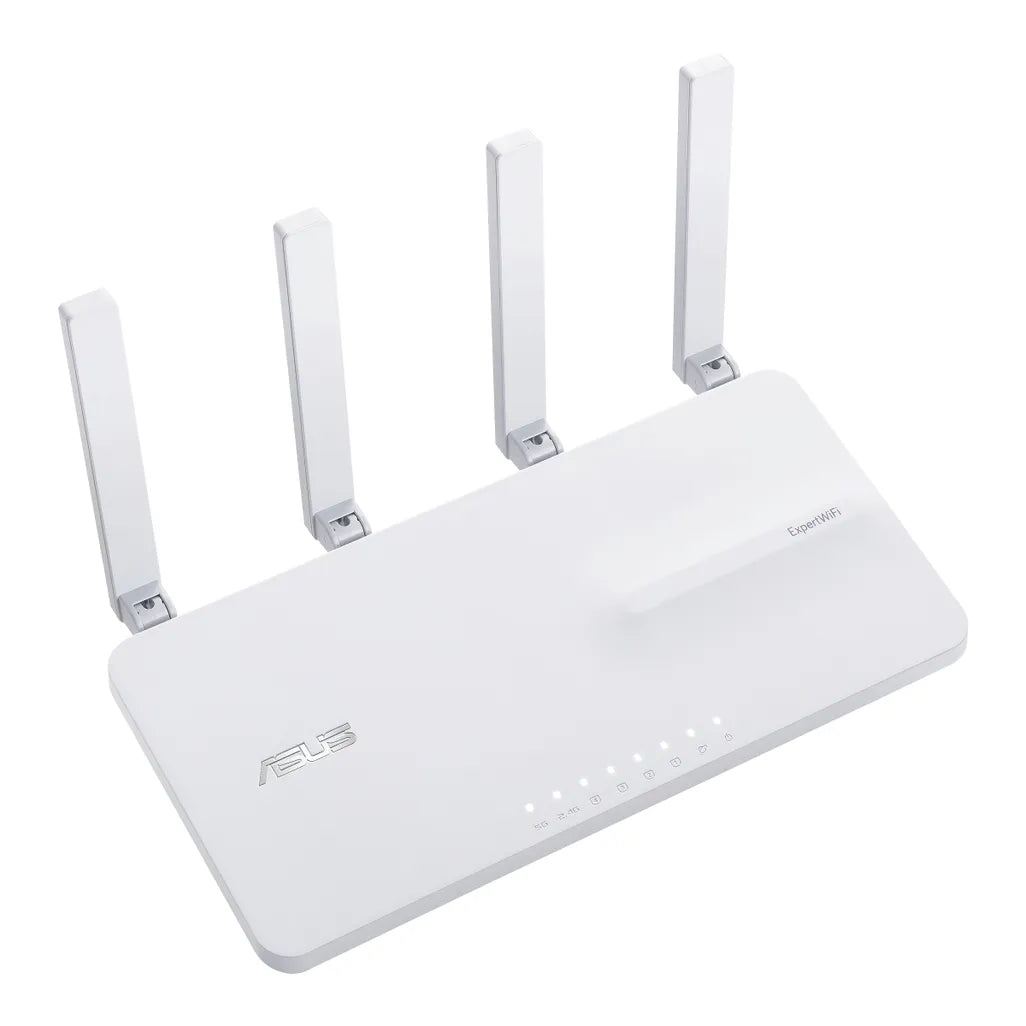

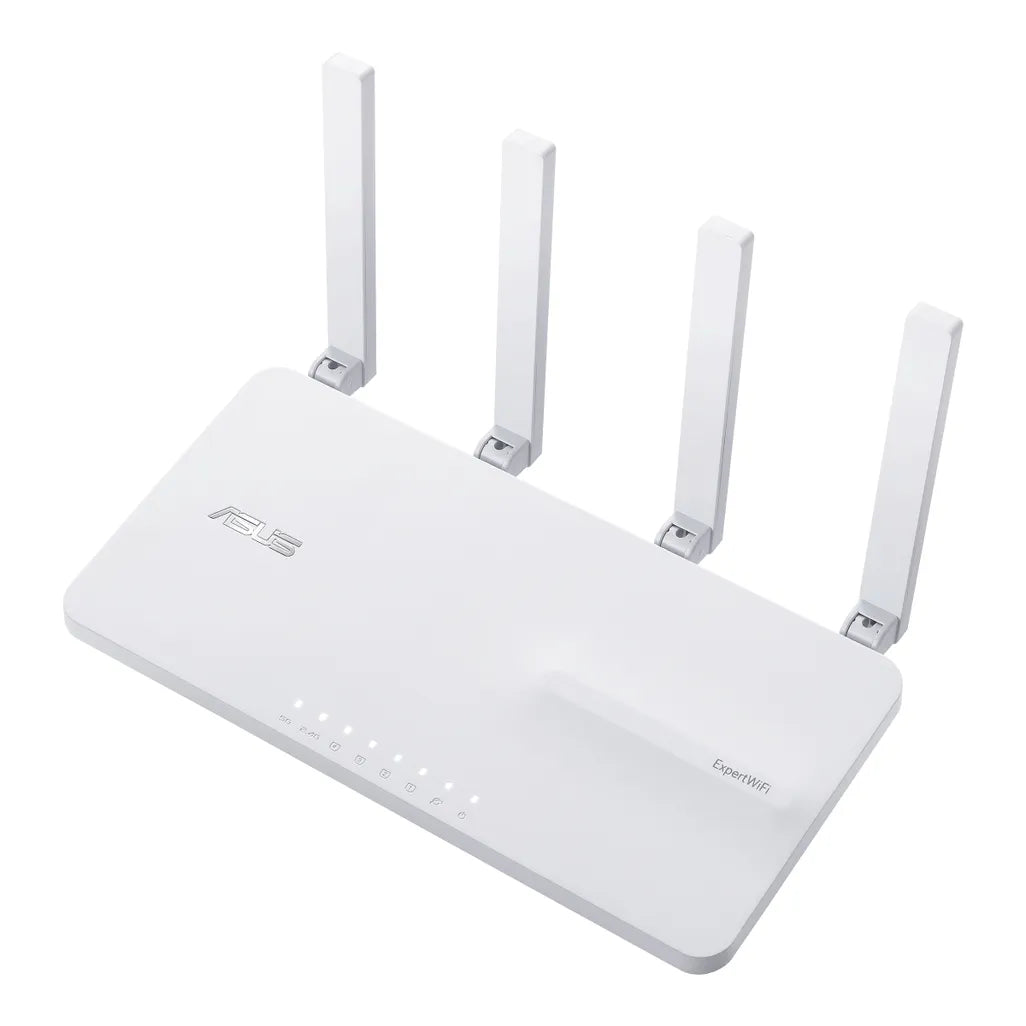

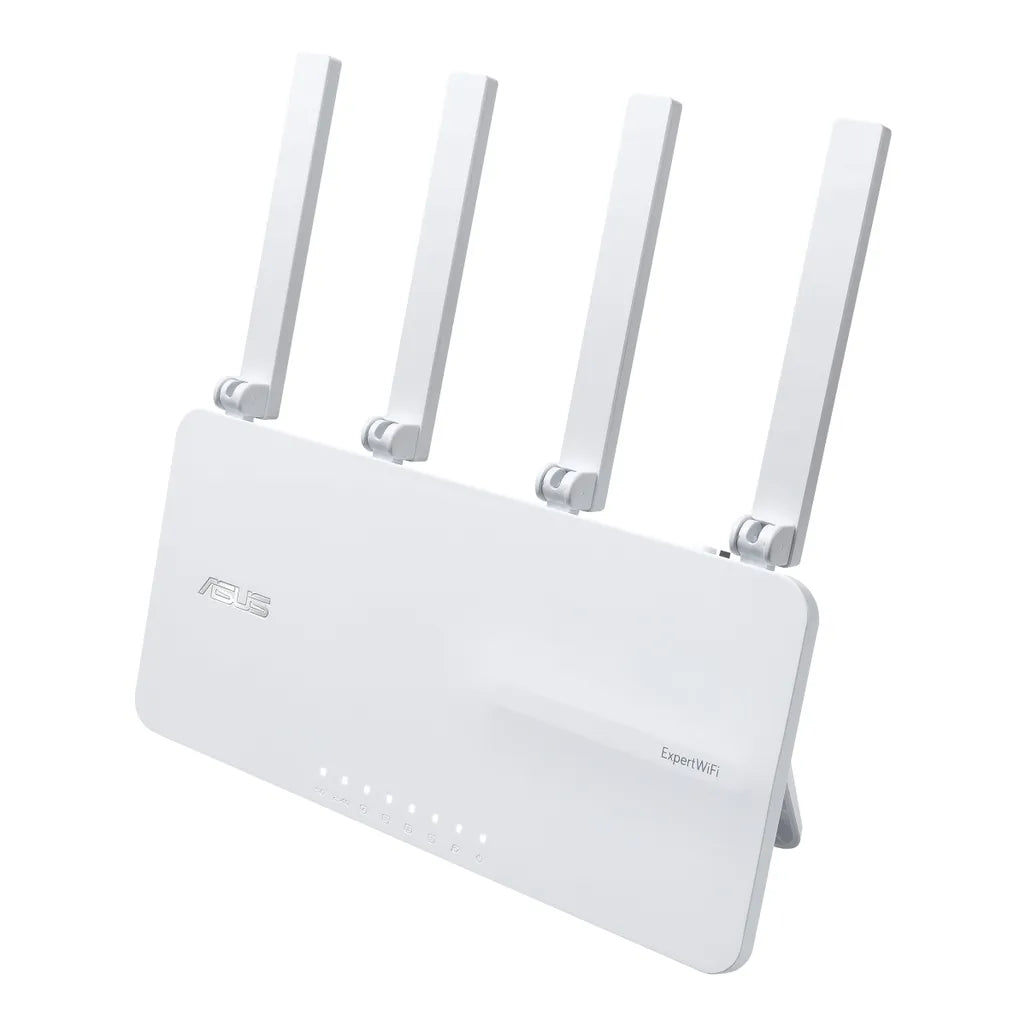

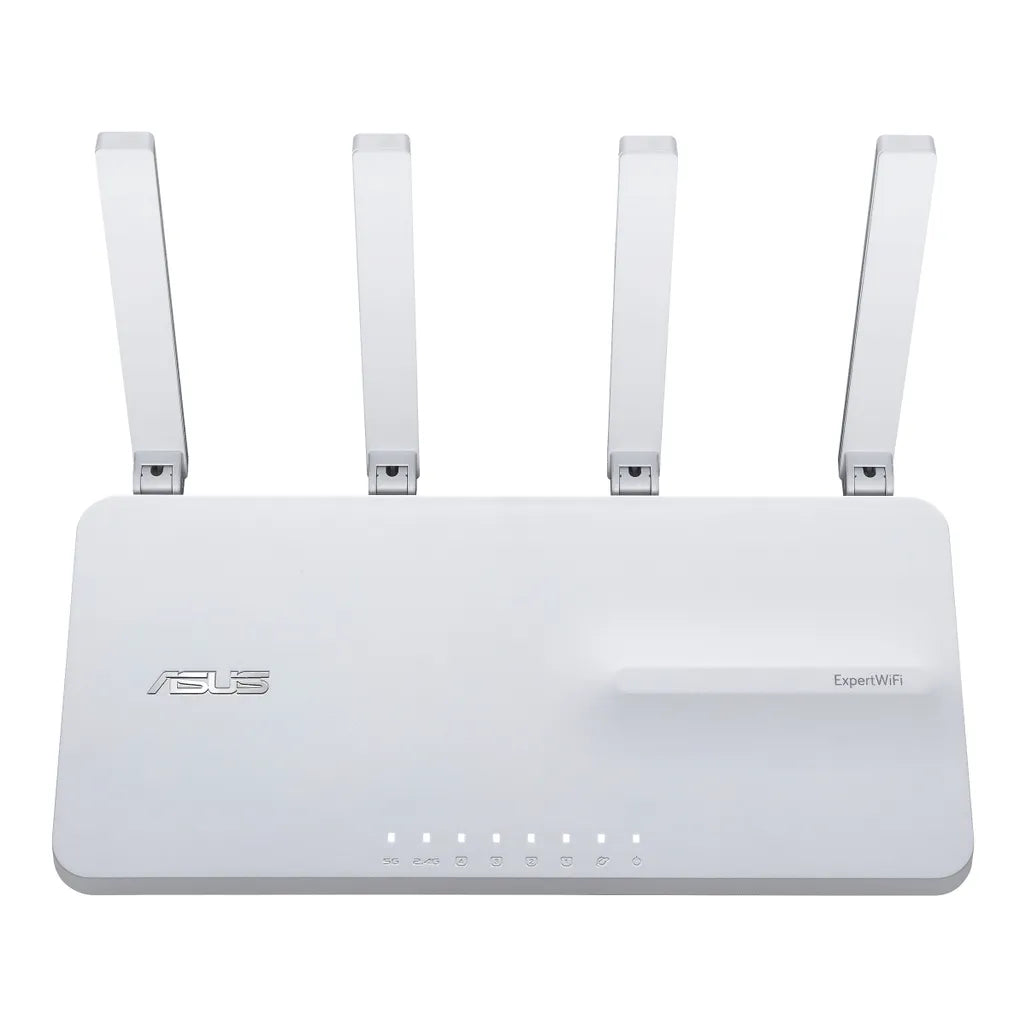

ASUS EBR63 – Expert WiFi. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 2402 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: SSH, WPS. Product type: Tabletop router, Product colour: White, LED indicators: Activity, LAN, Power, WAN
Packaging content
| AC adapter included |
Y |
| Quick start guide |
Y |
| Warranty card |
Y |
| Cables included |
LAN (RJ-45) |
Ports & interfaces
| USB 2.0 ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| DC-in jack |
Y |
| Ethernet LAN (RJ-45) ports |
4 |
| USB port |
Y |
Network
| Ethernet LAN |
Y |
| Ethernet LAN data rates |
10,100,1000 |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Port forwarding |
Y |
| Networking standards |
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Port triggering |
Y |
| Support Samba (storage) |
Y |
| Media server |
Y |
| VPN support |
VPN Client L2PT VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion Support Surfshark |
Design
| Product colour |
White |
| Product type |
Tabletop router |
| On/off switch |
Y |
| Indication light |
Y |
| Wall mountable |
Y |
| LED indicators |
Activity,LAN,Power,WAN |
Power
| External power adapter |
Y |
| AC input voltage |
110 - 240 |
| AC input frequency |
50/60 |
| Output voltage |
12 |
| Power source type |
DC |
| Output current |
2 |
Packaging data
| Package type |
Box |
| Package depth |
188 |
| Package height |
73 |
| Number of products included |
1 |
| Package weight |
740 |
| Package width |
241 |
Weight & dimensions
| Depth |
127 |
| Weight |
436 |
| Width |
225 |
| Height |
146 |
Features
| Built-in processor |
Y |
| Processor cores |
4 |
| Internal memory |
512 |
| Flash memory |
256 |
| Processor frequency |
1.7 |
Security
| MAC address filtering |
Y |
| Network address translation (NAT) |
Y |
| Firewall |
Y |
| Guest access |
Y |
| DMZ support |
Y |
| Filtering |
Y |
| URL filtering |
Y |
| Schedule access |
Y |
| Security algorithms |
SSH,WPS |
Protocols
Management features
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| WPS push button |
Y |
| Web-based management |
Y |
| MU-MIMO technology |
Y |
| Bandwidth control |
Y |
| Intelligent Mesh technology |
Y |
Wireless LAN features
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Modulation |
1024-QAM |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi standards |
802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) |
2402 |
| WLAN data transfer rate (first band) |
574 |
| WLAN data transfer rate (second band) |
2402 |
Antenna
| Antennas quantity |
4 |
| Antenna design |
External |
WAN connection
| Ethernet WAN |
Y |
| SIM card slot |
N |
| 3G/4G USB modem compatibility |
N |
| DSL WAN |
N |
| WAN connection type |
RJ-45 |
