Description
Quick Specs
- Supports AMD Ryzen 7000, 8000, and 9000 Series processors for responsive performance.
- Achieve high-speed gaming with DisplayPort and HDMI graphics output.
- Expand your system's capabilities with support for up to 256GB of DDR5 memory.
- Enjoy streamlined connectivity through rear USB 3.2 Gen1 Type-A ports.
- Build a compact yet powerful system using the Micro ATX form factor.
Designed for AMD Ryzen 7000 series

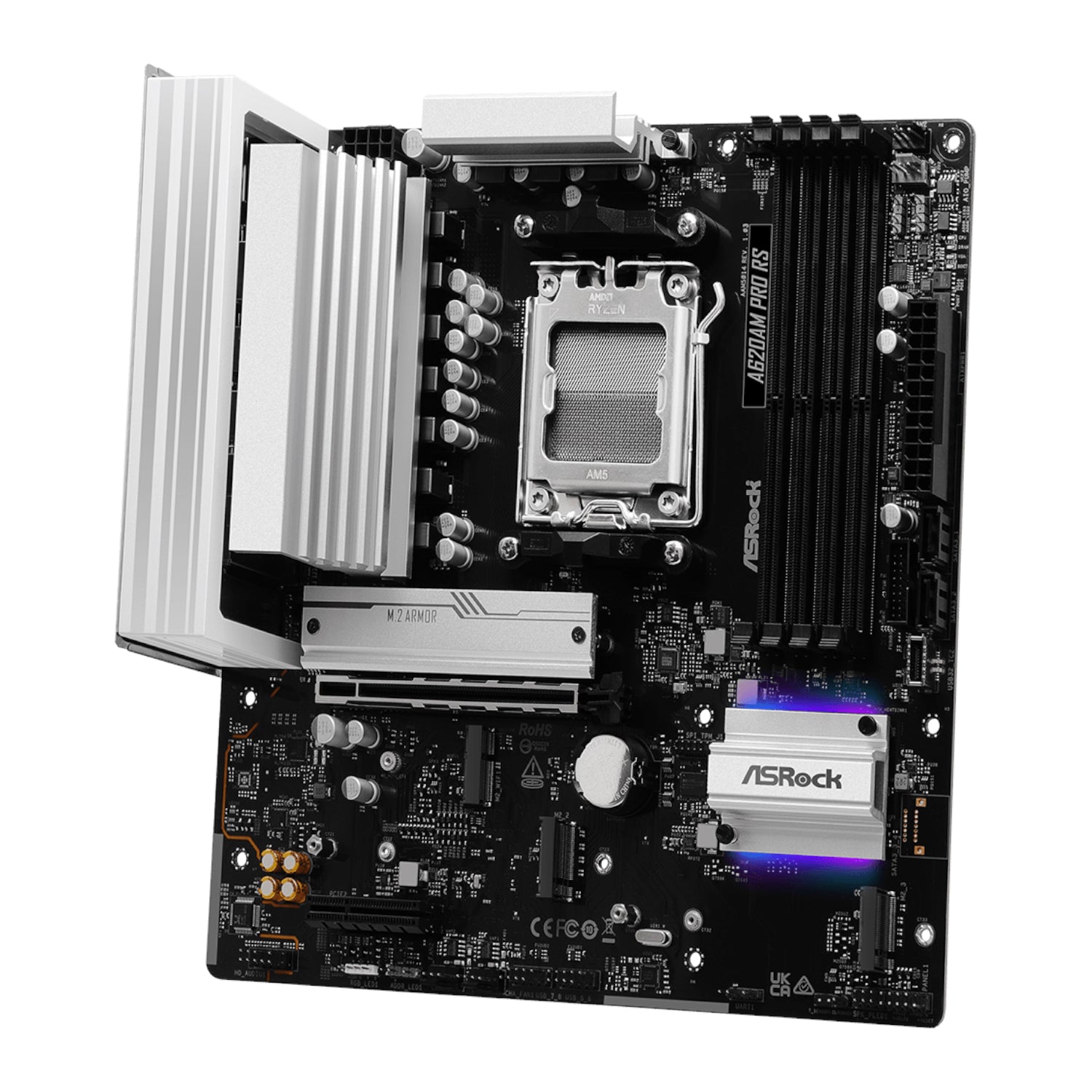

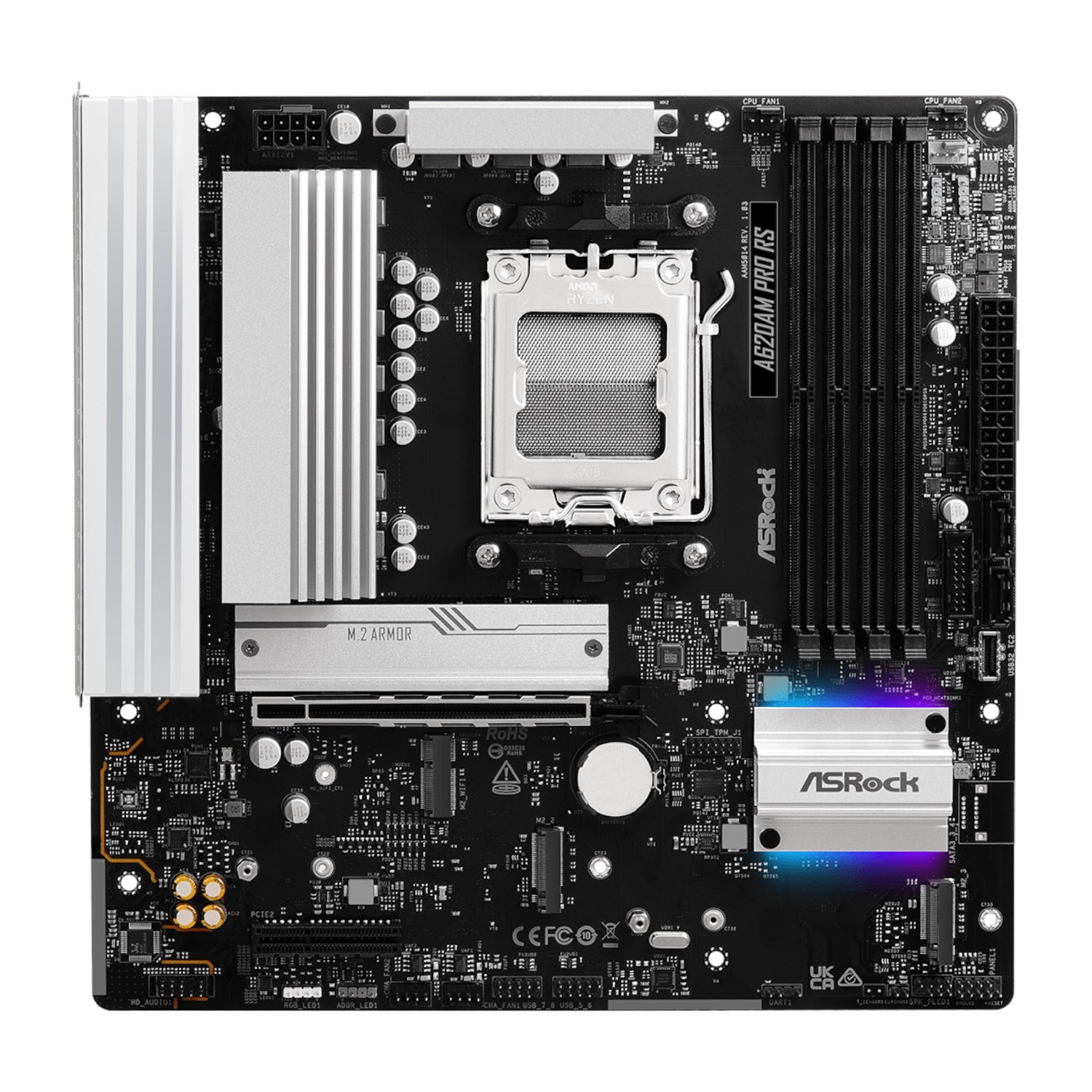

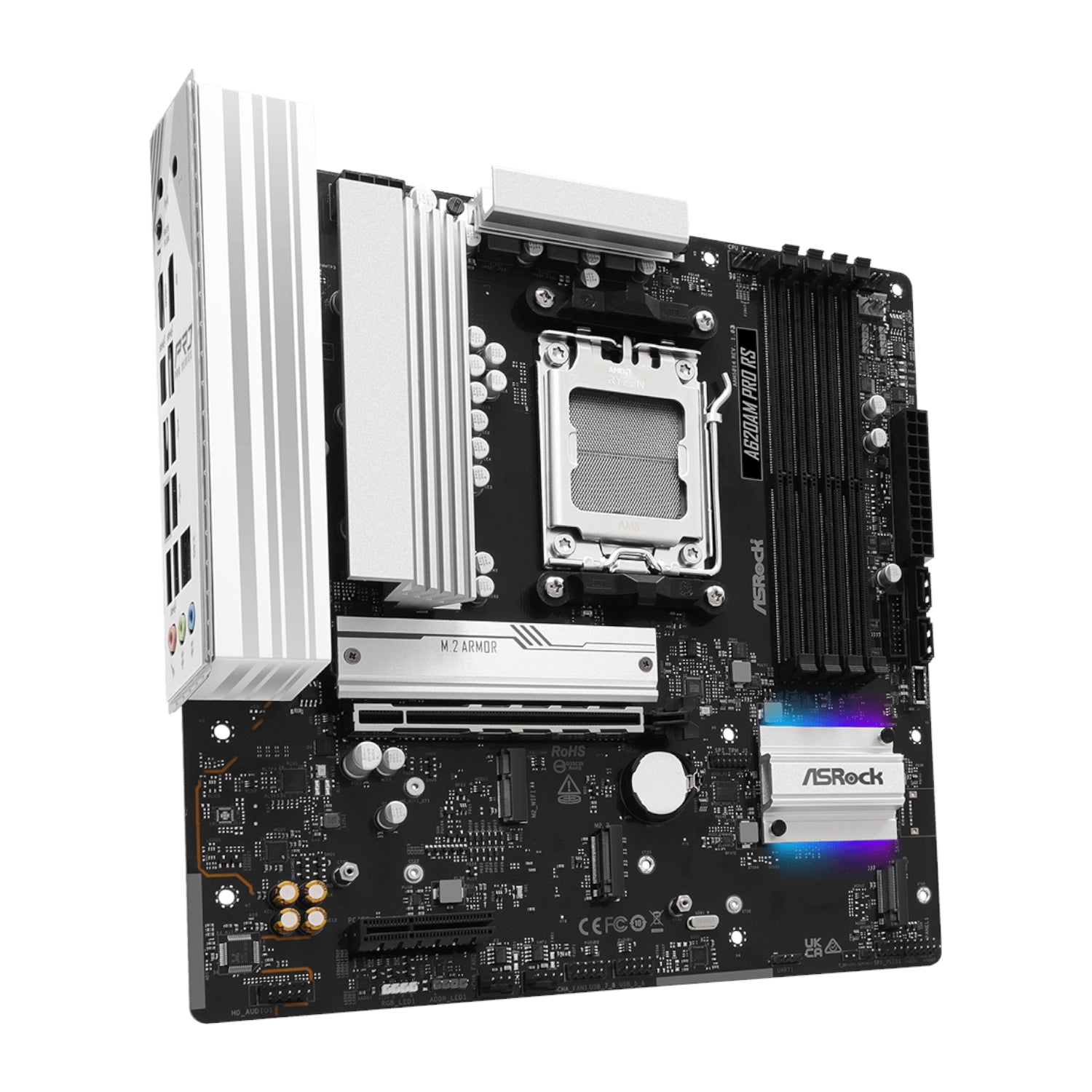

The ASRock A620AM Pro RS AM5 motherboard is engineered to support the latest AMD Ryzen 7000, 8000, and 9000 series processors, providing a robust foundation for gaming, content creation, and everyday computing. Paired with the AMD AM5 socket, this Micro ATX motherboard unlocks the potential of your CPU, ensuring efficient performance and responsiveness.
Next-gen memory support for enhanced performance
Take advantage of DDR5 memory support, allowing you to install up to 256GB of high-speed RAM. This substantial memory capacity ensures smooth multitasking, faster loading times, and seamless operation of demanding applications. Experience a noticeable boost in system performance, whether you are gaming, editing videos, or working with large datasets.
Versatile connectivity for all your peripherals
Equipped with multiple USB 3.2 Gen1 Type-A ports on the rear panel, the ASRock A620AM Pro RS offers convenient connectivity for your peripherals. Transfer data quickly, connect external storage devices, and expand your system's capabilities with ease. The inclusion of HD audio jacks ensures high-quality sound output for immersive gaming and multimedia experiences.
Compact Micro ATX form factor
The Micro ATX motherboard form factor allows for a compact build without compromising on features. This motherboard is perfect for smaller PC cases, making it ideal for space-constrained environments. Despite its size, the ASRock A620AM Pro RS offers ample expansion options and robust performance, making it a versatile choice for a variety of applications.
Reliable and stable performance
The ASRock A620AM Pro RS AM5 motherboard is built with high-quality components and advanced engineering to ensure reliable and stable performance. This motherboard is designed to withstand the demands of modern computing, providing a solid foundation for your system. With support for Microsoft Windows 10 and 11 64-bit operating systems, you can be confident in its compatibility and performance.
FEATURES:
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- 6+2+1 Phase Power Design, Dr.MOS
- 4 x DDR5 DIMMs
- Supports Dual Channel, up to 8000+ (OC)
- 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x4, 1 x M.2 Key E for WiFi
- Graphics Output Options: 1 x HDMI, 1 x DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 2 x Hyper M.2 (PCIe Gen4x4)
- 1 x Ultra M.2 (PCIe Gen3x4)
- 2 x SATA3
- 2 x USB 3.2 Gen1 Type-C (1 x Rear, 1 x Front)
- 5 x USB 3.2 Gen1 (3 x Rear, 2 x Front)
- 8 x USB 2.0 (4 x Rear, 4 x Front)
- Realtek 2.5G LAN
- Supports BIOS Flashback
SPECIFICATIONS:
-
CPU & Chipset
- Socket: AMD AM5
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- Chipset: AMD A620A
-
Bios
- 256Mb AMI UEFI Legal BIOS with GUI support
-
Memory
- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)
- Max. capacity of system memory: 256GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
-
Graphics Output
- Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
- Expansion Slots
- CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
- Chipset:
- 1 x PCIe 3.0 x16 Slot (PCIE2), supports x2 mode*
- 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT PCIe Wi-Fi module
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
- * Supports NVMe SSD as boot disks
-
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio
-
LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
- Storage
- CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- Chipset:
- 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
- 2 x SATA3 6.0 Gb/s Connectors
- * Supports NVMe SSD as boot disks
-
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
- * Requires additional M.2 NVMe expansion cards to support RAID 10
-
USB
- CPU:
- 1 x USB 3.2 Gen1 Type-C (Rear)
- 2 x USB 3.2 Gen1 Type-A (2 Rear (USB32_1, USB32_2)) Chipset:
- 1 x USB 3.2 Gen1 Type-C (Front)
- 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 2 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)
- * All USB ports support ESD Protection
-
Connector
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header
- * Supports in total up to 12V/3A, 36W LED Strip
- ** Support in total up to 5V/3A, 15W LED Strip
- *** CPU_FAN1 supports the fan power up to 1A (12W).
- **** CPU_FAN2/WP supports the fan power up to 2A (24W).
- ***** CHA_FAN1~3/WP support the fan power up to 2A (24W).
- CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
-

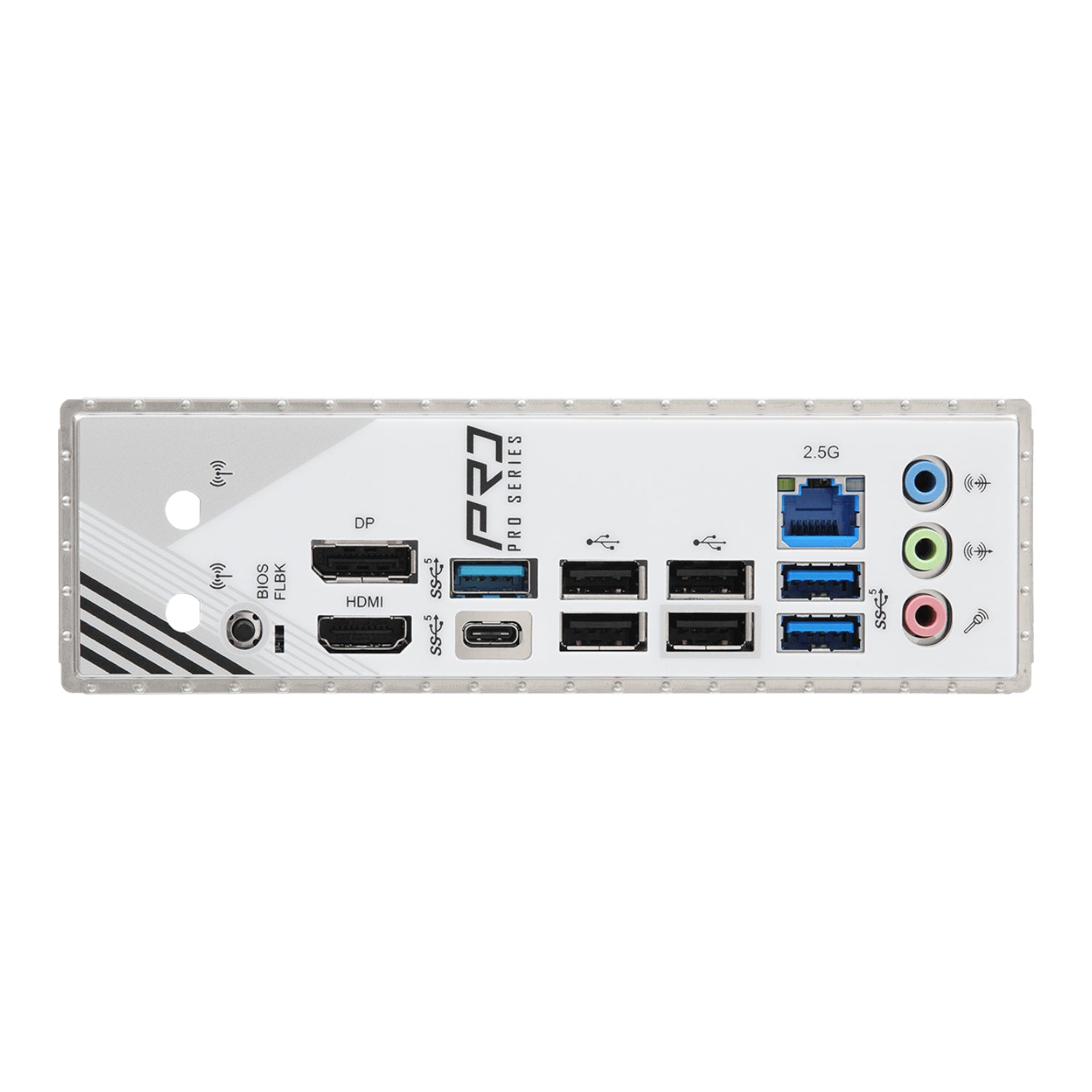

Rear Panel I/O
- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 3 x USB 3.2 Gen1 Type-A Ports
- 1 x USB 3.2 Gen1 Type-C Port
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone
-
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*
- *These utilities can be downloaded from ASRock Live Update & APP Shop.
-
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
-
Form Factor
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
- OS Compatibility: Microsoft Windows® 10 64-bit / 11 64-bit
- Certifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
WHAT'S IN THE BOX:

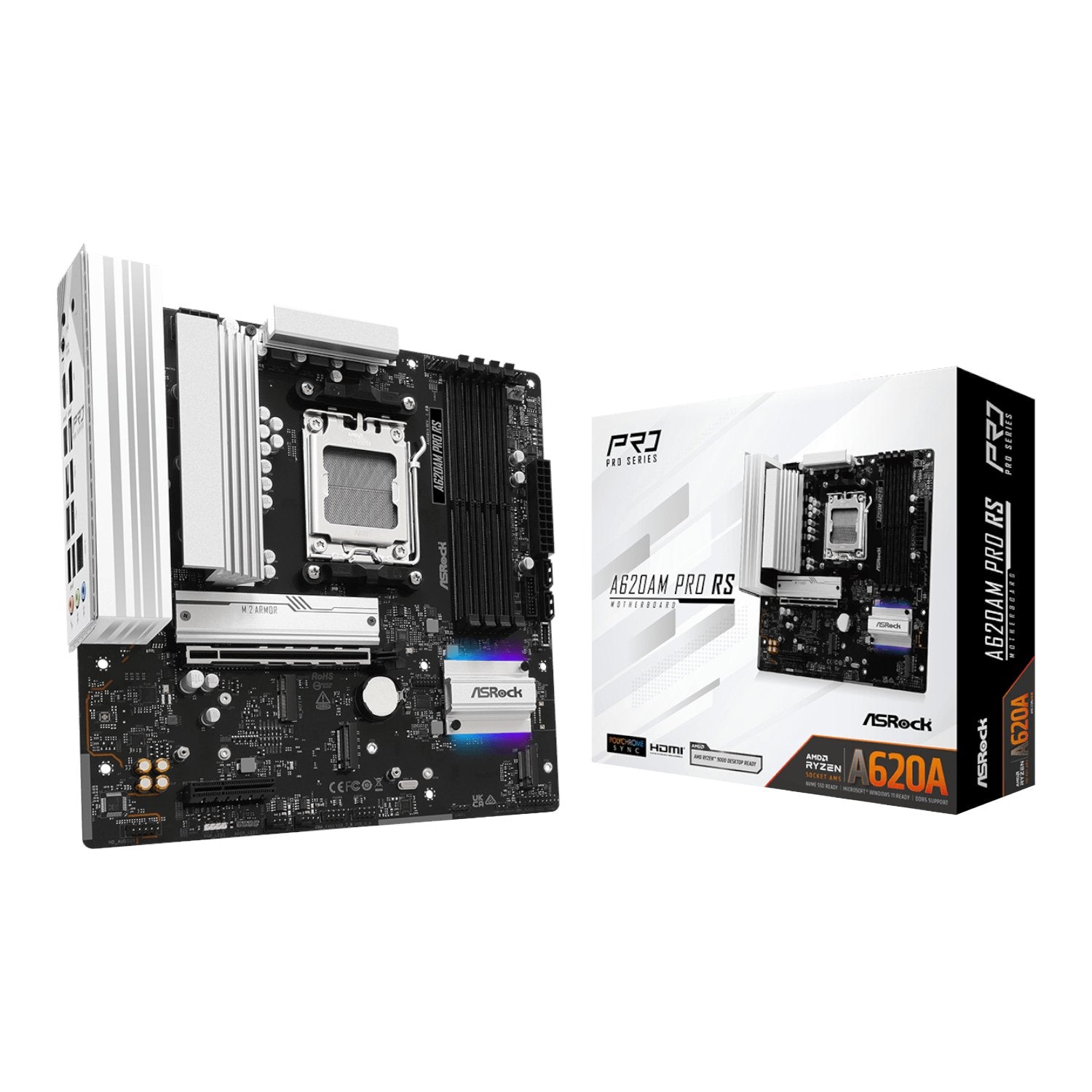

- ASRock A620AM Pro RS AM5 M-ATX Motherboard x1
- SATA Cables x2
- Screws for M.2 Sockets x4
- Standoff for M.2 Socket x1
