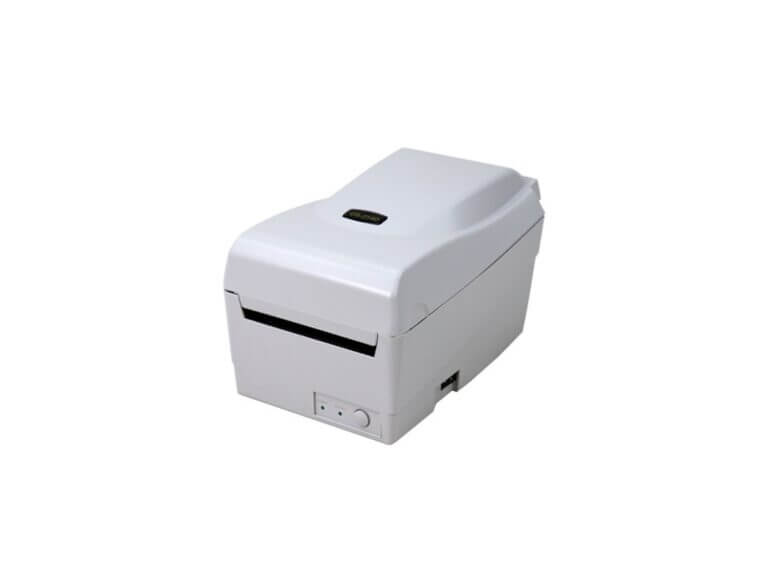

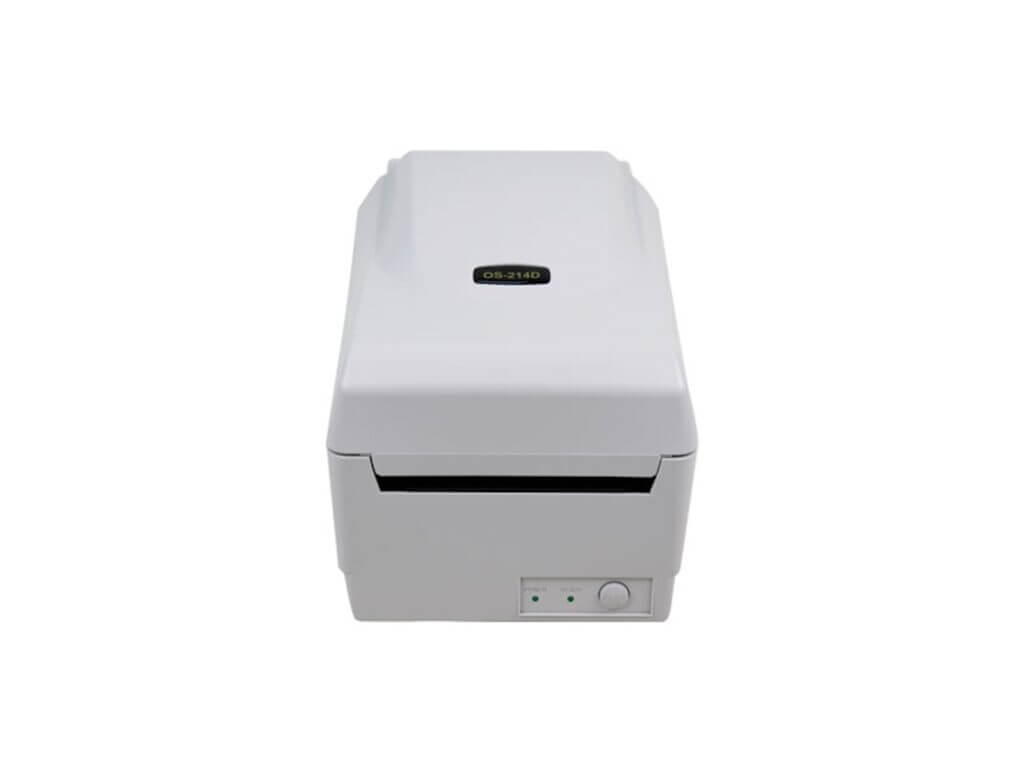

OS-214D Pro 6 IPS, RS232, USB, LAN, PPLA, PPLB, PPLZ
|
The Argox OS214D PRO is the new generation of OS series printer. The OS214D comes standard with USB, USBHOST, Serial and Ethernet connectivity ports. The onboard memory has also been upgraded to 128MB SDRAM and 128MB Flash ROM.
Print Method: Direct Thermal
Max Print Width: 108mm
Print Speed: 6 ips(152.4mm/s)
Memory: 128MB SDRAM, 128MB Flash ROM
Interface Ports: USB + USBHOST + Serial + Ethernet
Warranty: 2 Years
Product Brand: Argox
MPN: ARG 99-20402-105
Included Software: Bartender UL, Argobar Pro, iLabelPrint+ and Drivers
Ribbon Length: none
| Printing Method |
Direct Thermal |
| Printing Resolution |
203 dpi (8 dots/mm) |
| Printing Speed |
Max 6 ips |
| Printing Length |
Max. 100”(2540mm) |
| Printing Width |
Max 4.25″(108mm) |
| Memory |
32MB SDRAM, 16MB Flash ROM |
| CPU Type |
32 bit RISC microprocessor |
| Sensors |
Reflective sensor |
| Operation Interface |
LED indicator x 2, Button(Feed) x 1 |
| Communication Interface |
Ethernet, USB device, RS-232, USB host |
| Fonts |
Internal character sets standard
5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm)
All fonts are expandable up to 24×24
4 direction 0~270 rotation
Soft fonts are downloadable (up to 72 points) |
| 1D Barcodes |
UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial
2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked,
GS1 DataBar Stacked Omnidirecional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked |
| 2D Barcodes |
QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode |
| Graphics |
PPLA: PCX, BMP, IMG, HEX,GDI
PPLB: PCX, BMP, Binary raster, GDI
PPLZ: GRF, Hex, GDI |
| Emulation |
PPLA, PPLB, PPLZ |
| Software-label Editing |
BarTender® from Seagull Scientific Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf) iLabelPrint (Android) |
| Software-utility |
Printer Tool, Font Utility |
| Driver tools |
Argox Seagull Driver (Windows Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver |
| Media Type |
Direct thermal label or plain paper |
