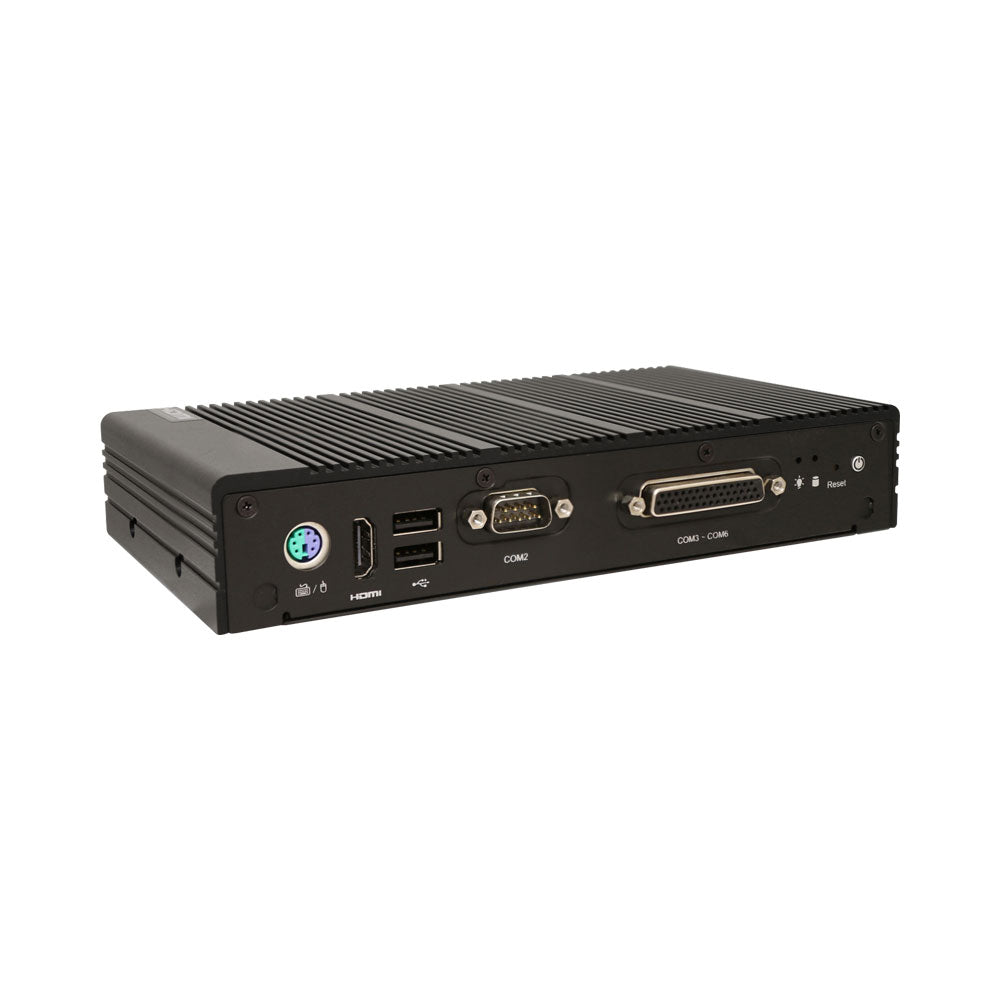

AOPEN INDUSTRIAL PLAYER FS IE-SK500 I5-6200 128G 4

Features

• i5 6th Generation Intel Core CPU
• High-Input Voltage
• Supports 6 COM Ports
• PS/2 Connector

Specifications

• Dimensions:

W × H × D: 209.8 × 38.2 × 120mm

MB: 185 × 115mm

• Weight:

Net Weight: 1.62kg

Gross Weight: 1.94kg

• Mechanical:

Housing: Aluminium + SECC

Mounting: L-Type Wallmount

• Supports OS: Windows 10 IoT
• Certification: Complete Certification for EMC Safety UL, CB, CCC, CE, FCC, RoHS
• Processor:

CPU: i5 6th Generation Intel Core

L2 Cache: 3MB

Bios: Ami Uefi

• Memory Onboard: DDR4 2133Mhz up to 8GB
• Graphics:

Intel Core SoC

Intel HD Graphics 520

• Expansion Slots:

1× M.2 2230 for Wi-Fi (Built-In)

1× M.2 2242 for SATA SSD

1× Mini PCIe Slot for mSATA

• Ethernet:

Chip: 2× Intel I211AT

Speed: 10/100/1000Mbps

• Storage:

2.5" Ssd 1×

mSATA 1×

• I/O Interface:

DC Jack 1× (12~28V)

Graphics Ports 2× (1× VGA and 1× HDMI 1.4)

USB2.0 Port 2×

USB3.0 Port 4×

Rj45 Lan 2×

Audio: 1× (Line-out)

Antenna Holes 4×

COM Ports: 6× DB9 (1× RS232, 1× RS232/422/485 Switch by BIOS, 4× RS232/48 Switch by BIOS)

Other: 1× PS/2 KB/MS, 1× Power Button, 1× Reset Button

• Power Requirement:

Input Voltage 12~28V DC

Power Adapter: AC~DC 12V 5A 60W

• Power Consumption:

Typical 30W

Max. 35W

• Operating Temperature: 0~50°C
• Storage Temperature: -30~70°C
• Relative Humidity: 90% RH (50°C Non-Condensing)
• Vibration During Operation: 2.20G / Random 10min per Axis in All 3 Axes
• Shock During Operation: Half Sine, 40G, 2~3ms Duration
• EMC: CE/FCC Class B

Shipping Dimensions

• Length: 38 cm
• Width: 28 cm
• Height: 12 cm
• Weight: 2.16 kg
