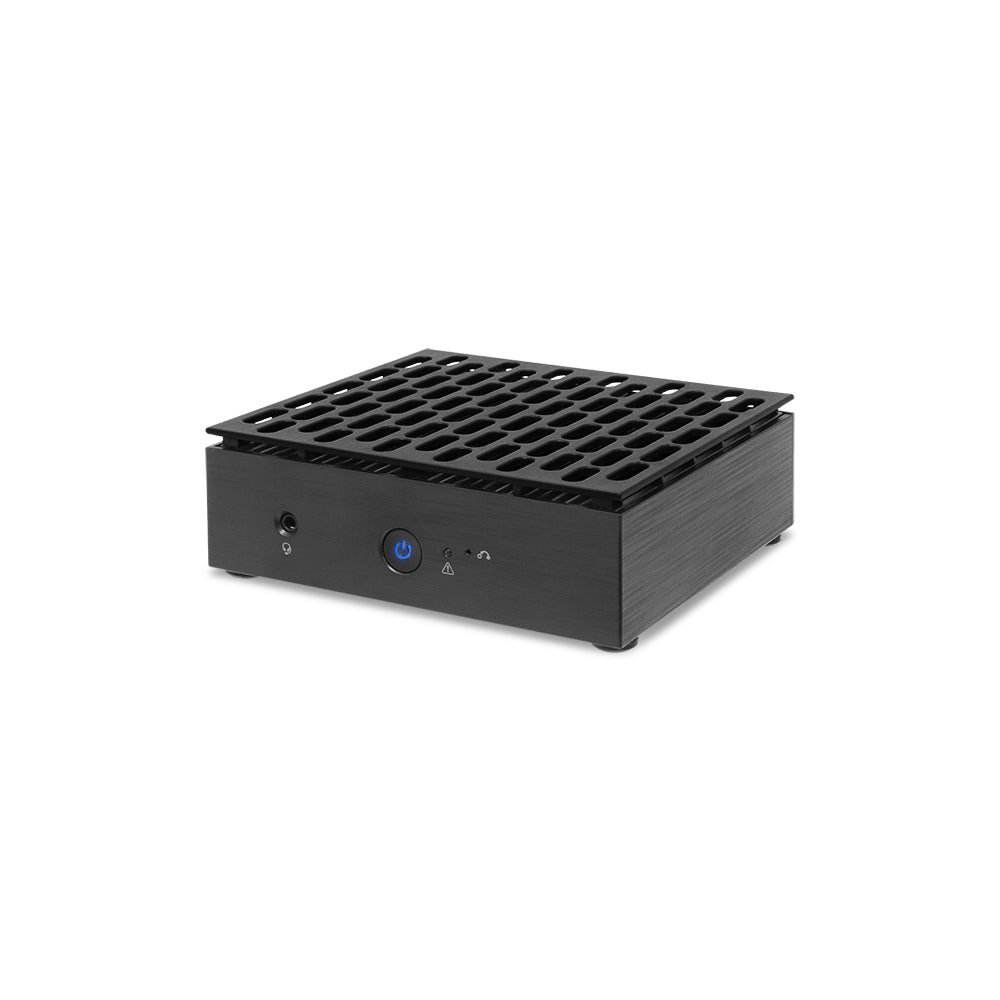

AOPEN DE3650S ACE MINI COMPACT PC WITH INTEL CELERON N6210 1.2GHZ CPU, 4GB DDR4 RAM AND 64GB EMMC

Features

• Intel Celeron N6210 Processor - Efficient dual-core performance for embedded and commercial applications
• Intel UHD Graphics - Smooth visual performance for signage and display solutions
• Fanless Design - Silent operation with reduced dust build-up and lower maintenance requirements
• Dual Display Output - HDMI and mini DisplayPort for flexible multi-screen setups
• Multi-OS Support - Compatible with Windows, Chrome OS Flex and Linux environments
• Compact and Space-Saving - Ultra-small 0.45L form factor ideal for tight installations
• Onboard Memory and Storage - 4GB RAM and 64GB eMMC for reliable everyday performance
• Expandable Storage - Supports M.2 2280 SSD for additional storage flexibility
• TPM 2.0 Security - Enhanced hardware-based security for business environments
• Industrial-Grade Reliability - Designed for 24/7 operation with high durability

Specifications

Cpu And Graphics

• CPU: Intel Celeron N6210 1.20GHz (Dual Core)
• Graphics: Intel UHD Graphics for 10th Gen Processors

Memory

• Onboard Memory: 4GB DDR4
• Expansion Slot: 1× DDR4 SO-DIMM
• Channels: Dual Channel
• Data Rate: 2666 / 3200MHz
• Max. Memory: up to 20GB

Storage

• Onboard Storage: 64GB eMMC
• Expansion: 1× M.2 2280 (M-Key) SATA, 1× M.2 2230

Audio

• Audio Chipset: Realtek HD Audio Codec ALC897
• Channel: Stereo

Network

• LAN: 1× Gigabit Ethernet (10/100/1000Mbps)

Front Panel I/O

• Power Button: 1×
• Audio: 1× Audio Combo Jack
• Other: 1× BIOS Recovery

Rear Panel I/O

• HDMI: 1× HDMI 2.0
• DisplayPort: 1× mini DisplayPort
• USB Ports: 4× USB (2× USB2.0, 2× USB3.1)
• LAN: 1× RJ45
• Power Input: 1× DC Input (12~24V)

Control And Security

• Watchdog Timer: 1~255 sec/min
• TPM: 2.0

Power

• Power Supply: 40W Adapter
• Input Voltage: AC 100~240V

Environment

• Operating Temperature: 0~35°C
• Storage Temperature: -30~60°C
• Humidity: 90% RH (Non-Condensing)
• MTBF: 50,000 hours

Physical

• Dimensions: 125 × 35 × 110mm
• Volume: 0.45L
• Colour: Black

Compatibility

• OS Support: Windows, Chrome OS Flex, Linux
