14K resin detail at scale | Industrial-grade Z-axis stability | Automatic levelling | Whisper-quiet under 45 dB | USB, Wi-Fi & Ethernet ready
Quick Specs
- Achieve stunning detail with a 10.1-inch 14K LCD screen and 0.02 mm Z-axis accuracy for sharp, smooth prints every time.
- Enjoy a generous 223 × 126 × 230 mm build volume — large enough for detailed figurines, technical prototypes, and functional parts.
- Connect your way with built-in USB, Wi-Fi, and Ethernet connectivity for flexible file transfer and remote monitoring.
- Experience consistent results print after print, thanks to industrial-grade linear guides and a ball screw Z-axis drive.
- Get started without the hassle — the automatic levelling system means the Photon P1 is ready to print almost immediately after setup.
Professional-Grade Resin Printing for Makers Who Mean Business

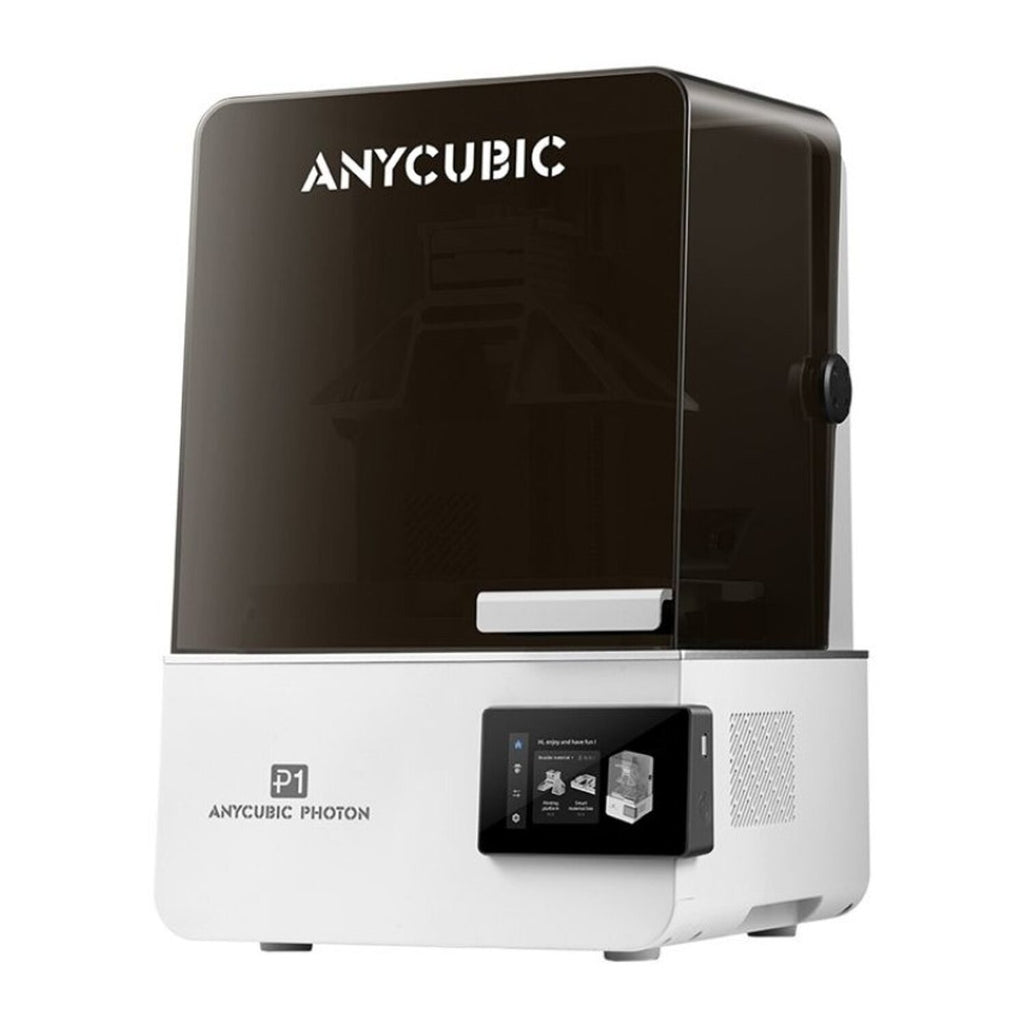

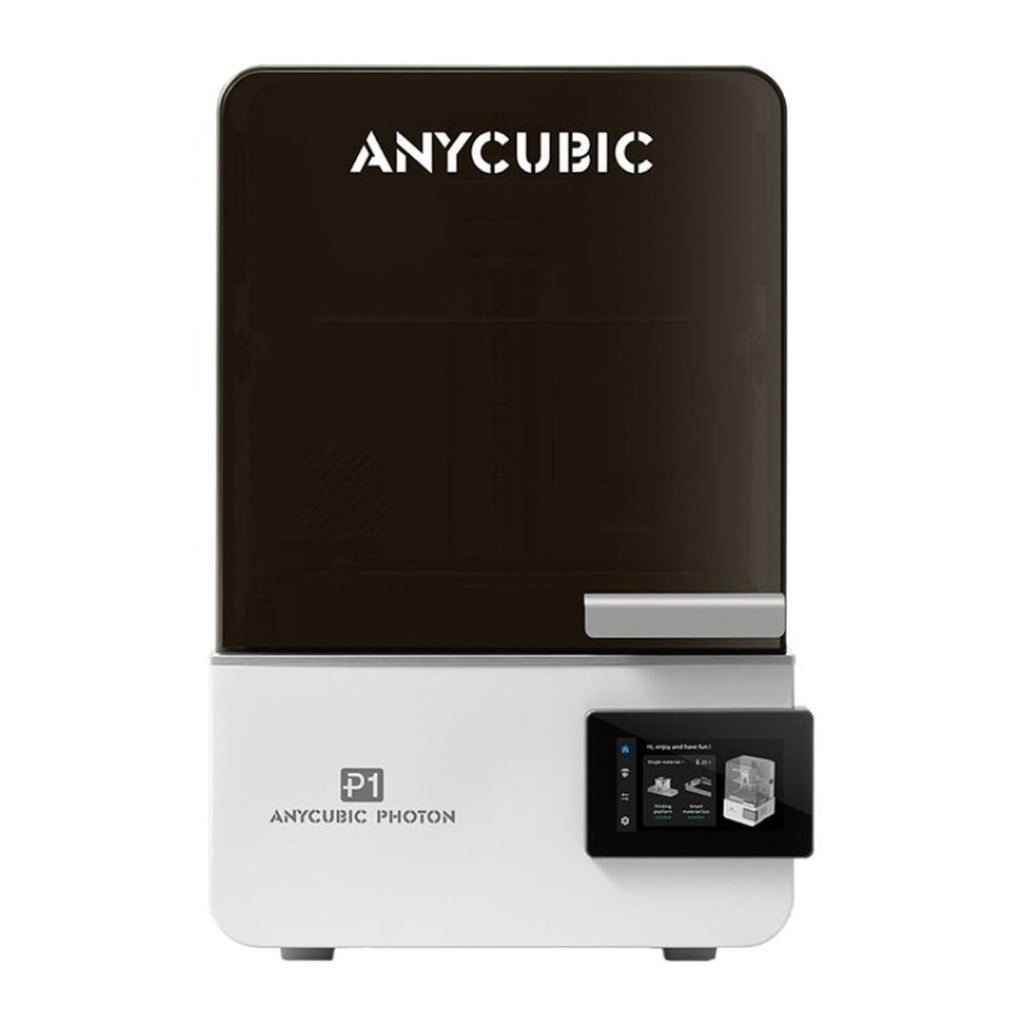

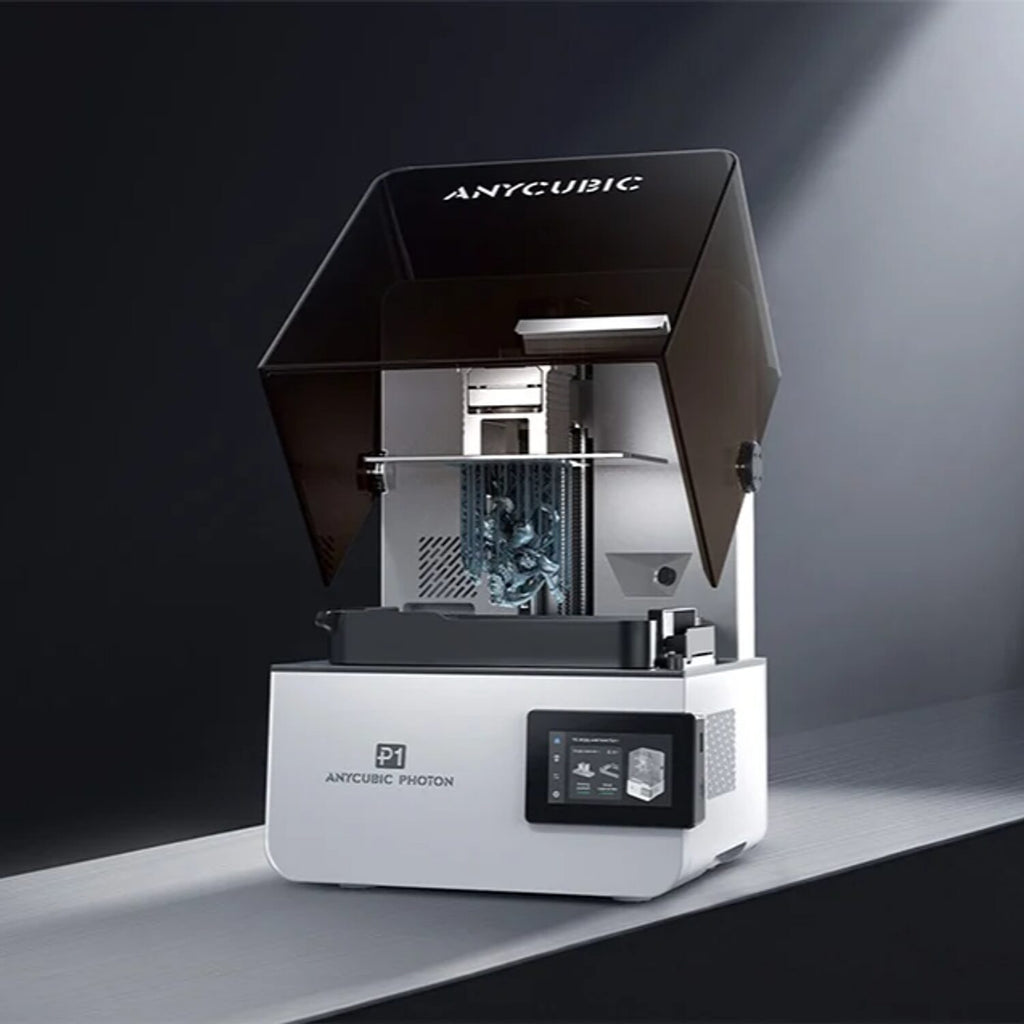

The Anycubic Photon P1 is a high-performance MSLA resin 3D printer designed for makers, designers, and engineers who refuse to compromise on detail. Built around a 10.1-inch 14K LCD screen, an industrial-grade Z-axis drive, and a comprehensive suite of smart features, it delivers the kind of print quality and repeatability usually reserved for professional studios — in a machine built for everyday use.
Sharpness You Can See, Accuracy You Can Measure

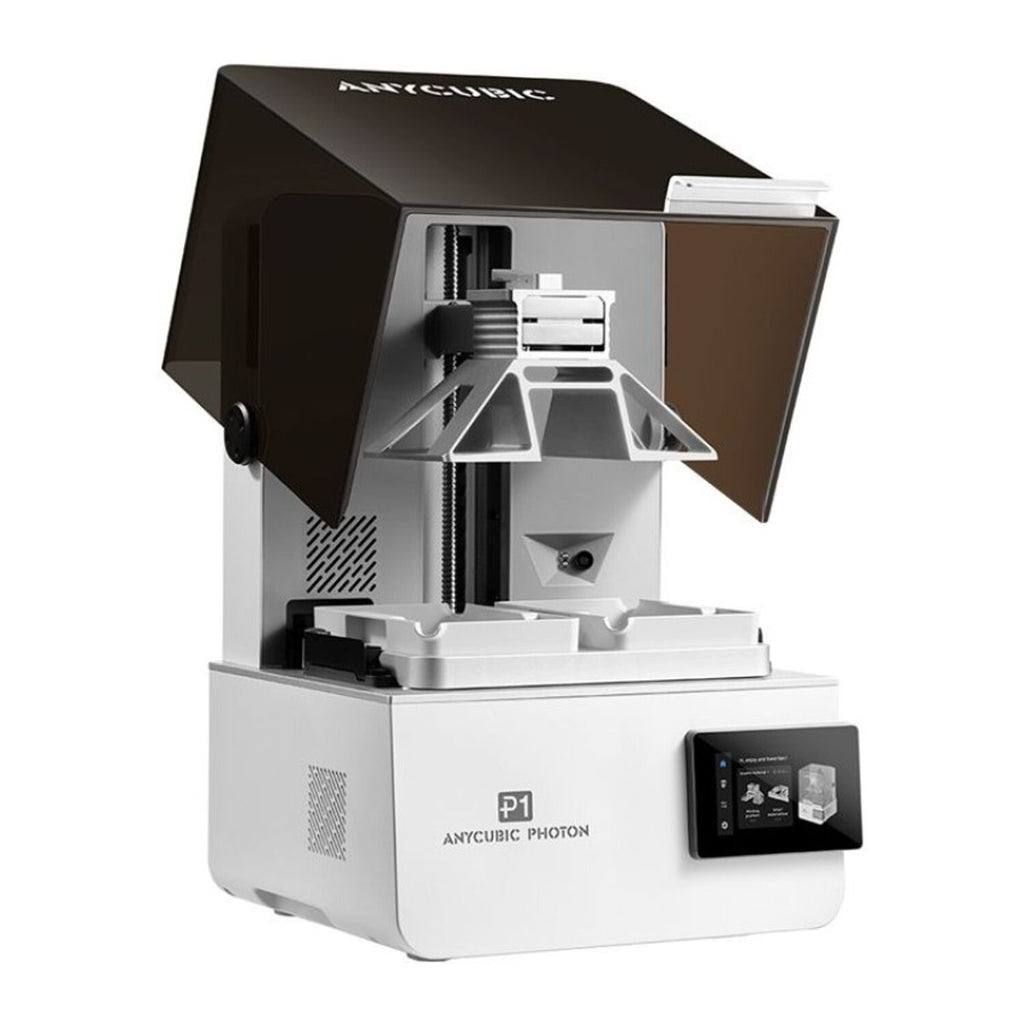

The 14K resolution LCD panel produces crisp, highly detailed prints with fine surface texture and clean edges. On the Z-axis, a ball screw drive paired with industrial-grade linear guides achieves 0.02 mm accuracy, minimising layer lines and ensuring smooth transitions between layers. Whether you're printing intricate miniatures, precision mechanical components, or architectural scale models, the Photon P1 reproduces your designs faithfully.
Tired of Printers That Need Constant Babysitting?

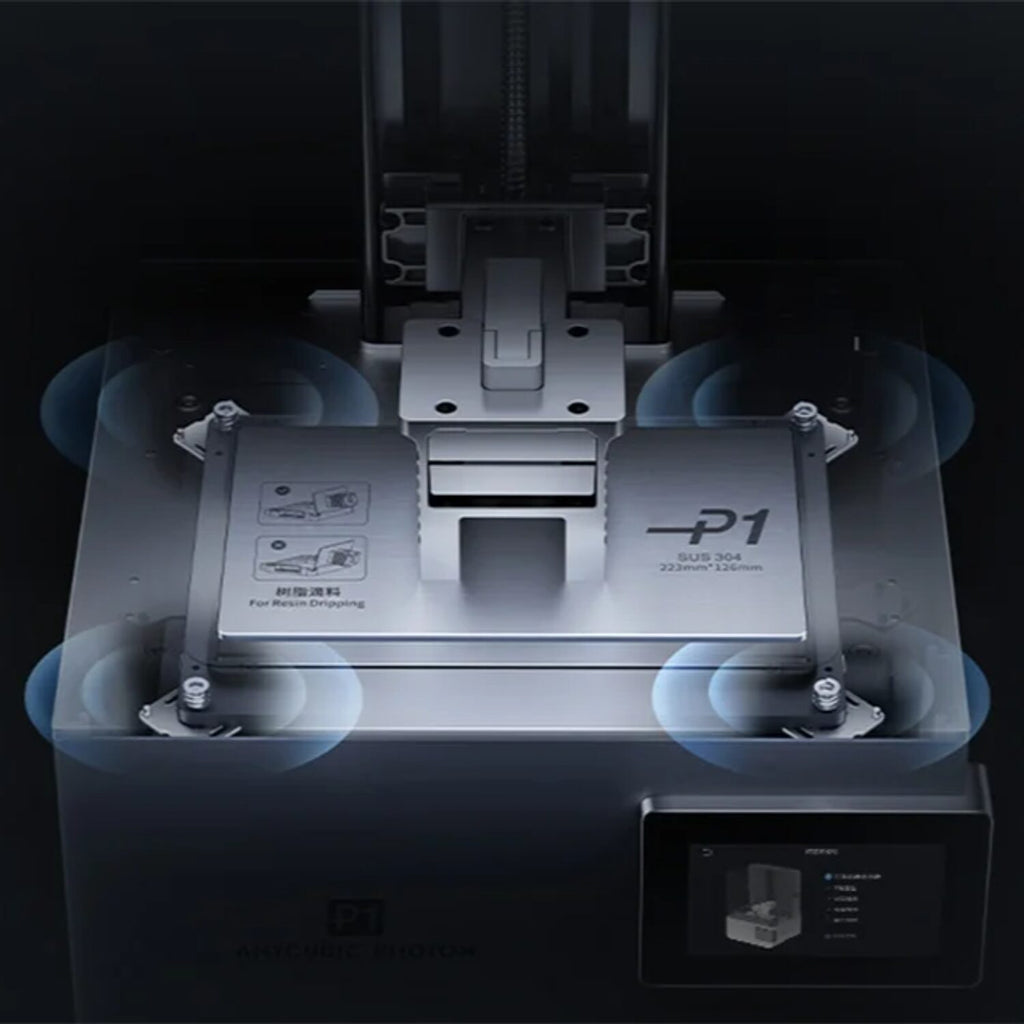

The Photon P1 takes setup frustration off the table with its automatic levelling system, getting you from unboxing to first print with minimal manual intervention. Smart monitoring keeps an eye on key stages of the print process, helping to catch errors early and prevent wasted resin. With quiet operation rated at under 45 dB, you can run the printer comfortably in a home studio, workshop, or office without the noise becoming a nuisance.
Stay Connected, Stay in Control
Flexibility is built into the Photon P1's connectivity options. Transfer files via USB for straightforward standalone operation, connect over Wi-Fi (2.4 GHz) for wireless convenience, or plug into your network via Ethernet for a stable, wired connection. The printer pairs with Anycubic Photon Workshop slicer software, giving you a familiar, capable environment to prepare and send your models. With a build volume of 223 × 126 × 230 mm and a robust 13.6 kg chassis that stays planted during operation, the Photon P1 is ready for serious, sustained creative work.
Features
- 10.1-inch 14K LCD screen delivers high-resolution output with fine surface detail and sharp edges.
- Industrial-grade linear guides and ball screw Z-axis drive provide 0.02 mm accuracy and consistent layer-to-layer stability.
- Automatic levelling system eliminates manual calibration — ready to print with minimal setup.
- Supports UV resin with adjustable layer thickness from 0.02 mm to 0.15 mm for fine or faster prints.
- Tri-mode connectivity: USB, Wi-Fi (2.4 GHz), and Ethernet (LAN) for flexible file transfer and control.
- Whisper-quiet operation at under 45 dB — suitable for home studios and office environments.
- Compatible with Anycubic Photon Workshop slicer software.
- Broad power input (100–120 V / 200–240 V) for global compatibility.
Specifications
- Printer Technology: Resin (LCD/MSLA)
- Printing Volume: 223 × 126 × 230 mm
- Print Layer Thickness: 0.02 – 0.15 mm
- Supporting Filaments: UV Resin
- Construction: Industrial-grade linear guides and ball screw for Z-axis stability
- Motion System Z-axis: Ball screw with industrial-grade linear guides, 0.02 mm accuracy
- Auto-Leveling: Yes – automatic levelling system
- Control and Print Methods: USB, Wi-Fi, Ethernet/LAN
- Touchscreen: 10.1" 14K screen
- Noise Level: Under 45 dB
- Slicer Software: Anycubic Photon Workshop
- Connectivity: USB, Wi-Fi (WLAN), LAN (Ethernet)
- Wi-Fi Spec: 2.4 GHz (2.400–2.4835 GHz)
- Machine Dimensions: 366 × 338 × 539 mm
- Machine Weight: 13.6 kg
- Power Input: 100–120 V / 200–240 V
- Rated Power: 215 W
- Warranty: 12 Months
What's in the Box
- Anycubic Photon P1 3D Printer x1
- Build platform x1
- Resin tray x1
- Resin funnel x1
- Scraper x2
- Set of Allen wrenches x1
- Wet wipes x1
- Protective accessories x1
- USB flash drive x1
- Power cord x1
- User manual x1
- Length: 62.0 cm
- Width: 43.0 cm
- Height: 42.0 cm
- Weight: 17.5 kg
