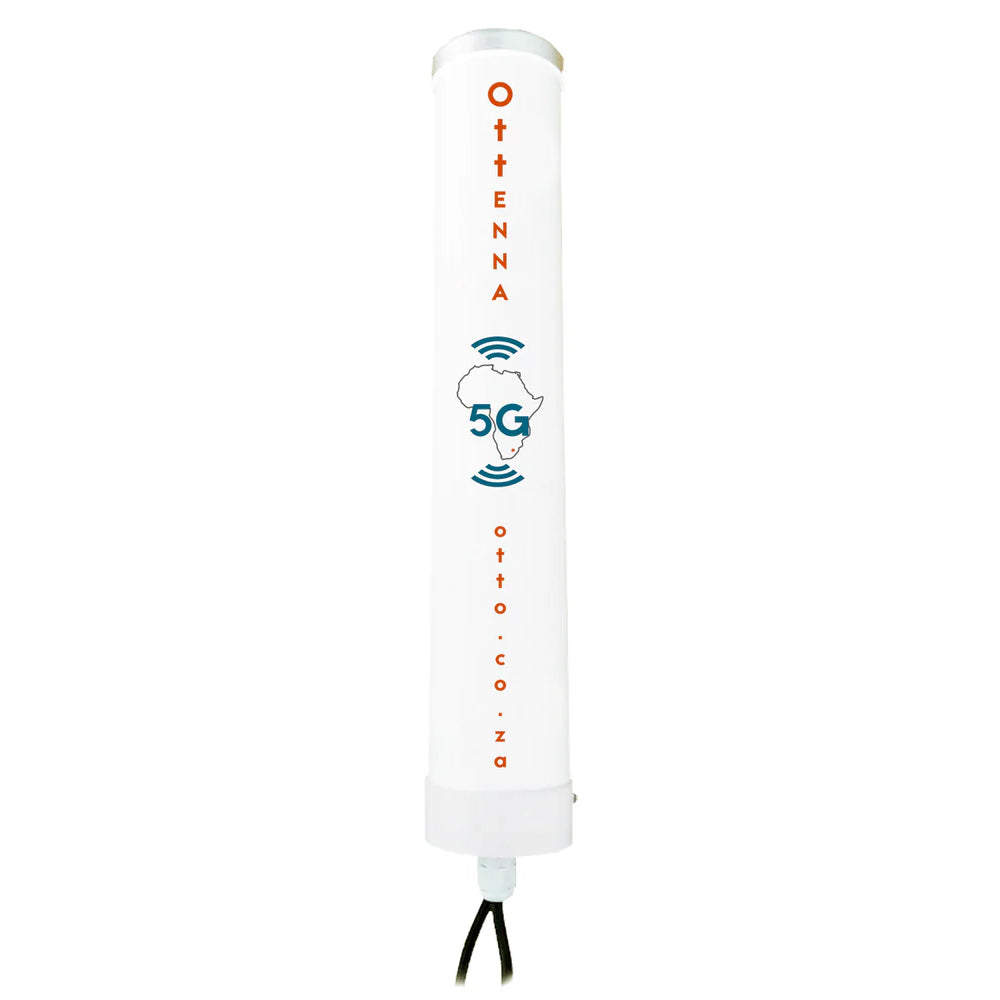

ANTENNA 5G MIMO OMNI 5DB 5MT 2XSMA

Features

• Wide 5G/LTE Frequency Support - Covers 698~960MHz, 1710~2700MHz and 3300~4000MHz bands
• Omnidirectional 360° Coverage - Receives signals from all directions for improved connectivity
• MIMO Technology - Dual-antenna design enhances signal stability and data performance
• Integrated 5m SMA Cables - Two low-loss cables with SMA male connectors for simple installation
• Durable Outdoor Construction - UV-resistant radome with lightning protection for reliable operation
• Pole Mount Compatible - Designed to mount on poles from ø38~ø52mm for flexible deployment

Specifications

Frequency Range

• 698~960MHz
• 1710~2700MHz
• 3300~4000MHz

Gain

• 2.5dBi
• 5dBi
• 5dBi

Vswr

• ≤2.5
• ≤2.0
• ≤2.0

Polarization

• Vertical

Horizontal Beamwidth

• 360°

Vertical Beamwidth

• 85°
• 60°
• 58°

Input Impedance

• 50Ω

Max. Input Power

• 100W

Lightning Protection

• DC Ground

Connector

• 2× 5m Low-Loss Cables with SMA Male Plugs

Dimensions

• ø63 × 380mm

Weight

• 1kg

Radome Material

• UV-PVC

Operating Temperature

• 40~65°C

Mounting Pole

• ø38~ø52mm
