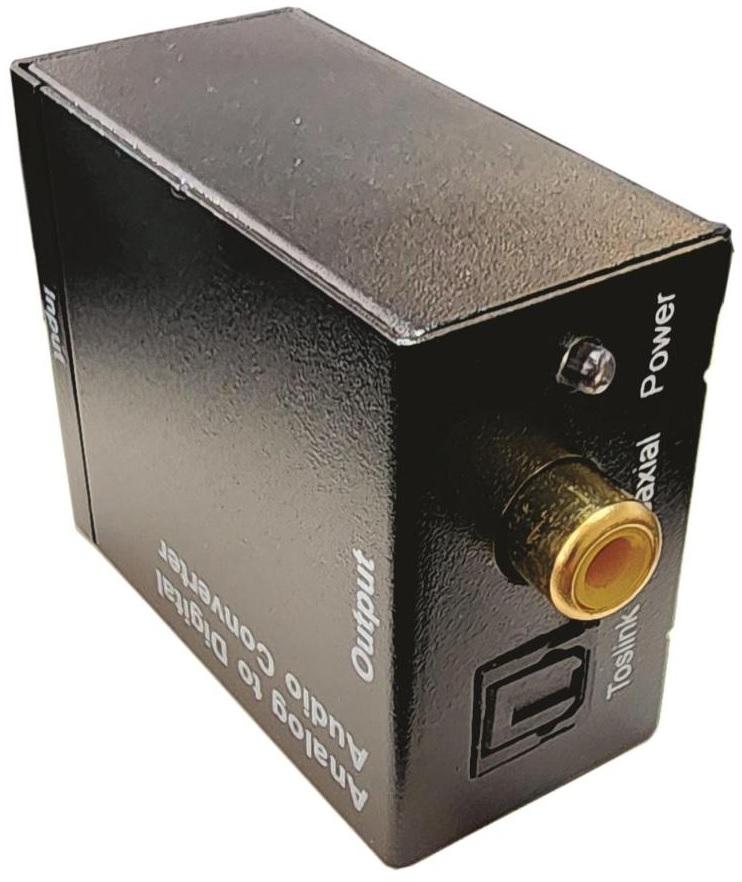

ANALOG TO DIGITAL AUDIO CONVERTER - AD010
Signal Inputs/Output
Input Audio: L/R Audio (Stereo)
Output Audio: Coaxial and Toslink Digital Audio Connector
Input Audio Connector: 2XRCA(R/L) (Stereo)
Output Audio Connector: Toslink1XRCA(Coaxial)
Sampling Rate:48KHz
Size(L-W-H):51X41X26MM
Environmental
Operating Temperature:0 to +70
Operating Humidity:10% to 85 % RH (no condensation)
Storage Temperature: -10 to +80
Storage Humidity:5% to 90 % RH (no condensation)
Power Requirement
External Power Supply: 5V DC@1A
Power Consumption:1 watt (max)
Converter Unit: FCC, CE, UL
Power Supply: UL, CE, FCC
Accessories Adapter
AC Power Adapter: US standard, UK standard and so on
User Manual: English Version
5.0 CONNECTION AND OPERATION
Before Installation, please make sure all Devices you wish to Connect have been turned off
Connect the Audio source Device to the Converter using appropriate L/R Cables
Connect the A/V Receivers or Amplifiers to the Converter using appropriate Toslink or Coaxial Cables
Insert the DC side of 5V Power Supply into the Converter and then Connect the AC side of the Power Supply into the wall outlet
Note: When Connected to the Toslink and Coaxial Cables at the same, the Product will give Toslink and Coaxial Output at same time
PACKAGE CONTENTS
Main unit (Analog to Digital Audio Converter)
5V/DC Power Supply
Users Manual
Weight (Net):78g
Warranty
Limited Warranty:1 Year
