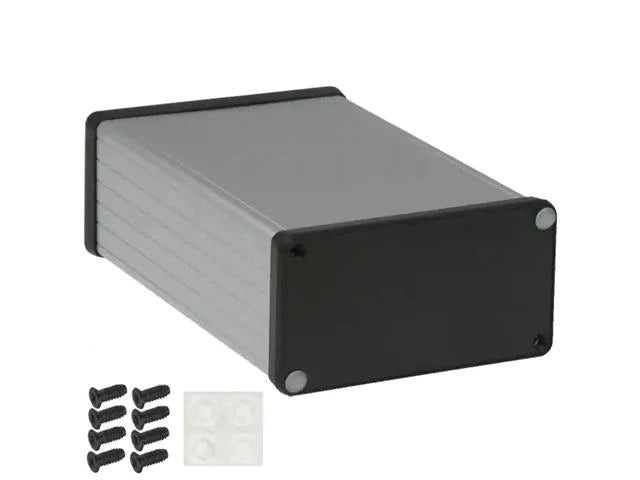

Aluminium Extruded Enclosure 160x103x53mm

• • Designed to house P.C. boards or for equipment interfacing.
  • Sized for standard Eurocards.
  • P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.
  • Rugged body constructed from extruded aluminum with a minimum thickness of .06” (1.5 mm).
  • Extruded body includes a slide removable “belly” plate - except in smaller sizes “A” through “D”

Includes

• Versions with metal end plates includes two aluminum end panels - finish matched to extruded aluminum body - and two black ABS plastic bezels (your option to install).
• Versions with plastic end plates includes two all-plastic end caps.
• Extruded aluminum body - choice of clear, black, blue or red anodized finish
• Self adhesive rubber feet. Replacements are available - order part number 1421T2CL (pack of 24).
• All hardware - end panel screws are #6 x 3/8” TTT - thread rolling, steel screws with a #4 flat head phillips drive. Zinc plate finish - either clear or black (black screws are used on the black, blue & red models).

v

• For black replacement screws (quantity 100) order part number 1455MS100BK
• For clear replacement screws (quantity 100) order part number 1455MS100
• NOTE: Recommended screw torque is 5 lbf-in
