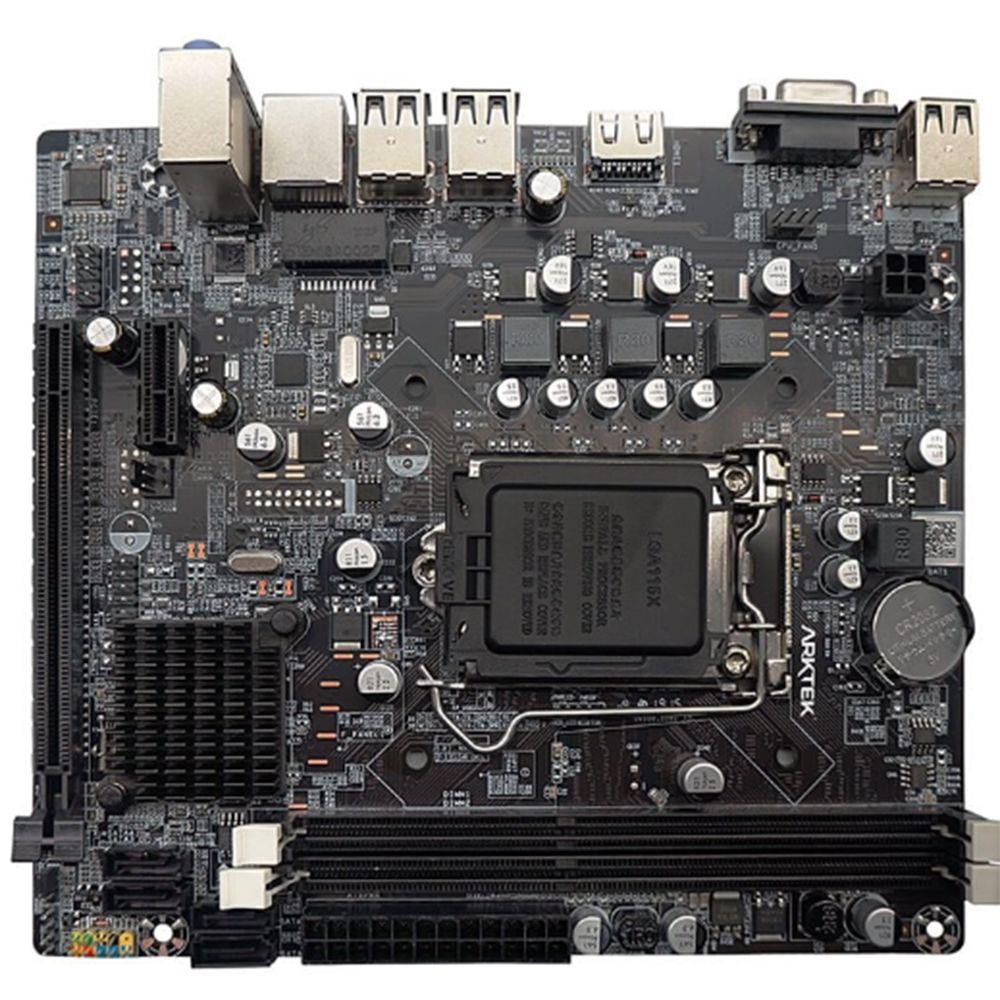

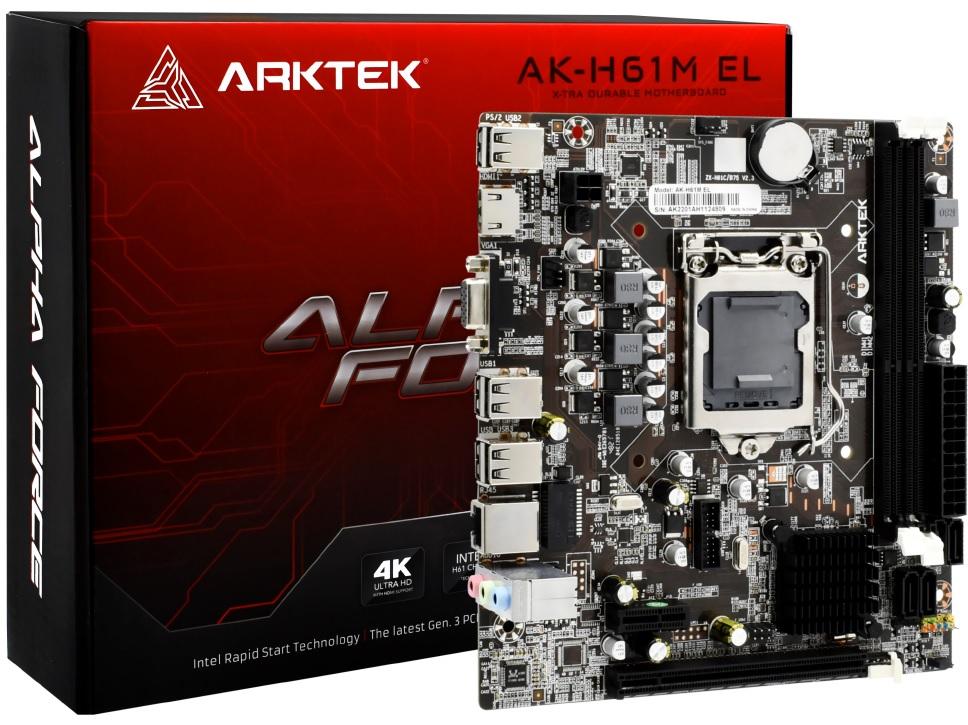

ARKTEK Model: AK-H61M EL
Socket: LGA1155
Chipset: Intel H61
Memory Support: Dual Channel DDR3 H61 MB 1155 MATX - AK-H61M EL
Processor: Intel Socket 1155 for Intel Core i7 /Core i5 /Core i3 /Pentium /Celeron Processors
Chipset: Intel H61 Chipset
On-Board Graphics: Intel Graphics Media Accelerator X4500 HD
Memory: DDR3 1600/ 1333/1066 Memory
DIMM: 2 x Memory Slots
Supports Up To GEN2 Only
LAN: Realtek 8105E/8111E 100/1000 Mbps (Optional)
Audio: Realtek 6 Channel Audio Codec
SATA: 4 x SATA Port
Back Panel I/O Ports: 1 x VGA Port 1 x HDMI Port
6 x USB 2.0 Port
1 x LAN Jack
3 x Audio Jack
On-Board Pinheaders / Connectors
2 x USB 2.0 Pinheader Supports Additional 4 USB 2.0 Ports 1 x Front Panel Audio Pinheader
Form Factor: Micro-ATX (18.5 x 16.8 cm)
Slots: 1 x PCI Express x 16 Slot 1 x PCI E x1 Slot
Mounting: 6 Mounting Holes
Accessories
1 x SATA Cable
1 x I/O Backboard
1 x User Manual
1 x Driver CD
