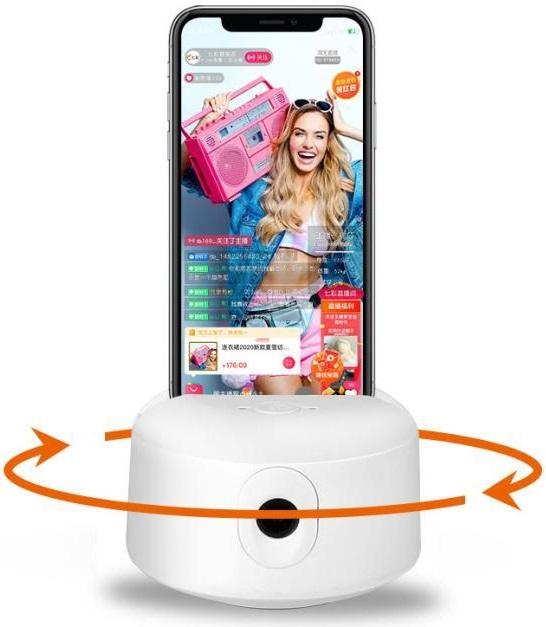

AI TRACKING GIMBAL - SMT001
Product Name: 360 Degree Al Tracking Gimbal
Product Model: JS008
Load: 800g
Net Weight: 270g (include lithium-ion battery)
Product Size: 118*67mm
Phone Size acceptable: <7.0"
Mechanical Angle: Horizontal 350°
Working Angle: 6H
Power Supply Mode: USB+lithium-ion battery
Input Voltage: 5V 1A
Compatible to Android & IOS Systems iOS: ios10.0
Usage Scenario
There are two scenario: one is put on the desk, the other is put on tripod
There is no need for other settings if you to use it on desk
If you need to use tripod , please put tripod into tripod base and turn the base to tight
Turn on /off
This device has built in battery , we advise you to charge it for 6 hours before use it
Open the mobile holder, put your mobile (tablet) to adjust the holder
Hold the power button for 5 seconds, it will turn on, the indicator lamp will blink and the device will rotate one circle
If you need to turn off , please hold the power button 5 seconds again
How to use
Make sure the holder is tighten your mobile (tablet) before starting it , it will start tracking human face (body)
The best distance to use is 1-5 meters
About indicator lamp
There are 3 different mode of indicator lamp means different status of battery
The RED indicator lamp is off means the battery is full
The RED indicator lamp is blinking rapidly means battery low, need to charge the battery
The RED indicator lamp is blinking slowly means under charging
Note
Built - in battery inside, do not put it in high temperature (over 50°C) or humidity environment
Use hand to rotate gimbal is not allowed
It can only track one human face (body) it is not recommended to use it when there are two or more people
Please charge the device in time when the indicator lamp is blinking red and make sure the adapter is 5V1A ( or 5V2A)
To avoid the device working wrong
