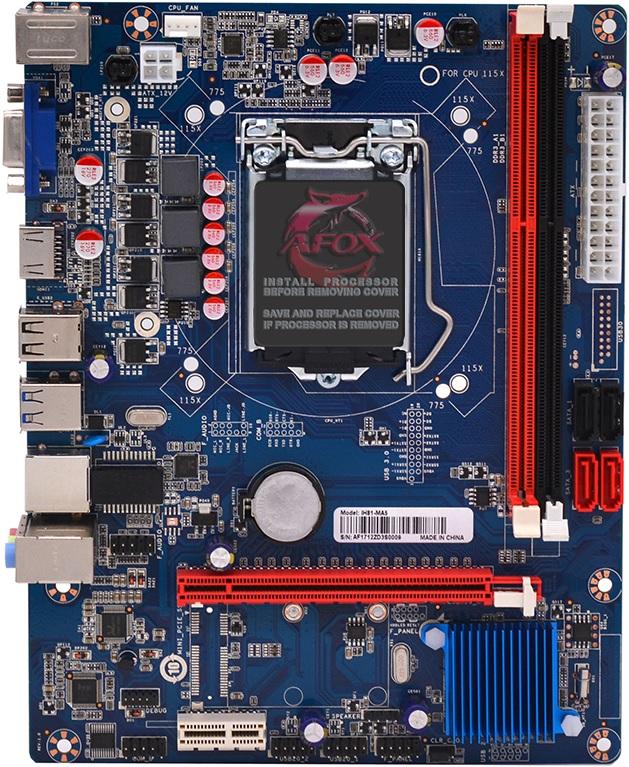

AFOX H81 1150 DDR3 - IH81-MA5-V4
Platform :INTEL Socket 1150
Model Name: IH81-MA5-V4
Chipset: Intel H81
Supports: Intel 4th generation Core i7 / Core i5 / Core i3 / Pentium / Celeron / Xeon Processors (CPU up to 95 watts)
Dual Channel DDR3, two Memory Slots
1066 / 1333 / 1600 / 1860MHz Memory up to 16GB
Dimm: 2 x Memory Slots (Max. capacity of system memory 16GB)
High Speed USB Interface
High Quality Audio special capacitor + independent Audio block LED isolation line
Design of Gigabit High-Speed Network Card
Rapid Transmission is always ready
Rambling Mainstream Game world
Wonderful design rendering effect
Onboard Graphics: Integrated Graphics Processor
PCI/PCI-E Slots: 1 x PCI Express x16 2.0 slot, 1 x PCI Express x 1 Slot
SATA
3 x SATA3, 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3)
IDE: N/A
Audio: Realtek 662 on board, Supports 6-channel audio-out
LAN: Realtek RTL8111 1000Mbps Ethernet on board
Back Panel I/Os
1 x HDMI Port
1 x D-Sub (VGA) Port
2 x USB 3.0 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port with LED
3 x HD Audio Jacks (Line in / Front Speaker / Microphone)
ON-Board Pinheaders/Connectors
1 x USB 2.0 Pinheader (Supports Additional 2 USB 2.0s)
1 x USB 3.0 Pinheader (Supports Additional 2 USB 3.0s)
1 x Front Panel Audio Pinheader
1 x LPC DEBUG
BIOS:UEFI BIOS
Form Factor: Micro-ATX (17 x 21.5cm)
Mounting: 4 Mounting Holes
Accessories: 1 x SATA II cable
1 x I/O Rear Panel
1 x User Manual
1 x Driver CD
