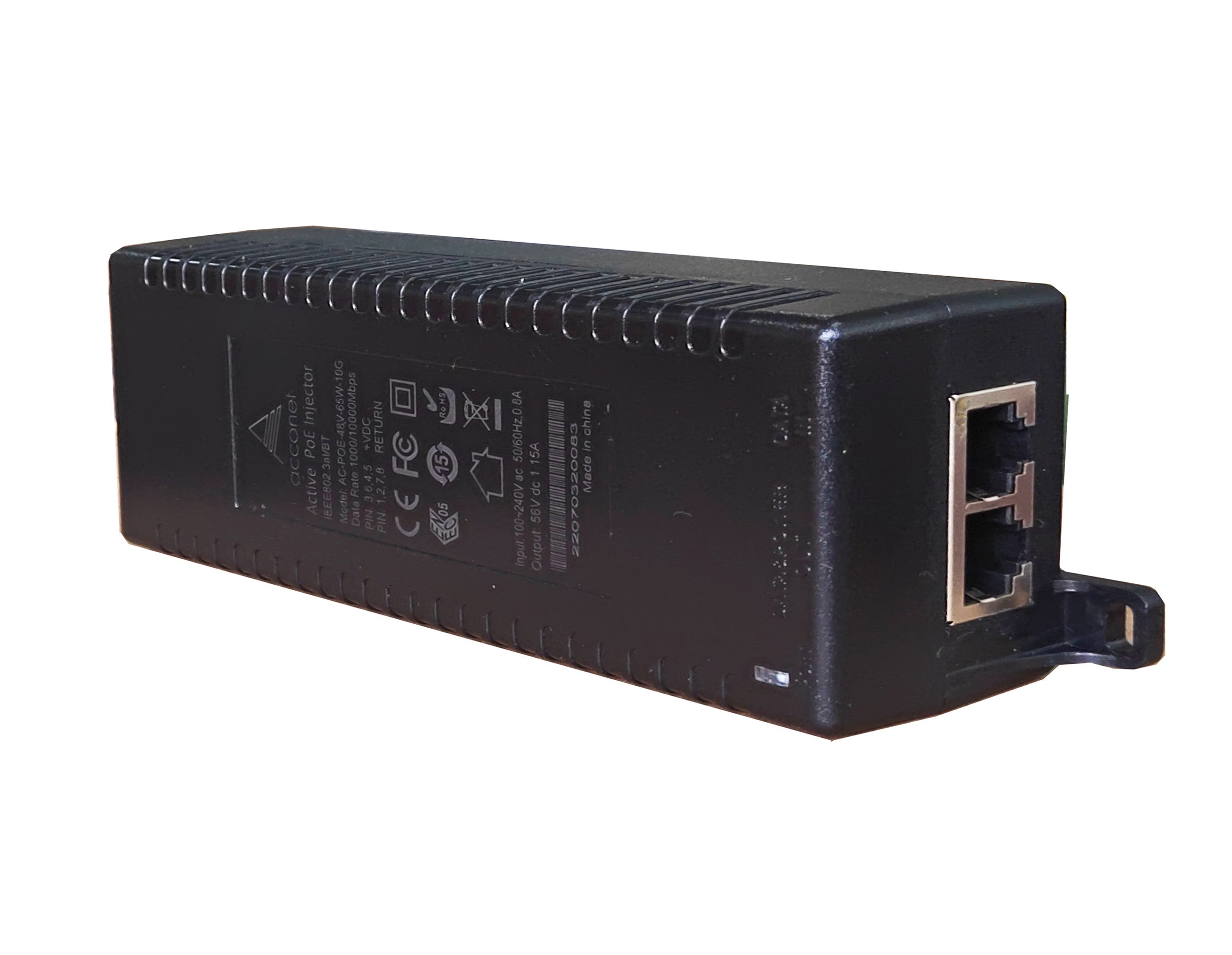

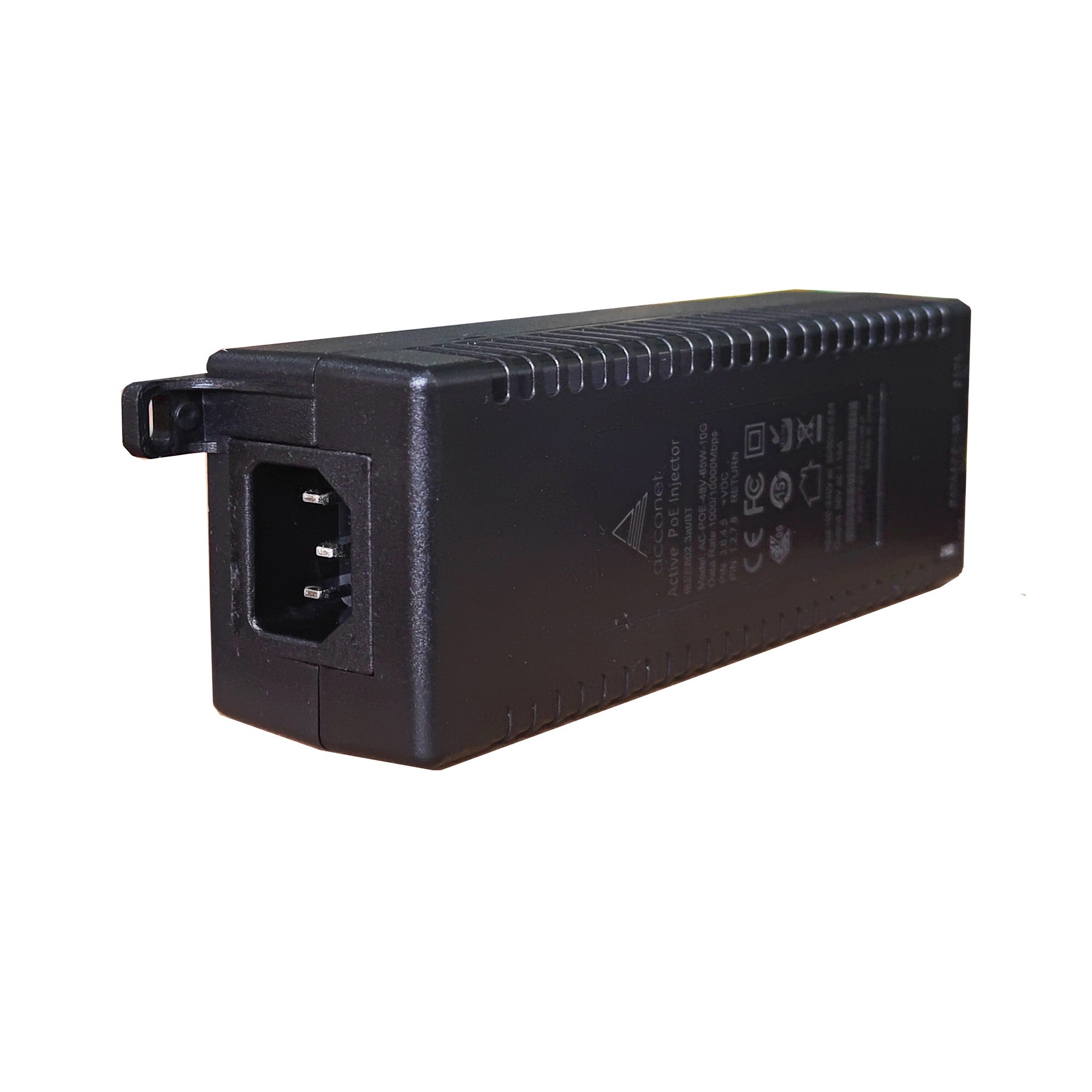

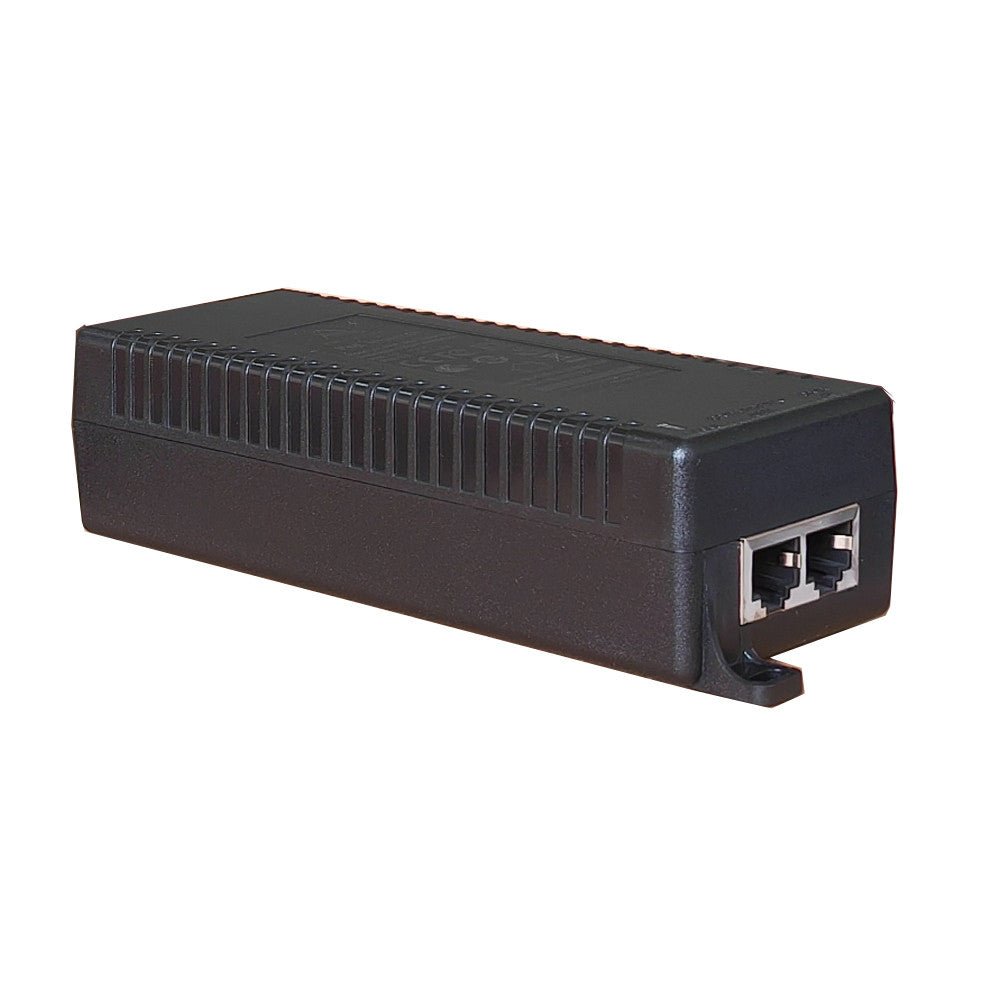

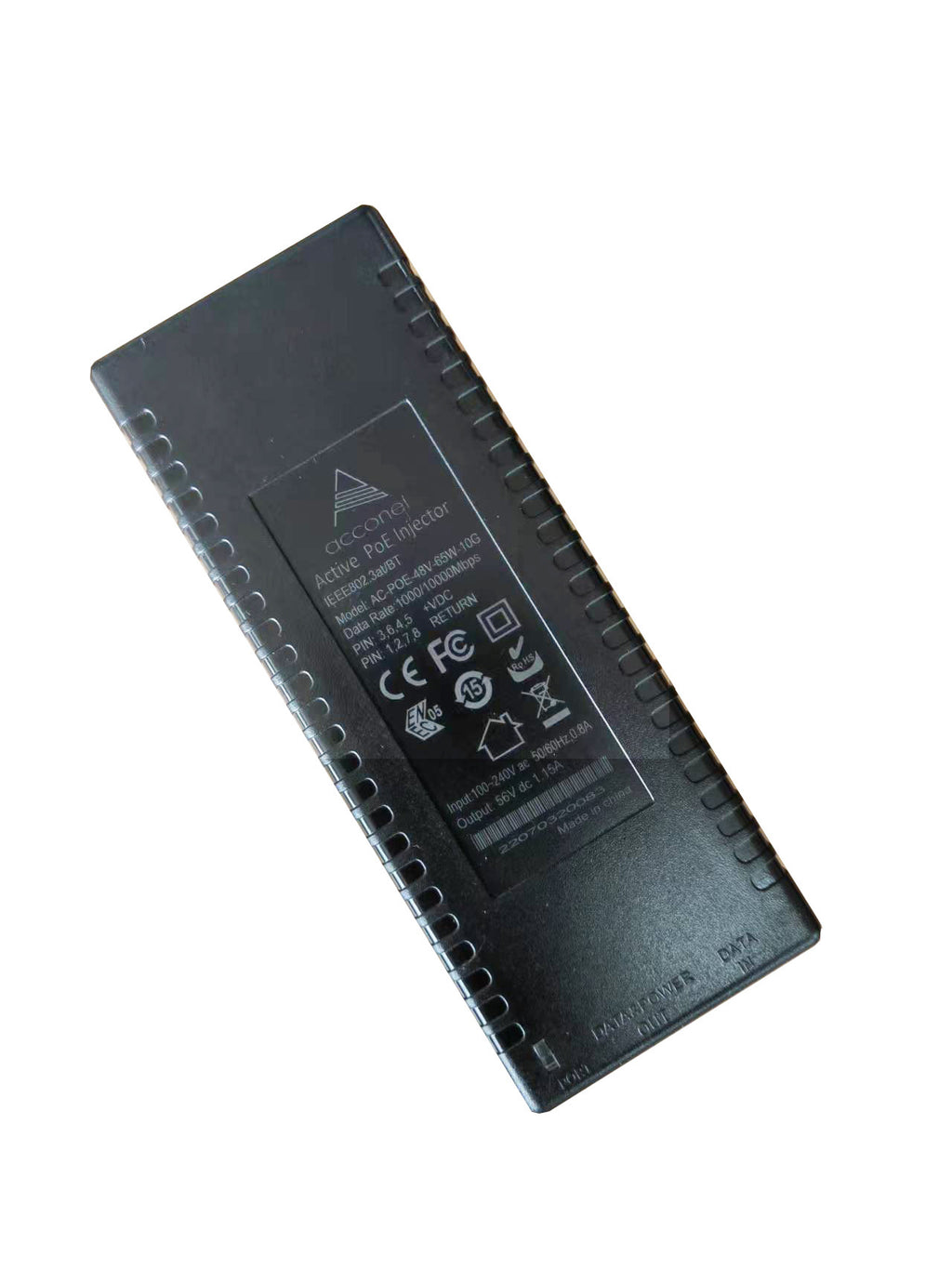

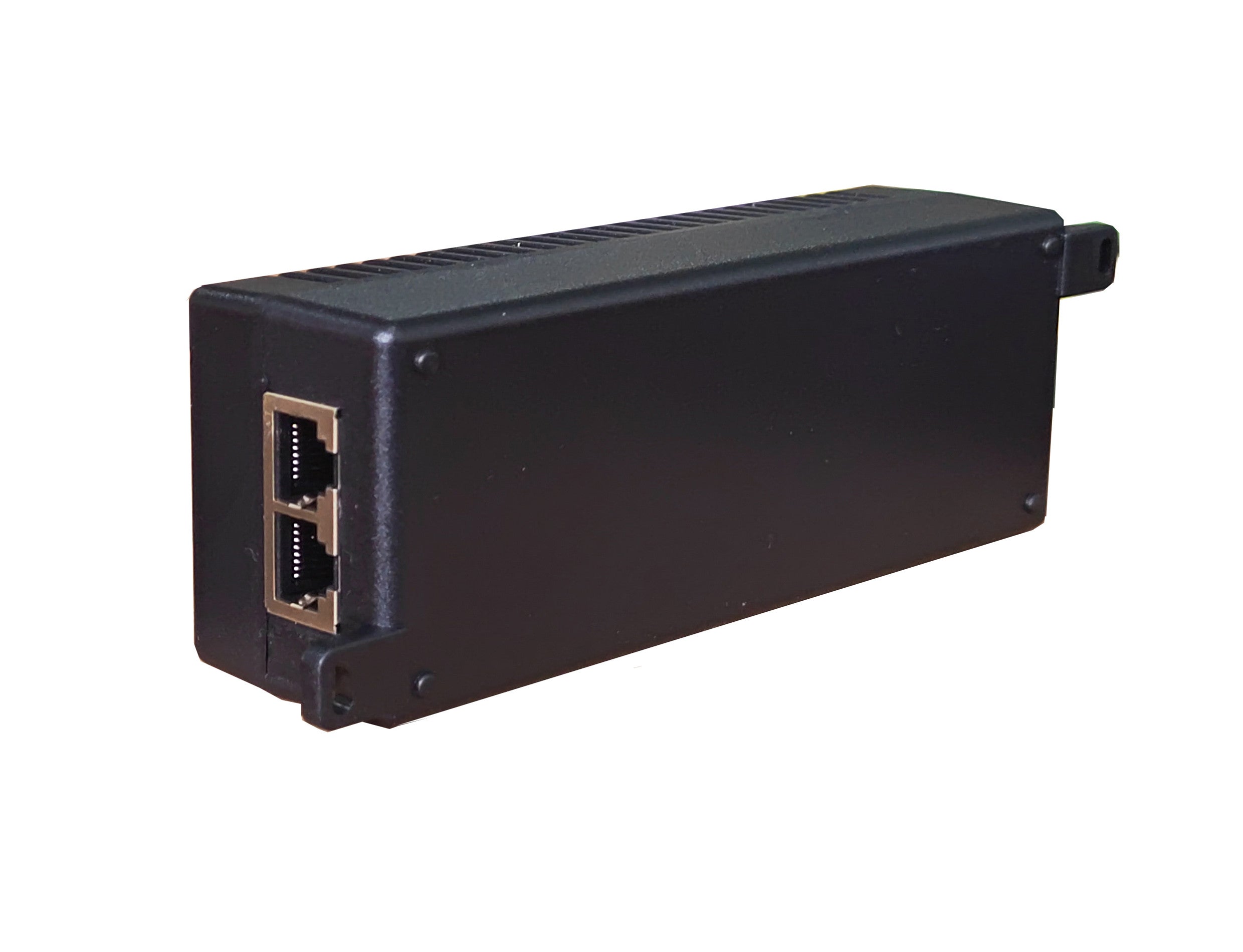

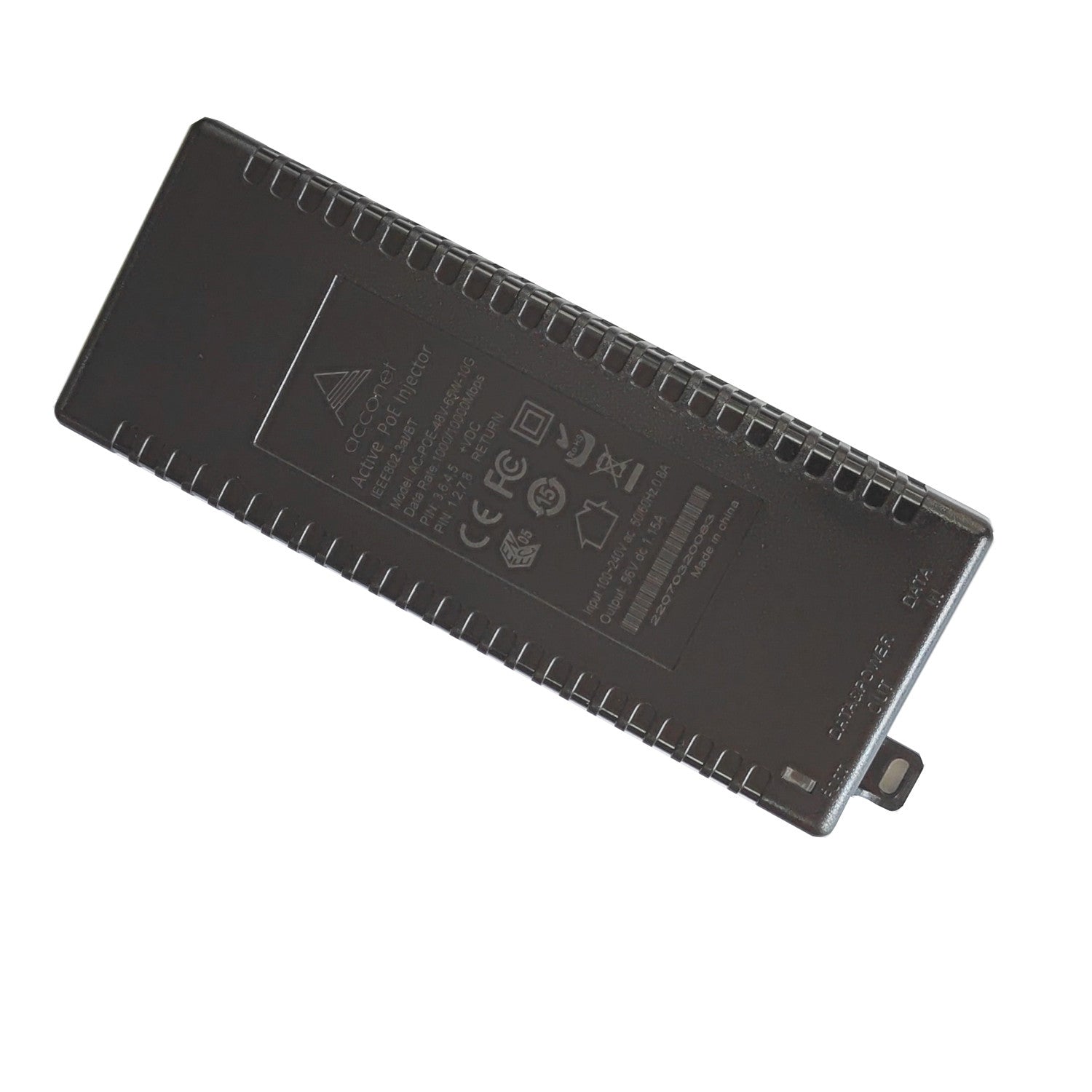

The Acconet AC-POE-48V-65W-10G is a single-port, mid-span Power over Ethernet (PoE) injector that delivers up to 65W of power. It complies with IEEE 802.3af/at/bt (PoE++) standards, making it suitable for powering devices such as 10G network equipment, base station equipment, wireless access points, IP surveillance cameras, and VoIP phones. Its compact design is advantageous for environments with limited port availability. The injector supports multi-gigabit Ethernet speeds of 10/100/1000 Mbps, 2.5G, 5G, and 10G Base-T. It features automatic PoE device detection, integrated surge protection (3kV AC port, 2kV RJ45 port), and an internal AC/DC converter, which negates the need for an external power supply. Key specifications include a 56V DC output at 1.15A (maximum 65W) over 4-pairs, 12+/45+, 36-/78- power pinout, and transmission distances of up to 100 metres at 2.5Gbps and up to 30 metres at 10Gbps. LED indicators provide clear visibility of power input and channel status. The device operates on a plug-and-play basis, requiring no configuration.
10Gbps 802.3af/at/bt. Active PoE unit, cannot power passive PoE devices
-
Brand: Acconet
-
SKU: M-AC-POE-48V-65W-10G
-
Manufacturer SKU: PSE5265T
