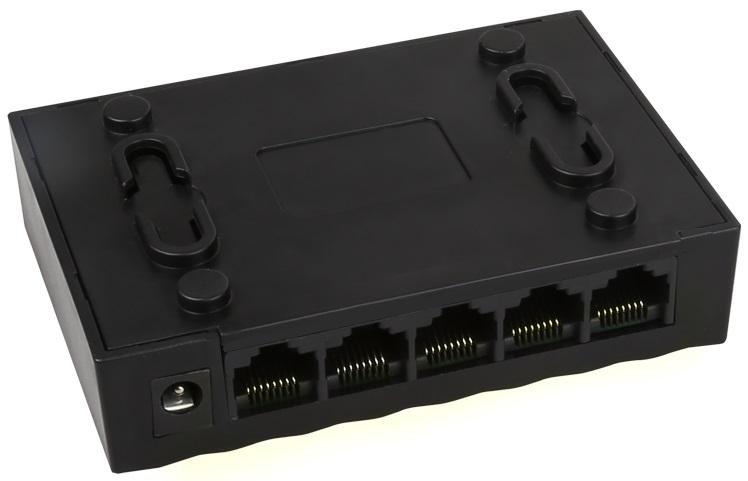

5 PORT GIGABIT SWITCH - TXE034
5-Ports 10/100/1000Mbps Unmanaged Ethernet Switch
Description
TXE217 Is a 5-Ports 10/100/1000Mbps Unmanaged Ethernet switch provides the Seamless Network Connection
Providing 5x 10/100/1000Mbps RJ45 Ports, and each Port has MDI/MDIX cross detection function
Using store and forward Technology, combined with dynamic Memory allocation
To ensure the effective allocation of Bandwidth to each Port
The Green Ethernet Technology (IEEE802.3az)
Can reduce the energy consumption at both ends of the Network Connection when the Switch is idle
TXE217 is easy to use without Configuration, Plug and Play
Hardware Specification
Model Name: TXE217
Chipset: EN8850DN
Standards and Protocols: IEEE802.3,IEEE802.3i, IEEE 802.3u,IEEE802.3ab,IEEE802.3x, IEEE802.3az
Interface : 5 x 10/100/1000Mbps Auto - Negotiation Ports
Network Media
10Base-T: UTP Category 3, 4, 5 Cable (Maximum 100m)
100Base-Tx: UTP Category 5, 5e Cable (Maximum 100m
1000Base-T: UTP Category 5, 5e Cable (Maximum 100m)
Transfer Method: Store-And-Forward
MAC Address Table: 2K
Switching Capacity: 10Gbps
Packet Forwarding Rate: 7.44Mpps
Indicators
Per Device: Power (Green)
Per Port: Link/Activity(Green)
Power Supply DC:5V/0.55A
Dimensions ( W x D x H ): 100 x 67.5 x 25.6mm
Environment
Operating Temperature: 0 - 40
Storage Temperature: -40 - 70
Operating Humidity: 10% - 90% non-condensing
Storage Humidity: 5% - 90% non-condensing
