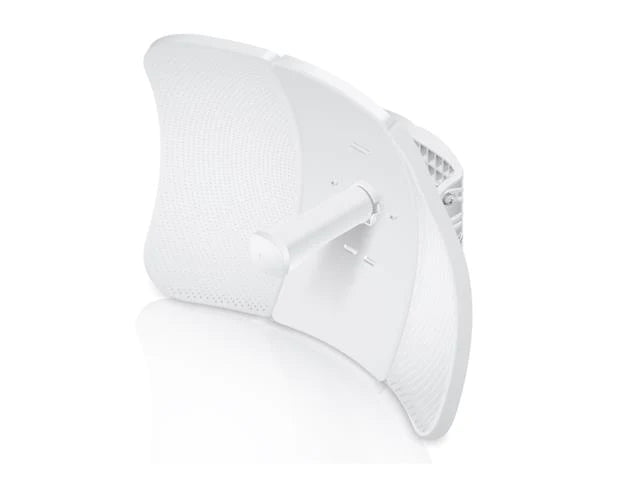

The Ubiquiti LTU Long-Range features a 26dBi antenna with a high power inner-feed, designed for long-range applications. The Ubiquiti LTU Long-Range (LR) is a 5 GHz subscriber station that functions as a Customer Premises Equipment (CPE) in a Point-to-MultiPoint (PtMP) environment beside the LTU Rocket as the base station. The LTU Long-Range is not impeded by the limitations of standard 802.11 Wi‑Fi technology, providing 600 +Mbps TCP/IC throughput and a modulation rate of 4096 QAM. Utilizing frequency split, the LTU LR directs RF energy in a tighter beamwidth. With the focus in one direction, the LTU LR blocks or spatially filters out noise to improve noise immunity.
- Dimensions : 512.5 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17")
- Weight With Mount
- 1.360 kg (2.998 lb)
- 1.735 kg (3.825 lb)
- Networking Interface : (1) 10/100/1000 Ethernet Port
- Enclosure : Outdoor UV Stabilized Plastic
- Max. Power Consumption : 8.5W
- Power Supply : 24V, 0.5A Gigabit PoE Adapter (Included)
- Power Method : 24V Passive PoE (Pairs 4, 5+; 7, 8-)
- Voltage Range : 22 - 26V
- Max. Conducted TX Power : 22 dBm (per Chain)
- Gain : 26 dBi
- Mounting : Pole-Mount (Kit Included)
- Wind Loading : 550 N @ 200 km/h (123.6 lbf @ 125 mph)
- Wind Survivability : 200 km/h (125 mph)
- ESD/EMP Protection : ± 24kV Contact/Air
- Operating Temperature : -40 to 60° C (-40 to 140° F)
- Operating Humidity : 5 to 95% Noncondensing
- Certifications : CE, FCC, IC
