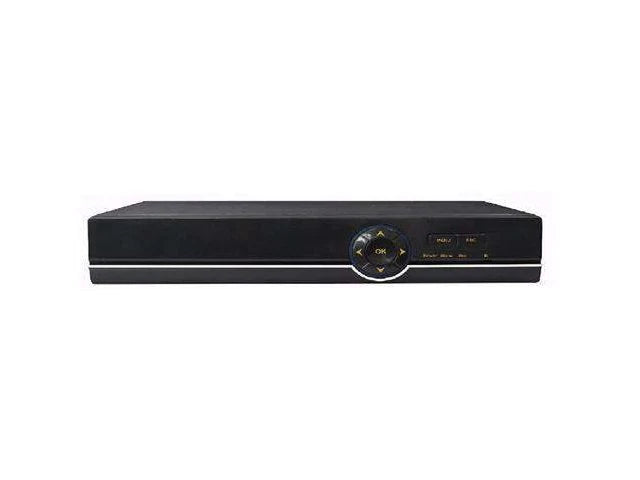

5.0MP 16CH AHD Hybrid Backward Compatible SDVR Recorder

• System : Main chip : Hi3531A
  • OS : LINU
  • System Resources : Multi-channel Realtime recording, Multi-channel playback, Multi-channel network operation, USB Backup
• Interface : Operation menu : 16-bit true color graphical menu interface, mouse operation supported

• • Display : 1/4/8/9/16display (take the pure coaxial input mode as an example)
  • Video : Format : H.264
    • Output : VGA (Max up to 1080P) ;HDMI (Max up to 4K)
    • Preview : 16*5M@20fps(AHD)/ 16*3M@18fps(AHD)/16*1080P(5 in 1)
    • Recode : 16*5M@11fps(AHD)/ 16*3M@10fps(AHD)/16*1080P @12fps (5 in 1) / 16*720P(5 in 1)
    • Decode : 8*5M@8fps(AHD)/ 8*3M@10fps(AHD)/16*1080P @12fps (5 in 1) / 16*720P(5 in 1)
  • Multi-mode Input : AHD:16*5M;20fps
    • Hybrid:8*5M (CVBS) +8*5M (IP)
    • NVR:16*5M
    • Motion Detect Each view window can set 192(16*12)detection area,can set multi-level sensitivity (only for local channel)

Audio:

• • Audio : G.711A
  • Intercom : Support
  • Record and Playback
  • Recording mode : Manual, Alarm, Motion Detect, Timer
  • Local playback : 8 Channel (when Analog mode)
  • Video search : Time, Date,Event,Channel search

Storage and Backup

• • Storage : Local HDD, Network

Backup

• • Network backup, external HDD, USB Drive, HDD

Port

• • Video Input : 16 * BNC
    • Video Output : 1 * VGA, 1 * HDMI
    • Spot Monitor : No
    • Audio Input : 4 * RCA
    • Audio Output : 1 * RCA
    • Alarm Input : 8 channels
    • Alarm Output : 1 channel
    • Network port : RJ45 10M/100M
    • PTZ Control : 1 * RS485 Support multipal PTZ Contract
    • USB port : 2 * USB Port
    • HDD Port : 2 * SATA hdd ports (up to 6T for each one)
    • Wireless Port : 3G, WIFI(can be USB WIFI Dongle)

Others

• Power : 1 * HDD: 12V/2A: 2 * HDD: 12V/5A: 4 * HDD: 12V/6A
  • Power consumption : Less than 15W (no HDD)
  • Working temperature : 0°-+55°
  • Working humidity : 10%-90%
  • Atmospheric pressure : 86kpa-106kpa
  • packing Size : 56.7*-36.7*32.6cm
  • Weight : 13kg
