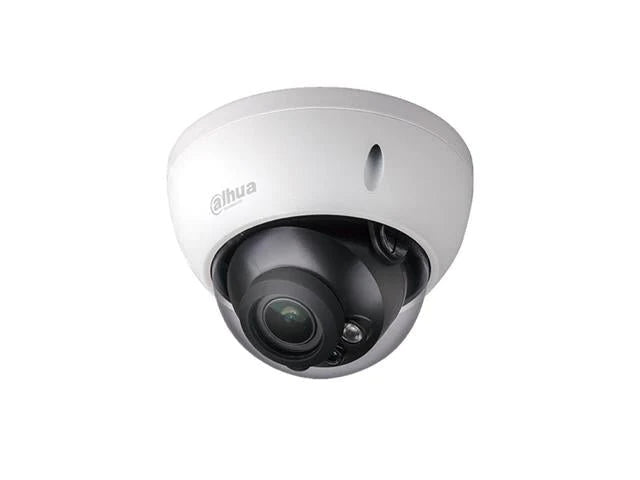

2MP HDCVI IR DOME CAMERA

• Image Sensor : 1/2.7" CMOS
• Effective Pixels : 1920(H)×1080(V), 2MP
• Scanning System : Progressive
• Electronic Shutter Speed : PAL: 1/25~1/100000s, NTSC: 1/30~1/100000s
• Minimum Illumination : 0.02Lux/F1.8, 30IRE, 0Lux IR on
• S/N Ratio : More than 65dB
• IR Distance : Up to 30m (98feet)
• IR On/Off Control : Auto / Manual
• IR LEDs : 2

Lens

• Lens Type : Motorized lens / Fixed iris
• Mount Type : Board-in
• Focal Length : 2.7-12mm
• Max Aperture : F1.8
• Angle of View : H: 105.9°~33.4°
• Focus Control : Motorized
• Close Focus Distance : 200mm, 7.87"
• OSD Menu : Multi-language
• BLC Mode : BLC / HLC / DWDR
• WDR : DWDR
• Gain Control : AGC
• Noise Reduction : 2D
• White Balance : Auto / Manual
• Smart IR : Auto / Manual

Eelectrical

• Power Supply : 12V DC ±30%
• Power Consumption : Max 6.3W (12V DC, IR on)

Environmental

• Operating Conditions : -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH
  * Start up should be done at above -30°C (-22°F)
• Storage Conditions : -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH
• Ingress Protection & Vandal Resistance : IP67 & IK10

Construction

• Casing : Aluminium
• Dimensions : Φ122mm×88.9mm (Φ4.8"×3.5")
• Net Weight : 0.44kg (0.97lb)
• Gross Weight : 0.59kg (1.30lb)
