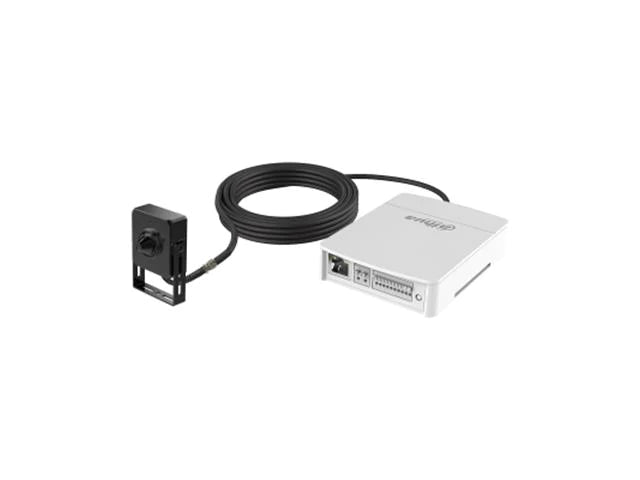

2MP COVERT PINHOLE WIZMIND NETWORK CAMERA-KIT

Camera

• Image Sensor : 1/2.8" CMOS
• Max. Resolution : 1920 (H) × 1080 (V)
• ROM : 128 MB
• RAM : 512 MB
• Scanning System : Progressive
• Min. Illumination:
  • 0.005 Lux@F2.0 (Color,30 IRE)
  • 0 lux (Illuminator on)
• S/N Ratio : > 56 dB

Lens

• Lens Type : Fixed-focal
• Lens Mount : M12
• Focal Length : 2.8 mm
• Max. Aperture : 2.8 mm:F2.0
• Field of View :
• Horizontal: 105°;
• Vertical: 58°;
• Diagonal: 118°
• Iris Control : Fixed
• Close Focus Distance : 0.5m

DORI Distance

• Lens : IPC-HUM8241-L4
• Detect : 42.1 m (138.1 ft)
• Observe : 16.8 m (55.1 ft)
• Recognize : 8.4 m (27.6 ft)
• Identify : 4.2 m (13.8 ft)

Intelligence

• IVS (Perimeter Protection) : Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection
  of vehicle and human); loitering detection, people gathering, and parking detection
• Face Detection : Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face
  exposure; face attribute extraction including 6 attributes (gender, age, glasses, expressions, mask and beard) and
  8 expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear); face snapshot set as face
  or one-inch photo; 3 snapshot strategies (real-time snapshot, optimization snapshot, and quality priority); face angle filter; optimization time setting
• Smart Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event
  videos

Video

• Video Compression : H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
• Smart Codec Smart : H.265+; Smart H.264+
• Video Frame Rate
  • Main stream : 1920 × 1080 @25/30 fps
  • Sub stream : 704 × 576 @25 fps; 704 × 480 @30 fps
  • Third stream : 1920 × 1080 @25/30 fps
• Stream Capability : 3 streams
• Resolution : 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280
  × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF
  (352 × 288/352 × 240)
• Bit Rate Control : CBR/VBR
• Video Bit Rate
  • H.264: 3 kbps–20480 kbps
  • H.265: 3 kbps–20480 kbps
• Day/Night : Color/B/W
• BLC : Yes
• HLC : Yes
• WDR : 120 dB
• White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control : Manual; auto
• Noise Reduction : 3D NR
• Motion Detection : OFF/ON (4 areas, rectangular)
• Region of Interest (RoI) : Yes (4 areas)
• Defog : Yes
• Smart Illumination : Yes
• Image Rotation : 0°/90°/180°/270° (support 90°/270° with 1080p resolution and lower)
• Mirror : Yes
• Privacy Masking : 4 areas

Audio

• Built-in MIC : Yes
• Built-in Speaker : Yes
• Audio Compression : G.711a; G.711Mu

Alarm

• Alarm Event : No SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion
  detection, video tampering, tripwire, intrusion, fast moving, missing object, abandoned object, parking
  detection, loitering detection, people gathering; scene changing, audio detection, voltage detection, external alarm, face detection , and security exception.

Network

• Network Port : RJ-45 (10/100 Base-T)
• SDK and API : Yes
• Network Protocol : IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
• Cyber Security : Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
• Interoperability : ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
• Storage : FTP; SFTP; Micro SD card (Support max. 256 G); NAS
• Browse
  • IE: IE8, IE9, and IE11
  • Chrome
  • Firefox
• Management Software : Smart PSS; DSS; DMSS
• Mobile Client iOS; Android

Port

• Audio Input : 1 channel (3.5 mm JACK port)
• Audio Output : 1 channel (3.5 mm JACK port)
• Alarm Input : 2 channels in: 5 mA 3V–5V DC
• Alarm Output : 2 channels out: 1,000 mA 30V DC/500 mA 50V DC

Power

• Power Supply : 12V DC/PoE (802.3af)
• Power Consumption :
  • Basic: 2.3W (12V DC); 2.8W (PoE)
  • Max. (Intelligence + WDR): 3.7W (12V DC); 4.5W (PoE)
  • With deep learning algorithm, the separate pinhole camera supports functions such as perimeter protection and face recognition. Working with different types of lenses, the camera is widely applied to hidden or small scenes such as banks and advertising screens, meeting requirements in different installation scenes.
