Features

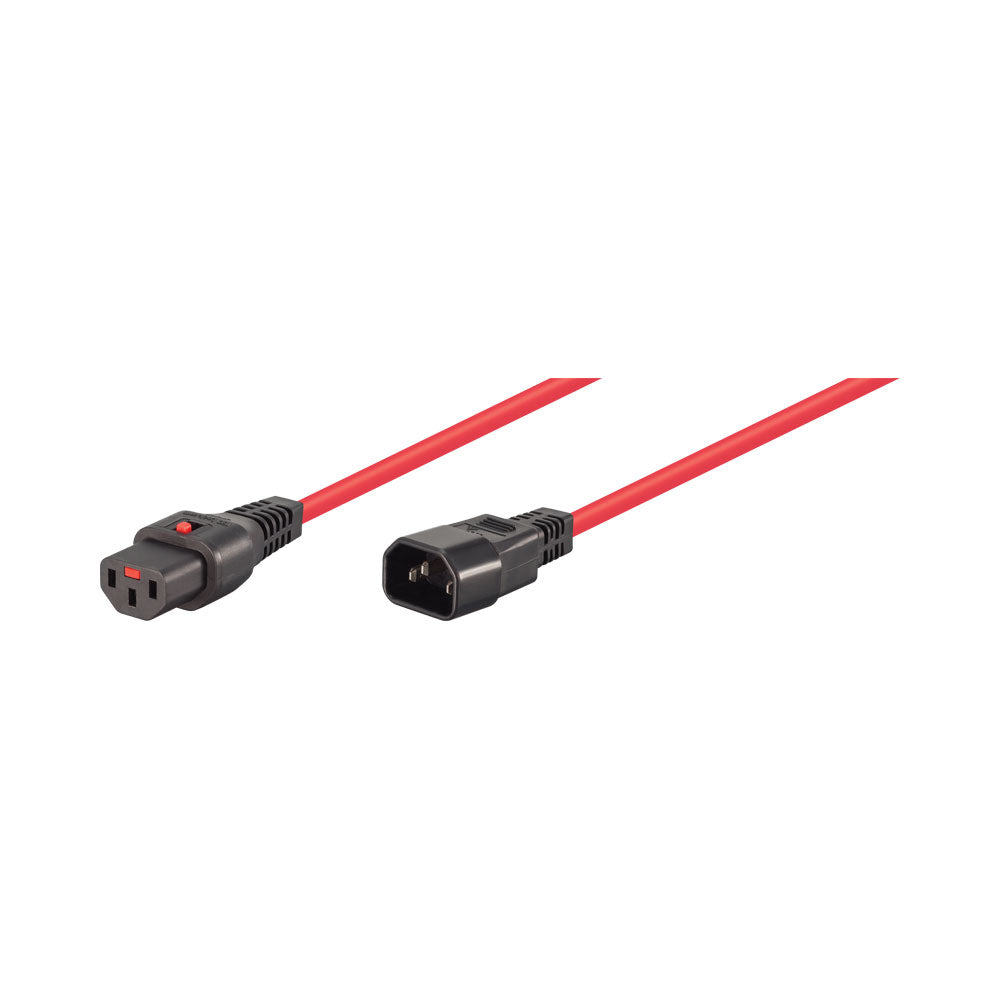

- Secure IEC Locking Design - Locks firmly into the C13 inlet to prevent accidental power loss
- C14 to C13 Configuration - Ideal for servers, UPS systems, PDUs and network equipment
- Professional-Grade Cable - 3G 1.00mm² H05VV-F construction for reliable power delivery
- 2m Cable Length - Provides flexible routing inside racks and cabinets
- Data Centre Ready - Perfect for mission-critical IT and AV installations
- Durable Build Quality - Built for continuous use in demanding environments
Specifications
- Connector A: C14 Moulded Straight Connector (IEC 60320)
- Connector B: C13 Moulded IEC Lock Straight Connector (IEC 60320)
- IEC Lock Retention Force: >100N Withdrawal Force for Secure Connection
- Rated Voltage and Current: 10A 250V
- Application: Suitable for Rough and U
- Conductor Cross Sectional Area: 1.00mm²
- Conductor Material: Bare Copper (99.97%)
- Jacket Material: PVC
- Jacket Wall Thickness: 0.8mm
- Jacket Elongation: 150%
- Insulation Material: PVC (Colour Coded)
- Insulation Wall Thickness: 0.6mm
- Insulation Elongation: 150%
- Nominal Resistance: 19.5 Ohm/km
- Overall Cable Diameter: 7.1mm
- Bend Radius: 35.5°
- Rated Temperature: -15 to +70°C
- Standards Compliance:
IEC /BS EN 60320-1:2015 (VDE File 40016055)
IEC /BS EN 60320-3:2014 (VDE File 40016055)
DIN EN 50525-2-11: 2012-01 (VDE File 40010839)
BS EN 50525-2-11: 2011 (VDE File 40010839)
