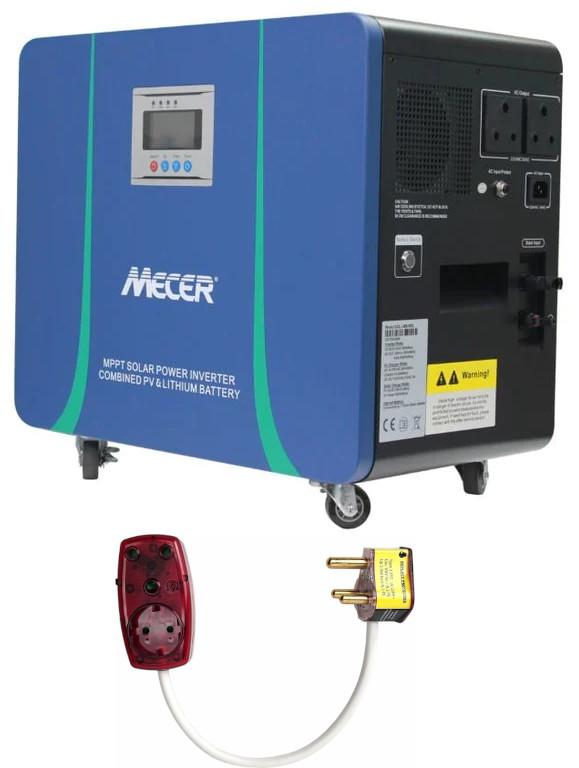

MECER 2KVA 2Kw 25.6V 100Ah LITHIUM BATTERY 820W MPPT TROLLEY INVERTER W/ SURGE PROTECTION PLUG
RATED POWER: 2000VA / 2000W
BATTERY CAPACITY: 1X 100Ah
BATTERY VOLTAGE: 26.5V DC
BATTERY CYCLE LIFE: 2000 CYCLES @ DOD (DEPTH OF DISCHARGE) 80%
INPUT VOLTAGE RANGE: 170-275VA
MAINS CURRENT CHARGE: 10A
FREQUENCY RANGE: 45-65Hz
OUTPUT VOLTAGE: 230V AC
FREQUENCY RANGE: 50/60Hz
OUTPUT WAVE FORM: PURE SINE WAVE w/ SOLAR CHARGE CONTROLLER
SOLAR CHARGER TYPE: MPPT
MAXIMUM PV ARRAY POWER: 840W
NUMBER OF MPPTs: 1
MPPT RANGE @ OPERATING VOLTAGE: 35 ? 100V DC
MAXIMUM SOLAR CURRENT CHARGER: 30A (MAX)
FLOATING CHARGE VOLTAGE: 28.4V DC
DC OUTPUT
LOW VOLTAGE RECOVERY: 26.8V DC
LOW VOLTAGE PROTECTION: 22.4V DC
5V DC USB OUTPUT: 2x USB2.0, MAX 2A
12V DC OUTPUT PORTS: 2x MAX 2A
PHYSICAL SPECIFICATIONS
HEAT DISSIPATION / COOLING: INTELLIGENT EXHAUST FAN (TEMPERATURE CONTROLLED)
DIMENSIONS W x D x H (mm): 480 x 192 x 410
PACKING SIZE W x D x H (mm): 527 x 277 x 475
NET WEIGHT (kgs): 45kgs
GROSS WEIGHT (kgs): 48kgs
Estimated runtimes:
100W = 20h
150W = 13h
200W = 10h
400W = 5h
600W = 3h
1000W = 2h
2000W = Max load
- 6 month carry-in warranty
- Pure Sinewave / Built-in solar charge (Lithium battery)
