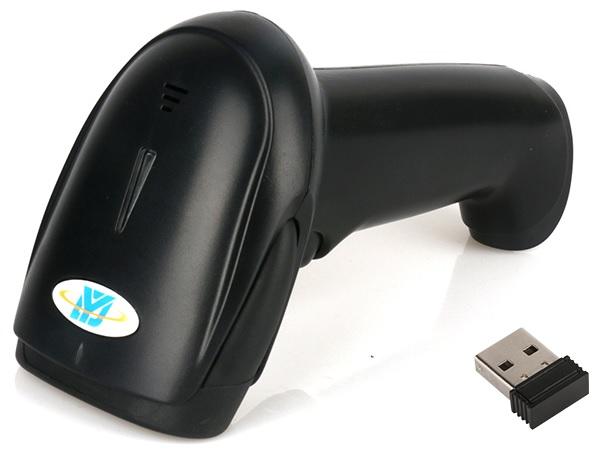

DY BARCODE SCANNER - DS6100CB
DS6100CB Handheld 2D Barcode scanner
DS6100CB is a high-performance 2D Wireless Bluetooth barcode scanner with leading CMOS image recognition technology
It can easily read the paper, goods, screen and other media barcodes
Widely used in manufacturing, warehouse, logistics, health care, retail chain
Mobile payment, express delivery, inventory management, food traceability, asset Inventory, etc
Features
Ergonomic design, comfortable using
Read all mainstream 1D 2D barcodes in the market easily. (4mil)
Interface: USB, wireless 2.4G, Bluetooth
Dual mode: wired, wireless, Ultra-low power consumption
Transmission distance 100m, intelligent automatic connection when its beyond range, not manual setting
Widely used in supermarket, warehouse, mobile payment, chain stores
Application
Supermarket
Warehouse
Mobile Payment
Retail Chain
Courier Health Care
Cable Interface
DS6100CB scanner must be connected with terminals, PC host, POS and Android host etc
Performance
Light Source: Red Light LED 625±10nm(aim), 5600K LEDs( Lighting)
CPU: 32-bit
Resolution: 640 x 480
Resolution: 4mil/0.1mm(PCS90%,Code 39)
Decoding Speed: 25CM/S
Scan Mode: Manual ,Continuous, Auto sense
Scan angle: Test Conditions:CODE39, 10mil/0.25mm, PCS90%
Roll±360 , Pitch±50, Skew±50
Print Contrast Signal: 25%
Ambient Light: Dark environment, indoor natural light
Wireless Communication Mode: Synchronization , storage
Wireless Transmission Distance: 2.4GHz,100m; Bluetooth,30 m(Open distance)
Storage: 16Mb (over 100,000 barcodes )
Battery Capacity: 2000mAh
Battery Charging Time: About 7 h
Continuous Working Time: =20h
Symbologies: 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128,
Code 39,Code 93,Interleaved 2 of 5,Matrix 2 of 5,
Industrial 2 of 5, Standard 2 of 5(IATA25) ,Codabar(NW-7,etc
2D: QR Code, Micro QR Code, Data Matrix,PDF417,etc
Physical Parameter
Weight: 160g(without cable)
Dimension: L150mm x W70mm x H95mm
Communication: USB, wireless 2.4G, Bluetooth 4.2
Interface Type: USB
Power Supply: DC 5V@150mA (work)
Environmental
Operating temperature: 0 to 50
Storage temperature: -20 to 60
Humidity: 5% to 95%(non-condensing)
Drop Height: 1.5m
Temp. Test: 30 minutes for high Temp., 30 minutes for low Temp
High Temp. 60
Low Temp. -20
Transport vibration Test: 10H@125RPM
Accessories List
Cable: USB, connect the scanner to a host device and charging
Receiver: Used to receive and transmit scanner data
