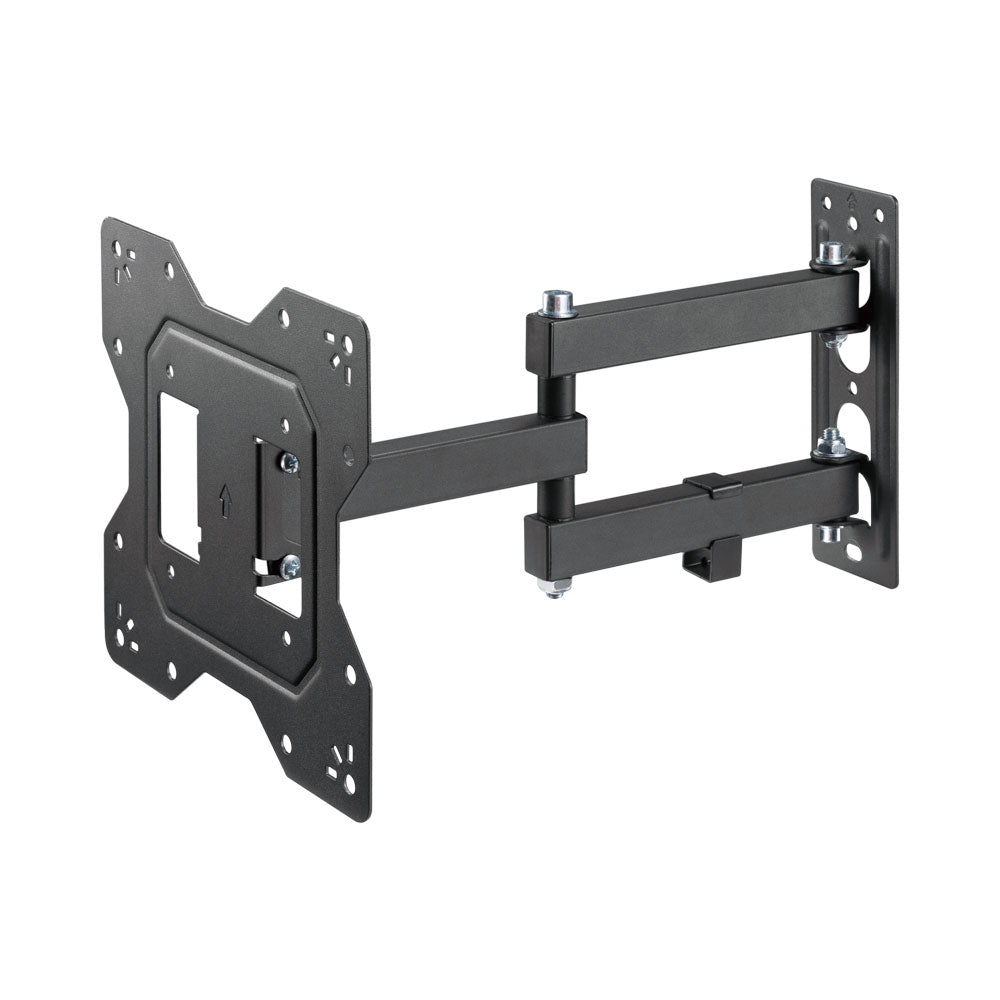

23" - 43" Full-Motion TV Wall Mount Bracket (LPA68-223)

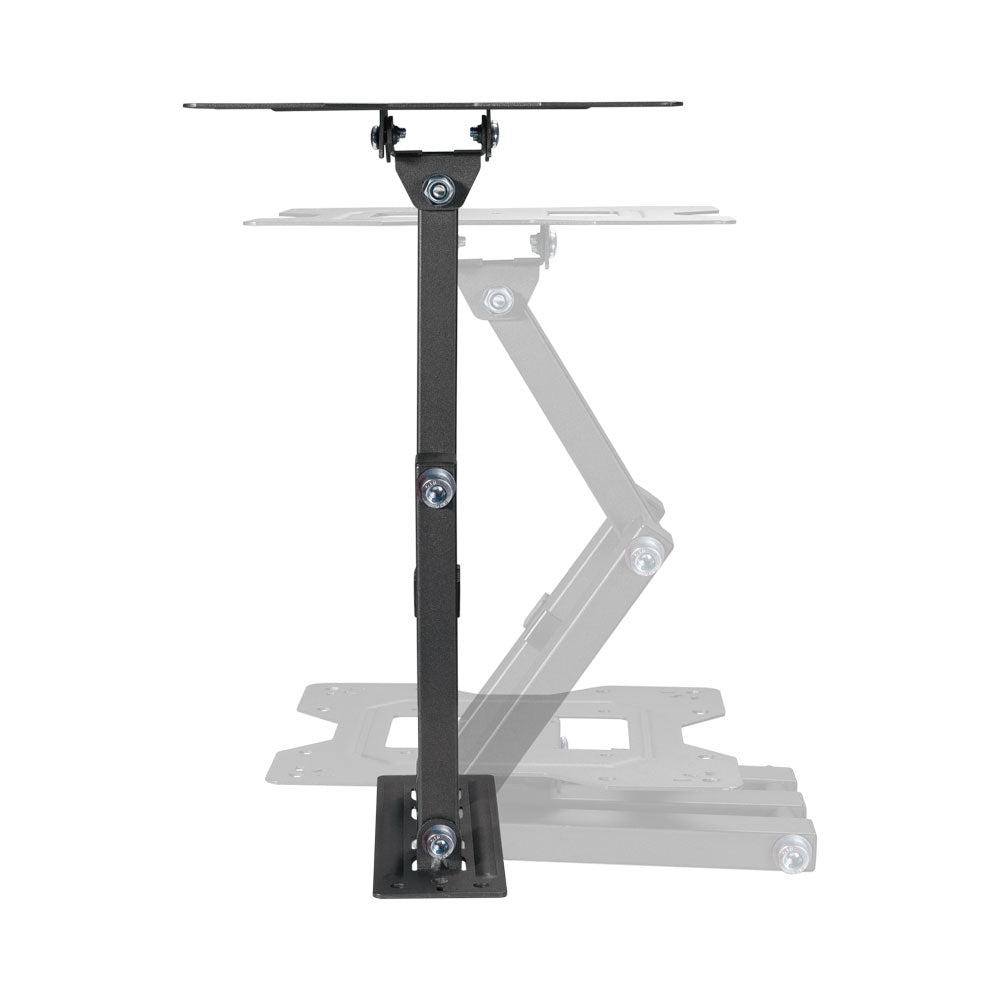

The LPA68-223 Full-Motion TV Wall Mount accommodates most 23" - 43" flat-panel TVs up to 30kg. Its full-motion capabilities allow a ＋3°～-10° tilting and a +90°~-90° swiveling of your TV, which maximizes the flexibility for easy viewing from different angles in the room. The integrated cable clip keeps cables organized and protected.
FEATURES:
- Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
- Swiveling Arms: offer maximum viewing flexibility (makes every seat the best seat)

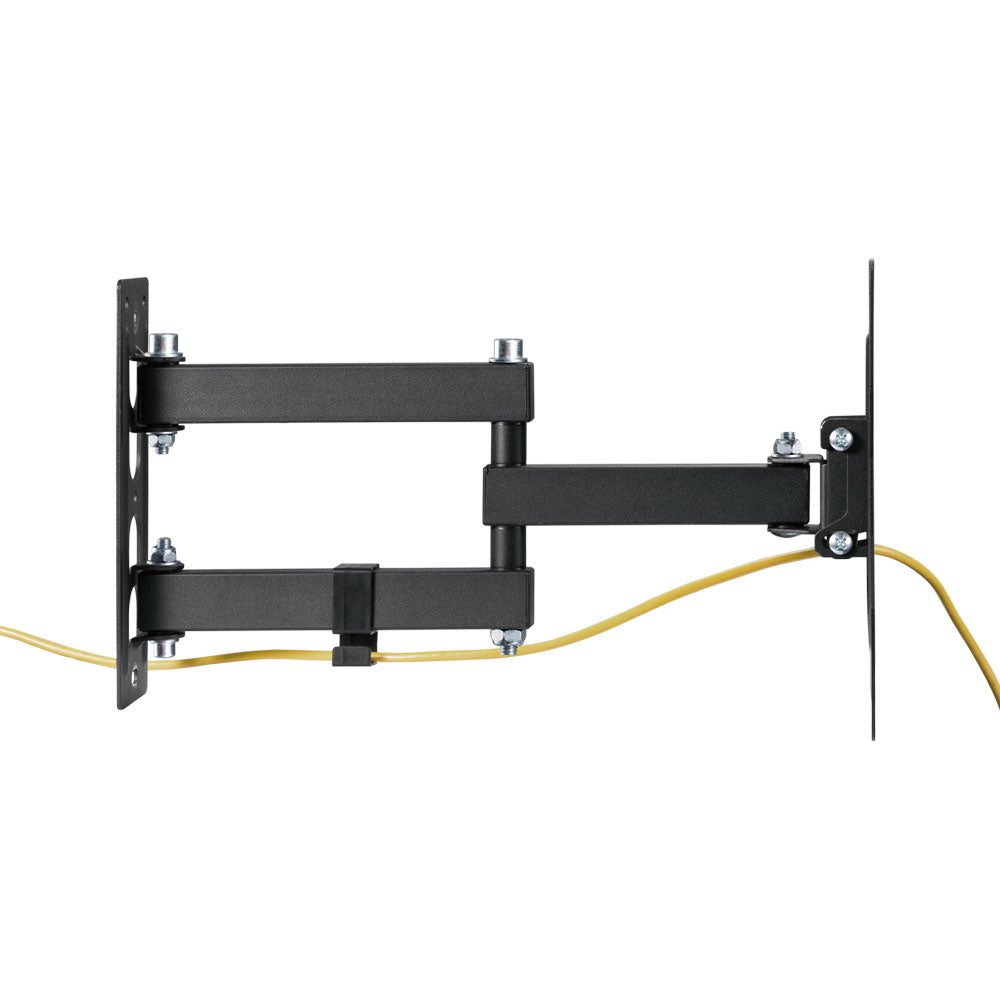

- Cable Management: keeps everything organized

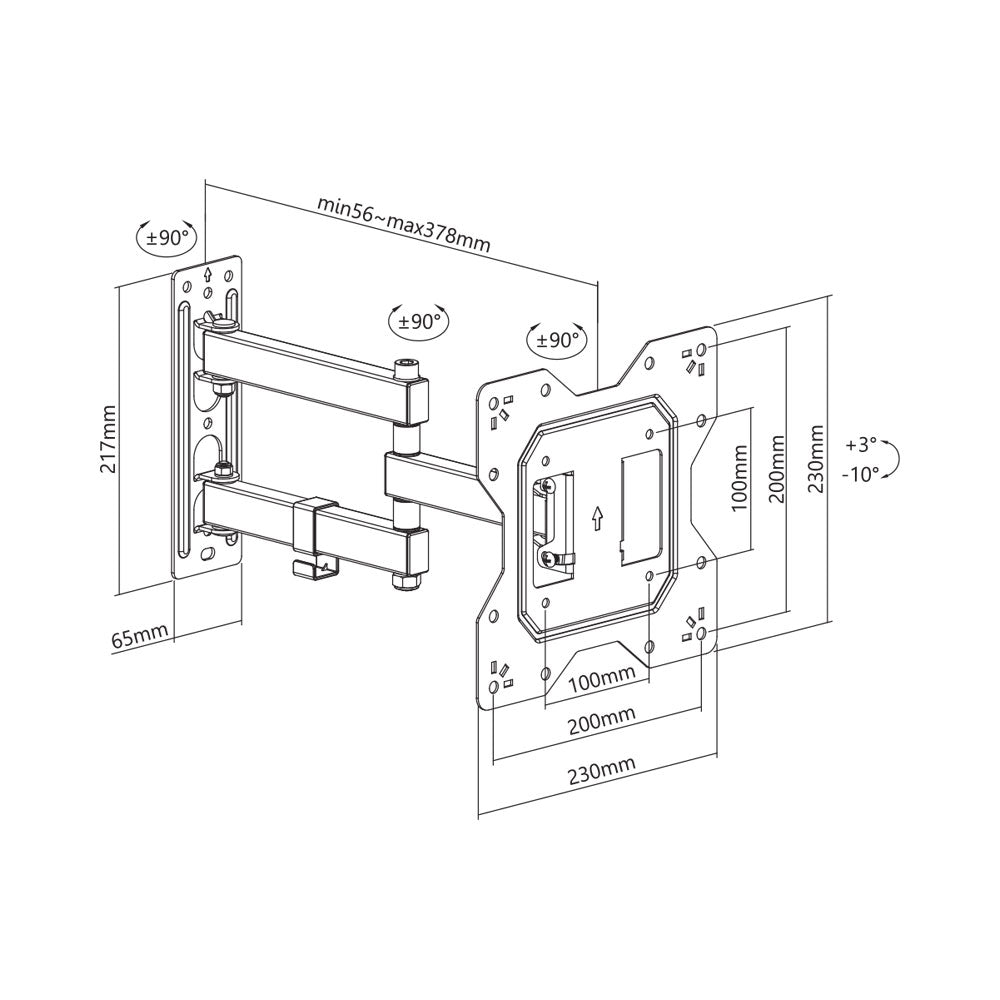

SPECIFICATIONS:
| Material |
Steel |
| Pipe Size |
30 x 20 x 1.2mm Square Steel Tube |
| Colour |
Fine Texture Black |
| Dimensions |
378 x 230 x 230mm |
| Fit Screen Size |
23" - 43" |
| Fit Curved TV |
Yes |
| Mounting Hole Pattern |
VESA Only |
| VESA Compatible |
100x100, 100x200, 200x100, 200x200 |
| Max. Mounting Hole |
200x200 |
| Weight Capacity |
30kg |
| Profile |
56 ~ 378mm |
| Tilt Range |
+3° ~ -10° |
| Swivel Range |
+90° ~ -90° |
| Cable Management |
Yes |
