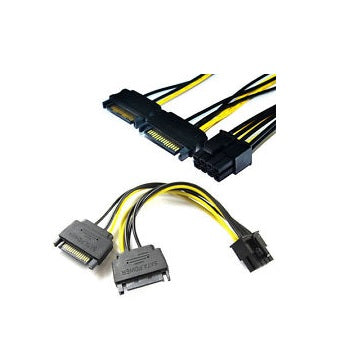

2 X SATA MALE TO 8 PIN CPU - MOCAB11
Overview
The 2 × SATA Male To 8-Pin CPU Power Cable
Is Designed To Convert Two SATA Power Outputs From A PSU Into A single 8-Pin EPS / CPU Power Connector
This Connector is typically required for Powering the CPU on Modern Motherboards
It is especially useful when working with older or budget Power Supplies that lack an EPS 8-Pin Connector
Or when an additional CPU Power line is needed for High-Performance Motherboards
By Drawing Power From Two SATA Sources
The Cable helps balance the Load, providing safer and more Stable Current Delivery than Single-SATA to 8-Pin Adapters
Key Features
2 × SATA 15-Pin Male To 1 × 8-Pin EPS / CPU Male
Allows Powering The Motherboard CPU Via Available SATA Connectors
Combines Two SATA Inputs for better current stability
Plug-And-Play - no special Configuration required
Compact Design ideal for tight PC Builds
Molded, secure Connectors Built for durability and consistent Power Delivery
Technical Specifications
Input Connectors: 2 × SATA 15-Pin Male (PSU power Outputs)
Output Connector: 1 × 8-Pin EPS / CPU Male (4 + 4 Pin Design)
Cable Length: ±2025cm
Wire Gauge: Typically, 18AWG Copper Conductors
Voltage Support: Delivers 12V CPU Rail
Cable Colour: Black / Yellow Wiring
Compatibility
Motherboards Requiring 8-Pin EPS Power
Systems with Older PSUs Lacking EPS Connectors
Important Notes
This Cable Is Not Suitable For High-End CPUs Requiring High Current Draw
Such As Overclocked Or Workstation Processors
Always ensure your PSUs Total Wattage and 12V Rail Output can safely Support CPU Requirements
Using Two SATA Connectors helps share the Load
But SATA Connectors are still not Designed for very High-Current CPU demand
Applications
Adding EPS 8-Pin CPU Power To Older Or Limited PSUs
Workstations and Desktops needing an additional CPU Power Line
Testing Benches, temporary Setups, and Low-To-Mid-Power Builds
Budget or Refurbished Systems lacking native EPS Outputs
