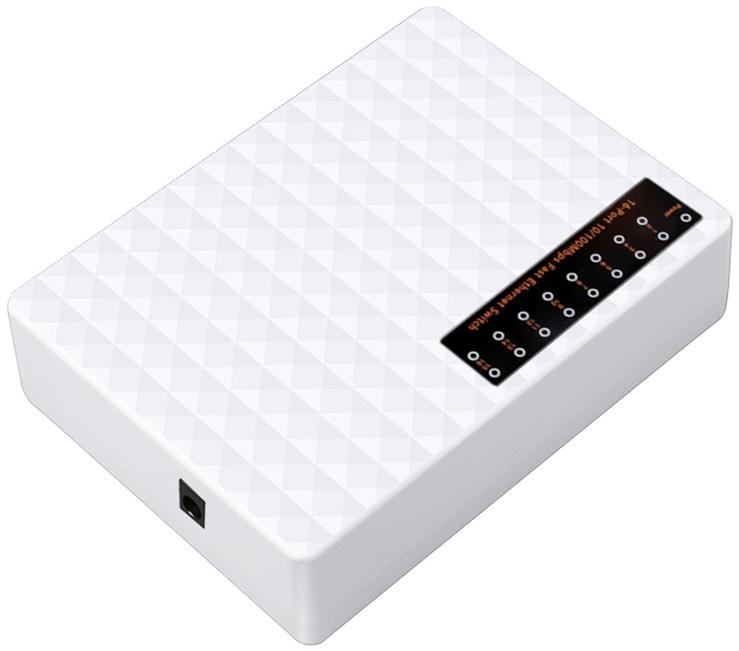

16 PORT 10/100 SWITCH - TXE102
16 10/100 Mbps Fast Ethernet Switch
With the TXE102 Fast Ethernet Switch
You can easily expand your business or home network by adding more computers and devices
Each achieving speeds up to 200 Mbps per port in full-duplex mode
Easy of Use
The TXE102 does not require any configuration or software, making installation simple and hassle-free
With Auto-MDI/MDI-X support, there is no need for crossover Cables when you are connection to another switch or to a Computer
Additionally, the TXE102 will automatically sense if the connected network devices are running at 10Mbps or 100Mbps
And adjust accordingly
Equipped with a comprehensive LED display, you can monitor the status and activity of every port at a glance
Model: TXE102
Hardware Features
Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Interface: 16 10/100Mbps RJ45 Ports, Auto Negotiation/Auto MDI/MDIX
Forwarding Mode: Store-and-Forward
Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX: UTP category 5, 5e or above cable (maximum 100m
Power Supply: 100-240VAC, 50/60H
LED: Power, Link/Act
Fanless: Yes
Performance
Switching Capacity: 3.2Gbps
Packet Filtering/Forwarding Rate:148,800 pps for 100M
14,880 pps for 10M
MAC Address Table: 8K
Certification: CE, FCC, RoHS
Environment
Operating Temperature: 0°C - 40°C (32°F-104°F)
Storage Temperature: -40°C-70°C (-40°F-158°F)
Operating Humidity: 10%-90% RH non-condensing
Storage Humidity; 5%-90% RH non-condensing
