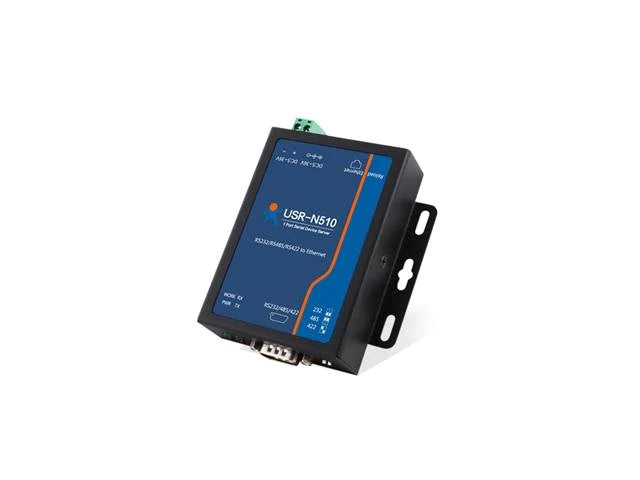

1 port Ethernet device servers USR-N510 can realize bi-directional transparent transmission between RS232/RS485/RS422 and network. Simple settings via webpage or setup software can assign working details.
Ethernet device servers USR-N510 are based on ARM processor and it is internally integrated with TCP/IP protocol. User can easily realize embedded device networking.
- 1-port RS-232/422/485 Ethernet device servers
- Power supply accepts wide voltage input range DC 5-36V
- Support TCP server/client, UDP server/client,https client, Virtual COM
- Support Modbus RTU to Modbus TCP
- Support flow control CTS/RTS, XON/XOFF
- Support 1 RS-232, RS-485/422 3IN1 serial port to 1 10/100Base-T(X) self-adaptive Ethernet interface
- Configuration via Web Server page, AT commands, and Windows Utility
- MQTT/SSL special firmware
| Categories |
Cellular & Network Communication |
| Manufacturer/Brand |
USR IOT |
| Ethernet ports |
LAN/WAN |
| Ethernet Protocols |
10/100 Mbps |
| Serial Standard |
RS232, RS422, RS485 |
| Comm. Method |
Serial |
| Comm. Protocol |
ARP, DHCP, DNS, HTTP, HTTPD Client, ICMP, IP, TCP, UDP, Web socket |
| Supply Voltage |
5-36 Vdc |
| Operating Temperature |
-40° to 185°F, -40° to 85°C |
| Width (in) |
3.19 |
| Depth (in) |
0.95 |
| Height (in) |
3.46 |
| Width (mm) |
81.00 |
| Depth (mm) |
24.00 |
| Height (mm) |
88.00 |
| Weight (kg) |
0.570 |
| Weight (lbs) |
1.25 |
| Safety Approvals |
FCC, RoHS |
| Safety Standards |
CE |
| Non-Stock Lead Time |
2 Weeks |
