| HARDWARE FEATURES |

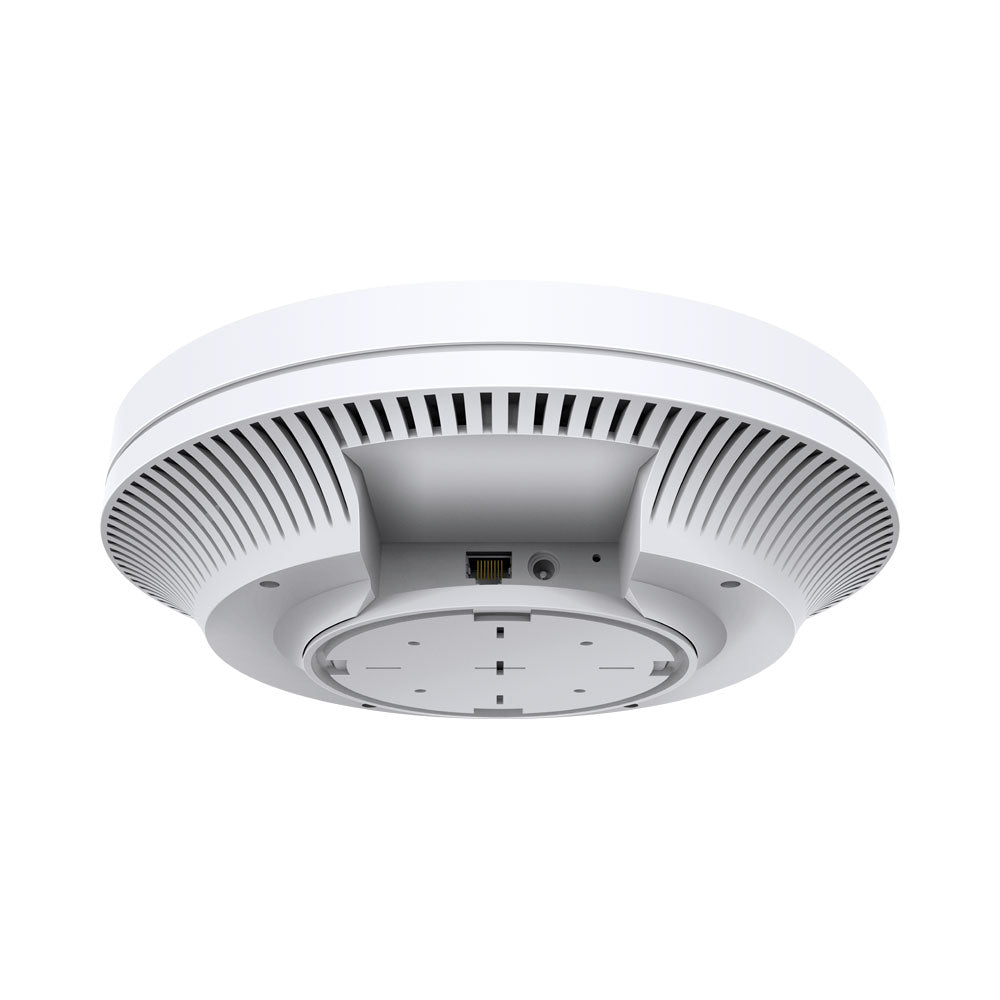

| Interface |
1× Gigabit Ethernet (RJ45) Port |
| Button |
Reset |
| Power Supply |
802.3at PoE |
| 48V Passive PoE |
| 12V 1A DC (Power Adapter is omitted) |
| Power Consumption |
11.0W (For PoE) |
| 9.9W (For DC) |
| Dimensions (W × D × H) |
V2 and above: 160 × 160 × 33.6mm |
| Antenna Type |
Internal Omni Antenna |
| 2.4GHz: 2×4 dBi |
| 5.0GHz: 2×5 dBi |

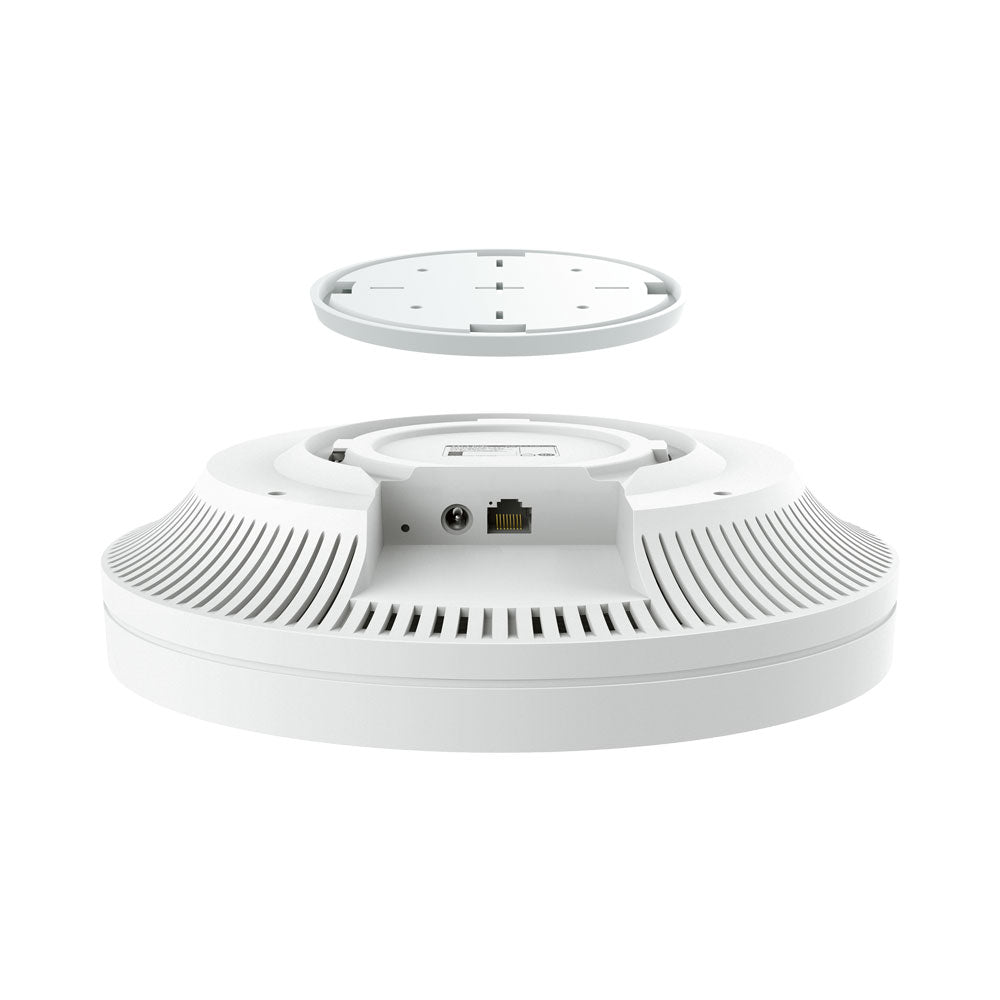

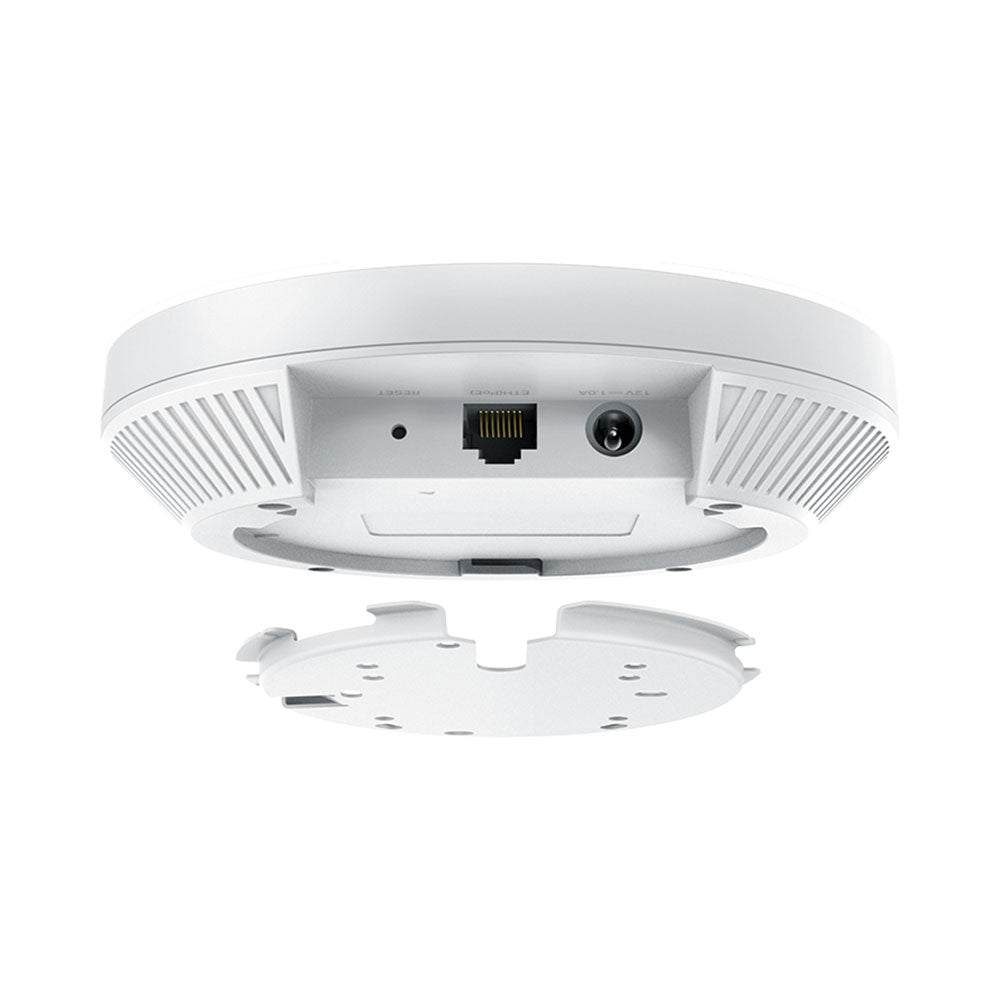

| Mounting |
Ceiling /Wall Mounting (Kits included) |
| Junction Box Mounting |
| WIRELESS FEATURES |
| Wireless Client Capacity |
250+ |
| Wireless Standards |
IEEE 802.11ax/ac/n/g/b/a |
| Frequency |
2.4GHz and 5.0GHz |
| Signal Rate |
5.0GHz: Up to 1201Mbps |
| 2.4GHz: Up to 574Mbps19 |
| Wireless Functions |
1024-QAM |
| 4× Longer OFDM Symbol |
| OFDMA |
| Multiple SSIDs (Up to 16× SSIDs, 8× for each band) |
| Enable/Disable Wireless Radio |
| Automatic Channel Assignment |
| Transmit Power Control (Adjust Transmit Power on dBm) |
| QoS (WMM) |
| MU-MIMO |
| Seamless Roaming |
| Omada Mesh |
| Band Steering |
| Load Balance |
| Airtime Fairness |
| Beamforming |
| Rate Limit |
| Reboot Schedule |
| Wireless Schedule |
| Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
Captive Portal Authentication |
| Access Control |
| Wireless Mac Address Filtering |
| Wireless Isolation Between Clients |
| SSID to VLAN Mapping |
| Rogue AP Detection |
| 802.1X Support |
| WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power |
CE: |
| <20 dBm (2.4GHz, EIRP) |
| <23 dBm (5.0GHz band1/2, EIRP) <25 dBm (5.0GHz band3) |
| |
| FCC: |
| <25 dBm (2.4GHz) |
| <25 dBm (5.0GHz) |
| MANAGEMENT |
| Omada App |
Yes |
| Centralized Management |
Omada Cloud-Based Controller |
| Omada Hardware Controller OC300 |
| Omada Hardware Controller OC200 |
| Omada Software Controller |
| Cloud Access |
Yes, through |
| OC300 |
| OC200 |
| Omada Software Controller |
| Omada Cloud-Based Controller |
| Email Alerts |
Yes |
| LED ON/OFF Control |
Yes |
| Management MAC Access Control |
Yes |
| SNMP |
v1, v2c, v3 |
| System Logging Local/Remote Syslog |
Local/Remote Syslog |
| SSH |
Yes |
| Web-based Management |
HTTP/HTTPS |
| L3 Management |
Yes |
| Multi-site Management |
Yes |
| Management VLAN |
Yes |
| Zero-Touch Provisioning |
Yes. Requiring the use of Omada Cloud-Based Controller |
| OTHERS |
| Certification |
CE, FCC, RoHS |
| Package Contents |
EAP613 |
| Ceiling/ Wall Mounting Kits |
| Installation Guide |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment |
Operating Temperature: 0~40°C |
| Storage Temperature: -40~70°C |
| Operating Humidity: 10–90% RH non-condensing |
| Storage Humidity: 5–90% RH non-condensing |
